2022 ACURA ILX sensor

551
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the multi-information display will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery termi nals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 184
•The clock resets.
2 Clock P. 110
Charging the Battery
Disconnect both battery cables to prevent damaging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Battery
22 ACURA ILX-31TX66900.book 551 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

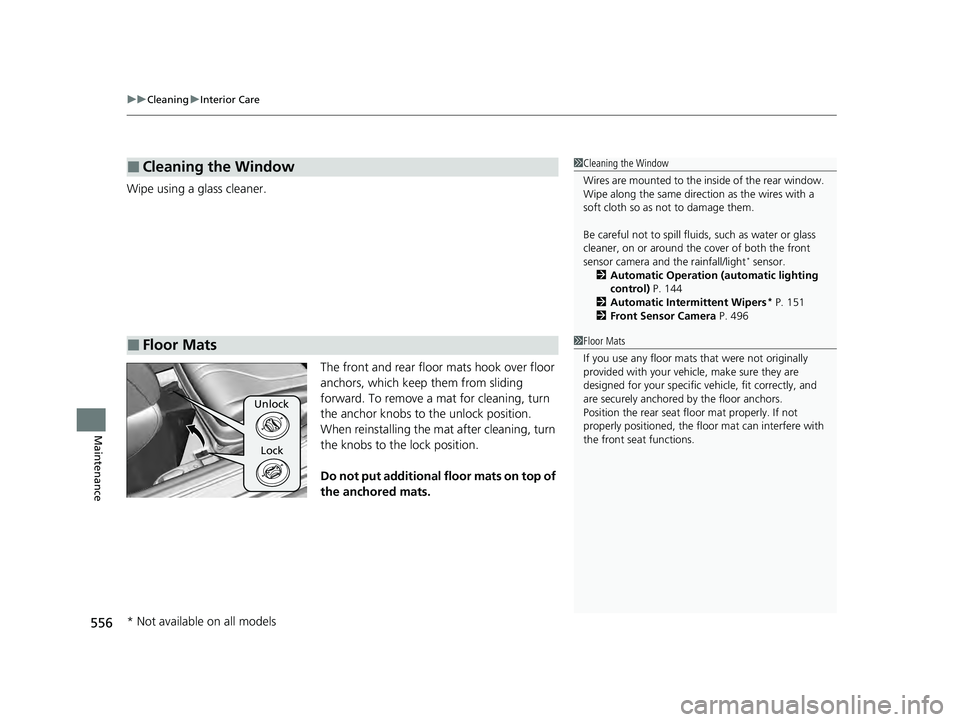

uuCleaning uInterior Care
556
Maintenance
Wipe using a glass cleaner.
The front and rear floor mats hook over floor
anchors, which keep them from sliding
forward. To remove a mat for cleaning, turn
the anchor knobs to the unlock position.
When reinstalling the mat after cleaning, turn
the knobs to the lock position.
Do not put additional floor mats on top of
the anchored mats.
■Cleaning the Window
■Floor Mats
1 Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill fluids, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light
* sensor.
2 Automatic Operation (automatic lighting
control) P. 144
2 Automatic Intermittent Wipers
* P. 151
2 Front Sensor Camera P. 496
1Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Position the rear seat fl oor mat properly. If not
properly positioned, the fl oor mat can interfere with
the front seat functions.
Unlock
Lock
* Not available on all models
22 ACURA ILX-31TX66900.book 556 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

565Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface and apply the parking
brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.
•The tire sealant has expired.
•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).
•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.
•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture isYKit Use
Smaller than 3/16 inch (4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
22 ACURA ILX-31TX66900.book 565 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

580
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possibl e to have the full-size tire repaired or
replaced.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
Models with a compact spare tire
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
Do not mount the compact spare on the front. If
mounted on the front, the compact spare, smaller in
size than the full-size tire, may damage the
differential.
If either front tire goes flat, remove the rear tire on
the same side, and mount the compact spare on the
rear and the rear tire on the front.
22 ACURA ILX-31TX66900.book 580 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

uuIf a Tire Goes Flat uChanging a Flat Tire
586
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. Afte r driving for a few miles (kilometers), Tire
Pressure Monitor Problem will appear on the multi-information display and the
indicator will start blinking for a short time a nd then stay on; however, this is normal
and is no cause for concern.
If you replace the tire with a specified regular tire, the warning message on the
multi-information display and the low tire pr essure/TPMS indicator will go off after
a few miles (kilometers).
■TPMS and the Compact Spare Tire1 TPMS and the Compact Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific wheels. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the tire valve stem.
22 ACURA ILX-31TX66900.book 586 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

Index
621
Index
Index
A
AAC................................................... 239, 264
ABS (Anti-lock Brake System) .................. 501
Accessories and Modifications ................ 561
Accessory Power Sockets ......................... 173
AcuraLink ................................................. 416
AcuraWatch
TM.................................... 22, 452
Adaptive Cruise Control (ACC) .......... 80, 466
Additives Coolant .................................................. 531
Engine Oil ............................................... 526
Washer ................................................... 534
Additives, Engine Oil ............................... 526
Adjusting
Armrest .................................................. 167
Front Seats.............................................. 158
Head Restraints ....................................... 162
Mirrors.................................................... 156
Rear Seat ................................................ 166
Steering Wheel ....................................... 153
Temperature ............................................. 96
Air Conditioning System (Climate Control
System) .................................................... 175
Changing the Mode................................ 175
Defrosting the Windshield and
Windows .............................................. 176
Maintenance........................................... 554
Recirculation/Fresh Air Mode................... 175
Sensors ................................................... 178
Synchronization Mode ............................ 177
Using Automatic Climate Control............ 175 Air Pressure
....................................... 543, 607
Airbags ........................................................ 41
Advanced Airbags ..................................... 47
After a Collision ......................................... 44
Airbag Care ............................................... 55
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator .............................................. 52, 76
Passenger Airbag Off Indicator .................. 53
Sensors ...................................................... 41
Side Airbags .............................................. 49
Side Curtain Airbags .................................. 51
AM/FM Radio .................................... 194, 225
Android Auto ............................................ 275
Anti-lock Brake System (ABS) .................. 501
Indicator .................................................... 75
Apple CarPlay ........................................... 270
Armrest ..................................................... 167
Audio Remote Controls ............................ 185
Audio System ............................................ 180
Adjusting the Sound ........................ 192, 220
Auxiliary Input Jack .................................. 183
Bluetooth ® Audio ............................ 208, 267
CD .................................................. 196, 239
Display Setup ................................... 193, 221
Error Messages ........................................ 280
General Information ................................ 291
HDD ........................................................ 242
iPhone ............................................. 262, 294
iPod ................................................. 199, 255
MP3/WMA/AAC ...................... 205, 239, 264 Pandora
®....................................... 202, 262
Reactivating ............................................ 184
Recommended CDs ................................. 292
Recommended Devices............................ 294
Security Code .......................................... 184
Siri Eyes Free ........................................... 269
SiriusXM ® Radio ...................................... 228
Song By VoiceTM (SBV) ............................. 258
Theft Protection ...................................... 184
USB Adapter Cable.................................. 181
USB Flash Drives ...................... 205, 264, 295
USB Port.................................................. 182
Audio/Information Screen ....................... 188
Authorized Manuals ................................ 616
Auto Door Locking/Unlocking ................. 127
Customize ....................................... 105, 329
Auto High-Beam ....................................... 147
Automatic Lighting .................................. 144
Auxiliary Input Jack .................................. 183
Average Fuel Economy .............................. 96
Average Speed ........................................... 97
B
Battery...................................................... 551
Charging System Indicator................. 74, 596
If the Battery Is Dead ............................... 590
Maintenance (Checki ng the Battery) ........ 551
Maintenance (Replacing) ......................... 552
Belts (Seat) .................................................. 34
Beverage Holders ..................................... 172
22 ACURA ILX-31TX66900.book 621 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

622
Index
Blind spot information System................ 445
Bluetooth ® Audio ............................. 208, 267
Bluetooth ® HandsFreeLink ®........... 345, 374
Booster Seats (For Children) ....................... 68
Brake System ............................................. 499
Anti-lock Brake System (ABS) ................... 501
Brake Assist System ................................. 502
Fluid ........................................................ 534
Foot Brake ............................................... 500
Indicator ............................................ 72, 598
Parking Brake .......................................... 499
Brake System (Amber) Indicator .................................................... 72
Brightness Control (Instrument Panel) .... 152
Built-in Key ................................................ 113
Bulb Replacement ..................................... 535
Back-Up Light .......................................... 538
Fog Lights ................................................ 535
Front Turn Signal, Parking/Daytime
Running and Front Side Marker Lights.... 535
Headlights ............................................... 535
High-Mount Brake Light .......................... 539
Rear License Plate Light............................ 539
Rear Turn Signal Light .............................. 536
Taillights, Brake and Rear Side Marker
Lights..................................................... 536
Bulb Specifications .................................... 606
C
Carbon Monoxide Gas ................................ 69 Carrying Cargo
................................. 427, 429
CD Player ........................................... 196, 239
Center Pocket ........................................... 171
Certification Label .................................... 608
Changing Bulbs ........................................ 535
Charging System Indicator ................. 74, 596
Child Safety ................................................. 56
Childproof Door Locks............................. 126
Child Seat .................................................... 56
Booster Seats ............................................ 68
Child Seat for Infants................................. 58
Child Seat for Small Children ..................... 59
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 63
Larger Children ......................................... 67
Rear-facing Child Seat ............................... 58
Selecting a Child Seat ................................ 60
Using a Tether ........................................... 65
Childproof Door Locks ............................. 126
Cleaning the Exterior ............................... 558
Cleaning the Interior ................................ 555
Client Service Information ....................... 617
Climate Control System ............................ 175
Changing the Mode ................................ 175
Defrosting the Windshield and
Windows ............................................... 176
Maintenance ........................................... 554
Recirculation/Fresh Air Mode ................... 175
Sensors ................................................... 178
Using Automatic Climate Control ............ 175
Clock .......................................................... 110 CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 455
Coat Hook ................................................ 173
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 455
Compact Spare Tire .......................... 580, 607
Compass ...................................................... 97
Console Compartment ............................. 170
Controls .................................................... 109
Coolant (Engine) ...................................... 531
Adding to the Radiator ........................... 532
Adding to the Reserve Tank .................... 531
Overheating ............................................ 594
Creeping ................................................... 438
Cross Traffic Monitor ............................... 505
Cup Holders .............................................. 172
Customized Features ................. 99, 310, 316
D
Daytime Running Lights .......................... 146
Dead Battery ............................................ 590
Defrosting the Windshield and Windows ................................................. 176
Devices that Emit Radio Waves ............... 609
Dimming Headlights .............................................. 143
Rearview Mirror ...................................... 156
Dipstick (Engine Oil) ................................ 527
Directional Signals (Turn Signal) ............. 142
Door Mirrors ............................................. 157
22 ACURA ILX-31TX66900.book 622 ページ ２０２１年４月２６日　月曜日　午前１１時２７分

623
Index
Doors........................................................ 112
Auto Door Locking.................................. 127
Auto Door Unlocking .............................. 127
Door Open Indicator ................................. 33
Door Open Message ................................. 87
Keys........................................................ 112
Locking/Unlocking the Doors from the Inside .................................................... 124
Locking/Unlocking the Doors from the Outside ................................................. 115
Lockout Prevention System ..................... 122
DOT Tire Quality Grading ........................ 545
Driving ...................................................... 425
Braking ................................................... 499
Dual Clutch Transmission ........................ 438
Shifting Gear .......................................... 439
Starting the Engine ................................. 432
Driving Position Memory System ............ 154
Dual Clutch Transmission ........................ 438
Creeping................................................. 438
Fluid ............................................... 533, 607
Kickdown ............................................... 438
Operating the Shift Lever .................. 20, 439
Shift Lever Does Not Move ...................... 593
Shifting ................................................... 439
E
Elapsed Time .............................................. 97
Electric Power Steering System (EPS)
Indicator ........................................... 76, 598 Electronic Stability Control (ESC)
............. 443
Emergency ................................................ 603
Emissions Testing (Readiness Codes) ....... 611
Engine ....................................................... 608
Coolant ................................................... 531
If the Battery Is Dead ............................... 590
Oil ........................................................... 526
Remote Engine Start ................................ 434
Starting ................................................... 432
Switch Buzzer .......................................... 139
Engine Coolant ......................................... 531
Adding to the Radiator ............................ 532
Adding to the Reserve Tank ..................... 531
Overheating ............................................ 594
Temperature Gauge .................................. 92
Engine Oil ................................................. 526
Adding .................................................... 528
Checking ................................................. 527
Displaying Oil Life .................................... 520
Low Oil Pressure Indicator .................. 73, 596
Recommended Engine Oil ........................ 526
ENGINE START/STOP Button .................... 139
EPS (Electric Power Steering) System ............................................... 76, 598
Exhaust Gas Hazard (Carbon Monoxide) .. 69
Exterior Care (Cleaning) ........................... 558
Exterior Mirrors ........................................ 157F
Features..................................................... 179 Filters
Oil ........................................................... 529
Flat Tire ..................................................... 565
Floor Mats ................................................. 556
Fluids
Brake ...................................................... 534
Dual Clutch Transmission ........................ 533
Engine Coolant ....................................... 531
Windshield Washer ................................. 534
Fog Light Indicator ..................................... 78
Folding Down the Rear Seat .................... 166
Foot Brake ................................................ 500
Front Airbags (SRS) ..................................... 44
Front Seats ................................................ 158
Adjusting ................................................ 158
Front Sensor Camera ................................ 496
Fuel ...................................................... 21, 510
Fuel Economy and CO
2 Emissions ............ 513
Gauge ....................................................... 92
Instant Fuel Economy ................................ 97
Low Fuel Indicator ..................................... 75
Range ....................................................... 97
Recommendation .................................... 510
Refueling................................................. 510
Fuel Economy and CO
2 Emissions ............ 513
Fuel Fill Cap ........................................ 21, 511
Message.................................................. 597
Fuel Fill Door ...................................... 21, 511
Fuses .......................................................... 600
Inspecting and Changing......................... 602
Locations......................................... 600, 601
22 ACURA ILX-31TX66900.book 623 ページ ２０２１年４月２６日　月曜日　午前１１時２７分
