2021 YAMAHA XSR 125 Owners Manual

Motorcycle care and stora ge
7-4
7
1. Make all necessary repairs and
perform any outstanding mainte-
nance.
2. Follow all instructions in the Care section of this chapter.
3. Fill up the fuel tank, adding fuel stabilizer according to product in-
structions. Run the engine for 5
minutes to distribute treated fuel
through the fuel system.
4. For vehicles equipped with a fuel cock: Turn the fuel cock lever to
the off position.
5. For vehicles with a carburetor: To prevent fuel deposits from build-
ing up, drain the fuel in the carbu-
retor float chamber into a clean
container. Retighten the drain bolt
and pour the fuel back into the fuel
tank.
6. Use a quality engine fogging oil according to product instructions
to protect internal engine compo-
nents from corrosion. If engine
fogging oil is not available, per-
form the following steps for each
cylinder:a. Remove the spark plug cap and spark plug. b. Pour a teaspoonful of engine
oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder wall with oil.)
WARNING! To prevent dam-
a g e or injury from sparkin g,
make sure to groun d the
spark plu g electro des while
turnin g the en gine over.
[EWA10952]
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap.
7. Lubricate all control cables, piv- ots, levers and pedals, as well as
the sidestand and centerstand (if
equipped).
8. Check and correct the tire air pressure, and then lift the vehicle
so that all wheels are off the
ground. Otherwise, turn the wheels a little once a month in or-
der to prevent the tires from be-
coming degraded in one spot.
9. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
10. Remove the battery and fully char- ge it, or attach a maintenance
charger to keep the battery opti-
mally charged. NOTICE: Confirm
that the battery an d its char ger
are compati ble. Do not char ge a
VRLA battery with a convention-
al char ger.
[ECA26330]
TIP If the battery will be removed,
charge it once a month and store
it in a temperate location between
0-30 °C (32-90 °F).
 See page 6-30 for more informa-
tion on charging and storing the
battery.
UBFGE0E0.book Page 4 Friday, April 9, 2021 9:25 AM

Specifications
8-1
8
Dimensions:Overall length:2005 mm (78.9 in)
Overall width:
805 mm (31.7 in)
Overall height: 1090 mm (42.9 in)
Seat height: 815 mm (32.1 in)
Wheelbase:
1330 mm (52.4 in)
Ground clearance: 145 mm (5.71 in)
Minimum turning radius: 2.3 m (7.55 ft)Wei ght:Curb weight:
139 kg (307 lb)Engine:Combustion cycle:
4-stroke
Cooling system: Liquid cooled
Valve train: SOHC
Number of cylinders:
Single cylinder
Displacement: 124 cm³
Bore × stroke:
52.0 × 58.6 mm (2.05 × 2.31 in)
Starting system:
Electric starter
Engine oil:Recommended brand:
SAE viscosity grades:
10W-40
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity: Oil change: 0.85 L (0.90 US qt, 0.75 Imp.qt)
With oil filter removal: 0.95 L (1.00 US qt, 0.84 Imp.qt)Coolant quantity:Coolant reservoir (up to the maximum level
mark):
0.15 L (0.16 US qt, 0.13 Imp.qt)
Radiator (including all routes): 0.49 L (0.52 US qt, 0.43 Imp.qt)Fuel:Recommended fuel:
Unleaded gasoline (E10 acceptable)
Octane number (RON): 95
Fuel tank capacity: 10 L (2.6 US gal, 2.2 Imp.gal)
Fuel reserve amount:
3.0 L (0.79 US gal, 0.66 Imp.gal)
Fuel injection:Throttle body:ID mark: BK71 00Drivetrain:Gear ratio:
1st:2.833 (34/12)
2nd:
1.875 (30/16)
3rd: 1.364 (30/22)
4th: 1.143 (24/21)
5th:
0.957 (22/23)
6th: 0.840 (21/25)Front tire:Type:
Tubeless
Size: 110/70-17 M/C 54S
Manufacturer/model: IRC/TRAIL WINNER GP-211FRear tire:Type:Tubeless
Size: 140/70-17 M/C 66S
Manufacturer/model:
IRC/TRAIL WINNER GP-211R
UBFGE0E0.book Page 1 Friday, April 9, 2021 9:25 AM

Specifications
8-2
8
Loadin g:Maximum load:
190 kg (420 lb)
(Total weight of rider, passenger, cargo and
accessories)Front brake:Type:
Hydraulic single disc brakeRear brake:Type:
Hydraulic single disc brakeFront suspension:Type:
Telescopic forkRear suspension:Type:Swingarm (link suspension)Electrical system:System voltage:12 VBattery:Model:
GTZ4V
Voltage, capacity: 12 V, 3.0 Ah (10 HR)Bul b watta ge:Headlight:
LED
Brake/tail light: LED
Front turn signal light: 10.0 W
Rear turn signal light:
10.0 W Auxiliary light:
LED
License plate light: 5.0 W
UBFGE0E0.book Page 2 Friday, April 9, 2021 9:25 AM

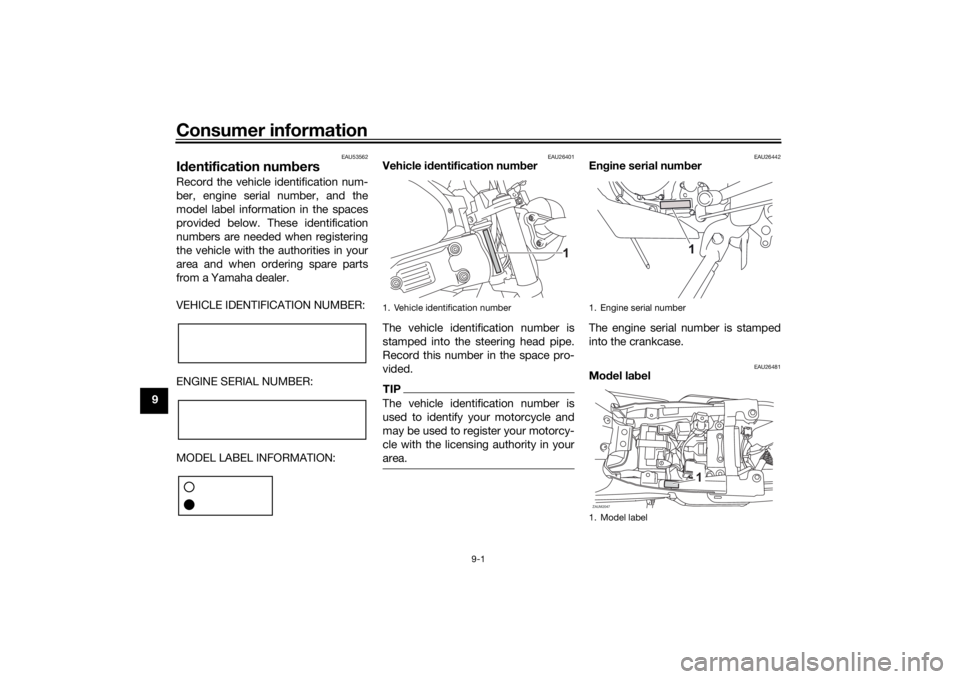

Consumer information
9-1
9
EAU53562
Id entification num bersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle i dentification num ber
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26442
En gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU26481
Mo del la bel
1. Vehicle identification number
1. Engine serial number
1. Model labelZAUM2047
1
UBFGE0E0.book Page 1 Friday, April 9, 2021 9:25 AM

Consumer information
9-2
9
The model label is affixed to the frame
under the seat. (See page 3-16.) Re-
cord the information on this label in the
space provided. This information will
be needed when ordering spare parts
from a Yamaha dealer.
EAU69910
Dia
gnostic connectorThe diagnostic connector is located as
shown.
EAU85300
Vehicle data recor din gThis model’s ECU stores certain vehi-
cle data to assist in the diagnosis of
malfunctions and for research, statisti-
cal analysis and development purpos-
es.
Although the sensors and recorded
data will vary by model, the main data
points are:
 Vehicle status and engine perfor-
mance data
 Fuel-injection and emission-relat-
ed data
This data will be uploaded only when a
special Yamaha diagnostic tool is at-
tached to the vehicle, such as when
maintenance checks or service proce-
dures are performed.
Vehicle data uploaded will be handled
appropriately according to the follow-
ing Privacy Policy.
Privacy Policy
1. Diagnostic connectorZAUM2048
1
https://www.yamaha-motor.eu/eu/
en/privacy/privacy-policy/
UBFGE0E0.book Page 2 Friday, April 9, 2021 9:25 AM

Consumer information
9-3
9Yamaha will not disclose this data to a
third party except in the following cas-
es. In addition, Yamaha may provide
vehicle data to a contractor in order to
outsource services related to the han-
dling of vehicle data. Even in this case,
Yamaha will require the contractor to properly handle the vehicle data we
provided and Yamaha will appropriate-
ly manage the data.  With the consent of the vehicle
owner
 Where obligated by law
 For use by Yamaha in litigation
 When the data is not related to an
individual vehicle nor owner
UBFGE0E0.book Page 3 Friday, April 9, 2021 9:25 AM

10-1
10
Index
AABS....................................................... 3-12
ABS warning light ................................... 3-3
Air filter element and check hose,
replacing and cleaning ....................... 6-14BBattery .................................................. 6-30
Brake and clutch levers, checking and lubricating........................................... 6-27
Brake and shift pedals, checking and lubricating........................................... 6-26
Brake fluid, changing............................ 6-23
Brake fluid level, checking.................... 6-22
Brake lever............................................ 3-11
Brake light switches ............................. 6-21
Brake pedal .......................................... 3-11
Brake pedal free play, adjusting ........... 6-20CCables, checking and lubricating ......... 6-25
Canister .................................................. 6-9
Care ........................................................ 7-1
Catalytic converter ............................... 3-16
Clock ...................................................... 3-7
Clutch lever........................................... 3-10
Clutch lever free play, adjusting ........... 6-18
Coolant ................................................. 6-13
Coolant temperature warning light ......... 3-2
Cowlings, removing and installing.......... 6-8DData recording, vehicle........................... 9-2
Diagnostic connector ............................. 9-2
Dimmer switch...................................... 3-10
Display units, switching .......................... 3-4
Drive chain, cleaning and lubricating ... 6-25 Drive chain slack .................................. 6-23
EEngine break-in ...................................... 5-1
Engine idling speed.............................. 6-15
Engine oil and oil filter element ............ 6-10
Engine overheating .............................. 6-36
Engine serial number ............................. 9-1FFront and rear brake pads, checking ... 6-21
Front brake lever free play, checking ... 6-19
Front fork, checking ............................. 6-28
Fuel ...................................................... 3-13
Fuel consumption, tips for reducing ...... 5-4
Fuel meter .............................................. 3-5
Fuel tank breather hose and overflow
hose ................................................... 3-15
Fuel tank cap........................................ 3-13
Fuses, replacing ................................... 6-31HHandlebar switches ............................... 3-9
Helmet holder....................................... 3-17
High beam indicator light ....................... 3-2
Horn switch .......................................... 3-10IIdentification numbers ........................... 9-1
Ignition circuit cut-off system .............. 3-18
Indicator lights and warning lights ......... 3-2LLicense plate light bulb, replacing ....... 6-33MMain switch/steering lock ...................... 3-1
Maintenance and lubrication, periodic... 6-4
Maintenance, emission control system ................................................. 6-3 Malfunction indicator light (MIL) ............. 3-3
Matte color, caution................................ 7-1
Model label ............................................. 9-1
Multi-function display ............................. 3-6
Multi-function meter unit ........................ 3-4
NNeutral indicator light ............................. 3-2PParking.................................................... 5-4
Part locations.......................................... 2-1
Pass switch........................................... 3-10RRear suspension, lubricating ................ 6-28SSafety information................................... 1-1
Seat....................................................... 3-16
Shifting.................................................... 5-3
Shift pedal............................................. 3-11
Sidestand.............................................. 3-17
Sidestand, checking and lubricating .... 6-27
Spark plug, checking .............................. 6-8
Specifications ......................................... 8-1
Speedometer .......................................... 3-4
Start/Engine stop switch ...................... 3-10
Starting the engine ................................. 5-2
Steering, checking ................................ 6-29
Storage ................................................... 7-3
Supporting the motorcycle ................... 6-33
Swingarm pivots, lubricating ................ 6-28TTachometer............................................. 3-5
Throttle grip and cable, checking and
lubricating ........................................... 6-26
Throttle grip free play, adjusting ........... 6-15
UBFGE0E0.book Page 1 Friday, April 9, 2021 9:25 AM

Index
10-2
10
Tires ...................................................... 6-16
Tool kit .................................................... 6-2
Transmission gear display ...................... 3-6
Troubleshooting .................................... 6-33
Troubleshooting chart........................... 6-35
Turn signal indicator light ....................... 3-2
Turn signal light bulb, replacing............ 6-32
Turn signal switch ................................. 3-10VValve clearance..................................... 6-16
Vehicle identification number ................. 9-1
Vehicle lights ......................................... 6-32
VVA indicator .......................................... 3-5WWheel bearings, checking..................... 6-29
Wheels .................................................. 6-18YYamalube .............................................. 6-12
UBFGE0E0.book Page 2 Friday, April 9, 2021 9:25 AM
