2021 YAMAHA TT-R110E check engine

Table of contents
Location of important la bels ........... 1-1
Safety information ............................ 2-1
Description ....................................... 3-1
Left view ......................................... 3-1
Right view ....................................... 3-2
Controls and instruments ............... 3-3
Instrument an d control functions ... 4-1
Main switch .................................... 4-1
Handlebar switches ........................ 4-1
Shift pedal ...................................... 4-2
Brake lever...................................... 4-2
Brake pedal .................................... 4-3
Fuel tank cap .................................. 4-3
Fuel ................................................. 4-4
Fuel tank breather hose.................. 4-5
Fuel cock ........................................ 4-6
Starter (choke) lever ...................... 4-7
Kickstarter ..................................... 4-7
Seat ................................................ 4-8
Shock absorber assembly .............. 4-8
Sidestand ....................................... 4-9
Starting circuit cut-off system ........ 4-9
For your safety – pre-operation
checks ............................................... 5-1
Operation an d important ri din g
points ................................................ 6-1
Starting and warming up a cold
engine ......................................... 6-1
Starting a warm engine .................. 6-2
Shifting ........................................... 6-2
Engine break-in .............................. 6-3
Parking ........................................... 6-4
Perio dic maintenance an d
a d justment ........................................ 7-1
Owner’s tool kit .............................. 7-2
Periodic maintenance chart for the
emission control system ............. 7-3
General maintenance and lubrication chart .......................... 7-4
Removing and installing panels...... 7-6 Checking the spark plug ................. 7-7
Engine oil......................................... 7-8
Cleaning the air filter element ....... 7-10
Cleaning the spark arrester ........... 7-12
Adjusting the carburetor ............... 7-13
Adjusting the engine idling
speed ......................................... 7-14
Checking the throttle grip free
play ............................................ 7-15
Valve clearance ............................. 7-15
Tires .............................................. 7-16
Spoke wheels ................................ 7-17
Adjusting the clutch free play........ 7-18
Adjusting the brake lever free play ............................................ 7-18
Adjusting the brake pedal free play ............................................ 7-19
Checking the shift pedal ............... 7-20
Checking the front and rear brake shoes ......................................... 7-20
Drive chain slack ........................... 7-21
Cleaning and lubricating the drive chain ................................. 7-22
Checking and lubricating the cables ........................................ 7-23
Checking and lubricating the
throttle grip and cable ............... 7-23
Checking and lubricating the brake lever ................................. 7-24
Checking and lubricating the brake pedal ................................ 7-24
Checking and lubricating the
sidestand ................................... 7-25
Lubricating the swingarm pivots ... 7-25
Checking the front fork ................. 7-26
Checking the steering ................... 7-26
Checking the wheel bearings ........ 7-27
Battery........................................... 7-27
Replacing the fuse ........................ 7-29
Supporting the motorcycle ........... 7-29
Front wheel ................................... 7-30
Rear wheel .................................... 7-31
Troubleshooting ............................ 7-33
Troubleshooting chart ................... 7-34
UB5186E0.book Page 1 Wednesday, April 22, 2020 9:11 AM

Safety information
2-3
2
ventilated areas. If you experience any
symptoms of carbon monoxide poi-
soning, leave the area immediately, get
fresh air, and SEEK MEDICAL TREAT-
MENT.
 Do not run engine indoors. Even if
you try to ventilate engine exhaust
with fans or open windows and
doors, carbon monoxide can rap-
idly reach dangerous levels.
 Do not run engine in poorly venti-
lated or partially enclosed areas
such as barns, garages, or car-
ports.
 Do not run engine outdoors where
engine exhaust can be drawn into
a building through openings such
as windows and doors.
Loa din g
Adding accessories to your motorcycle
can adversely affect stability and han-
dling if the weight distribution of the
motorcycle is changed. To avoid the
possibility of an accident, use extreme
caution when adding accessories to
your motorcycle. Use extra care when
riding a motorcycle that has added ac-
cessories. Here are some general
guidelines to follow if adding accesso-
ries to your motorcycle:
Operation of an overload ed vehicle
coul d cause an acci dent.
 The weight of the operator must
not exceed 60.0 kg (132 lb).
 Accessory weight should be kept
as low and close to the motorcy-
cle as possible. Securely pack
your heaviest items as close to the
center of the vehicle as possible
and make sure to distribute the weight as evenly as possible on
both sides of the motorcycle to
minimize imbalance or instability.
 Shifting weights can create a sud-
den imbalance. Make sure that
accessories are securely attached
to the motorcycle before riding.
Check accessory mounts fre-
quently.
• Properly adjust the suspension for your load (suspension-ad-
justable models only), and
check the condition and pres-
sure of your tires.
• Never attach any large or heavy items to the handlebar, front
fork, or front fender.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail- able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection
to Yamaha manufacture parts and ac-
cessories or offer other modifications
for Yamaha vehicles. Yamaha is not in
a position to test the products that
these aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
UB5186E0.book Page 3 Wednesday, April 22, 2020 9:11 AM

Safety information
2-4
2Aftermarket Parts, Accessories, an
d
Mo difications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket
products or having other modifications
performed to your vehicle that change
any of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or
death. You are responsible for injuries
related to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.  Never install accessories that
would impair the performance of
your motorcycle. Carefully inspect
the accessory before using it to
make sure that it does not in any
way reduce ground clearance or
cornering clearance, limit suspen-
sion travel, steering travel or con-
trol operation.
• Accessories fitted to the han- dlebar or the front fork area can
create instability due to improp-
er weight distribution. If acces-
sories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may seriously affect the stability of
the motorcycle. Wind may at- tempt to lift the motorcycle, or
the motorcycle may become
unstable in cross winds.
• Certain accessories can dis- place the operator from his or
her normal riding position. This
improper position limits the
freedom of movement of the
operator and may limit control
ability, therefore, such accesso-
ries are not recommended.
 Use caution when adding electri-
cal accessories. If electrical ac-
cessories exceed the capacity of
the motorcycle’s electrical sys-
tem, an electric failure could re-
sult, which could cause a
dangerous loss of lights or engine
power.
Aftermarket Tires an d Rims
The tires and rims that came with your
motorcycle were designed to match
the performance capabilities and to
provide the best combination of han-
dling, braking, and comfort. Other
tires, rims, sizes, and combinations
may not be appropriate. Refer to page
7-16 for tire specifications and more in-
formation on replacing your tires.
Transportin g the Motorcycle
Be sure to observe following instruc-
tions before transporting the motorcy-
cle in another vehicle.  Remove all loose items from the
motorcycle.
 Check that the fuel cock (if
equipped) is in the “OFF” position
and that there are no fuel leaks.
UB5186E0.book Page 4 Wednesday, April 22, 2020 9:11 AM

Instrument and control functions
4-9
4
EAU37491
Si destan d
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the vehicle upright.
WARNING
EWA14191
The vehicle must not be ri dden with
the si destan d d own, or if the si de-
stan d cannot b e properly move d up
(or does not stay up), otherwise the
si destan d coul d contact the g round
an d d istract the operator, resultin g
in a possi ble loss of control.
EAU68810
Startin g circuit cut-off system
The starting circuit cut-off system pre-
vents starting when the transmission is
in gear.
Periodically check the operation of the
starting circuit cut-off system accord-
ing to the following procedure.
TIP
This check is most reliable if performed
with a warmed-up engine.
UB5186E0.book Page 9 Wednesday, April 22, 2020 9:11 AM

Instrument and control functions
4-10
4

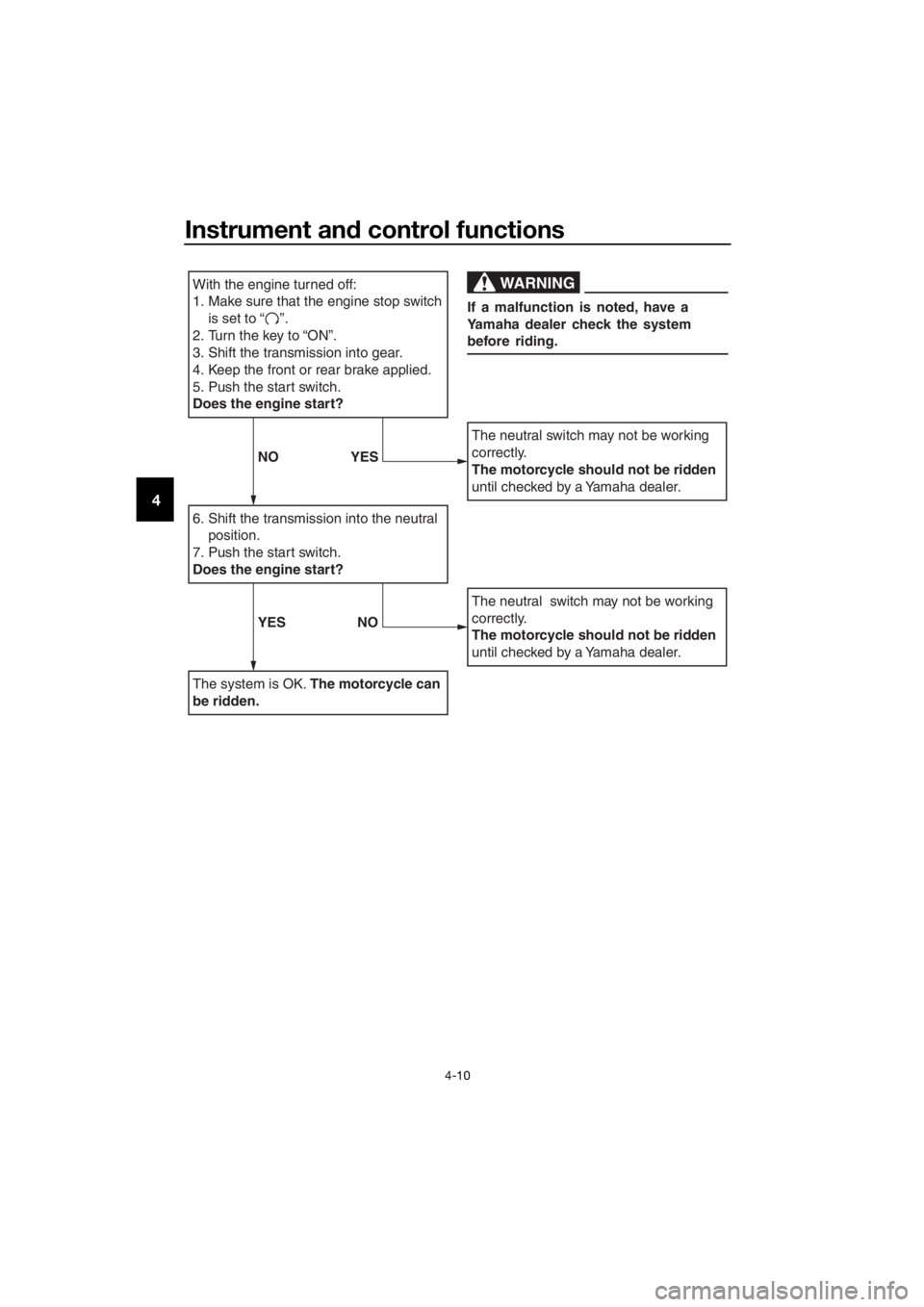

With the engine turned off:
1. Make sure that the engine stop switch
is set to “ ”.
2.
Turn the key to “ON”.
3. Shift the transmission into gear.
5. Push the start switch. 4. Keep the front or rear brake applied.
Does the engine start?
6. Shift the transmission into the neutral position.
7. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can
be ridden.
The neutral switch may not be working
correctly.
The motorcycle should not be ridden
until checked by a Yamaha dealer.
The neutral switch may not be working
correctly.
The motorcycle should not be ridden
until checked by a Yamaha dealer.
WARNING
If a malfunction is noted, have a
Yamaha dealer check the system
before riding.
NO YES
YES NO
UB5186E0.book Page 10 Wednesday, April 22, 2020 9:11 AM

For your safety – pre-operation checks
5-1
5
EAU63440
Inspect your vehicle each time you use it to make sure the vehicle is in safe oper-
ating condition. Always follow the inspection and maintenance procedures and
schedules described in the Owner’s Manual.
WARNING
EWA11152
Failure to inspect or maintain the vehicle properly increases the possibility
of an acci dent or equipment d amage. Do not operate the vehicle if you fin d
any prob lem. If a pro blem cannot be corrected b y the proce dures provi ded
in this manual, have the vehicle inspecte d b y a Yamaha d ealer.
Before using this vehicle, check the following points:
ITEM CHECKSPAGE
Fuel • Check fuel level in fuel tank.
• Refuel if necessary.
• Check fuel line for leakage.
• Check fuel tank breather hose for obstructions, cracks
or damage, and check hose connection. 4-4, 4-5
En gine oil • Check oil level in engine.
• If necessary, add recommended oil to specified level.
• Check vehicle for oil leakage. 7-8
Front brake • Check operation.
• Lubricate cable if necessary.
• Check lever free play.
• Adjust if necessary. 7-18,
7-20
Rear brake • Check operation.
• Check pedal free play.
• Adjust if necessary. 7-19,
7-20
Throttle g rip • Make sure that operation is smooth.
• Check throttle grip free play.
• If necessary, have Yamaha dealer adjust throttle grip
free play and lubricate cable and grip housing. 7-15,
7-23
Control ca bles • Make sure that operation is smooth.
• Lubricate if necessary. 7-23
Drive chain • Check chain slack.
• Adjust if necessary.
• Check chain condition.
• Lubricate if necessary. 7-21,
7-22
Wheels an d tires •Check for damage.
• Check tire condition and tread depth.
• Check air pressure.
• Correct if necessary. 7-16,
7-17
Shift ped al • Make sure that operation is smooth.
• Correct if necessary. 7-20
Brake ped al • Make sure that operation is smooth.
• Lubricate pedal pivoting point if necessary.
7-24
UB5186E0.book Page 1 Wednesday, April 22, 2020 9:11 AM

Operation and important ri din g points
6-3
6
sion, an
d d rive train, which are
not desi gne d to withstand the
shock of shiftin g when the
throttle grip is open.
EAU39912To start out an d accelerate
1. Close the throttle.
2. Shift into first gear and release the shift pedal. NOTICE: Always
close the throttle before shiftin g
g ears, otherwise damag e to the
en gine an d d rive train may re-
sult.
[ECA15462]
3. Open the throttle gradually.
4. Once the motorcycle has reached a speed high enough to change
gears, close the throttle.
5. Shift into second gear and release the shift pedal.
6. Open the throttle gradually.
7. Follow the same procedure when shifting to the next higher gear.
EAU16711To decelerate
1. Close the throttle and apply both the front and the rear brakes to
slow the motorcycle.
2. Downshift through the gears and shift the transmission into the neu-
tral position when the motorcycle
is almost completely stopped.
EAU39921
Engine break-in
There is never a more important period
in the life of your engine than the first 5
hours of riding. It is also important to
accustom the rider to the motorcycle
during this time. Please read the fol-
lowing information carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
5 hours of operation. The various parts
in the engine wear and polish them-
selves to the correct operating clear-
ances. During this period, prolonged
full-throttle operation or any condition
that might result in engine overheating
must be avoided. However, momen-
tary full-throttle operation under load
(i.e., two to three seconds maximum)
does not harm the engine. Each full-
throttle acceleration should be fol-
lowed with a substantial rest period for
the engine. To allow the engine to cool
down from the temporary buildup of
heat, cruise at a lower engine speed.
After the first 5 hours of operation,
thoroughly check the motorcycle for
loose parts, oil leakage and any other
problems. Be sure to inspect and make
adjustments thoroughly, especially ca-
ble and drive chain slack and loose
spokes. In addition, check all fittings
and fasteners for looseness, and tight-
en if necessary.
NOTICE
ECA10271
If any en gine trou ble shoul d occur
d urin g the en gine break-in perio d,
imme diately have a Yamaha dealer
check the vehicle.
UB5186E0.book Page 3 Wednesday, April 22, 2020 9:11 AM

Periodic maintenance an d a djustment
7-3
7
EAU69172
Perio dic maintenance chart for the emission control system
TIP
 From 7000 km (4200 mi) or 18 months, repeat the maintenance intervals
starting from 3000 km (1800 mi) or 6 months.
 Items marked with an asterisk should be performed by a Yamaha dealer as
they require special tools, data and technical skills.
No. ITEM 13 5
0.6 1.8 3 16 12
30 90 150
1 *Fuel line • Check fuel hoses for cracks or
damage.
• Replace if necessary. √√
2Spark plu g• Check condition.
• Adjust gap and clean.
√√
3 *Valve clearance • Check and adjust valve clear-
ance when engine is cold. √
4 Air filter element • Clean with solvent.
• Replace if necessary.
√√
5 *Crankcase
breather
system • Check ventilation hose for
cracks or damage and drain
any deposits.
• Replace if necessary. √√ √
6 *Car buretor • Check engine idling speed and
starter operation.
• Adjust if necessary. √√ √
7 Exhaust system • Check for leakage.
• Tighten if necessary.
• Replace gasket(s) if necessary. √√
8 *Spark arrester • Clean. √
9En gine oil • Change (warm engine before
draining). √√ √X 1000 km
X 1000 mi month
CHECKS AND
MAINTENANCE JOBS
hours
INITIALODOMETER READINGS
UB5186E0.book Page 3 Wednesday, April 22, 2020 9:11 AM
