Smart key system
3-2
3
NOTICE
ECA15764
The smart key system uses weak ra-
dio waves. The smart key system
may not work in the followin g situa-
tions.  The smart key is placed in a lo-
cation exposed to strong ra dio
waves or other electroma gnetic
noise
 There are facilities near by that
are emittin g stron g ra dio waves
(TV or ra dio towers, power
plants, broa dcastin g stations,
airports, etc.) 
You are carryin g or usin g com-
munication equipment such as
ra dios or mo bile phones in
close proximity of the smart key
 The smart key is in contact with
or covere d b y a metallic o bject
 Other vehicles equippe d with a
smart key system are near by
In such situations, move the smart
key to another location an d perform
the operation ag ain. If it still does
not work, use the mechanical key to
carry out the operation in emer gen-
cy mo de. (See pag e 8-39.)
EAU77214
Operating ran ge of the smart
key systemThe operating range of the smart key
system is about 80 cm (31.5 in) from
the center of the handlebars.
1. “ / ” switch
2. “OFF/LOCK” switch1 2
UB3TE1E0.book Page 2 Friday, September 11, 2020 8:48 AM

Instrument and control functions
5-1
5
EAU77490

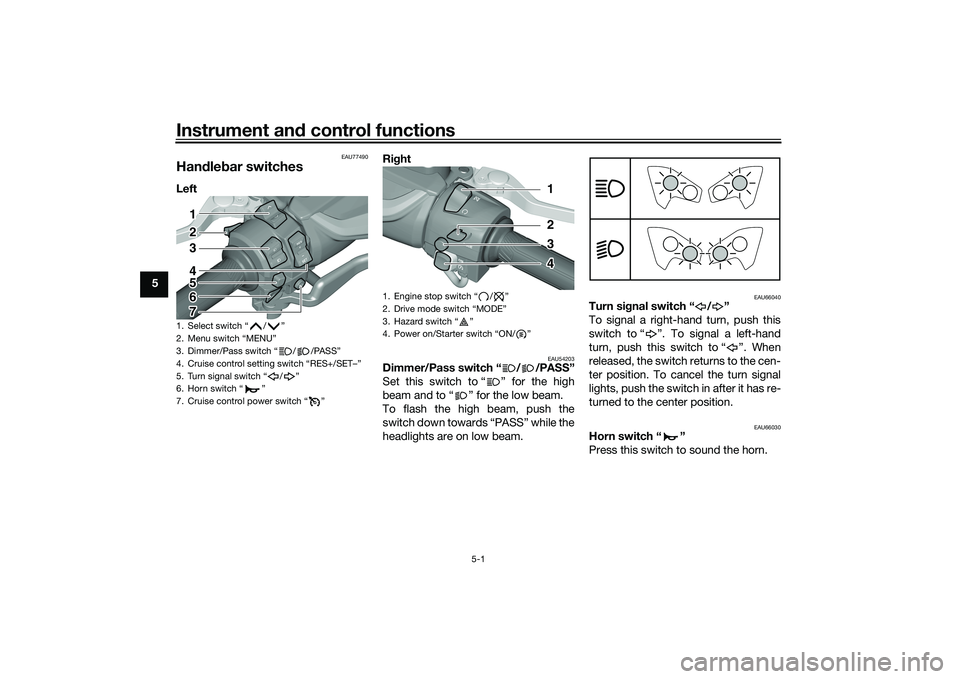

Han dle bar switchesLeft Ri
ght
EAU54203
Dimmer/Pass switch “ / /PASS”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
To flash the high beam, push the
switch down towards “PASS” while the
headlights are on low beam.
EAU66040
Turn si gnal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU66030
Horn switch “ ”
Press this switch to sound the horn.
1. Select switch “ / ”
2. Menu switch “MENU”
3. Dimmer/Pass switch “ / /PASS”
4. Cruise control setting switch “RES+/SET–”
5. Turn signal switch “ / ”
6. Horn switch “ ”
7. Cruise control power switch “ ”
1
2
3
4
5
6
7
1. Engine stop switch / Ž
2.
3. Hazard switch Ž
4. Ž
1
2
3
4
UB3TE1E0.book Page 1 Friday, September 11, 2020 8:48 AM

Instrument and control functions
5-17
5
TIPThe odometer, clock, maintenance
counter item “Oil” and maintenance
counter item “V-Belt” will not be reset.To exit the setting mode1. Use the select switch to highlight
“Return”. 2. Push the “MENU” switch to exit
the setting mode and return to the
standard display mode.
EAU44916
Front brake leverThe front brake lever is located on the
right side of the handlebar. To apply
the front brake, pull this lever toward
the throttle grip.
The front brake lever is equipped with
a brake lever position adjusting dial. To
adjust the distance between the front
brake lever and the throttle grip, push
the brake lever away from the throttle
grip and rotate the adjusting dial. Make
sure the setting number on the adjust-
ing dial aligns with the match mark on
the brake lever.1. Front brake lever
2. Distance
3. Match mark
4. Brake lever position adjusting dial
1
3
4
2
UB3TE1E0.book Page 17 Friday, September 11, 2020 8:48 AM

Instrument and control functions
5-18
5
EAU44926
Rear brake leverThe rear brake lever is located at the
left handlebar grip. To apply the rear
brake, pull this lever toward the han-
dlebar grip.
The rear brake lever is equipped with a
brake lever position adjusting dial. To
adjust the distance between the rear
brake lever and the handlebar grip,
push the brake lever away from the
handlebar grip and rotate the adjusting
dial. Make sure the setting number on
the adjusting dial aligns with the match
mark on the brake lever.
EAU63230
Rear brake lock leverThis vehicle is equipped with a rear
brake lock lever to prevent the rear
wheel from moving while stopped at
traffic signals, railroad crossings, etc.
To lock the rear wheel
Push the rear brake lock lever to the
left until it snaps into place.
To unlock the rear wheel
Push the rear brake lock lever back to
the original position.
TIPBe sure to check that the rear wheel
does not move when the rear brake
lock lever is applied.
WARNING
EWA12362
Never move the rear b rake lock lever
to the left while the vehicle is mov-
in g, otherwise loss of control or an
acci dent may result. Make sure that
the vehicle is stopped b efore mov-
in g the rear brake lock lever to the
left.
1. Rear brake lever
2. Distance
3. Match mark
4. Brake lever position adjusting dial
5
4321
1
3
2
4
1. Rear brake lock lever
1
