2021 YAMAHA TMAX key

Smart key system
3-12
3To close the fuel tank cap li d
Push the lid to the original position.
To open the front storag e compart-
ment li d
With the smart key on and in operating
range, briefly press the “ / ” switch.
Upon authentication of the smart key,
the beeper will sound twice. 1. Press the button on the center of the front storage compartment lid. 2. Open the front storage compart-
ment as shown.
To close the front storag e compart-
ment li d
Push the lid into the original position.
1. Fuel tank cap lid
1
1. Button
1. Lid
1
1
1. Lid1
UB3TE1E0.book Page 12 Friday, September 11, 2020 8:48 AM

Smart key system
3-13
3
EAU80842
Parking mo deThe steering is locked, and the hazard
lights and turn signal lights can be
turned on, but all other electrical sys-
tems are off.
To enter parkin g mo de
1. Lock the steering. (See page 3-9.)
2. Press the “ / ” switch for one second.TIPIf the steering lock has not been ap-
plied, the beeper will sound for 3 sec-
onds (the smart key system indicator
light will also flash) and the vehicle will
not enter parking mode.3. Upon authentification of the smartkey, the beeper will sound twice
and the vehicle will enter parking
mode. The smart key system indi-
cator light will come on.TIPThe seat, fuel tank cap lid, and the front
storage compartment cannot be
opened while in parking mode.
NOTICE
ECA20760
Usin g the hazar d or turn sig nal lights
for an exten ded len gth of time may
cause the b attery to discharge.To exit parkin g mo de
Press the “ / ” switch. Upon au-
thentication of the smart key, the beep-
er will sound once and the smart key
system indicator light will go off.
UB3TE1E0.book Page 13 Friday, September 11, 2020 8:48 AM

Instrument and control functions
5-2
5
EAU77450
En gine stop switch “ / ”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU77291
Power on/Starter switch “ON/ ”
With the smart key turned on and with-
in range, press this switch to turn on
the power to the vehicle. Then with the
sidestand up and while applying the
front or rear brake, push this switch to
crank the engine with the starter. See
page 7-2 for starting instructions prior
to starting the engine.
EAU79601
Hazar d switch “ ”
With the vehicle power is on or in park-
ing mode, use this switch to turn on the
hazard lights (simultaneous flashing of
all turn signal lights).
The hazard lights are used in case of an
emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
NOTICE
ECA10062
Do not use the hazar d lig hts for an
exten ded len gth of time with the en-
g ine not runnin g, otherwise the bat-
tery may d ischarge.
EAU73952
Cruise control switches
See page 4-1 for an explanation of the
cruise control system.
EAU77301
Menu switch “MENU”
This switch is used to make setting
changes within the multi-function dis-
play. (See page 5-5.)
EAU77311
Select switch “ / ”
This switch is used to make setting
changes within the multi-function dis-
play. (See page 5-5.)
EAU73931
Drive mo de switch “MODE”
See page 4-3 for an explanation of the
drive mode.
EAU77123
In dicator li ghts an d warnin g
lig hts
EAU88680
Turn si gnal in dicator li ghts “ ”
an d“”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.1. High beam indicator light “ ”
2. Traction control system indicator light “ ”
3. Turn signal indicator lights “ ” and “ ”
4. Smart key system indicator light “ ”
5. ABS warning light “ ”
6. Malfunction indicator light “ ”
7. Cruise control indicator lights
1 2 4 5 6
3
7
12
45 6
3
7
UB3TE1E0.book Page 2 Friday, September 11, 2020 8:48 AM

Instrument and control functions
5-4
5
the anti-lock brake system may not
work correctly. Have a Yamaha dealer
check the vehicle as soon as possible.
WARNING
EWA16043
If the ABS warnin
g li ght does not
turn off after reachin g 10 km/h (6
mi/h), or if the warnin g lig ht comes
on while ri din g:
 Use extra caution to avoi d pos-
si ble wheel lock durin g emer-
g ency brakin g.
 Have a Yamaha dealer check
the vehicle as soon as possi ble.TIPThe ABS warning light may come on
when revving the engine with the
scooter on its centerstand, but this
does not indicate a malfunction.
EAU88700
Traction control system in dicator
lig ht “ ”
This indicator light will flash when trac-
tion control has engaged.
If the traction control system is turned
off, this indicator light will come on.
TIPWhen the vehicle is turned on, the light
should come on for a few seconds and
then go off. If the light does not come
on, or if the light remains on, have a
Yamaha dealer check the vehicle.
EAU78083
Smart key system in dicator
li g ht “ ”
This indicator light will flash when com-
munication between the vehicle and
smart key takes place and when cer-
tain smart key system operations are
carried out.
The indicator light may also flash when
there is an error in the smart key sys-
tem.TIPWhen the vehicle is turned on, the light
should come on for a few seconds and
then go off. If the light does not come
on, or if the light remains on, have a
Yamaha dealer check the vehicle.
EAU77131
Spee dometerThe speedometer shows the vehicle’s
traveling speed.
When the vehicle power is turned on,
the speedometer needle will sweep
across the speed range and return to
zero in order to test the electrical cir-
cuit.1. Speedometer
1 1 1
UB3TE1E0.book Page 4 Friday, September 11, 2020 8:48 AM

Instrument and control functions
5-23
5
EAU88752
Stora ge compartmentsFront stora ge compartment
To open the storage compartment,
press the button.
Open the lid as shown. To close the storage compartment,
push the lid into the original position.
TIPThis compartment has an electronic
lock. (See page 3-12.)Rear storag
e compartment
This storage compartment was de-
signed to hold one full-faced helmet or
two 3/4-faced helmets. NOTICE: The
shad ed area is not a storag e com-
partment. To prevent d amaging the
seat hin ges, do not place any items
in this area.
[ECA16092]
TIP Some helmets cannot be stored in
the rear storage compartment be-
cause of their size or shape.
 Do not leave the vehicle unattend-
ed with the seat open.
 Do not place the smart key inside
a storage compartment. It may get
locked inside and the smart key
system not operate normally.NOTICE
ECA15964
Do not leave the seat open for
an exten ded perio d of time, oth-
erwise the li ght may cause the
b attery to d ischarge.
1. Button
1. Lid
1
1
1. Lid1
1. Rear storage compartment
2. Shaded area
12
UB3TE1E0.book Page 23 Friday, September 11, 2020 8:48 AM

Operation and important rid ing points
7-2
7
EAU88770
Startin g the eng ineThe ignition circuit cut-off system will
enable starting when the sidestand is
up.
To start the engine1. With the smart key turned on, ap-
proach the vehicle.
2. Push the “ON/ ” switch and set the engine stop switch to the run
position.
Upon authentication of the smart
key, the beeper will sound twice
and the centerstand and steering
locks (if applied) will be released.
3. Confirm the indicator and warning light(s) come on for a few sec-
onds, and the go off. (See page
5-2.)TIPDo not start the engine if the mal-
function indicator light remains on.
 The ABS warning light should
come on and stay on until the ve-
hicle reaches a speed of 10 km/h
(6 mi/h).
NOTICE
ECA24110
If a warnin g or in dicator li ght does
not work as d escribed a bove, have a
Yamaha dealer check the vehicle.4. Close the throttle completely.
5. While applying the front or rear
brake, push the “ON/ ” switch.
6. Release the “ON/ ” switch when the engine starts, or after 5 sec-
onds. Wait 10 seconds before
pressing the switch again to allow
battery voltage to restore.NOTICE
ECA11043
For maximum en gine life, never ac-
celerate har d when the en gine is
col d!
EAU88780
TIPThis model is equipped with:
 a lean angle sensor. This sensor
stops the engine in case of a vehi-
cle turnover. If this happens, the
malfunction indicator light will
come on, but this is not a malfunc-
tion. Turn the vehicle power off
and then back on again to cancel
the indicator light. Failing to do so
will prevent the engine from start-
ing even though the engine will
crank when pushing the start
switch.
 an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. If the engine
stops, simply push the start
switch to restart the engine.
UB3TE1E0.book Page 2 Friday, September 11, 2020 8:48 AM

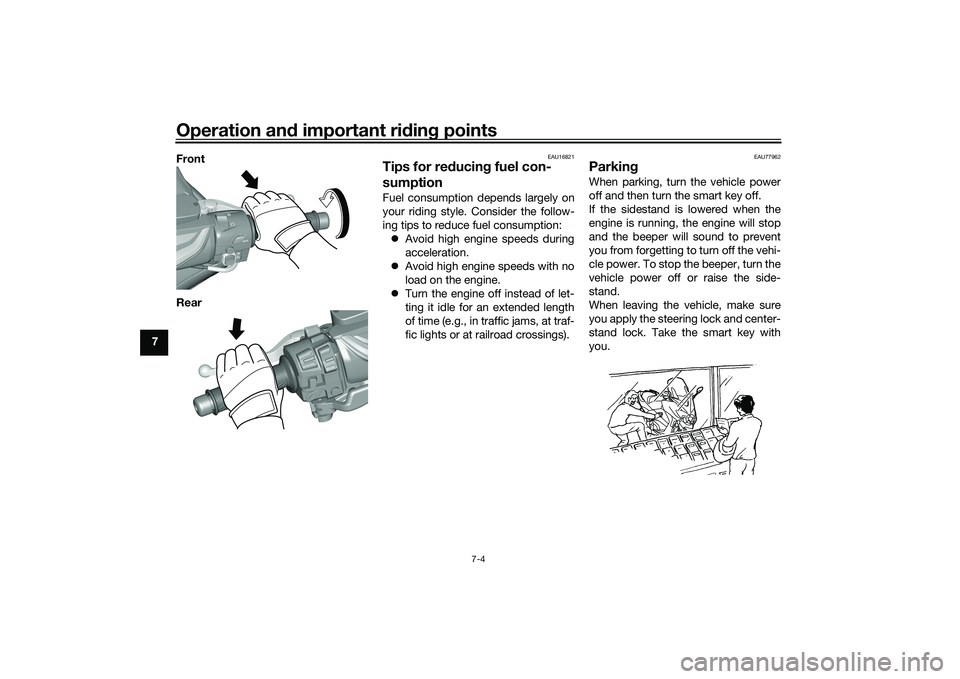

Operation and important rid ing points
7-4
7 Front
Rear
EAU16821
Tips for re
ducin g fuel con-
sumptionFuel consumption depends largely on
your riding style. Consider the follow-
ing tips to reduce fuel consumption:
 Avoid high engine speeds during
acceleration.
 Avoid high engine speeds with no
load on the engine.
 Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at traf-
fic lights or at railroad crossings).
EAU77962
Parkin gWhen parking, turn the vehicle power
off and then turn the smart key off.
If the sidestand is lowered when the
engine is running, the engine will stop
and the beeper will sound to prevent
you from forgetting to turn off the vehi-
cle power. To stop the beeper, turn the
vehicle power off or raise the side-
stand. When leaving the vehicle, make sure
you apply the steering lock and center-
stand lock. Take the smart key with
you.
UB3TE1E0.book Page 4 Friday, September 11, 2020 8:48 AM

Operation and important ri din g points
7-5
7
TIP After parking, if the smart key is
not turned off and is within operat-
ing range, other people may be
able to start the engine and oper-
ate the vehicle.
 The sidestand alarm beeper can
be set to not activate. Contact
your Yamaha dealer.
WARNING
EWA10312
Since the en gine an d exhaust
system can b ecome very hot,
park in a place where pe destri-
ans or chil dren are not likely to
touch them an d b e burne d. 
Do not park on a slope or on soft
groun d, otherwise the vehicle
may overturn, increasin g the
risk of a fuel leak an d fire.
 Do not park near grass or other
flamma ble materials which
mi ght catch fire.
