Page 3 of 116

Important manual information
EJU42739

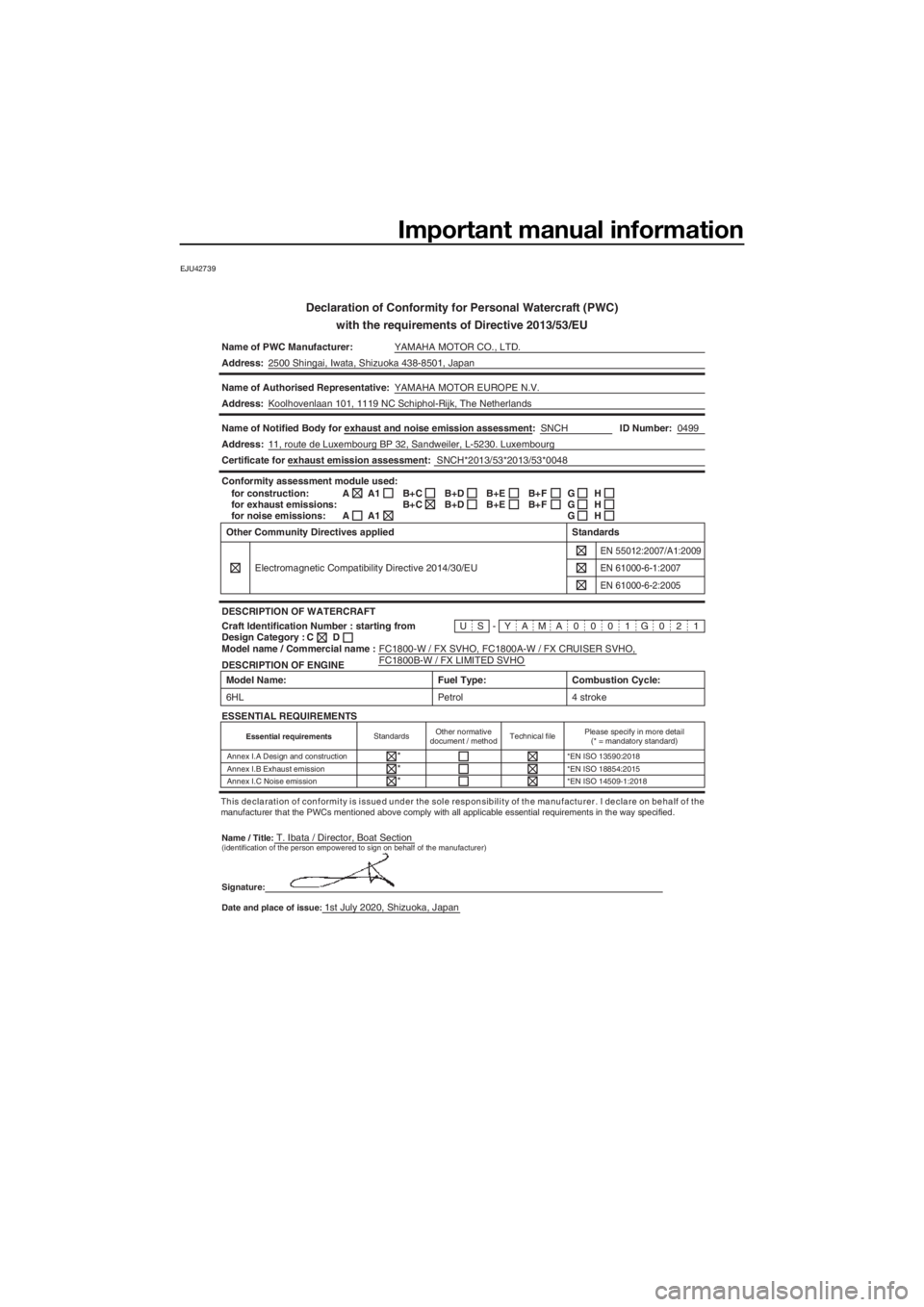

Declaration of Conformity for Personal Watercraft (PWC)
with the requirement s of Directive 2013/53/EU
Name of PWC Manufacturer: YAMAHA MOTOR CO., LTD.
Address: 2500 Shingai, Iwata, Shizuoka 438-8501, Japan
Name of Authorised Representative: YAMAHA MOTOR EUROPE N.V.
Address: Koolhovenlaan 101, 1119 NC Schiphol-Rijk, The Netherlands
Name of Notified Body for exhau st and noise emission assessment: SNCH
FC1800-W / FX SVHO, FC1800A-W / FX CRUISER SVHO,
FC1800B-W / FX LIMITED SVHO 0499
ID Number:
Address: 11, route de Luxembourg BP 32, Sandweiler, L-5230. Luxembourg
Certificate for exhau st emission assessment: SNCH*2013/53*2013/53*0048
US-YAMA0001G021
Conformity assessment module used:
for construction:
for exhaust emissions:
for noise emissions:
DESCRIPTION OF WATERCRAFT
DESCRIPTION OF ENGINE A
A
Craft Identification Number : starting from
Model name / Commercial name : C
Design Category : Other Community Directive
s applied
Electromagnetic Compatibility Directive 2014/30/EU
EN 55012:2007/A1:2009
Standards
EN 61000-6-2:2005
D
A1
A1B+C
B+CB+D
B+D B+E
B+EB+F
B+FG
G
GH
H
H
EN 61000-6-1:2007
Model Name:
6HL
Combustion Cycle:
4 stroke
Fuel Type:
Petrol
ESSENTIAL REQUIREMENTS
Essential requirements StandardsOther normative
document / method Technical filePlease specify in more detail
(* = mandatory standard)
Annex I.A Design and construction *EN ISO 13590:2018
Annex I.B Exhaust emission *EN ISO 18854:2015
Annex I.C Noise emission *EN ISO 14509-1:2018
*
* *
This declaration of conformity is issued under the sole responsibility of the manufacturer. I declare on behalf of the
manufacturer that the PWCs mentioned above comply with all applicable es\
sential requirements in the way specified.
Name / Title:
T. Ibata / Director, Boat Section(identification of the person empowered to sign on behalf of the manufa\
cturer)
Signature:
Date and place of issue:
1st July 2020, Shizuoka, Japan
UF3X72E0.book Page 1 Friday, May 29, 2020 10:09 AM
Page 64 of 116

Operation and handling requirements
57
EJU31823
Fuel requirementsEJU45240FuelEWJ00283
Gasoline and gasoline vapors are ex-
tremely flammable. To avoid fires and
explosions and to reduce the risk of in-
jury when refueling, follow these in-
structions.
Gasoline is poisonous and can cause in-
jury or death. Handle gasoline with care.
Never siphon gasoline by mouth. If you
should swallow some gasoline, inhale a
lot of gasoline vapor, or get some gaso-
line in your eyes, see your doctor imme-
diately. If gasoline spills on your skin,
wash with soap and water. If gasoline
spills on your clothing, change your
clothes.
ECJ01870
Do not use leaded gasoline. Leaded
gasoline can seriously damage the en-
gine.
Avoid getting water and contaminants in
the fuel tank. Contaminated fuel can
cause poor performance and engine
damage. Use only fresh gasoline that
has been stored in clean containers.
Use only gasoline with a minimum pump
octane number of 91 or a minimum re-
search octane number of 95. Low-oc-
tane gasoline can seriously damage the
engine.
Your Yamaha engine has been designed to
use premium unleaded gasoline with a pump
octane number [(R+M)/2] of 91 or higher, or a
research octane number of 95 or higher. Ifknocking (or pinging) occurs, use a gasoline
of a different brand.
TIP:
This mark identifies the recommended fuel
for this watercraft as specified by European
regulation (EN228).
Check that gasoline nozzle has the same
identifier when fueling.
Gasohol
There are two types of gasohol: gasohol con-
taining ethanol and that containing methanol.
Gasohol containing ethanol can be used if
ethanol content does not exceed 10% and
the fuel meets the minimum octane ratings.
E-85 is a fuel blend containing 85% ethanol
and therefore must not be used in this water-
craft. All ethanol blends containing more than
10% ethanol can cause fuel system damage
or engine performance problems.
Yamaha does not recommend gasohol con- taining methanol because it can cause fuel
system damage and engine performance
problems. Recommended fuel:
Premium unleaded gasoline with a
minimum octane rating of 91
(Pump octane number) = (R + M)/2
95 (Research octane number)
E5E10
UF3X72E0.book Page 57 Friday, May 29, 2020 10:09 AM
Page 103 of 116

Specifications
96
EJU45442
Specifications
Watercraft capacity:
Maximum people on board:3 person
Maximum load capacity: 240 kg (530 lb)
Dimensions and weight:
Length:
3.58 m (140.9 in)
Width: 1.27 m (50.0 in)
Height: 1.23 m (48.4 in)
Dry weight: 371 kg (818 lb) (FX SVHO)
372 kg (820 lb) (FX CRUISER SVHO)
373 kg (822 lb) (FX LIMITED SVHO)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):183.9 kW at 7500 r/min
Maximum fuel consumption: 80.7 L/h (21.3 US gal/h, 17.8 Imp.gal/h)
Cruising range at full throttle:
0.87 hour
Trolling speed: 1250 ±100 r/min
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Number of cylinders: 4
Engine displacement: 1812 cm³
Bore × stroke:
86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio: 8.5 : 1
Valve clearance-intake (cold): 0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold):
0.36–0.45 mm (0.0142–0.0177 in)
Lubrication system: Wet sump
Cooling system: Water
Starting system:
Electric Ignition system:
T.C.I.
Spark plug (NGK): LFR7A
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Battery capacity: 12 V, 18 Ah
Battery type: YTX20L-BS
Charging system:
Flywheel magneto
Drive unit:
Propulsion system:Jet pump
Jet pump type: Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle: 24+24 °
Jet thrust nozzle trim angle: -5, -3, 0, 3, 6 °
Fuel and oil:
Recommended fuel:Premium unleaded gasoline
Minimum octane rating (PON): 91
Minimum octane rating (RON):
95
Recommended engine oil: YAMALUBE 4W or 4-stroke motor oil
Recommended engine oil type SAE: SAE 10W-30, 10W-40, 20W-40, 20W-50
Recommended engine oil grade API:
API SG, SH, SJ, SL
Fuel tank total capacity: 70 L (18.5 US gal, 15.4 Imp.gal)
Engine oil quantity with oil filter replacement: 3.7 L (3.91 US qt, 3.26 Imp.qt)
Engine oil quantity without oil filter replacement:
3.5 L (3.70 US qt, 3.08 Imp.qt)
Engine oil total quantity: 5.3 L (5.60 US qt, 4.66 Imp.qt)
UF3X72E0.book Page 96 Friday, May 29, 2020 10:09 AM
