2021 TOYOTA PROACE EV airbag off

131
Safety
5
PROACE VERSO

Weight of the child/indicative age
SeatsUnder 13 kg (28 lb)(groups 0 (b) and 0+)Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb)(group 1)From about 1 to 3 years old
From 15 to 25 kg (from 34 to 56 lb)(group 2)From about 3 to 6 years old
From 22 to 36 kg (from 49 to 79 lb)(group 3)From about 6 to 10 years old
Row 1 (c)

Passenger seat (electric adjustments) with passenger airbag deactivated "OFF"
U
Passenger seat (electric adjustments) with passenger airbag activated "ON"
XUF
Row 2 (d) and 3 (d)

Outer seats and centre seat (e)U
U:Seat position suitable for the installation of a child seat secured using the seat belt and
universally approved for "rearward facing" and/or "forward facing" use.
UF:Seat position suitable for the installation a child seat secured using the seat belt and universally approved for "forward facing"
use.
X:Seat position not suitable for the installation of a child seat for the specified weight group.
(a)Universal child seat: child seat that can be installed in all vehicles using the seat belt.
(b)Group 0: from birth to 10 kg. Carrycots and "car" infant carriers cannot be installed on the front passenger seat(s) or the seats in row 3.

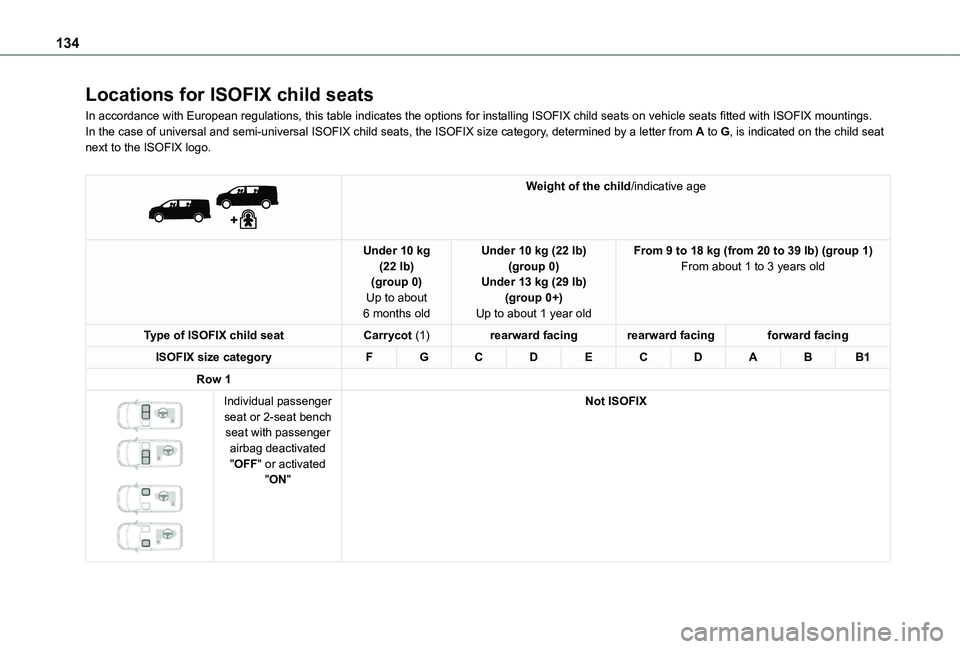

134
Locations for ISOFIX child seats
In accordance with European regulations, this table indicates the options for installing ISOFIX child seats on vehicle seats fitted with ISOFIX mountings.In the case of universal and semi-universal ISOFIX child seats, the ISOF\
IX size category, determined by a letter from A to G, is indicated on the child seat next to the ISOFIX logo.


Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)Up to about 6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)(group 0+)Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1
Row 1


Individual passenger seat or 2-seat bench seat with passenger airbag deactivated "OFF" or activated "ON"
Not ISOFIX

136
PROACE VAN

Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)Up to about 6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)(group 0+)Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1B2B3
Row 1 (a)

Individual passenger seat or 2-seat bench seat with passenger airbag deactivated "OFF" or activated "ON"
Not ISOFIX
Row 2

Outer seats and centre seat (b)XIL (3)IL (2)ILIL (2)IUF, IL

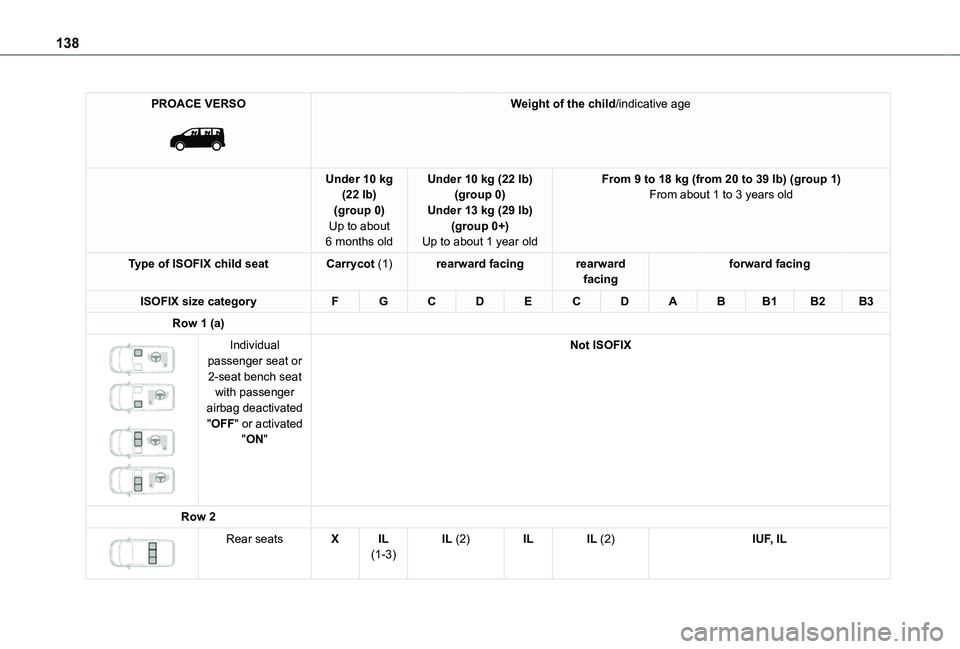

138
PROACE VERSO

Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)Up to about 6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)(group 0+)Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1B2B3
Row 1 (a)


Individual passenger seat or 2-seat bench seat with passenger airbag deactivated "OFF" or activated "ON"
Not ISOFIX
Row 2

Rear seatsXIL
(1-3)
IL (2)ILIL (2)IUF, IL

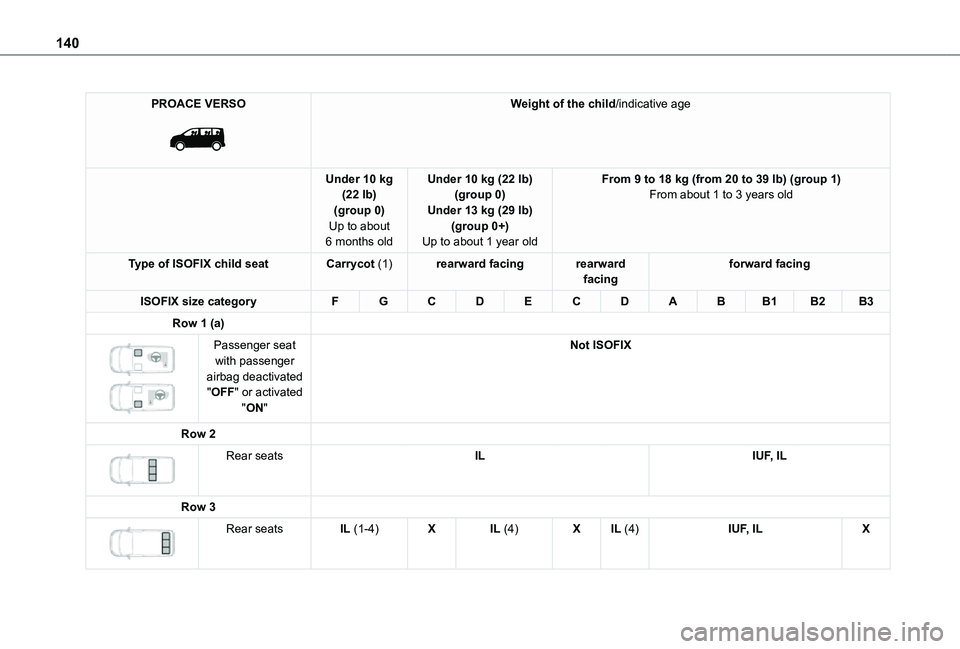

140
PROACE VERSO

Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)Up to about 6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)(group 0+)Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1B2B3
Row 1 (a)

Passenger seat with passenger airbag deactivated "OFF" or activated "ON"
Not ISOFIX
Row 2

Rear seatsILIUF, IL
Row 3

Rear seatsIL (1-4)XIL (4)XIL (4)IUF, ILX

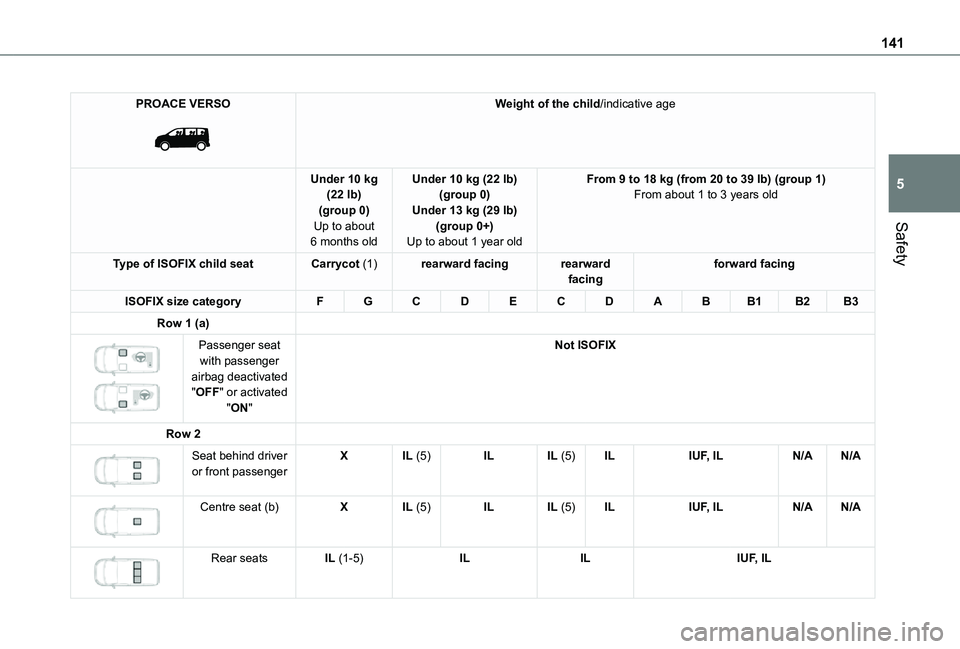

141
Safety
5
PROACE VERSO

Weight of the child/indicative age
Under 10 kg (22 lb)(group 0)Up to about 6 months old
Under 10 kg (22 lb)(group 0)Under 13 kg (29 lb)(group 0+)Up to about 1 year old
From 9 to 18 kg (from 20 to 39 lb) (group 1)From about 1 to 3 years old
Type of ISOFIX child seatCarrycot (1)rearward facingrearward facingforward facing
ISOFIX size categoryFGCDECDABB1B2B3
Row 1 (a)

Passenger seat with passenger airbag deactivated "OFF" or activated "ON"
Not ISOFIX
Row 2

Seat behind driver or front passengerXIL (5)ILIL (5)ILIUF, ILN/AN/A


Centre seat (b)XIL (5)ILIL (5)ILIUF, ILN/AN/A


Rear seatsIL (1-5)ILILIUF, IL

144
i-Size child seats
i-Size child seats have two latches that engage on the two rings A.These i-Size child seats also have:– either an upper strap that is attached to ring B.– or a support leg that rests on the vehicle floor, compatible with the approved i-Size seat position.Their role is to prevent the child seat from tipping forward in the even\
t of a collision.For more information on the ISOFIX and i-Size mountings, refer to the corresponding section.
Locations for i-Size child seats
In accordance with the new European regulations, this table indicates the options for installing i-Size child seats on seats in the vehicle fitted with i-Size approved ISOFIX mountings.
Seati-Size restraint system

Row 1 (a)


Passenger seat with passenger airbag deactivated "OFF" or activated "ON"
Not i-Size


Row 2
With 2-seat bench seat in row 1

Outer seatsNot i-Size
Centre seatNot i-Size
With individual seats in row 1

Outer seatsNot i-Size
Centre seatNot i-Size
