2021 TOYOTA PRIUS PRIME key

23
2. QUICK REFERENCE
PRIUS PRIME_Navi_OM47D79U_(U)
20.04.15 12:51
QUICK GUIDE
1No.FunctionPage
Select to change the selected language, operation sound, keyboard
layout settings, etc.72
Select to set the voice settings.75
Select to set Bluetooth® phones and Bluetooth® audio devices.58
*Select to set traffic information.265
Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous desti-
nations.
251
Select to set audio settings.121
Select to set vehicle information.76
Select to set the phone sound, cont acts, message settings, etc.184
*Select to set Entune App Suite settings.291
*Select to set data services settings.150
*: This function is not made avai lable in some countries or areas.

44
1. BASIC INFORMATION BEFORE OPERATION
PRIUS PRIME_Navi_OM47D79U_(U)
20.04.15 12:51
6. ENTERING LETTERS AND NUMBERS/LIST SCREEN OPERATION
Type A
 Type B
When searching by an address, name,
etc., or entering data, letters and num-
bers can be entered via the screen.
ENTERING LETTERS AND
NUMBERS
No.Function
Text field. Entered character(s) will
be displayed.
Select to enter des ired characters.
While typing, when there only one
available option for the next charac-
ter(s), the next character(s) will be
displayed in gray text in the text field
automatically. Gray text is entered by
selecting this button.
Select to erase one character.
Select to enter characters in lower
case or in upper case.
Select to display the alphabet keys.
Select to display other symbols.
Select to move the cursor.
Keyboard layout can be changed.
( P.72)

73
3. OTHER SETTINGS
PRIUS PRIME_Navi_OM47D79U_(U)
20.04.15 12:51
BASIC FUNCTION
2
*: This function is not made available insome countries or areas.
1Display the “General Settings” screen.
(P.72)
2Select “System Time” .
3Select the items to be set.
No.Function
Select to change the time zone and
set the daylight saving time on/off.
( P.73)
Select to change the language. The
language setting of Apple CarPlay
can only be changed on the con-
nected iPhone.
Select to change the unit of measure
for distance/fuel consumption.
Select to set the sound beeps on/off.
Select to set Apple CarPlay on/off.*
( P.74)
Select to set the beginning/ending
sound on/off.
Select to adjust the beginning/end-
ing sound volume.
Select to change the keyboard lay-
out.
Select to change the capacitive
touch switch sensor sensitivity. For
details about the capacitive touch
switch.: P.38
Select to delete personal data.
( P.74)
Select to update software versions.
For details, contact your Toyota
dealer.
Select to update Gracenote® data-
base versions. For details, contact
your Toyota dealer.
Select to display the software infor-
mation. Notices related to third party
software used in this product are en-
listed. (This includes instructions for
obtaining such software, where ap-
plicable.)
SYSTEM TIME SETTINGS
Used for changing time zones and the
on/off settings of daylight saving time.
No.Function
Select to change the time zone.
(  P.74)
Select to set dayli ght saving time on/
off.
Select to set automatic adjustment of
the clock by GPS on/off. When set to
on, the system will automatically ad-
just the clock to the current position’s
time zone when the vehicle moves to
a different time zone.

9
277
PRIUS PRIME_Navi_OM47D79U_(U)
20.03.26 18:38
1
2
3
4
5
6
7
9
8

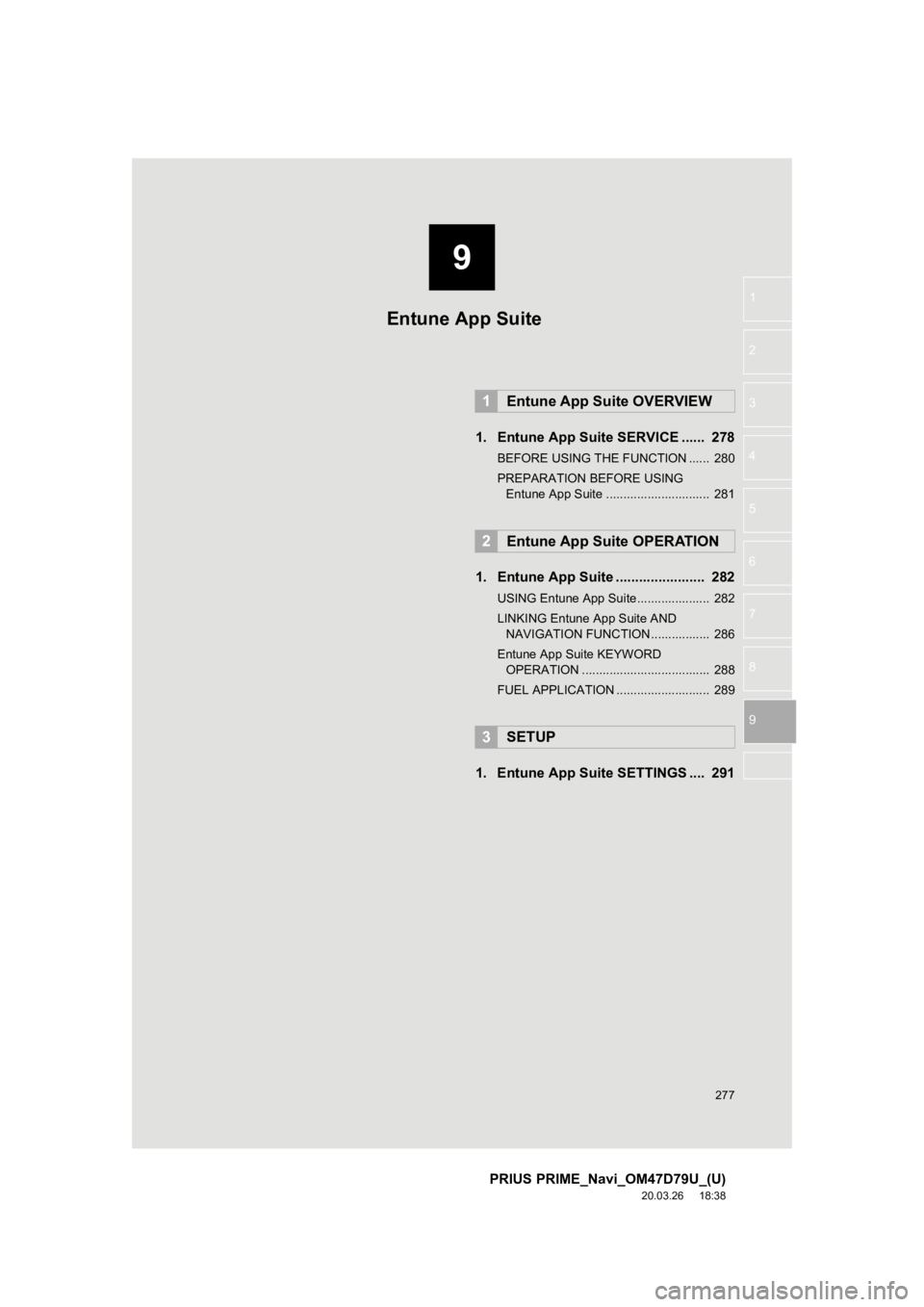

1. Entune App Suite SERVICE ...... 278
BEFORE USING THE FUNCTION ...... 280
PREPARATION BEFORE USING Entune App Suite .............................. 281
1. Entune App Suite ....................... 282
USING Entune App Suite..................... 282
LINKING Entune App Suite AND NAVIGATION FUNCTION ................. 286
Entune App Suite KEYWORD OPERATION ..................................... 288
FUEL APPLICATION ........................... 289
1. Entune App Suite SETTINGS .... 291
1Entune App Suite OVERVIEW
2Entune App Suite OPERATION
3SETUP
Entune App Suite

288
2. Entune App Suite OPERATION
PRIUS PRIME_Navi_OM47D79U_(U)
20.04.15 12:52
1Display the “Entune App Suite” screen.
(P.282)
2Select the desired application button.
3Select the character input space.
4Enter a search term, and then select
“OK”.
5Entering characters will be reflected on
the character input space.
Entune App Suite KEYWORD
OPERATION
Information can be entered to an appli-
cation by the software keyboard. For
details about the function and service
of each application, refer to
http://www.toyota.com/entune/
.
The keyboard layout can be changed.
( P. 7 2 )
USING THE SOFTWARE
KEYBOARD
For details on operating the keyboard:
P. 4 4

295
PRIUS PRIME_Navi_OM47D79U_(U)
20.04.15 12:52
Entune App Suite ............................ 277, 282Entune App Suite keyword operation.......................................... 288
Fuel application ................................... 289
Linking Entune App Suite and navigation function........................... 286
Using Entune App Suite ...................... 282
Entune App Suite operation .................... 282
Entune App Suite overview..................... 278
Entune App Suite service ....................... 278 Before using the function .................... 280
Preparation before using Entune App Suite ................................................ 281
Entune App Suite settings ...................... 291
F
Function index .......................................... 32
G
General settings........................................ 72
General settings screen ........................ 72
GPS (Global positioning system) ............ 272 Limitations of the navigation system ............ .......................... ....... 272
I
Information .............................................. 147
“Information” screen.................................. 24
Initial screen.............................................. 36
Internet radio........................................... 104
Listening to internet radio .................... 104
iPod......................................................... 10 9
iPod audio ........................................... 112
Overview ............................................. 109
L
Linking multi-information display and navigation system........ .......................... 50
M
Map database version and covered
area ..................................................... 275
About the map data ............................. 276
Map information................................... 275
Map screen ............................................... 16 Display areas......................................... 18
Status display ........................................ 20
Map screen information .......................... 213 Displaying information about the icon where the cursor is set ............. 218
Displaying map information ................. 213
Standard map icons ............................ 219
Map screen operation ............................. 207
Adjusting location in small increments ....................................... 212
Current position display ....................... 207
Map scale ............................................ 208
Orientation of the map ......................... 208
Screen scroll operation........................ 211
Switching the map mode ..................... 209
Media operation ...................................... 105
Memory points ........................................ 251
Memory points settings ........................... 251 Deleting previous destinations ............ 260
Setting up address book...................... 255
Setting up areas to avoid..................... 258
Setting up home .................................. 252
Setting up preset destinations ............. 253
Menu screen ............................................. 14
Mobile assistant ...................................... 144
Mobile assistant operation ...................... 144
