4495-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
5
Driving
In the following situations, the RSA system will notify the driver.
●When the vehicle speed exceeds the speed notification threshold of
the speed limit sign displayed, the sign display will be emphasized
and a buzzer will sound.
●When the RSA system recognizes a no-entry sign and detects that
the vehicle has entered a no-entry area based on the map informa-
tion of the navigation system, the no-entry sign flashes and a
buzzer will sound.(For vehicles with navigation system)
●If it is detected that your vehicle is overtaking when a no overtaking
sign is displayed on the multi-information display, the displayed sign
will flash and a buzzer will sound.
Depending on the situation, traffic environment (traffic direction,
speed unit) may be detected incorrectly and a notification function
may not operate properly.
■Setting procedure
P. 257
■Automatic turn-off of RSA sign display
One or more signs automatically turn off in the following situations.
●No sign has been recognized for a certain distance.
●The road changes due to a left or right turn, etc.
■Conditions in which the function may not operate or detect correctly
In the following situations, RSA does not operate normally and may not rec-
ognize signs, display the incorrect sign, etc. However, this does not indicate a
malfunction.
●The front camera is misaligned due to a strong impact being applied to the
sensor, etc.
●Dirt, snow, stickers, etc. are on the windshield near the front camera.
●In inclement weather such as heavy rain, fog, snow or sand storms
●Light from an oncoming vehicle, the sun, etc. enters the front camera.
●The sign is dirty, faded, tilted or bent.
●The contrast of electronic sign is low.
●All or part of the sign is hidden by the leaves of a tree, a pole, etc.
●The sign is only visible to the front camera for a short amount of time.
●The driving scene (turning, lane change, etc.) is judged incorrectly.
●If a sign not appropriate for the currently traveled lane, but the sign exists
directly after a freeway branches, or in an adjacent lane just before merging.
Notification function

5185-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
■Situations when the system may operate even though there is no possi-
bility of a collision
In the following situations, the system may operate even though there is no
possibility of a collision.
● Environmental influence
• The vehicle is driven toward a banner or flag, a low-hanging branch or a
boom barrier (such as those used at railroad crossings, toll gates and
parking lots).
• There is an obstacle on the shoulder of the road (when the vehicle is
driven in a narrow tunnel, on a narrow bridge or on a narrow road)
• The vehicle is being parallel parked
• There is a rut or hole in the surface of the road
• When the vehicle is driven on a metal cover (grating), such as those used
for drainage ditches
• The vehicle is driven on a steep slope
• The sensor is covered by water on a flooded road
● Influence from the weather
• Ice, snow, dirt, etc., has adhered to the sensor (if removed, the system
returns to normal)
• Heavy rain or water strikes the vehicle
• In severe weather such as fog, snow or a sand storm
● Influence from other sonic waves
• An ultrasonic wave source is nearby, such as the horn or parking assist-
sensors of another vehicle, a vehicle detector, a motorcycle engine or the
air brake of a large vehicle
• Electronic components (such as a backlit license plate (especially fluo-
rescent types), fog lights, a fender pole or a wireless antenna) are
installed near the sensors
• The vehicle is driven on a narrow
road
• The vehicle is driven on a gravel road
or in an area with tall grass

5205-5. Using the driving support systems
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
●Influence from other sonic waves
• An ultrasonic wave source is nearby, such as the horn or parking assist-
sensors of another vehicle, a vehicle detector, a motorcycle engine or the
air brake of a large vehicle
• Electronic components (such as a backlit license plate (especially fluo-
rescent types), fog lights, a fender pole or a wireless antenna) are
installed near the sensors
●Changes in the vehicle
• When driving with the shift position in N
• The vehicle is tilted a large amount
• The height of the vehicle has drastically changed due to the carried load
(the nose tilts up or down)
• The direction of the sensor has deviated due to a collision or other impact
■Parking Support Brake function while the Simple Intelligent Parking
Assist System is operating
P. 525
■When removing and installing the 12-volt battery
The system needs to be initialized.
The system can be initialized by driving the vehicle straight ahead for 5 sec-
onds or more at a speed of approximately 35 km/h (22 mph) or higher.
■When “PKSB Unavailable” is displayed on the multi-information display
and the PKSB OFF indicator flashes
●Ice, snow, dirt, etc., may have adhered to the sensor. If this occurs, remove
the ice, snow, dirt, etc., from the sensor to return the system to normal.
Also, a warning message may be displayed at low temperatures due to ice
forming on the sensor, and the sensor may not detect obstacles. Once the
ice melts, the system will return to normal.
●If this message is shown even after removing dirt from the sensor, or shown
when the sensor was not dirty to begin with, have the vehicle inspected at
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
●System initialization may not have been performed after removal and instal-
lation of the 12-volt battery. Perform system initialization.
■When “PKSB Malfunction Visit Your Dealer” is displayed on the multi-
information display, the PKSB OFF indicator flashes and the buzzer
sounds
The system may not be operating properly. Have the vehicle inspected at any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.

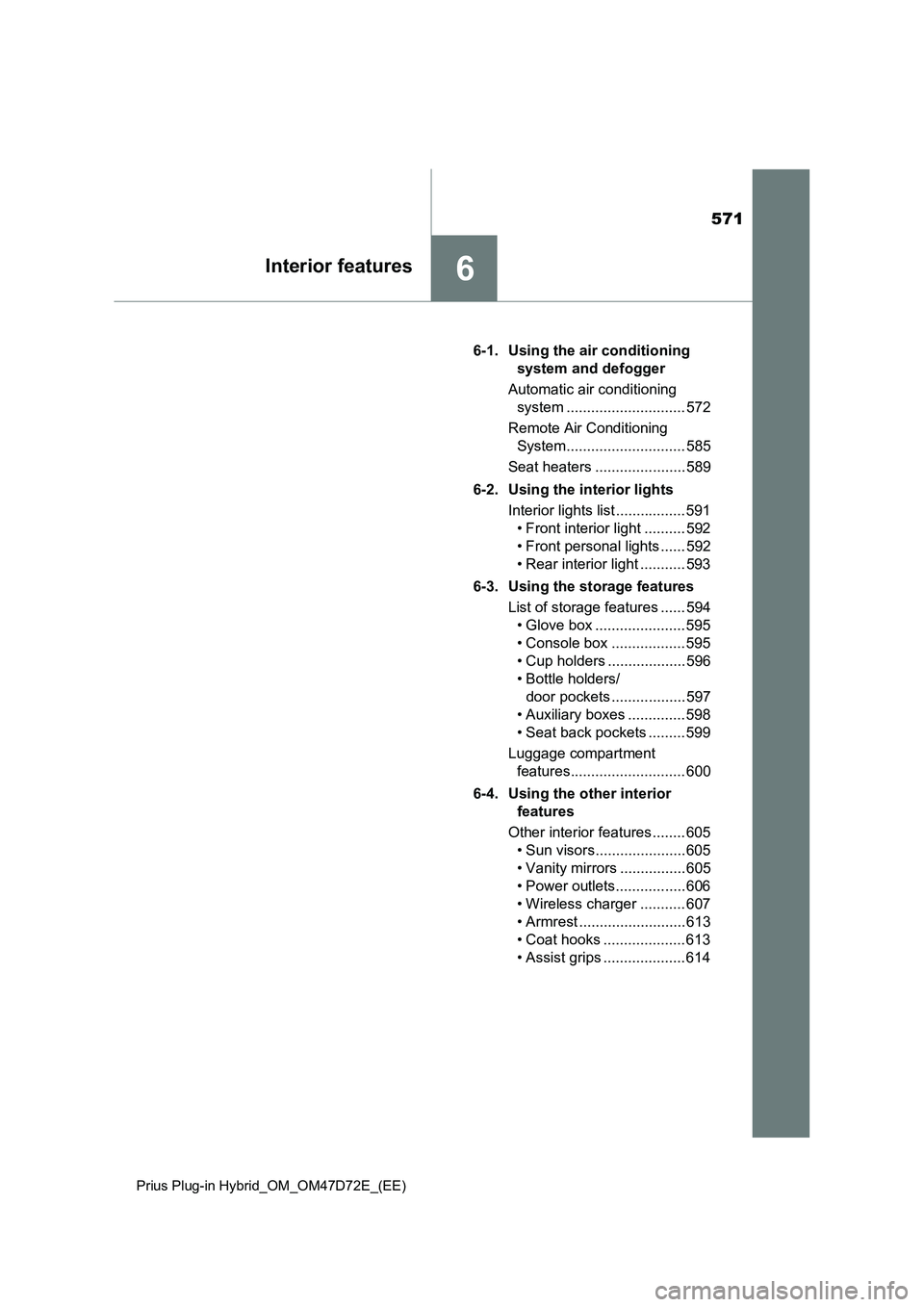

571
6Interior features
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
6-1. Using the air conditioning
system and defogger
Automatic air conditioning
system ............................. 572
Remote Air Conditioning
System............................. 585
Seat heaters ...................... 589
6-2. Using the interior lights
Interior lights list ................. 591
• Front interior light .......... 592
• Front personal lights ...... 592
• Rear interior light ........... 593
6-3. Using the storage features
List of storage features ...... 594
• Glove box ...................... 595
• Console box .................. 595
• Cup holders ................... 596
• Bottle holders/
door pockets .................. 597
• Auxiliary boxes .............. 598
• Seat back pockets ......... 599
Luggage compartment
features............................ 600
6-4. Using the other interior
features
Other interior features ........ 605
• Sun visors...................... 605
• Vanity mirrors ................ 605
• Power outlets................. 606
• Wireless charger ........... 607
• Armrest .......................... 613
• Coat hooks .................... 613
• Assist grips .................... 614

5876-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
6
Interior features
■When using the Remote Air Conditioning System
A charging message will be displayed on the multi-information display. Differ-
ent messages will be displayed depending on when the Remote Air Condi-
tioning System was started (after charging or during charging).
■While the Remote Air Conditioning System is operating
●Depending on the operating condition of the Remote Air Conditioning Sys-
tem, the electric fan may spin and an operating noise may be heard.
However, this does not indicate a malfunction.
●The Remote Air Conditioning System may stop operating temporarily if
other features that use electricity (for example, the seat heater, lights, wind-
shield wipers) are in operation or if the charge level of the 12-volt battery
becomes low.
●The headlights, windshield wiper, combination meter, etc. will not operate
while the Remote Air Conditioning System is operating.
■Electronic key battery depletion
P. 280
■When the electronic key battery is fully depleted
P. 688
■Customization
Setting (e.g. Operation using “A/C” on the wireless remote control) can be
changed. (Customizable features: P. 782)

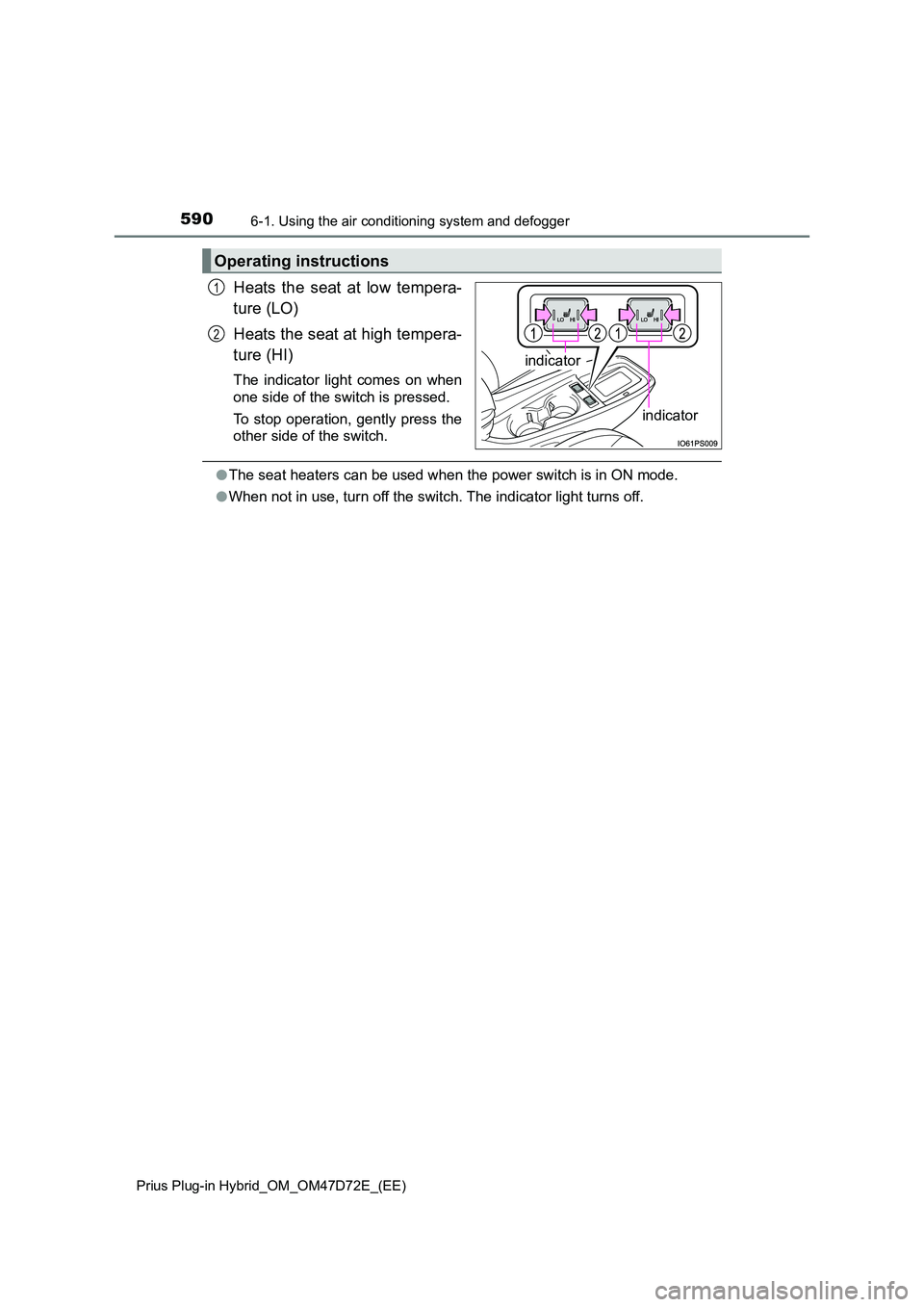

5906-1. Using the air conditioning system and defogger
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Heats the seat at low tempera-
ture (LO)
Heats the seat at high tempera-
ture (HI)
The indicator light comes on when
one side of the switch is pressed.
To stop operation, gently press the
other side of the switch.
● The seat heaters can be used when the power switch is in ON mode.
● When not in use, turn off the switch. The indicator light turns off.
Operating instructions
indicator
indicator
1
2

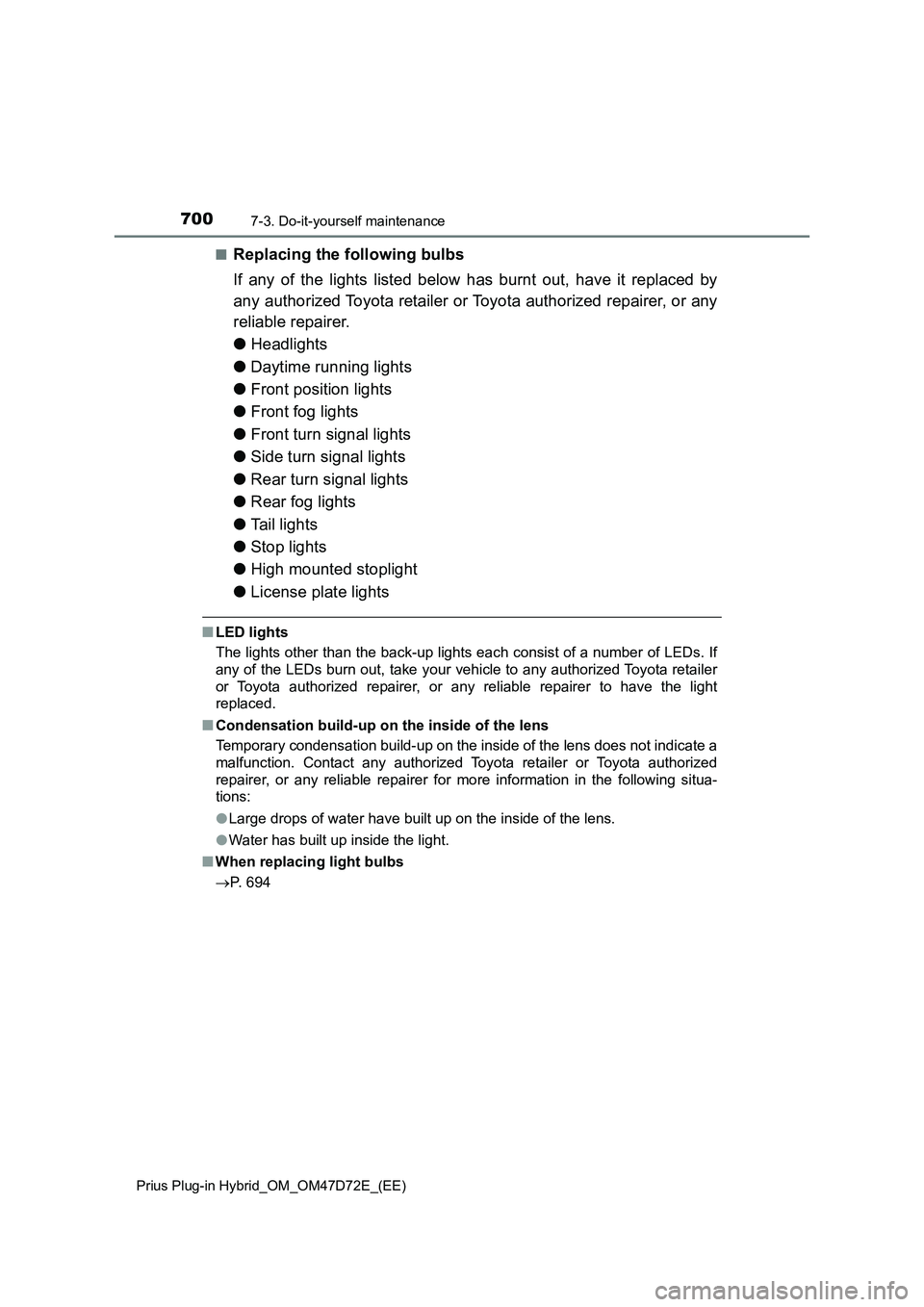

7007-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
●Headlights
●Daytime running lights
●Front position lights
●Front fog lights
●Front turn signal lights
●Side turn signal lights
●Rear turn signal lights
●Rear fog lights
●Tail lights
●Stop lights
●High mounted stoplight
●License plate lights
■LED lights
The lights other than the back-up lights each consist of a number of LEDs. If
any of the LEDs burn out, take your vehicle to any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer to have the light
replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the lens does not indicate a
malfunction. Contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for more information in the following situa-
tions:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the light.
■When replacing light bulbs
P. 694

801Alphabetical index
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Child-protectors ....................... 286
Cleaning............................ 616, 622
Aluminum wheels .................. 617
Exterior.................................. 616
Front camera......................... 408
Hybrid battery (traction
battery) air intake vent ........ 623
Interior ................................... 622
Radar sensor ........................ 407
Seat belts .............................. 625
Water-repellent coating ......... 617
Clock ......................................... 204
Adjustment ............................ 210
Coat hooks ............................... 613
Combination meter .................. 204
Clock adjustment .................. 210
Main display .......................... 222
Multi-information display ....... 230
Warning lights and
indicators ............................ 214
Condenser ................................ 643
Console box ............................. 595
Consumption screen ............... 275
Coolant ..................................... 641
Capacity ................................ 776
Checking ............................... 641
Preparing and checking
before winter....................... 566
Cooling system ........................ 641
Engine overheating ............... 761
Hybrid system overheating ... 763
Cruise control
Dynamic radar cruise control
with full-speed range .......... 451
Cup holders .............................. 596
Curtain shield airbags ............... 39
Customizable features ............ 782Daytime running light
system .................................... 388
Deck board ............................... 600
Defogger
Outside rear view mirrors...... 577
Rear window ......................... 577
Windshield ............................ 577
Dimension ................................ 770
Display
Drive information................... 232
Dynamic radar cruise control
with full-speed range .......... 451
Energy monitor ............. 233, 272
Head-up display .................... 264
LTA (Lane Tracing Assist) .... 438
Main display .......................... 222
Multi-information display ....... 230
Parking Support Brake
function ............................... 516
Pre-collision warning............. 419
RCTA detection screen......... 473
RSA (Road Sign Assist)........ 446
S-IPA (Simple Intelligent
Parking Assist System) ...... 527
Toyota parking assist
sensor................................. 500
Warning messages ............... 723
Do-it-yourself maintenance .... 631
Door courtesy lights................ 591
Location ................................ 591
Wattage ................................ 779D
