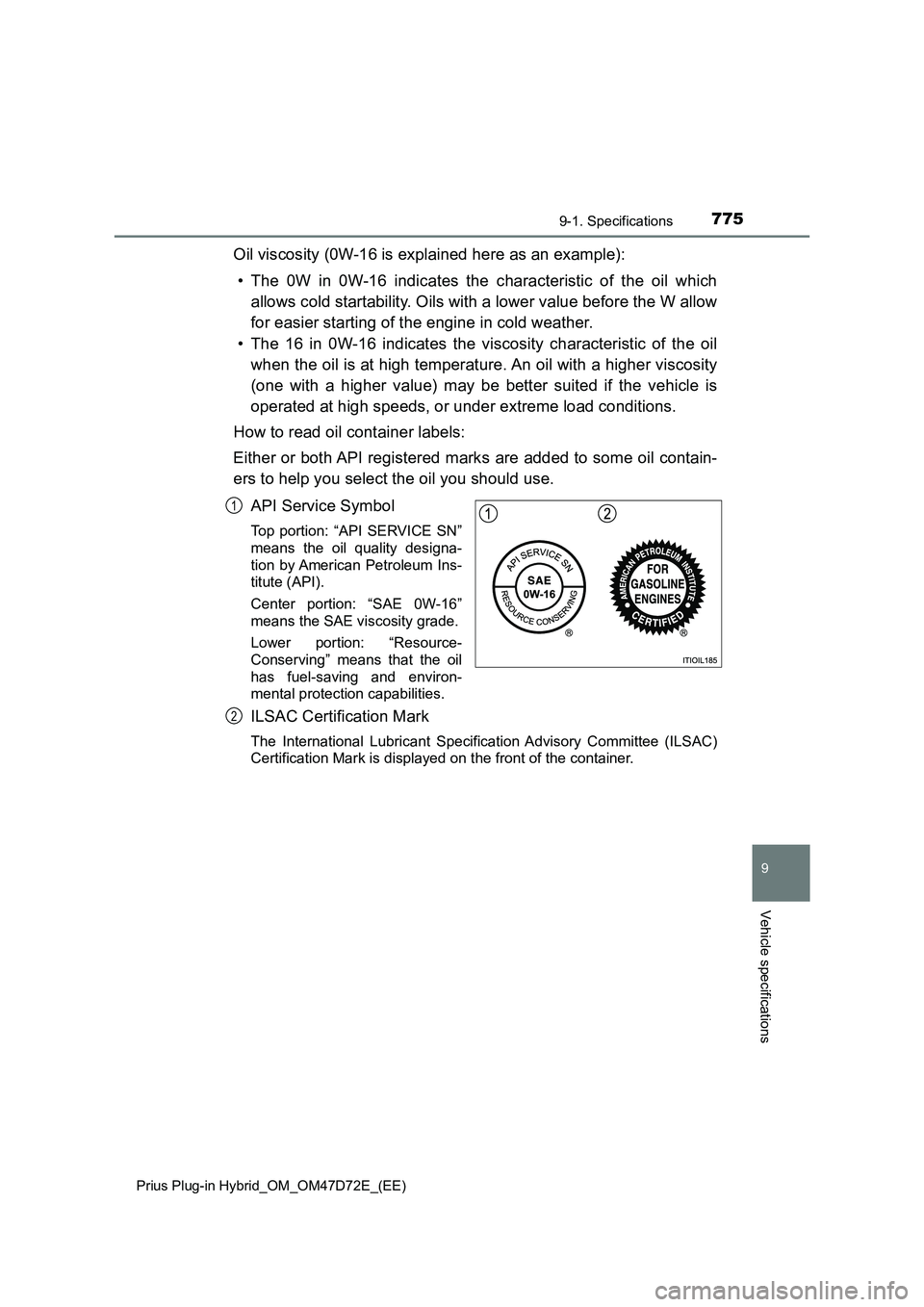

7759-1. Specifications
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
9
Vehicle specifications
Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-16”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

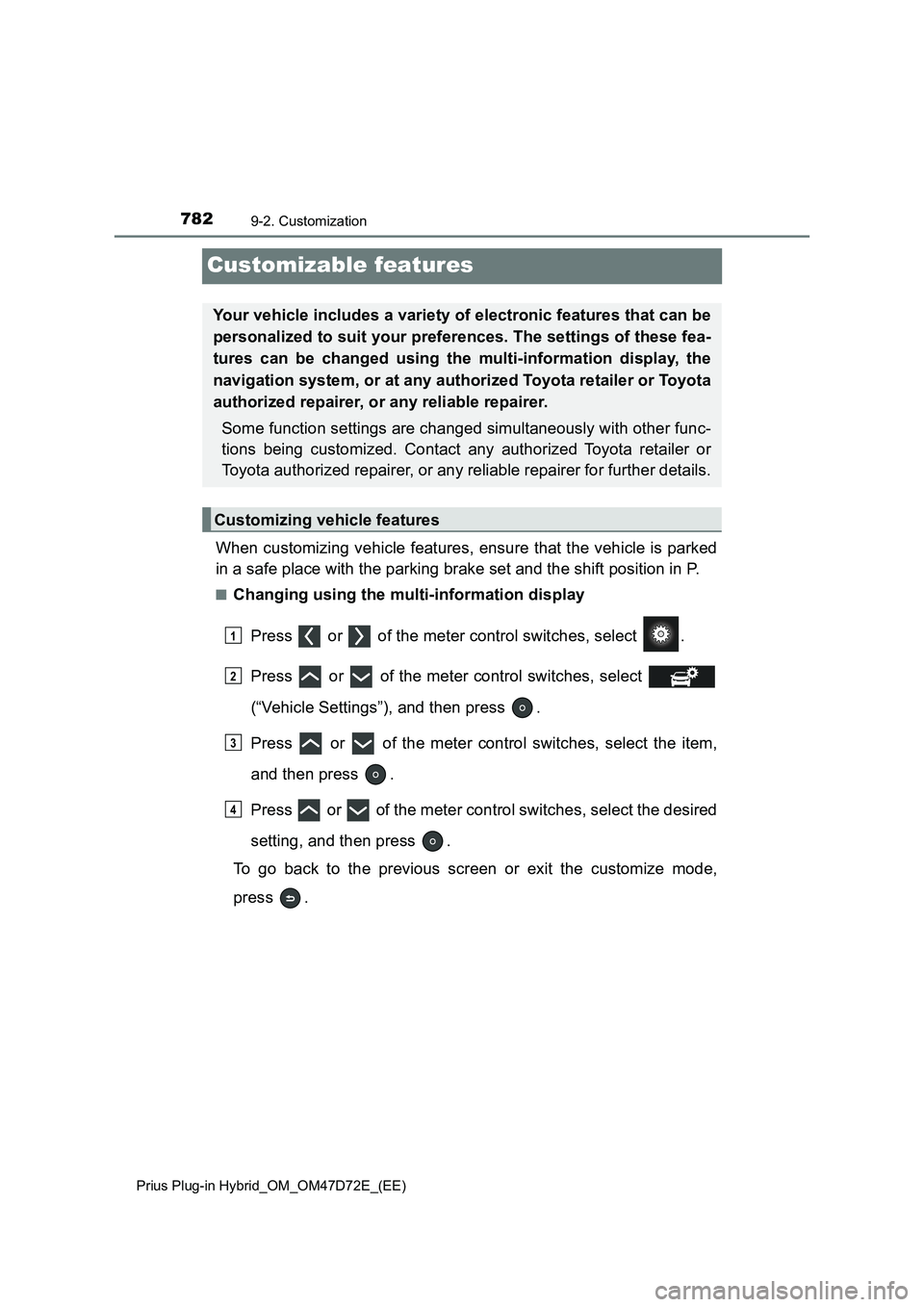

7829-2. Customization
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Customizable features
When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the parking brake set and the shift position in P.
■Changing using the multi-information display
Press or of the meter control switches, select .
Press or of the meter control switches, select
(“Vehicle Settings”), and then press .
Press or of the meter control switches, select the item,
and then press .
Press or of the meter control switches, select the desired
setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using the multi-information display, the
navigation system, or at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
Customizing vehicle features
1
2
3
4

7839-2. Customization
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
9
Vehicle specifications
■Changing using the navigation system
Press the “SETUP” button.
Select “Vehicle” on the “Setup” screen and select “Vehicle cus-
tomization”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
Settings that can be changed using the multi-information display
Settings that can be changed using the navigation system
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, – = Not available
■Instrument cluster (P. 204)
Customizable features
1
2
1
2
3
FunctionDefault
settingCustomized
setting
Sensor sensitivity for darken-
ing the brightness of the
instrument cluster depending
on the outside brightness
Standard-2 to 2––O
Sensor sensitivity for returning
the brightness of the instru-
ment cluster to the original
level depending on the outside
brightness
Standard-2 to 2––O
123

7879-2. Customization
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
9
Vehicle specifications
■Rain-sensing windshield wipers (P. 398)
■RSA (Road Sign Assist) (P. 445)
*1: RSA (Road Sign Assist) function becomes On when the power switch is
turned to ON mode.
*2: If a speed limit with supplemental mark is exceeded, the notification buzzer
does not operate.
FunctionDefault
settingCustomized
setting
Wiper operation when the
wiper switch is in the
position
Rain-sensing
operation
Intermittent
operation
linked to vehi-
cle speed
(with interval
adjuster)
––O
123
FunctionDefault
settingCustomized
setting
RSA (Road Sign Assist)*1OnOffO––
Excess speed notification
method
*2Display only
No notification
O––Display and
buzzer
Excess speed notification
level2 km/h
(1 mph)
5 km/h
(3 mph)
O––10 km/h
(5 mph)
No overtaking notification
methodDisplay only
No notification
O––Display and
buzzer
Other notifications method
(No-entry notification)Display only
No notification
O––Display and
buzzer
123

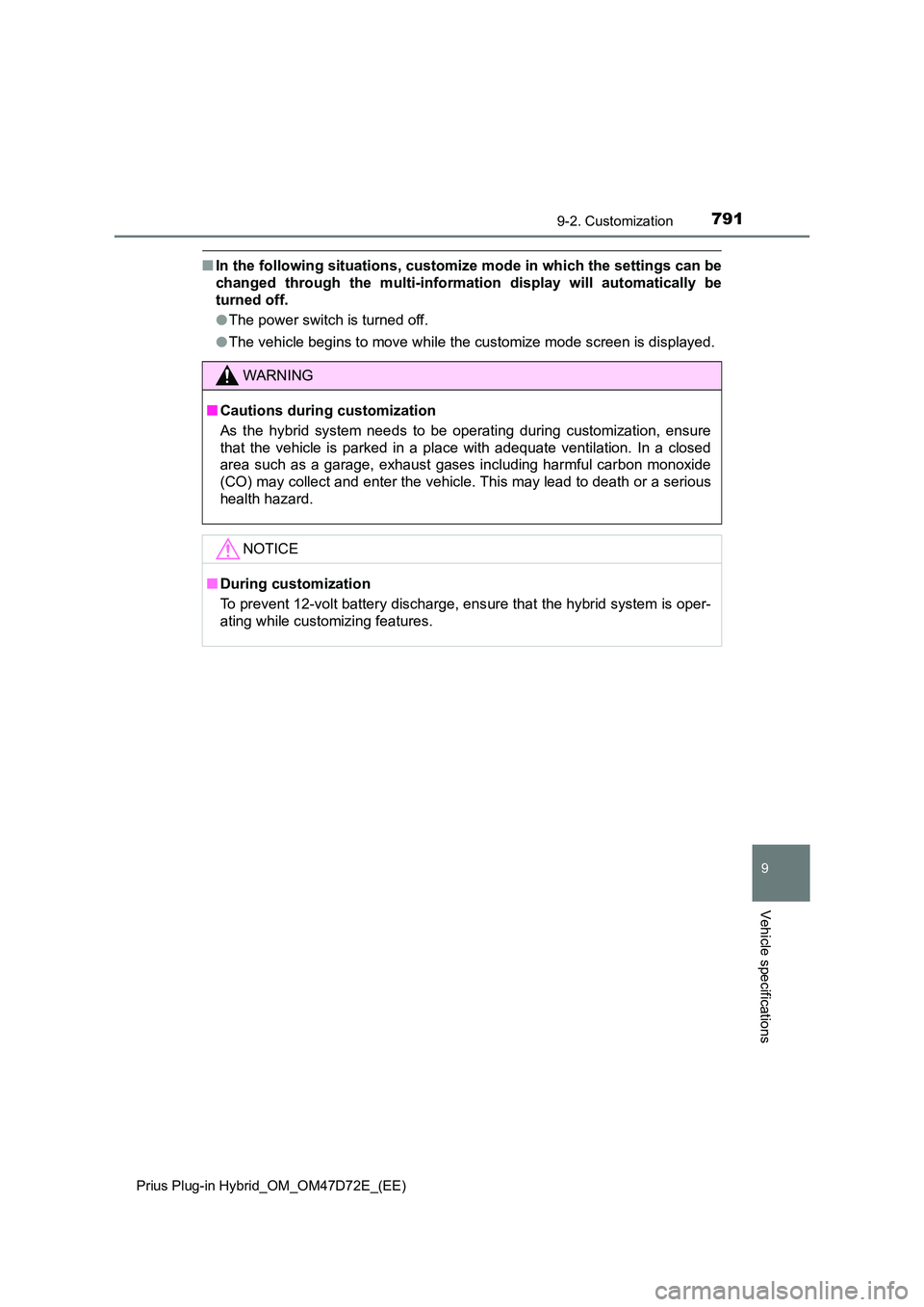

7919-2. Customization
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
9
Vehicle specifications
■ In the following situations, customize mode in which the settings can be
changed through the multi-information display will automatically be
turned off.
● The power switch is turned off.
● The vehicle begins to move while the customize mode screen is displayed.
WARNING
■Cautions during customization
As the hybrid system needs to be operating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ens ure that the hybrid system is oper-
ating while customizing features.

796What to do if... (Troubleshooting)
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
●The seat belt reminder light is flashing
Are the driver and all the passengers wearing the seat belts? (P. 720)
●The parking brake indicator is on
Is the parking brake released? (P. 386)
Depending on the situation, other types of warning buzzer may also sound.
(P. 714, 723)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (P. 87)
To stop the alarm, turn the power switch to ON mode or start the hybrid sys-
tem.
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display. (P. 723)
●When a warning light turns on or a warning message is displayed, refer to
P. 714, 723.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

800Alphabetical index
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Care ................................... 616, 622
Aluminum wheels .................. 617
Exterior.................................. 616
Front camera......................... 408
Interior ................................... 622
Radar sensor ........................ 407
Seat belts .............................. 625
Water-repellent coating ......... 617
Catch protection function ....... 353
Chains ....................................... 567
Charging ................................... 121
Charging cable ...................... 126
Charging equipment.............. 121
Charging indicator ................. 125
Charging messages .............. 197
Charging precautions ............ 172
Charging procedure .............. 165
Charging time may
increase .............................. 154
Charging schedule
function ............................... 176
High voltage components ..... 108
Information related to
charging display.................. 159
Opening and closing the
charging port lid .................. 122
Power sources
precautions ......................... 151
Power sources that can be
used.................................... 149
Safety functions ............ 161, 171
Solar charging system .......... 188
When normal charging
cannot be carried out.......... 192
Charging cable ......................... 126
CCID (Charging Circuit
Interrupting Device) ............ 126
Charging cable types ............ 127If the charging cable cannot
be unlocked ........................ 146
Indicator ................................ 130
Maintenance ......................... 136
Replacing the plug-cord ........ 132
Safety functions .................... 129
Charging port ........................... 121
Opening and closing ............. 122
Smart lid & connector
locking system .................... 140
If the charging port lid does
not open ............................. 143
Child restraint system ............... 54
Child restraint system
installation method ............... 67
Fixed with a seat belt .............. 68
Fixed with an ISOFIX lower
anchorage ............................ 70
Points to remember ................ 54
Riding with children................. 53
Using a top tether
anchorage ............................ 72
Child safety ................................ 53
12-volt battery precautions ... 646
Airbag precautions .................. 41
Back door precautions .......... 290
Charging precautions............ 160
Child restraint system ............. 54
How your child should wear
the seat belt.......................... 36
Installing child restraints ......... 67
Power window lock switch .... 352
Power window precautions ... 355
Rear door child-protectors .... 286
Removed key battery
precautions......................... 690
Riding with children................. 53
Seat belt precautions .............. 69
Seat heater precautions........ 589
C

801Alphabetical index
Prius Plug-in Hybrid_OM_OM47D72E_(EE)
Child-protectors ....................... 286
Cleaning............................ 616, 622
Aluminum wheels .................. 617
Exterior.................................. 616
Front camera......................... 408
Hybrid battery (traction
battery) air intake vent ........ 623
Interior ................................... 622
Radar sensor ........................ 407
Seat belts .............................. 625
Water-repellent coating ......... 617
Clock ......................................... 204
Adjustment ............................ 210
Coat hooks ............................... 613
Combination meter .................. 204
Clock adjustment .................. 210
Main display .......................... 222
Multi-information display ....... 230
Warning lights and
indicators ............................ 214
Condenser ................................ 643
Console box ............................. 595
Consumption screen ............... 275
Coolant ..................................... 641
Capacity ................................ 776
Checking ............................... 641
Preparing and checking
before winter....................... 566
Cooling system ........................ 641
Engine overheating ............... 761
Hybrid system overheating ... 763
Cruise control
Dynamic radar cruise control
with full-speed range .......... 451
Cup holders .............................. 596
Curtain shield airbags ............... 39
Customizable features ............ 782Daytime running light
system .................................... 388
Deck board ............................... 600
Defogger
Outside rear view mirrors...... 577
Rear window ......................... 577
Windshield ............................ 577
Dimension ................................ 770
Display
Drive information................... 232
Dynamic radar cruise control
with full-speed range .......... 451
Energy monitor ............. 233, 272
Head-up display .................... 264
LTA (Lane Tracing Assist) .... 438
Main display .......................... 222
Multi-information display ....... 230
Parking Support Brake
function ............................... 516
Pre-collision warning............. 419
RCTA detection screen......... 473
RSA (Road Sign Assist)........ 446
S-IPA (Simple Intelligent
Parking Assist System) ...... 527
Toyota parking assist
sensor................................. 500
Warning messages ............... 723
Do-it-yourself maintenance .... 631
Door courtesy lights................ 591
Location ................................ 591
Wattage ................................ 779D
