2021 TOYOTA LAND CRUISER service

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
2231. Phone operation (Hands-free system for cellular phones)
Phone
7
1Select “Transmit Volume” .
2Select the desired level for the transmit
volume.
3Select “OK”.
1Select or press the switch
on the steering wheel to start talking
with the other party.
To refuse to receive the call : Select
or press the switch on the
steering wheel.
 Each time is selected or the
switch on the steering wheel is pressed
during an interrupted call, the party who is
on hold will be switched.
INFORMATION
● A continuous tone signal is a character
string that consists of numbers and the
characters p or w. (e.g.
056133w0123p#1 )
● When the “p” pause tone is used, the
tone data up until the next pause tone
will be automatically sent after 2 sec-
onds have elapsed. When the “w” pause
tone is used, the tone data up until the
next pause tone will be automatically
sent after a user operation is performed.
● Release tones can be used when auto-
mated operation of a phone based ser-
vice such as an answering machine or
bank phone service is desired. A phone
number with continuous tone signals
can be registered in the contact list.
● Tone data after a “w” pause tone can be
operated on voice command during a
call.
Transmit volume setting
INFORMATION
●The sound quality of the voice heard
from the other party’s speaker may be
negatively impacted.
● To reset the transmit volume, select
“Default” .
● “Transmit Volume” is dimmed when
mute is on.
Incoming call waiting
When a call is interrupted by a third
party while talking, this screen is dis-
played.
INFORMATION
● This function may not be available
depending on the type of cellular phone.

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
2413. What to do if...
Phone
7
When making/receiving a call
“Unable to dial.
Please check your
phone.” message is
displayed.
Bluetooth® function
is not enabled on the
cellular phone.Enable the
Bluetooth® function
on the cellular
phone.
Old registration infor-
mation remains on
either this system or
the cellular phone.
Delete the existing
registration informa-
tion from both this
system and the cellu-
lar phone, then regis-
ter the cellular phone
you wish to connect
to this system.
38
SymptomLikely causeSolution
Page
Cellular phoneThis
system
A call cannot be
made/received.Your vehicle is in a
“No Service” area.Move to where “No
Service” no longer
appears on the dis-
play.

SymptomLikely causeSolution
Page
Cellular
phoneThis
system

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
245
8
1. Entune App Suite overview
Entune App Suite service ........ 246
Before using the function .......... 248
Preparation before using Entune App Suite ................... 248
2. Entune App Suite operation
Entune App Suite .................... 250
Using Entune App Suite ............ 250
Linking Entune App Suite and navigation function ................. 254
Entune App Suite keyword operation ................................ 255
3. Setup
Entune App Suite settings ....... 257
Screen for Entune App Suite settings ................................... 257
Entune App Suite

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
2461. Entune App Suite overview
Entune App Suite service*
Entune App Suite is a service that enables downloadable applications to be dis-
played on and operated from the screen. Before Entune App Suite can be used, a
few actions need to be performed first. ( P.248)
*: Entune App Suite is available in the contiguous United State s, D.C. and Alaska.

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
2471. Entune App Suite overview
Entune App Suite
8
No.NameFunction
Content providerProvides content to the system via a cellular phone.
Application serverProvides downloadable application to the system via a cellular
phone.
Cellular phone*
Using the Entune App Suite appl ication, communication is re-
layed between the system, the application server and the con-
tents provider.
ApplicationsDownloaded Entune App Suite applications provide access to
audio/visual content from a content provider when connected
via a compatible phone with a data connection.
Entune App SuiteContents received, via a cellular phone, from the contents pro-
vider servers are displayed on the screen. The system is
equipped with an application pl ayer to run applications.
*: For known compatible phones, r efer to http://www.toyota.com/entune/
.
INFORMATION
●The actual service availability is dependent on the network con dition.

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
2481. Entune App Suite overview
User registration is required to start using
the Entune App Suite service.
 Entune App suite does not require an acti-
vation fee or monthly recurring fees.
 Services requiring a separate contract can
also be used.*
*: For details, refer to
http://www.toyota.com/entune/
or call
1-800-331-4331.
 Entune App Suite is available in the con-
tiguous United States, D.C. and Alaska.
 The following personal data can be
deleted from the system and returned to
their default settings:
• Downloaded applications
• Downloaded application content
Perform the following actions.
In order to use Entune App Suite, the fol-
lowing actions must first be performed:
 User registration with a service contract
( P.248)
 Download the Entune App Suite applica-
tion onto your cellular phone, and login to
the application. ( P.249)
 Register the cellular phone that the
Entune App Suite application was down-
loaded to with the system. ( P.249)
 Register a Bluetooth
® phone with the
hands-free system. ( P. 3 6 )
 Download Entune App Suite applications
to the system. ( P.250)
1Perform user registration at
http://www.toyota.com/entune/
.
Before using the function
Subscription
Availability of service
INFORMATION
● When using Entune App Suite, depend-
ing on the details of your cellular phone
contract, data usage fees may apply.
Confirm data usage fees before using
this service.
● In this section, the required actions to
activate applications, connect a cellular
phone to the system and registration
steps for Entune App Suite are
explained. For details regarding Entune
App Suite operations and each of the
applications, refer to
http://www.toyota.com/entune/
.
● The actual service availability is depen-
dent on the network condition.
Initializing personal data
The personal data used in applications
can be removed from the system.
(  P.48)
INFORMATION
● Once initialized, data will be erased from
the system. Pay close attention when
initializing the data.
Preparation befo re using Entune
App Suite
Setup required to use Entune
App Suite
User registration
1User registration
2Download the Entune App Suite ap-
plication to your cellular phone.
3Register the cellul ar phone to the sys-
tem.
4Download Entune App Suite applica-
tions to the system.

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
2502. Entune App Suite operation
1Press the “INFO/APPS” button.
2Select “Entune App Suite” .
3Select the desired application button.
■Downloading the updated data
1Select “Update” .
2Check that downl oading is started.
“Download in Background” : Select to
operate other functi on while downloading.
“Cancel” : Select to cancel updating.
Entune App Suite
Using Entune App Suite
Entune App Suite is a service that en-
ables the usable contents of a cellular
phone to be displayed on and operated
from the screen. Before Entune App
Suite can be used, a few actions need
to be performed first. ( P.248)
For details about the function and ser-
vice of each application, refer to
http://www.toyota.com/entune/
.
No.FunctionPage
Select to activate an appli-
cation.
Select to update the appli-
cation.250
Select to reorder the appli-
cations.252
Updating an application
When Entune App Suite is activated,
an application may need to be updat-
ed. By updating, an application can be
kept to the latest version. When updat-
ing the application, it is necessary to
download the updated data and install
it.
If an update is available, “Update” c a n
be selected.

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
2532. Entune App Suite operation
Entune App Suite
8

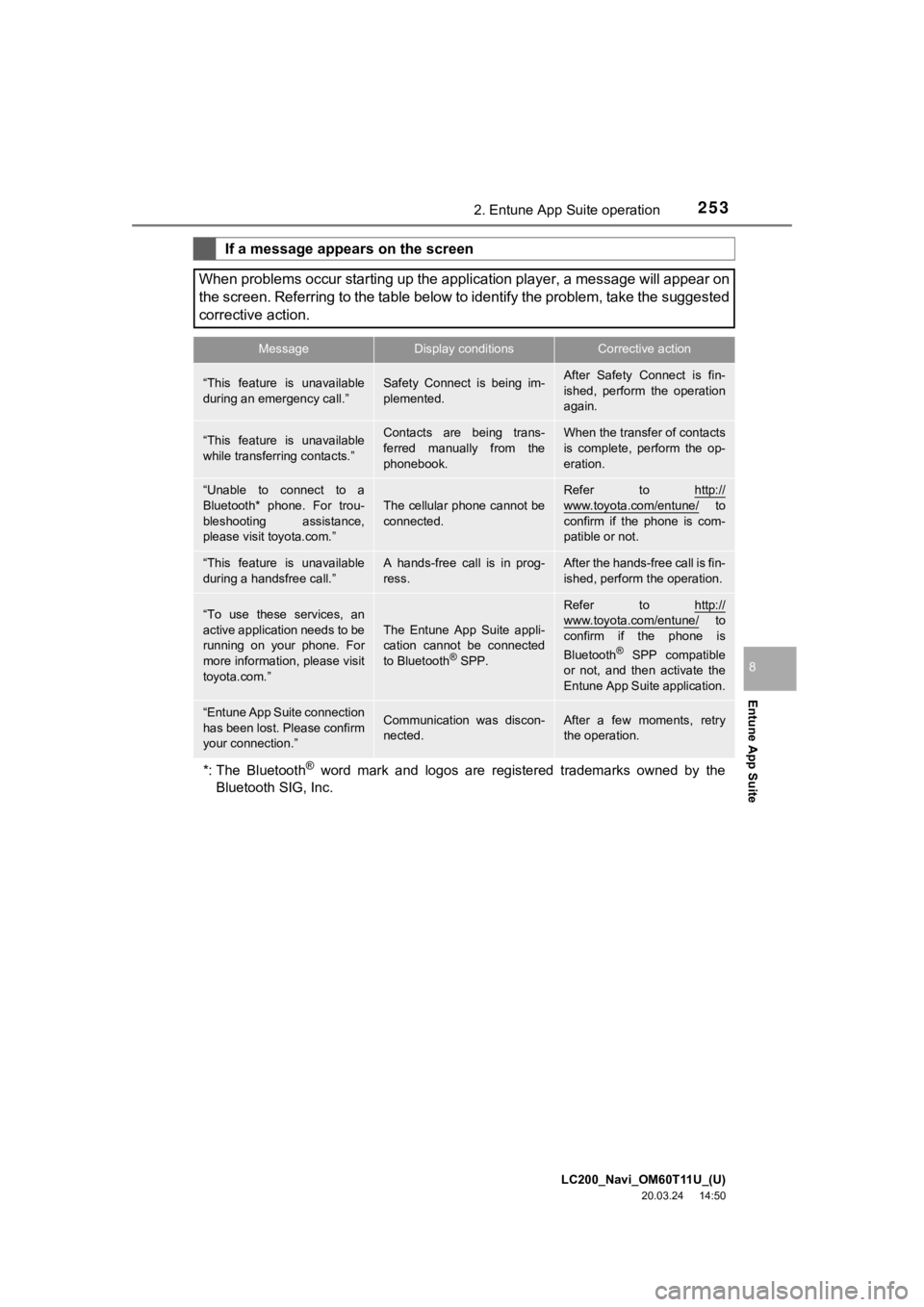

If a message appears on the screen
When problems occur starting up the application player, a messa ge will appear on
the screen. Referring to the table below to identify the proble m, take the suggested
corrective action.
MessageDisplay conditionsCorrective action
“This feature is unavailable
during an emergency call.”Safety Connect is being im-
plemented.After Safety Connect is fin-
ished, perform the operation
again.
“This feature is unavailable
while transferring contacts.”Contacts are being trans-
ferred manually from the
phonebook.When the transfer of contacts
is complete, perform the op-
eration.
“Unable to connect to a
Bluetooth* phone. For trou-
bleshooting assistance,
please visit toyota.com.”
The cellular phone cannot be
connected.
Refer to http://
www.toyota.com/entune/ to
confirm if the phone is com-
patible or not.
“This feature is unavailable
during a handsfree call.”A hands-free call is in prog-
ress.After the hands-free call is fin-
ished, perform the operation.
“To use these services, an
active application needs to be
running on your phone. For
more information, please visit
toyota.com.”
The Entune App Suite appli-
cation cannot be connected
to Bluetooth
® SPP.
Refer to http://www.toyota.com/entune/ to
confirm if the phone is
Bluetooth
® SPP compatible
or not, and then activate the
Entune App Suite application.
“Entune App Suite connection
has been lost. Please confirm
your connection.”Communication was discon-
nected.After a few moments, retry
the operation.
*: The Bluetooth® word mark and logos are registered trademarks owned by the
Bluetooth SIG, Inc.
