HILUX_OM_OM0K513E_(EE)
7
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ..........472
Cleaning and protecting
the vehicle interior ...........476
7-2. Maintenance
Maintenance
requirements....................479
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ......................482
Hood ..................................484
Engine compartment..........486
Tires ...................................507
Tire inflation pressure ........510
Wheels ...............................512
Air conditioning filter ..........514
Wireless remote control/
electronic key battery.......516
Checking and
replacing fuses ................520
Light bulbs .........................525
8-1. Essential information
Emergency flashers ...........554
If your vehicle has to
be stopped in an
emergency .......................555
If the vehicle is
submerged or water on
the road is rising ..............557
8-2. Steps to take in an
emergency
If your vehicle needs
to be towed ..................... 559
If you think something is
wrong .............................. 564
Fuel pump shut off
system (gasoline engine
only) ................................ 565
If a warning light turns on
or a warning buzzer
sounds ............................ 566
If a warning message is
displayed ......................... 575
If you have a flat tire .......... 581
If the engine will not
start ................................. 598
If the electronic key does
not operate properly
(vehicles with smart
entry & start system) ....... 600
If the vehicle battery is
discharged ...................... 604
If your vehicle
overheats ........................ 610
If you run out of fuel
and the engine stalls
(diesel engine only) ......... 614
If the vehicle becomes
stuck................................ 615
7Maintenance and care
8When trouble arises

12
HILUX_OM_OM0K513E_(EE)

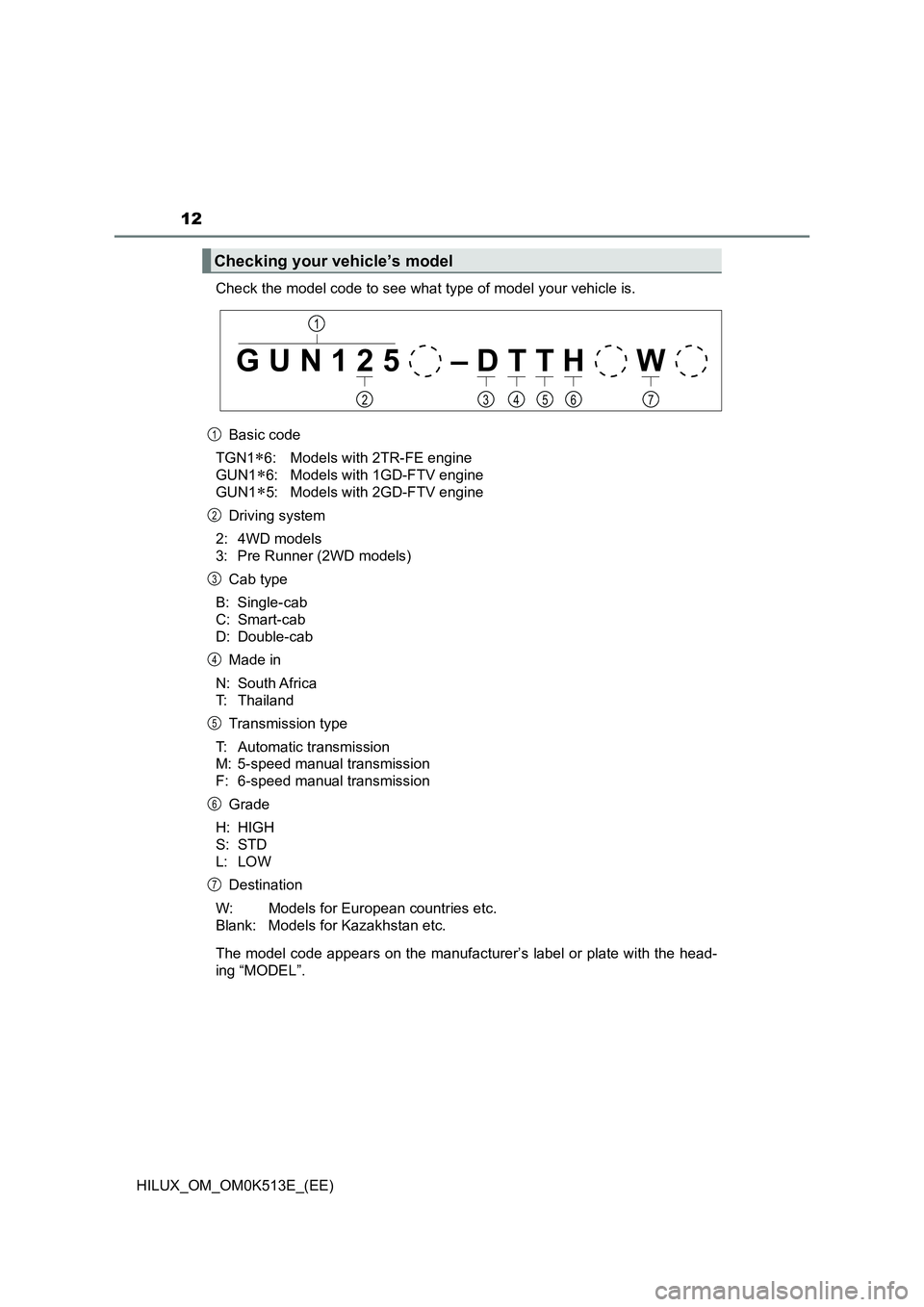

Check the model code to see what type of model your vehicle is.
Basic code
TGN16: Models with 2TR-FE engine
GUN16: Models with 1GD-FTV engine
GUN15: Models with 2GD-FTV engine
Driving system
2: 4WD models
3: Pre Runner (2WD models)
Cab type
B: Single-cab
C: Smart-cab
D: Double-cab
Made in
N: South Africa
T: Thailand
Transmission type
T: Automatic transmission
M: 5-speed manual transmission
F: 6-speed manual transmission
Grade
H: HIGH
S: STD
L: LOW
Destination
W: Models for European countries etc.
Blank: Models for Kazakhstan etc.
The model code appears on the manufacture r’s label or plate with the head-
ing “MODEL”.
Checking your vehicle’s model
G U N 1 2 5 – D T T H W
3
1
42576
1
2
3
4
5
6
7

17Pictorial index
HILUX_OM_OM0K513E_(EE)
Fuel filler door*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 627
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 639
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 374
Checking/rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 508
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 581
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 484
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 484
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 628
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 610
Camera*1, 2
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Front position lights/daytime running lights*1. . . . . . . . . . P. 248
Front fog lights*1/rear fog light*1, 3. . . . . . . . . . . . . . . . . . . P. 255
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Side turn signal lights (fender-mounted type or
mirror-mounted type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Rear turn signal lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Stop lights
Downhill assist control system*1. . . . . . . . . . . . . . . . . . . . . . . P. 364
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
License plate light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Back-up lights*3
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 231, 239
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 525, Watts: P. 642)
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
*3: They may be located on the opposite side depending on the target region.
9
10
11
12
13
14
15
16
17
18

371-1. For safe use
1
HILUX_OM_OM0K513E_(EE)
For safety and security
WARNING

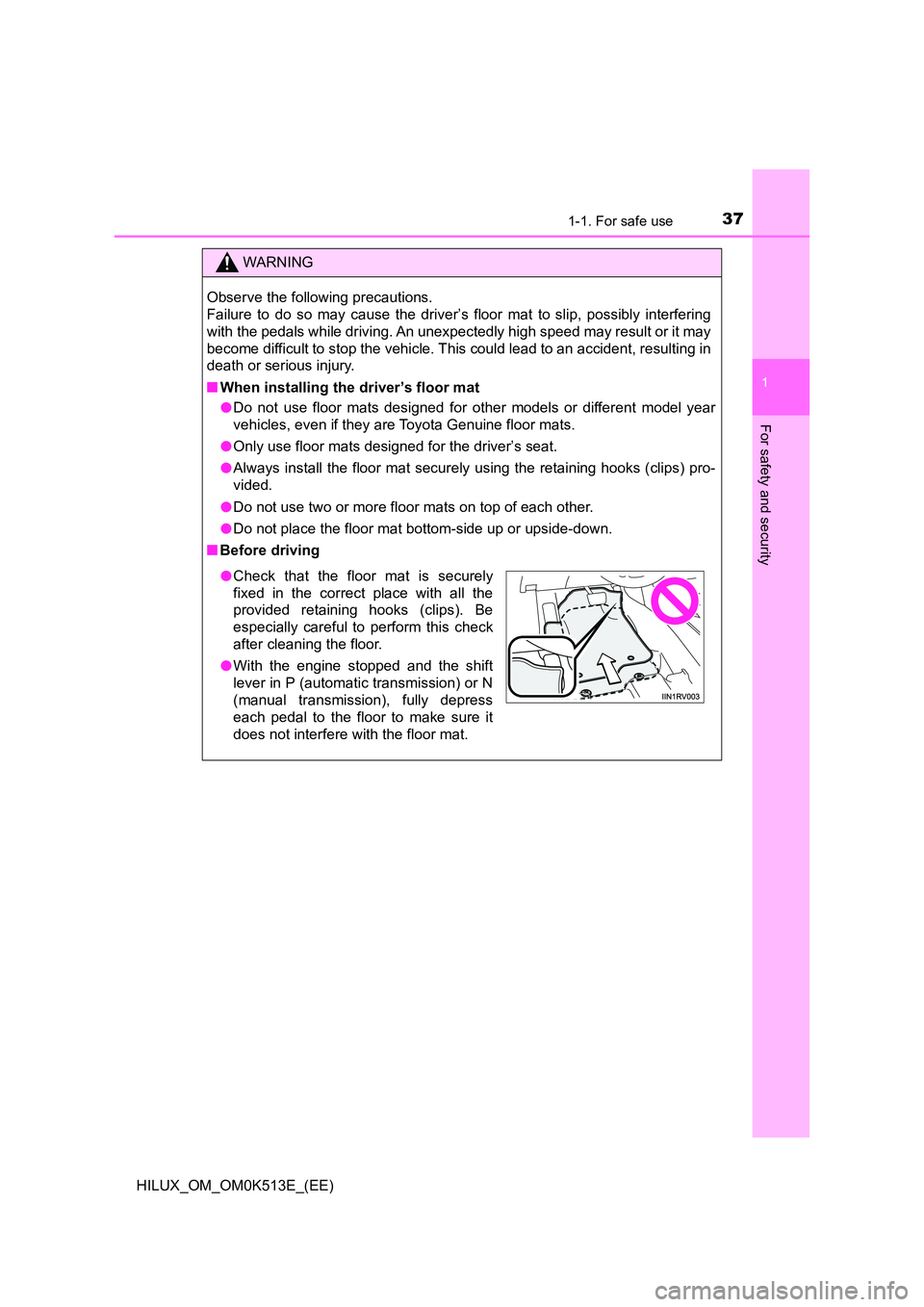

Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
Q When installing the driver’s floor mat
O Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
O Only use floor mats designed for the driver’s seat.
O Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
O Do not use two or more floor mats on top of each other.
O Do not place the floor mat bottom-side up or upside-down.
Q Before driving
OCheck that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
O With the engine stopped and the shift
lever in P (automatic transmission) or N
(manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.

561-1. For safe use
HILUX_OM_OM0K513E_(EE)
Exhaust gas precautions
Harmful substance to the human body is included in exhaust
gases if inhaled.
WARNING
Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.
Q Important points while driving
If you smell exhaust gases in the vehicle, open the windows and have the
vehicle inspected at any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer as soon as possible.
Q When parking
O If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.
O Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
O Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.
Q Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.

1121-3. Emergency assistance
HILUX_OM_OM0K513E_(EE)
When the engine switch is turned to the “ON” position (vehicles with-
out smart entry & start system) or IGNITION ON mode (vehicles with
smart entry & start system), the red indicator light will illuminate for 10
seconds and then the green indicator light will illuminate, indicating
that the system is enabled. The indicator lights indicate the following:
O If the green indicator light illuminates and stays on, the system is
enabled.
O If the green indicator light flashes twice per second, an automatic or
manual Emergency Call is being made.
O If no indicator lights illuminate, the system is not enabled.
O If the red indicator light illuminates at any time other than immedi-
ately after the engine switch is turned to the “ON” position (vehicles
without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system), the system may be malfunc-
tioning or the backup battery may be depleted. Contact any
authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer.
O If the red indicator light blinks for approximately 30 seconds during
an Emergency Call, the call has been disconnected or the cellular
network signal is weak.
A test mode is provided for to check the performance of the Emer-
gency Call system. To test the device, contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
Indicator lights
Device test mode

1181-4. Theft deterrent system
HILUX_OM_OM0K513E_(EE)
Close the doors and hood, and
lock all the doors using the entry
function (vehicles with smart entry
& start system) or wireless remote
control. The system will be set
automatically after 30 seconds.
Models for model code destination
Blank* (except for Kazakhstan):
The alarm can also be set using
the mechanical key.
The indicator light changes from being on to flashing when the system is
set.
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2 )
Do one of the following to deactivate or stop the alarms:
Models for model code destination Blank* (except for Kazakhstan)
O Unlock the doors.
O Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
Models for model code destination W*, and Kazakhstan
O Unlock the doors using the entry function (vehicles with smart
entry & start system) or the wireless remote control.
O Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2 )
Setting the alarm system
Deactivating or stopping the alarm

1242. Instrument cluster
HILUX_OM_OM0K513E_(EE)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: Vehicles with multi-information display: a indicator is displayed on the
multi-information display.
(Yellow)
(if equipped)
LDA indicator ( P. 570)
*1
(if equipped)
Low engine oil level
warning light ( P. 570)
*6
(if equipped)
Cruise control indicator
( P. 569)
*1
(Flashes or
illuminates)
(if equipped)
Master warning light
( P. 570)
*2
(if equipped)
Open door warning light
( P. 570)
*1, 5
(Flashes)
(if equipped)
Stop & Start cancel
indicator ( P. 570)
(Flashes or
illuminates)
Driver’s and front
passenger’s seat belt
reminder light ( P. 570)
Parking brake indicator
light ( P. 571)
*7
(Flashes or
illuminates)
(if equipped)
Rear passengers’ seat
belt reminder lights
( P. 570)(if equipped)
Low AdBlue™ level
warning light ( P. 571)
Low fuel level warning
light ( P. 570)
*1
(Flashes)
(if equipped)
“AUTO LSD” indicator
( P. 571)
(if equipped)
Go to service warning
light ( P. 571)
