2021 TOYOTA HILUX stop start

1543-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)
XKey
Vehicles without smart entry & start system
Vehicles without power door
lock system:
Locks the door
Unlocks the door
Vehicles with power door lock
system:
Locks all the doors
Unlocks all the doors
Vehicles with smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. ( P. 600)
QOperation signals
A buzzer (if equipped) sounds and the em ergency flashers flash to indicate
that the doors have been locked/unlocked using the smart entry & start sys-
tem or the wireless remote control. (Locked: once; Unlocked: twice)
Q Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked using the smart entry & start system or the wireless remote control,
the security feature automatically locks the vehicle again.
Q Door lock buzzer (vehicles with wireless remote control and smart entry
& start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
Q If the entry function (vehicles with smart entry & start system) or the
wireless remote control (if equipped) does not operate properly
O Vehicles without smart entry & start system: Use the key to lock and unlock
the doors. ( P. 154)
O Vehicles with smart entry & start system: Use the mechanical key to lock
and unlock the doors. ( P. 600)
O Replace the battery with a new one if it is depleted. (P. 516)
1
2
1
2

163
3
3-2. Opening, closing and locking the doors
Operation of each component
HILUX_OM_OM0K513E_(EE)
Smar t entr y & start system
OLocks and unlocks the doors (P. 153)
O Starts and stops the engine (P. 223)
QAntenna location
: If equipped
The following operations can be performed simply by carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.
Antennas outside the cabin
Antennas inside the cabin
1
2

1643-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)
Q Effective range (areas within which the electronic key is detected)
When starting the engine or changing engine switch modes
The system can be operated when the electronic key is inside the vehicle.
(The electronic key is not detected when it is on the floor or on the instru-
ment panel.)
Q Battery-saving function
The battery-saving function will be acti vated in order to prevent the battery
from being discharged while the vehicle is not in operation for a long time.
Q Electronic Key Battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
When locking or unlocking the doors
The system can be operated when the
electronic key is within about 0.7 m (2.3
ft.) of either of the lock/unlock button on
the outside door handle. (Only the
doors detecting the key can be oper-
ated.)
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.

1683-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)
Q If the smart entry & start system does not operate properly
O Locking and unlocking the doors: Use the mechanical key. (P. 600)
O Starting the engine: P. 601
Q Electronic key battery depletion
O The standard battery life is 1 to 2 years.
O If the battery becomes low, an alarm will sound in the cabin when the engine
stops.
O As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( P. 516)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
O To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
Q If “Key left inside vehicle” is shown on the multi-information display
An attempt was made to lock the doors using the smart entry & start system
while the electronic key was still inside the vehicle, or an attempt was made
to lock either front door by opening a door and putting the inside lock button
into the lock position, then closing the door by pulling on the outside door
handle with the electronic key still inside the vehicle.
Retrieve the electronic key from the vehicle and lock the doors again.
Q Customization that can be configured at any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer
Settings (e.g. smart entry & start system) can be changed.
(Customizable features: P. 646)
Q If the smart entry & start system has been deactivated in a customized
setting
O Locking and unlocking the doors:
Use the wireless remote control or mechanical key. ( P. 153, 600)
O Starting the engine and changing engine switch modes: P. 601
O Stopping the engine: P. 225

1863-5. Opening and closing the windows
HILUX_OM_OM0K513E_(EE)
Ty pe C
Closing
Opening
One-touch opening*
(all windows)
One-touch closing*
(all windows)
*: To stop the window partway,
operate the switch in the opposite
direction.
Press the switch down to lock the
passenger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Q The power windows can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The engine switch is in IGNITION ON mode.
Q Jam protection function (windows with one-touch function for type B
and C)
If an object becomes jammed between the window and the window frame
while the window is closing, window movement is stopped and the window is
opened slightly.
Q Catch protection function (windows with one-touch function for type B
and C)
If an object becomes caught between the door and window while the window
is opening, window movement is stopped.
1
2
3
4
Window lock switch

1873-5. Opening and closing the windows
3
Operation of each component
HILUX_OM_OM0K513E_(EE)
Q Operating the power windows after turning the engine off
Vehicles without smart entry & start system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either front door is opened.
Vehicles with smart entry & start system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to ACCESSORY mode or turned off. They
cannot, however, be operated once either front door is opened.
Q When the window cannot be opened or closed (windows with one-touch
function for type B and C)
When the jam protection function or catch protection function operates
unusually and the window cannot be opened or closed, perform the following
operations with the power window switch of that door.
O Stop the vehicle. With the engine switch in the “ON” position (vehicles with-
out smart entry & start system) or IGNITION ON mode (vehicles with smart
entry & start system), within 4 seconds of the jam protection function or
catch protection function activating, continually operate the power window
switch in the one-touch closing dire ction or one-touch opening direction so
that the window can be opened and closed.
O If the window cannot be opened and closed even when performing the
above operations, perform the following procedure for function initialization.
Turn the engine switch to the “ON” position (vehicles without smart entry
& start system) or IGNITION ON mode (vehicles with smart entry & start
system).
Pull and hold the power window switch in the one-touch closing direction
and completely close the window.
Release the power window switch for a moment, resume pulling the
switch in the one-touch closing direction, and hold it there for approxi-
mately 6 seconds or more.
Press and hold the power window switch in the one-touch opening direc-
tion. After the window is completely opened, continue holding the switch
for an additional 1 second or more.
Release the power window switch for a moment, resume pushing the
switch in the one-touch opening direction, and hold it there for approxi-
mately 4 seconds or more.
Pull and hold the power window switch in the one-touch closing direction
again. After the window is completely closed, continue holding the switch
for a further 1 second or more.
If you release the switch while the window is moving, start again from the
beginning.
If the window reverses and cannot be fully closed or opened, have the vehi-
cle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
1
2
3
4
5
6

191
4Driving
HILUX_OM_OM0K513E_(EE)
4-1. Before driving
Driving the vehicle ............. 192
Cargo and luggage ............ 205
Trailer towing (without
towing hitch) .................... 206
Trailer towing (with towing
hitch)................................ 207
4-2. Driving procedures
Engine (ignition) switch
(vehicles without smart
entry & start system)........ 220
Engine (ignition) switch
(vehicles with smart
entry & start system)........ 223
Automatic transmission ..... 231
Manual transmission.......... 239
Turn signal lever ................ 246
Parking brake .................... 247
4-3. Operating the lights
and wipers
Headlight switch ................ 248
Fog light switch .................. 255
Windshield wipers and
washer ............................. 258
4-4. Refueling
Opening the fuel tank
cap ................................... 261
4-5. Using the driving support
systems
Toyota Safety Sense ......... 266
PCS (Pre-Collision
System) ........................... 273
LDA (Lane Departure
Alert With Yaw Assist
Function).......................... 284
RSA (Road Sign Assist)..... 295
Dynamic radar cruise
control .............................. 301
Cruise control..................... 317
Toyota parking
assist-sensor ................... 321
Four-wheel drive
system ............................. 331
Rear differential
lock system ...................... 341
Stop & Start system ........... 345
Driving assist systems ....... 355
Downhill assist control
system ............................. 364
AUTO LSD ......................... 367
DPF (Diesel Particulate
Filter) system ................... 369
4-6. Driving tips
Winter driving tips .............. 374

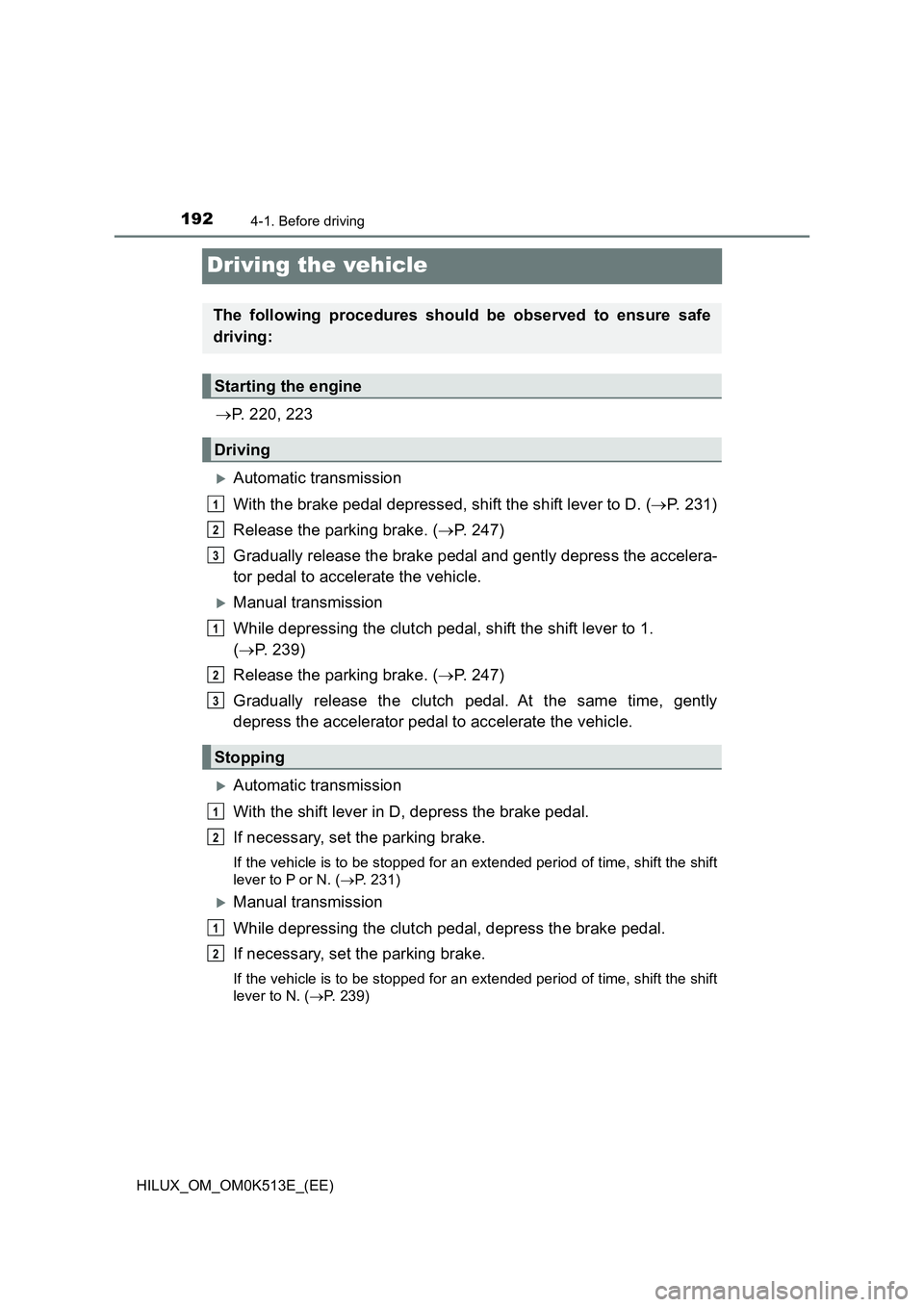

1924-1. Before driving
HILUX_OM_OM0K513E_(EE)
Driving the vehicle
P. 220, 223
Automatic transmission
With the brake pedal depressed, shift the shift lever to D. ( P. 231)
Release the parking brake. ( P. 247)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
Manual transmission
While depressing the clutch pedal, shift the shift lever to 1.
( P. 239)
Release the parking brake. ( P. 247)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
Automatic transmission
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P or N. ( P. 231)
Manual transmission
While depressing the clutch pedal, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to N. ( P. 239)
The following procedures should be observed to ensure safe
driving:
Starting the engine
Driving
Stopping
1
2
3
1
2
3
1
2
1
2
