2021 TOYOTA HILUX indicator

621-2. Child safety
HILUX_OM_OM0K513E_(EE)
Airbag manual on-off system
“PASSENGER AIR BAG” indi-
cator
Vehicles without smart entry & start
system: The ON indicator light
turns on when the airbag system is
on (only when the engine switch is
in the “ON” position).
Vehicles with smart entry & start
system: The ON indicator light
turns on when the airbag system is
on (only when the engine switch is
in IGNITION ON mode).
Airbag manual on-off switch
: If equipped
This system deactivates the front passenger airbag.
Only deactivate the airbag when using a child restraint system
on the front passenger seat.
1
2

631-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security
Vehicles without smart entry &
start system:
Insert the key into the cylinder and
turn to the “OFF” position.
The OFF indicator light turns on
(only when the engine switch is in
the “ON” position).
Vehicles with smart entry & start
system:
Insert the mechanical key into the cylinder and rotate to the “OFF”
position.
The OFF indicator light turns on (only when the engine switch is in
IGNITION ON mode).
Q “PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction
in the system. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
O Neither “ON” nor “OFF” comes on.
O The indicator light does not change when the airbag manual on-off switch is
switched to “ON” or “OFF”.
Deactivating the airbag for the front passenger
WARNING
Q When installing a child restraint system
For safety reasons, always install the child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left on, the strong impact of the airbag
deployment (inflation) may cause serious injury or even death.
Q When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left off, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

691-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security
WARNING
QWhen using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
O Vehicles with front passenger occupant classification system: Never use a
rear-facing child restraint system on the front passenger seat when “ON”
of the “PASSENGER AIR BAG” indicator is illuminated. ( P. 57)
The force of the rapid inflation of the front passenger airbag can cause
death or serious injury to children in the event of an accident.
O Vehicles without front passenger
occupant classification system or airbag
manual on-off switch: Never use a rear-
facing child restraint system on the front
passenger seat.
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
O Vehicles with airbag manual on-off
switch: Never use a rear-facing child
restraint system on the front passenger
seat when the airbag manual on-off
switch is on. ( P. 62)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.

741-2. Child safety
HILUX_OM_OM0K513E_(EE)

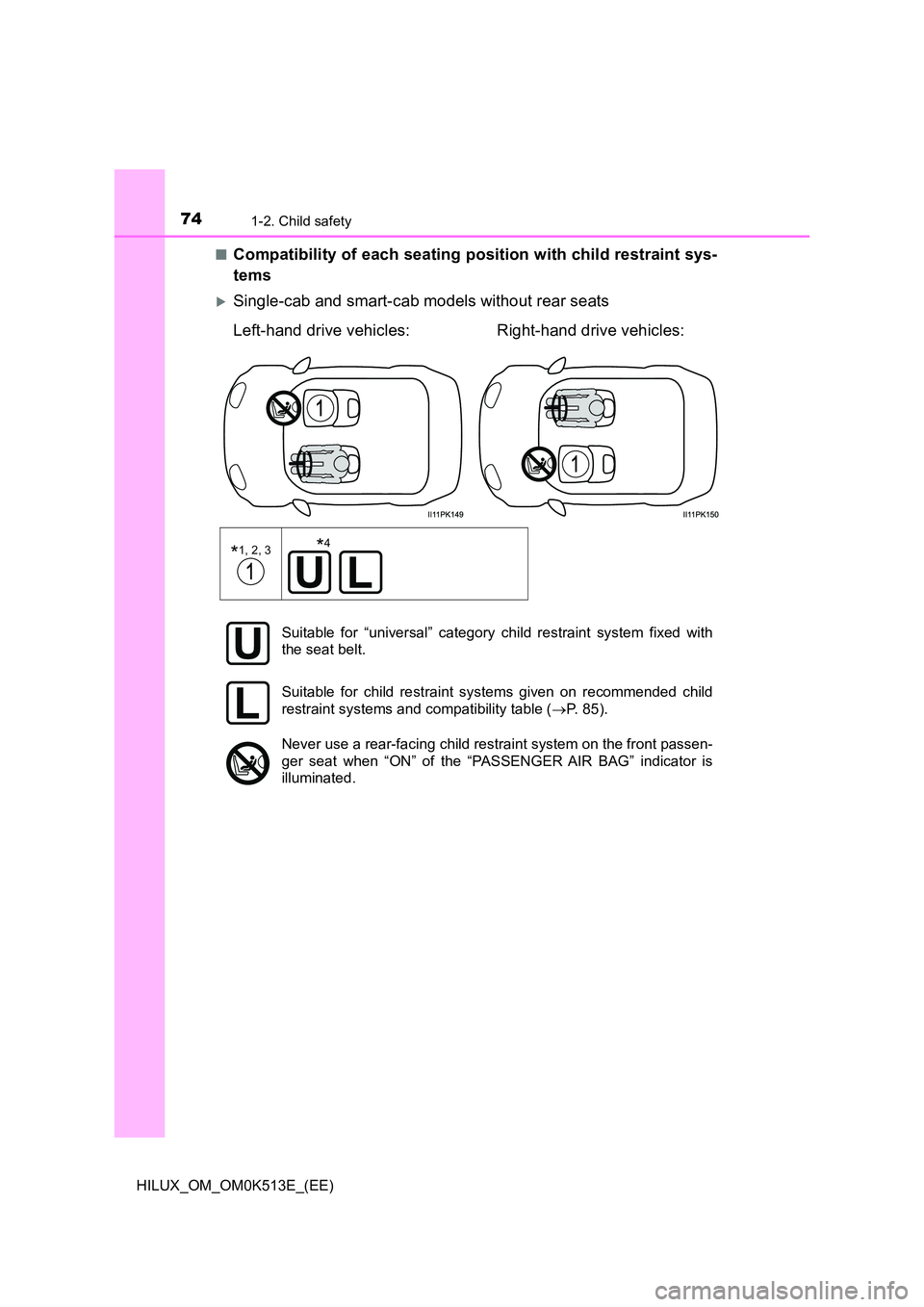

QCompatibility of each seating position with child restraint sys-
tems
Single-cab and smart-cab models without rear seats
Left-hand drive vehicles: Right-hand drive vehicles:
*1, 2, 3

*4
Suitable for “universal” category child restraint system fixed with
the seat belt.
Suitable for child restraint systems given on recommended child
restraint systems and compatibility table ( P. 8 5 ) .
Never use a rear-facing child restraint system on the front passen-
ger seat when “ON” of the “PASSENGER AIR BAG” indicator is
illuminated.

751-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security
*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.
*3: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Use only a front-facing child restraint system when “ON” of the “PASSEN-
GER AIR BAG” indicator is illuminated.

761-2. Child safety
HILUX_OM_OM0K513E_(EE)
Smart-cab models with rear seats
Left-hand drive vehicles: Right-hand drive vehicles:
*1, 2, 3

*4
Suitable for “universal” category child restraint system fixed with
the seat belt.
Suitable for child restraint systems given on recommended child
restraint systems and compatibility table ( P. 8 5 ) .
Not suitable for child restraint system.
Never use a rear-facing child restraint system on the front passen-
ger seat when “ON” of the “PASSENGER AIR BAG” indicator is
illuminated.

771-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security
*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.
*3: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Use only a front-facing child restraint system when “ON” of the “PASSEN-
GER AIR BAG” indicator is illuminated.

791-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security
Suitable for “universal” category child restraint system fixed with
the seat belt.
Suitable for child restraint systems given on recommended child
restraint systems and compatibility table ( P. 8 5 ) .
Suitable for i-Size and ISOFIX child restraint system.
Includes a top tether anchorage point.
Not suitable for child restraint system.
Vehicles without front passenger occupant classification system or
airbag manual on-off switch: Never use a rear-facing child restraint
system on the front passenger seat.
Vehicles with front passenger occupant classification system:
Never use a rear-facing child restraint system on the front passen-
ger seat when “ON” of the “PASSENGER AIR BAG” indicator is
illuminated.
Vehicles with airbag manual on-off switch: Never use a rear-facing
child restraint system on the front passenger seat when the airbag
manual on-off switch is on.
