Page 15 of 548

15Pictorial index
C-HR_OM_USA_OM10684UWindshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 215
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . . . . . P. 315
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 478
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 376
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 482
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306
Checking/rotation/tire pressur e warning system . . . . . . . . .P. 376
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 449
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 358
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 358
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 478
Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Camera
*2
Front side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Parking lights/daytime running lights . . . . . . . . . . . . . . . . . P. 204
Front turn signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Parking lights/daytime running lights (LED type). . . . . . . . P. 204
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Tail lights/side marker lights/turn signal lights. . . . . . P. 195, 204
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 190
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Light bulbs of the exterior lights for driving
(Replacing method: P. 407, Watts: P. 483)
*1: If equipped
*2: Refer to “MULTIMEDIA OWNER’S MANUAL”.
Page 478 of 548
4788-1. Specifications
C-HR_OM_USA_OM10684U
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine
Model 3ZR-FAE
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke 3.17 3.84 in. (80.5 97.6 mm)
Displacement 121.3 cu.in. (1987 cm3)
Valve clearance (engine
cold)Automatic adjustment
Drive belt tension Automatic adjustment
Fuel
Fuel type
Unleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)13.2 gal. (50 L, 11.0 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill
reference
*)
With filter
Without filter 4.4 qt. (4.2 L, 3.7 Imp.qt.)
4.1 qt. (3.9 L, 3.4 Imp.qt.)
Page 494 of 548

4948-1. Specifications
C-HR_OM_USA_OM10684U
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that follows
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below
Page 536 of 548

536Alphabetical index
C-HR_OM_USA_OM10684U
Eco Driving Indicator ................ 95
Electric Power Steering (EPS)....................................... 301 Warning light ......................... 435
Electronic key .......................... 112
Battery-saving function ......... 135
If the electronic key does not operate properly ................. 462
Replacing the battery ............ 397
Emergency, in case of If a warning buzzer sounds ... 434
If a warning light turns on...... 434
If a warning message is displayed ............................ 444
If the battery is discharged.... 465
If the electronic key does not operate properly ................. 462
If the engine will not start ...... 460
If the vehicle is trapped in rising water ......................... 425
If you have a flat tire ............. 449
If you think something is wrong .............................. 432
If your vehicle becomes stuck ................................... 473
If your vehicle has to be stopped in an emergency ... 423
If your vehicle needs to be towed .................................. 426
If your vehicle overheats ....... 470 Emergency flashers ................ 422
Engine ...................................... 478
ACCESSORY mode ............. 184
Compartment ........................ 361
Engine switch ............... 180, 183
Hood ..................................... 358
How to start the engine ........................ 180, 183
Identification number ............ 477
If the engine will not start ...... 460
Ignition switch (engine switch) ........... 180, 183
Overheating .......................... 470
Engine coolant......................... 365
Capacity................................ 480
Checking............................... 365
Preparing and checking before winter ...................... 306
Warning light......................... 437
Engine coolant temperature
gauge ....................................... 96
Engine immobilizer system ...... 84
Engine oil ................................. 362 Capacity................................ 478
Checking............................... 362
Preparing and checking before winter ...................... 306
Engine switch .................. 180, 183
EPS (Electric Power Steering) ..... 301
Warning light......................... 435
Event data recorder (EDR).......... 9
E
Page 548 of 548
548
C-HR_OM_USA_OM10684U

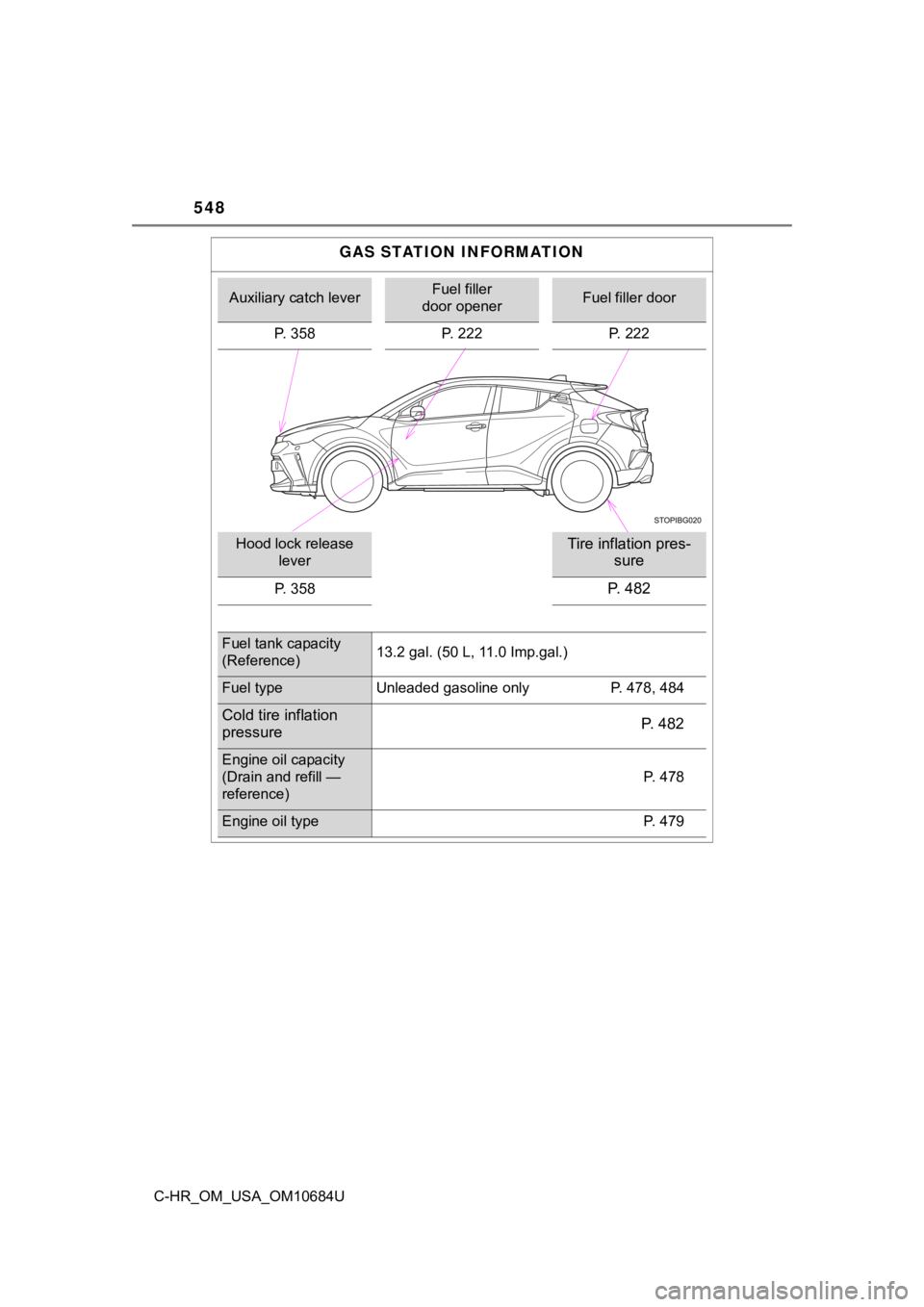

GAS STATION INFORMATION
Auxiliary catch leverFuel filler
door openerFuel filler door
P. 358 P. 222 P. 222
Hood lock release leverTire inflation pres- sure
P. 358P. 482
Fuel tank capacity
(Reference) 13.2 gal. (50 L, 11.0 Imp.gal.)
Fuel type
Unleaded gasoline only P. 478, 484
Cold tire inflation
pressure P. 4 8 2
Engine oil capacity
(Drain and refill —
reference) P. 478
Engine oil type
P. 479
