2021 TOYOTA C-HR engine

4307-2. Steps to take in an emergency
C-HR_OM_USA_OM10684U
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When towing the vehicle
■ While towing
● When towing using cables or chains, avoid sudden starts, etc., which
place excessive stress on the towing eyelets, cables or chains. The towing
eyelets, cables or chains may become damaged, broken debris may hit
people, and cause serious damage.
● Vehicles without a smart key system: Do not turn the engine switch to the
“LOCK” position.
There is a possibility that the steering wheel is locked and ca nnot be oper-
ated.
● Vehicles with a smart key system: Do not turn the engine switch off.
There is a possibility that the steering wheel is locked and ca nnot be oper-
ated.
■ Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing.
Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised off the ground. If the vehicle is
towed with the front wheels contacting
the ground, the drivetrain and related
parts may be damaged.

4317-2. Steps to take in an emergency
7
When trouble arises
C-HR_OM_USA_OM10684U
NOTICE
■Towing with a sling-type truck
■ To prevent damage to the vehicle when towing using a wheel-lift type
truck
● Vehicles without a smart key system: Do not tow the vehicle fro m the rear
when the engine switch is in the “LOCK” position or the key is removed.
The steering lock mechanism is not strong enough to hold the front wheels
straight.
● Vehicles with a smart key system: Do not tow the vehicle from the rear
when the engine switch is off. The steering lock mechanism is n ot strong
enough to hold the front wheels straight.
● When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
■ To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or re ar.
■ To prevent damage to the vehic le during emergency towing
Do not secure cables or chains to the suspension components.
Do not tow with a sling-type truck to pre-
vent body damage.

4327-2. Steps to take in an emergency
C-HR_OM_USA_OM10684U
If you think something is wrong
●Fluid leaks un der the vehicle.
(Water dripping from the air conditioning a fter use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points high er
than normal.
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
● Engine misses, stumbli ng or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one s ide when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost touch es
the floor
If you notice any of the followi ng symptoms, your vehicle proba -
bly needs adjustment or repair. Contact your Toyota dealer as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

4337-2. Steps to take in an emergency
C-HR_OM_USA_OM10684U
7
When trouble arises
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without a smart key system
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
Vehicles with a smart key system
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.
To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.
NOTICE
■ Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
1
2
1
2

4347-2. Steps to take in an emergency
C-HR_OM_USA_OM10684U

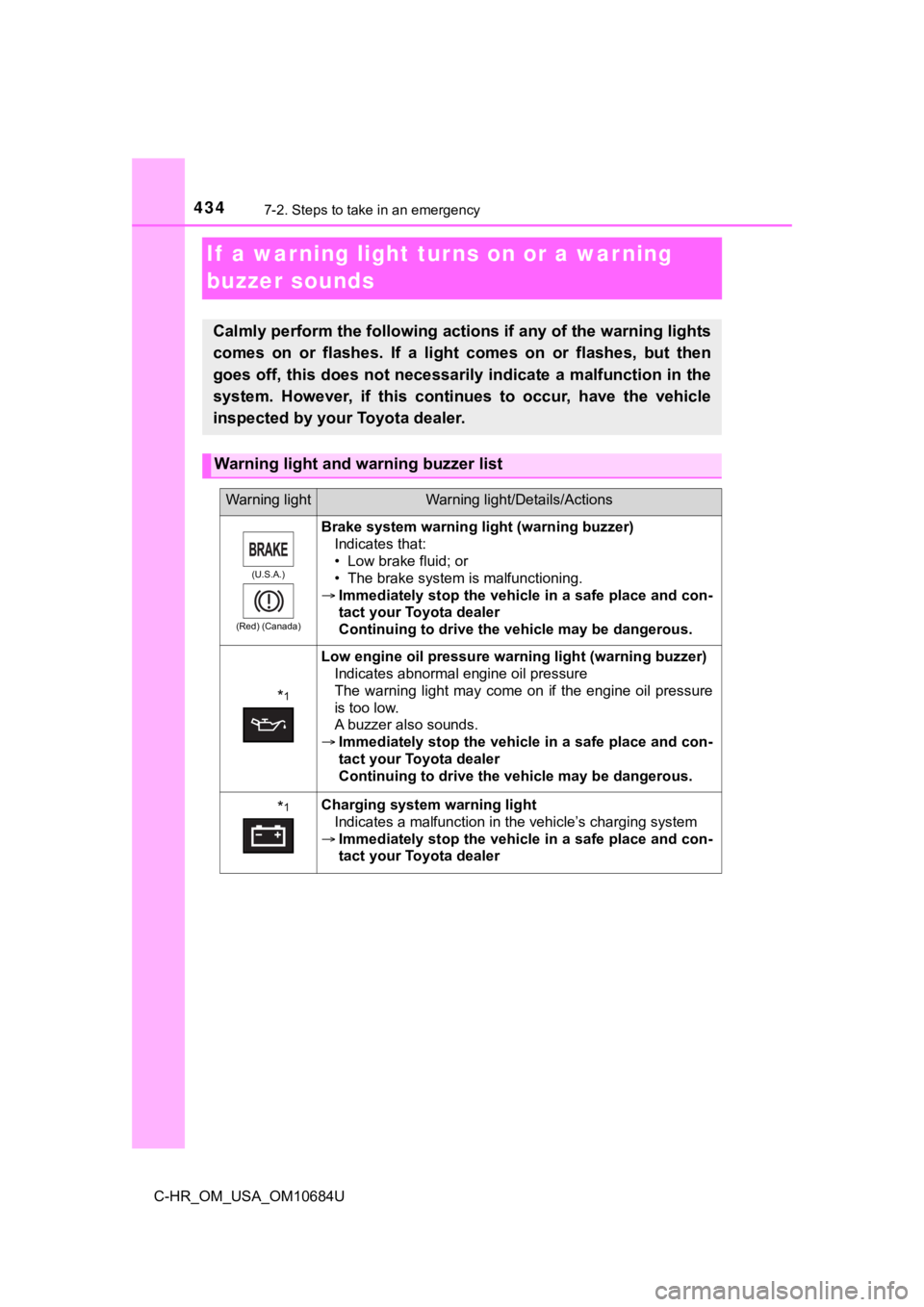

If a warning light turns on or a war ning
buzzer sounds
Calmly perform the following actions if any of the warning ligh ts
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by your Toyota dealer.
Warning light and w arning buzzer list
Warning lightWarning light/Details/Actions
(U.S.A.)
(Red) (Canada)
Brake system warning li ght (warning buzzer)
Indicates that:
• Low brake fluid; or
• The brake system is malfunctioning.
 Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer
Continuing to drive the vehicle may be dangerous.
*1
Low engine oil pressure warn ing light (warning buzzer)
Indicates abnormal engine oil pressure
The warning light may come on if the engine oil pressure
is too low.
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer
Continuing to drive the vehicle may be dangerous.
*1Charging system warning light
Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer

4357-2. Steps to take in an emergency
7
When trouble arises
C-HR_OM_USA_OM10684U
(U.S.A.)
(Canada)
Malfunction indicator lamp (warning buzzer) Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic continuously variable transmission.
 Have the vehicle inspected by your Toyota dealer
immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system.
 Have the vehicle inspected by your Toyota dealer
immediately.
(U.S.A.)
(Canada)
ABS warning light Indicates a malfunction in:
• The ABS; or
• The brake assist system.
 Have the vehicle inspected by your Toyota dealer
immediately.
(Red/yellow)
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
 Have the vehicle inspected by your Toyota dealer
immediately.
(Flashes)
“RCTA OFF” indicator (if equipped)
When a buzzer sounds:
Indicates a malfunction in the RCTA (Rear Crossing Traffic
Alert) function
 Have the vehicle inspected by your Toyota dealer
immediately.
When a buzzer does not sound:
Indicates that the rear bumper around the radar sensor is
covered with dirt, etc. (P. 286)
 Follow the instructions dis played on the multi-infor-
mation display. (P. 293)
Warning lightWarning light/Details/Actions

4377-2. Steps to take in an emergency
7
When trouble arises
C-HR_OM_USA_OM10684U
Low fuel level warning lightIndicates that remaining fuel is approximately 2.0 gal.
(7.5 L, 1.6 Imp.gal.) or less
 Refuel the vehicle.
*3
Driver’s and front passenger’ s seat belt reminder light
(warning buzzer) Warns the driver and/or front passenger to fasten their
seat belts.
 Fasten the seat belt.
If the front passenger seat is occupied, the front pas-
senger’s seat belt also needs to be fastened to make
the warning light (warning buzzer) off.
*3
(On the center panel)
Rear passengers’ seat belt reminder lights (warning
buzzer)
Warn the rear passengers to fasten their seat belts
 Fasten the seat belt.
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes ( P. 4 4 0 )
• Flat tire ( P. 449)
 Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case
the light does not turn off even if the tire inflation
pressure is adjusted, have the system checked by
your Toyota dealer.
When the light comes on after blinking for 1 minute:
Malfunction in t he tire pressure warning system
(  P. 4 4 0 )
 Have the system checked by your Toyota dealer.
*1High engine coolant temperature warning light (warning
buzzer)
Indicates that the engine coolant temperature is too high
 P. 470
Warning lightWarning light/Details/Actions

4387-2. Steps to take in an emergency
C-HR_OM_USA_OM10684U
*1: This light illuminates on the multi-information display.
*2: Parking brake engaged warning buzzer:A buzzer will sound if the vehicle is driven at a speed of appr oximately
3 mph (5 km/h) or more.
*3: Driver’s seat belt warning buzzer: The driver’s seat belt warning buzzer sounds to alert the drive r that his or
her seat belt is not fastened. Once the engine switch is turned to the “ON”
position (vehicles without smart key system) or IGNITION ON mod e (vehi-
cles with smart key system), the buzzer sounds. If the seat bel t is still
unfastened, the buzzer sounds intermittently for a certain peri od of time
after the vehicle reaches a certain speed.
Front passenger’s seat belt warning buzzer:
The front passenger’s seat belt warning buzzer sounds to alert the front
passenger that his or her seat belt is not fastened. If the sea t belt is unfas-
tened, the buzzer sounds intermittently for a certain period of time after the
vehicle reaches a certain speed.
Rear passengers’ seat belt warning buzzer:
The rear passengers’ seat belt warning buzzer sounds to alert t he rear
passenger that his or her seat belt is not fastened. If the sea t belt is unfas-
tened, the buzzer sounds intermittently for a certain period of time, after
the seat belt is fastened and unfastened and the vehicle reache s a certain
speed.
*1
Brake Override System Indicates that the accelerator and brake pedals are being
depressed simultaneously, and the Brake Override Sys-
tem is operating.
 Release the accelerator pedal and depress the brake
pedal.
Indicates a malfunction in the Brake Override System
(with warning buzzer)
 Have the vehicle inspected by your Toyota dealer
immediately.
Drive-Start Control Indicates that the shift position was changed and Drive-
Start Control was operated while depressing the accelera-
tor pedal. (with warning buzzer)
 Momentarily release the accelerator pedal.
Indicates a malfunction in the Drive-Start Control system
(with warning buzzer)
 Have the vehicle inspected by your Toyota dealer
immediately.
Warning lightWarning light/Details/Actions
