2021 SUZUKI JIMNY clock

INSPECTION AND MAINTENANCE
0
68PH00732
1) Open the engine hood while the engine is stopped. To remove the bulb holder of the front turn signal light or the front position light (for vehicle with halogen headlights) from the light_ housing, turn the holder counterclockw1se and pull 1t out.
6-49
.(2)
Q(3)
78RB07051
(2) Removal (3) Installation
2) To remove and install the bulb of the front position light (1 ), simply pull out or push in the bulb.
Side turn signal light
78RB07031
Since the bulb is built-in type, replace ii as the light assembly. Remove the light assembly by sliding the light housing left­ward with your finger.

Front fog light (if equipped)
1) Start the engine. Turn the steering
wheel to the opposite side of the b~6 light to be replaced to repla_ce the easily. Then turn off the engine.
2) Remove the clips (1) and screw (2) at
the bottom of bumper. d For removing the clip, use a _flat-blade screwdriver as shown in the ,11ustrat1on.
78RB07033
3) Open the end of the cover inside the fender.
52R70140
4) Disconnect the coupler (3) ~Y1t~~~~:~ the lock release. Turn the u . (4) counterclockwise and remove ,t.
INSPECTION AND MAINTENANCE
Daytime running light (if equipped)
Models without front fog light
78RB07034
6-50

INSPECTION AND MAINTENANCE

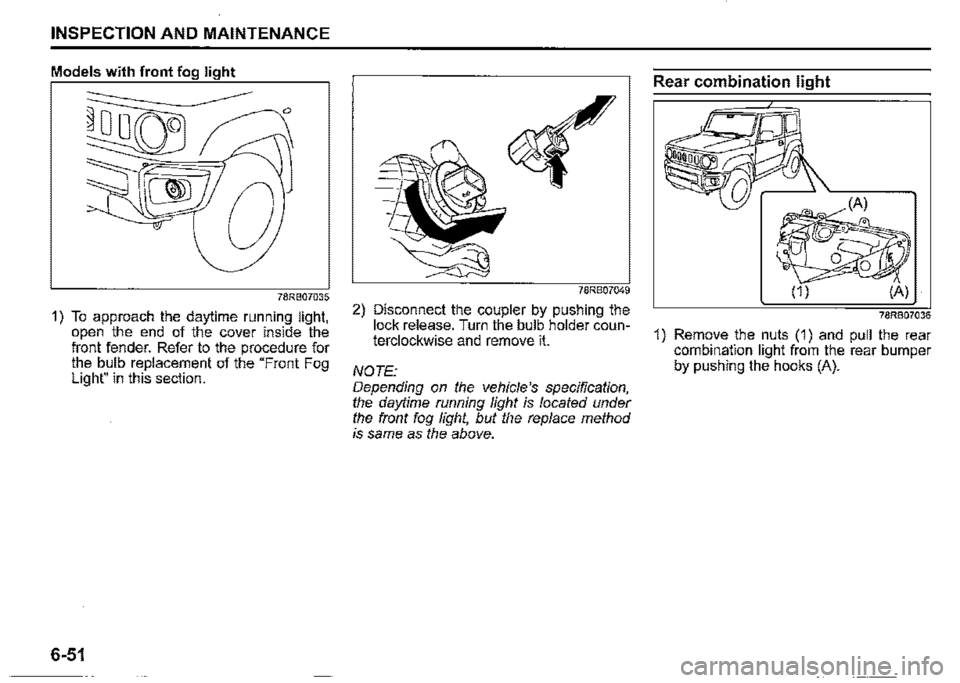

Models with front fog light
78RB07035
1) To approach the daytime running light, open the end of the cover inside the front fender. Refer to the procedure for the bulb replacement of the "Front Fog Light" in this section.
6-51
78RB07049
2) Disconnect the coupler by pushing the lock release. Turn the bulb holder coun­terclockwise and remove ii.
NOTE: Depending on the vehicle's specification, the daytime running light is located under the front fog light, but the replace method is same as the above.
Rear combination light
78RB07036
1) Remove the nuts (1) and pull the rear combination light from the rear bumper by pushing the hooks (A).

(2) (4)(5)
78R807037
(2) Brake/tail light (3) Rear turn signal light (4) Reversing light (5) Rear fog light (if equipped)
2) To remove the bulb holder of the above light from the light housing, turn the holder counterclockwise and pull it out.
~~~
(2) / (3) / (4) / (5)~ ,
.. (6) V'
Q(7)
78RB07038
(6) Removal (7) Installation
3) To remove and install the bulb of the brake/tail light (2), the rear turn signal light (3), the reversing light (4), or the rear fog light (5) (if equipped), simply pull out or push in the bulb.
INSPECTION AND MAINTENANCE
License plate light
52RM70070
1) Remove the cover (1) by turning it counterclockwise.
6-52

Front wheel/Rear wheel
54G277
(1) Boss
6) Position the jack vertically and raise the jack by turning the jack handle clock­wise until the jack head hole fits into the boss (1) of the body as the illustration. 7) Continue to raise the jack slowly and smoothly until the tyre clears the ground. Do not raise the vehicle more than necessary.
A WARNING
• Use the jack only to change wheels on level, hard ground. • Never jack up the vehicle on an inclined surface. • Never raise the vehicle with the jack in a location other than between the frame bosses near the wheel to be changed. • Make sure that the jack is raised at least 51 mm (2 inches) before it contacts the boss. Use of the jack when it is within 51 mm (2 inches) of being fully collapsed may result in failure of the jack. No person should place any por­tion of their body under a vehicle that is supported by a jack. • Never run the engine when the vehicle is supported by the jack and never allow passengers to remain in the vehicle.
EMERGENCY SERVICE
7-2

INDEX
INDEX Brake system warning light ................................................ 2-41
Brakes ................................................................................... 6-33 Symbols Braking .................................................................................. 3-53 "SOS" button ..................................................................... 10-12 Brightness control ...................................................... 2-17. 2-26
A Built date ............................................................................... 10-1
Accelerator pedal ................................................................... 3-7 Bulb replacement ................................................................. 6-47
Accessory socket .................................................................. 5-6 C Adding coolant. .................................................................... 6-29 Catalytic converter ................................................................. 4-9 Adjusting headlight pattern ................................................ 2-60 Central door locking system ................................................. 2-3
Air cleaner ............................................................................ 6-30 Changing engine oil and filter ............................................. 6-26 Air conditioning system ...................................................... 6-58 Changing wheels .................................................................... 7-4 AIRBAG light ............................................................... 1-36. 2-45 Charging light ....................................................................... 2-44
Anti-lock brake system (ABS) ................................... 3-54. 3-56 Chassis serial number ........................................................... 9-1 Anti-lock brake system (ABS) warning light.. ................... 2-42 Child restraint ....................................................................... 10-1 Anti-theft feature .................................................................. 5-76 Child restraint system for countries applied Assist grips ............................................................................ 5-8 for UN Regulation No.16 ............................................. 1-20. 10-7 Automatic headlight leveling system warning light.. ....... 2-50 Child restraint systems ....................................................... 1-18
Automatic heating and air conditioning system Clock ............................................................................ 2-19. 2-29 (climate control) ................................................................... 5-23 Clutch pedal ................................................................... 3-7. 6-33 Automatic light operation ................................................... 2-56 Coolant level check .............................................................. 6-29 Automatic transmission ...................................................... 3-1 O Coolant replacement... ......................................................... 6-29 Average fuel consumption ......................................... 2-20. 2-30 Corrosion prevention ............................................................. 8-1 Average speed ..................................................................... 2-30 Cup holder ............................................................................ 5-11
8 Cup holder and storage area .............................................. 5-1 O
Battery .................................................................................. 6-41 D
Battery replacement .............................................................. 2-7
Bluetooth® audio ................................................................. 5-71
Bluetooth® hands-free ......................................................... 5-62
Daily inspection check list ..................................................... 3-1
Daytime running light .......................................................... 6-50
Daytime running light (D.R.L.) system ............................... 2-58 Brake assist system ............................................................ 3-53 Door locks ............................................................................... 2-2
Brake fluid ............................................................................ 6-33 Drive belt ............................................................................... 6-23 Brake pedal ................................................................... 3-7. 6-34
11-1

No.Using Conditions • When temperature under -40-C . • On miring or sand ground . • On big gradient road . • In extreme nature condition: rainstorm, typhoon, cyclone, snowstorm, thunder•storm. etc . • Loading dangerous heavy, for instance: melted metal. acidity substance, radioactivity substance or specially crisp goods • • Contact with hood directly . • Using on boat. • The ground with difference in level.
Operation Instructions Whenever a wheel is changed, always remove any corrosion that may be present on inside of wheel and wheel mounting surface on vehicle. Details: Please operate according to the "operation instructions", Operate the jack on the level ground while checking the jack and the load. Musln"I operate under raising load, unless the load is fastened surely . • Park the car on the nat, love ground and apply the brake firmly. • Set transmission in "reverse"(automalic transmission in ·park") . • Turn on the hazard warning Hasher . • Remove jacklng tools and spare tire from stowage area . • Block fFont and rear of wheel diagonally opposlte wheel being removed before operating jack .
~
ITT
~ .s,.Cl(Jf>Of'(llITT J-'CKIW ~ • Loosen, but do not remove wheel nuts by turning wrench counter clockwise • • Raise jack until Jack-head groove fits boss or frame see Illustrations . • Operate jack with slow, smooth motion, using Jack handle . • Raise vehicle so an innated lire will just clear surface, remove nuts and wheel. • Install wheel, then slightly tighten each nut, wheel must be seated on hub . • lower vehicle, and fully tighten wheel nuts In across-cross sequence by turning wrench clockwise.
Maintenance • Please prevent the JACK SCREW from accretion of dirt . • Check the nameplate, keep the shape same as original. • No-re jigger the Jack's construction privately . • After any use, consult immediately your Suzuki Dealer or Service Partner for inspection and maintenance of the jack . • If the label (slicker) is damaged, pt ease consult your Suzuki Dealer or Service Partner.
