2021 RAM PROMASTER service indicator

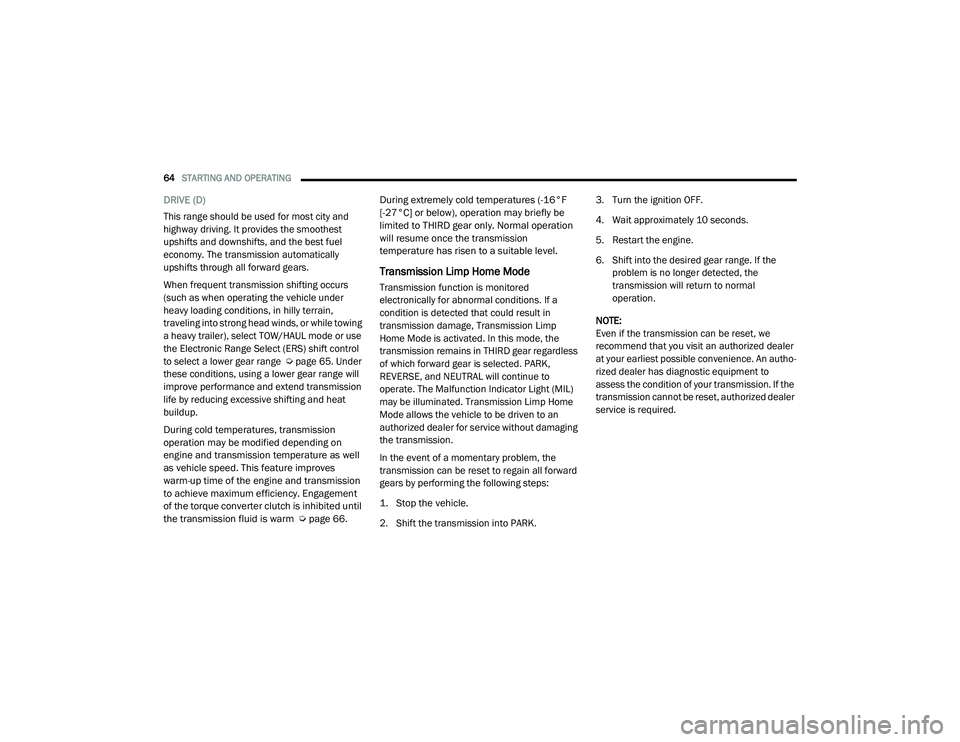

64STARTING AND OPERATING
DRIVE (D)
This range should be used for most city and
highway driving. It provides the smoothest
upshifts and downshifts, and the best fuel
economy. The transmission automatically
upshifts through all forward gears.
When frequent transmission shifting occurs
(such as when operating the vehicle under
heavy loading conditions, in hilly terrain,
traveling into strong head winds, or while towing
a heavy trailer), select TOW/HAUL mode or use
the Electronic Range Select (ERS) shift control
to select a lower gear range Úpage 65. Under
these conditions, using a lower gear range will
improve performance and extend transmission
life by reducing excessive shifting and heat
buildup.

During cold temperatures, transmission
operation may be modified depending on
engine and transmission temperature as well
as vehicle speed. This feature improves
warm-up time of the engine and transmission
to achieve maximum efficiency. Engagement
of the torque converter clutch is inhibited until
the transmission fluid is warm
Ú
page 66. During extremely cold temperatures (-16°F
[-27°C] or below), operation may briefly be
limited to THIRD gear only. Normal operation
will resume once the transmission
temperature has risen to a suitable level.

Transmission Limp Home Mode
Transmission function is monitored
electronically for abnormal conditions. If a
condition is detected that could result in
transmission damage, Transmission Limp
Home Mode is activated. In this mode, the
transmission remains in THIRD gear regardless
of which forward gear is selected. PARK,
REVERSE, and NEUTRAL will continue to
operate. The Malfunction Indicator Light (MIL)
may be illuminated. Transmission Limp Home
Mode allows the vehicle to be driven to an
authorized dealer for service without damaging
the transmission.
In the event of a momentary problem, the
transmission can be reset to regain all forward
gears by performing the following steps:

1. Stop the vehicle.

2. Shift the transmission into PARK. 3. Turn the ignition OFF.
4. Wait approximately 10 seconds.
5. Restart the engine.
6. Shift into the desired gear range. If the
problem is no longer detected, the
transmission will return to normal
operation.
NOTE:
Even if the transmission can be reset, we
recommend that you visit an authorized dealer
at your earliest possible convenience. An autho -
rized dealer has diagnostic equipment to
assess the condition of your transmission. If the
transmission cannot be reset, authorized dealer
service is required.

21_VF_OM_EN_USC_t.book Page 64

211
SERVICING AND MAINTENANCE
SCHEDULED SERVICING
Your vehicle is equipped with an automatic oil
change indicator system. The oil change
indicator system will remind you that it is time to
take your vehicle in for scheduled maintenance.

Based on engine operation conditions, the oil
change indicator message will illuminate in the
instrument cluster. This means that service is
required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, and
extremely hot or cold ambient temperatures will
influence when the “Oil Change Required”
message is displayed. Severe Operating
Conditions can cause the change oil message to
illuminate as early as 3,500 miles (5,600 km)
since last reset. Have the vehicle serviced as
soon as possible, within the next 500 miles
(805 km).
An authorized dealer will reset the oil change
indicator message after completing the
scheduled oil change. If a scheduled oil change
is performed by someone other than an
authorized dealer, the message can be reset by
referring to the steps described under
Instrument Cluster Display Ú
page 45.
NOTE:
Under no circumstances should oil change
intervals exceed 10,000 miles (16,000 km),
12 months or 350 hours of engine run time,
whichever comes first. The 350 hours of engine
run or idle time is generally only a concern for
fleet customers. Severe Duty All Models

Vehicles that are operated in a dusty and off-road
environment, or predominately at idle or very low
engine RPM are known as Severe Duty vehicles.
It is recommended that you change the engine oil
at 4,000 miles (6,500 km) or 350 hours of
engine run time.

Once A Month Or Before A Long Trip:
Check engine oil level
Check windshield washer fluid level
Check the tire pressures and look for unusual
wear or damage. Rotate at the first sign of
irregular wear, even if it occurs before the oil
indicator system turns on
Check the fluid levels of the coolant reservoir,
brake master cylinder, and power steering
and fill as needed
Check function of all interior and exterior
lights
8

21_VF_OM_EN_USC_t.book Page 211

SERVICING AND MAINTENANCE251
Tread Wear Indicators
Tread wear indicators are in the original
equipment tires to help you in determining
when your tires should be replaced.

Tire Tread

These indicators are molded into the bottom of
the tread grooves. They will appear as bands
when the tread depth becomes a 1/16 of an
inch (1.6 mm). When the tread is worn to the
tread wear indicators, the tire should be
replaced.
Life Of Tire
The service life of a tire is dependent upon
varying factors including, but not limited to:
Driving style.
Tire pressure - Improper cold tire inflation
pressures can cause uneven wear patterns
to develop across the tire tread. These
abnormal wear patterns will reduce tread life,
resulting in the need for earlier tire replace -
ment.
Distance driven.
Performance tires, tires with a speed rating of
V or higher, and Summer tires typically have
a reduced tread life. Rotation of these tires
per the vehicle scheduled maintenance is
highly recommended. NOTE:
Wheel Valve Stem must be replaced as well
when installing new tires due to wear and tear
in existing tires.
Keep dismounted tires in a cool, dry place with
as little exposure to light as possible. Protect
tires from contact with oil, grease, and gasoline.
Replacement Tires

The tires on your new vehicle provide a balance of
many characteristics. They should be inspected
regularly for wear and correct cold tire inflation
pressures. The manufacturer strongly
recommends that you use tires equivalent to the
originals in size, quality and performance when
replacement is needed. Refer to the paragraph
on “Tread Wear Indicators” in this section. Refer
to the Tire and Loading Information placard or the
Vehicle Certification Label for the size
designation of your tire. The Load Index and
Speed Symbol for your tire will be found on the
original equipment tire sidewall.

See the Tire Sizing Chart example found in the
Tire Safety Information section of this manual
for more information relating to the Load Index
and Speed Symbol of a tire Ú
page 241.
1 — Worn Tire
2 — New Tire
WARNING!
Tires and the spare tire should be replaced
after six years, regardless of the remaining
tread. Failure to follow this warning can result
in sudden tire failure. You could lose control
and have a collision resulting in serious injury
or death.
8

21_VF_OM_EN_USC_t.book Page 251

276 C
Camera, Rear
.................................................. 73Capacities, Fluid............................................ 268Caps, Filler Fuel............................................................. 75Oil (Engine)................................................ 215Power Steering............................................ 67Radiator (Coolant Pressure)...................... 224Car Washes................................................... 261Carbon Monoxide Warning............................ 189Cargo Area Cover............................................. 41Cargo Compartment........................................ 41Cargo Light...................................................... 28Certification Label........................................... 76Change Oil Indicator........................................ 45Changing A Flat Tire....................................... 190Chart, Tire Sizing............................................ 241Check Engine Light
(Malfunction Indicator Light)........................... 56Checking Your Vehicle For Safety.................. 186Checks, Safety............................................... 186Child Restraint............................................... 181Child RestraintsBooster Seats............................................ 184Child Seat Installation............................... 186Infant And Child Restraints....................... 183Older Children And Child Restraints..........183Clean Air Gasoline......................................... 266CleaningWheels...................................................... 255
Climate Control................................................ 31Manual........................................................ 31Rear............................................................. 34Cold Weather Operation.................................. 57Compact Spare Tire...................................... 253Contract, Service.......................................... 272Cooling Pressure Cap (Radiator Cap)............ 224Cooling System............................................. 223Adding Coolant (Antifreeze)...................... 224Coolant Level................................... 223, 225Cooling Capacity....................................... 268Disposal Of Used Coolant......................... 225Drain, Flush, And Refill............................. 223Inspection................................................. 225Points To Remember................................ 225Pressure Cap............................................ 224Radiator Cap............................................ 224Selection Of Coolant (Antifreeze)..... 223, 268Corrosion Protection..................................... 260Cruise Control (Speed Control)........................ 67Cruise Light...................................................... 54Cupholders................................................... 263Customer Assistance.................................... 271Customer Programmable Features.................. 89Cybersecurity................................................... 88
D
Dealer Service.............................................. 218Defroster, Windshield................................... 187Deleting A Phone.......................................... 117
Diagnostic System, Onboard............................55Dimmer Control Switch....................................29Dimmer SwitchHeadlight.....................................................26DipsticksAutomatic Transmission........................... 227Oil (Engine)............................................... 216Power Steering............................................67Disable Vehicle Towing................................. 209Disconnecting............................................... 117DisposalAntifreeze (Engine Coolant)...................... 225Disturb.......................................................... 120Door Ajar..........................................................49Door Ajar Light.................................................49Door Locks.......................................................14Automatic....................................................15Doors...............................................................14Driver’s Seat Back Tilt......................................15DrivingThrough Flowing, Rising, Or Shallow Standing Water
..........................86
E
Electric Brake Control System....................... 150Electric Remote Mirrors...................................24Electrical Power Outlets...................................37Electronic Speed Control (Cruise Control)........67Electronic Stability Control (ESC)................... 150Electronic Throttle Control Warning Light.........49

21_VF_OM_EN_USC_t.book Page 276

278 H
Hazard Driving Through Flowing, Rising, OrShallow Standing Water
.......................... 86Hazard Warning Flashers.............................. 190Head Restraints............................................... 20HeadlightsCleaning.................................................... 260High Beam.................................................. 26High Beam/Low Beam Select Switch.......... 26Passing........................................................ 26Switch......................................................... 26Heated Mirrors................................................ 25Heated Seats................................................... 19Heater, Engine Block....................................... 58High Beam/Low Beam Select (Dimmer)
Switch.............................................................. 26Hill Start Assist.............................................. 153HitchesTrailer Towing.............................................. 80Hood Prop........................................................ 40Hood Release.................................................. 40
I
Ignition............................................................ 12Key....................................................... 10, 12Switch......................................................... 12Ignition Key Removal....................................... 12Illuminated Entry............................................. 30
Immobilizer (Sentry Key).................................. 12Inside Rearview Mirror..................................... 23Instrument Cluster.................................... 42, 54Display......................................................... 44Instrument Panel Lens Cleaning................... 262Interior And Instrument Lights......................... 28Interior Appearance Care.............................. 261Interior Lights................................................... 28Intermittent Wipers (Delay Wipers).................. 30iPod/USB/MP3 Control.................................... 37
J
Jack Location................................................ 190Jack Operation.............................................. 190Jacking And Tire Changing............................ 190Jacking And Tire Changing Instructions........ 191Jump Starting............................................... 203
K
Key FobProgramming Additional Key Fobs
............... 11Key Fob Battery Service
(Remote Keyless Entry).................................... 11Key Fob Programming
(Remote Keyless Entry).................................... 11Key-In Reminder.............................................. 12Keys................................................................. 10Replacement............................................... 11Sentry (Immobilizer).................................... 12
L
Lane Change Assist..........................................27Lap/Shoulder Belts....................................... 166Latches......................................................... 188Hood............................................................40Lead Free Gasoline....................................... 265Leaks, Fluid................................................... 189Life Of Tires................................................... 251Light Bulbs........................................... 188, 235Lights............................................................ 188Air Bag...................................... 48, 173, 187Brake Assist Warning................................ 152Brake Warning.............................................49Bulb Replacement.................................... 235Cruise..........................................................54Daytime Running.........................................26Dimmer Switch, Headlight...........................26Electronic Stability Program(ESP) Indicator........................................ 49, 152Exterior.............................................. 26, 188Hazard Warning Flasher........................... 190Headlights...................................................26High Beam...................................................26Illuminated Entry.........................................30Interior.........................................................28Malfunction Indicator (Check Engine)..........52Park......................................................26, 54Passing........................................................26

21_VF_OM_EN_USC_t.book Page 278

279
Security Alarm
............................................. 50Service...................................................... 235Tire Pressure Monitoring (TPMS)............... 161Traction Control......................................... 152Turn Signals................................ 26, 54, 188Warning Instrument Cluster Descriptions..................................... 49, 54Loading Vehicle........................................ 76, 77Capacities................................................... 77Tires.......................................................... 245LocksAutomatic Door.................................... 14, 15Low Tire Pressure System............................. 161Lubrication, Body........................................... 221Lug Nuts/Bolts.............................................. 264
M
Maintenance Free Battery............................. 217Maintenance Schedule.................................. 211Malfunction Indicator Light (Check Engine)..... 52ManualService...................................................... 274Methanol....................................................... 266Mirrors............................................................. 23Electric Remote........................................... 24Exterior Folding........................................... 24Heated........................................................ 25Outside........................................................ 24Rearview..................................................... 23
Modifications/AlterationsVehicle........................................................... 7Monitor, Tire Pressure System...................... 161Mopar Parts.................................................. 273MP3 Control..................................................... 37Multi-Function Control Lever............................ 26
N
New Vehicle Break-In Period............................ 58
O
Occupant Restraints..................................... 164Octane Rating, Gasoline (Fuel)..................... 265Oil Change Indicator........................................ 45Reset........................................................... 45Oil Filter, Change.......................................... 219Oil Filter, Selection........................................ 219Oil Pressure Light............................................. 50Oil, Engine............................................ 218, 268Capacity.................................................... 268Checking................................................... 216Dipstick.................................................... 216Disposal................................................... 218Filter................................................ 219, 268Filter Disposal........................................... 218Identification Logo.................................... 218Materials Added To.................................. 218Pressure Warning Light............................... 50Recommendation............................ 218, 268
Synthetic................................................... 218Viscosity.................................................... 268Onboard Diagnostic System.............................55Operating Precautions.....................................55Operator ManualOwner's Manual........................................ 274Outside Rearview Mirrors.......................... 23, 24Overheating, Engine...................................... 206
P
Paint Care..................................................... 260Parking Brake..................................................59ParkSense System, Rear..................................69Passing Light....................................................26Pets............................................................... 187Phone Mode.................................................. 112Placard, Tire And Loading Information.......... 245PowerMirrors.........................................................24Outlet (Auxiliary Electrical Outlet).................37Steering................................................66, 67Windows......................................................39Power Steering Fluid..................................... 270Pregnant Women And Seat Belts.................. 170Preparation For Jacking....................... 190, 191
11

21_VF_OM_EN_USC_t.book Page 279

281
Storing Your Vehicle
...................................... 260Supplemental Restraint System – Air Bag..... 174Sway Control, Trailer...................................... 154Synthetic Engine Oil....................................... 218
T
Telescoping Steering Column.......................... 15Tire And Loading Information Placard........... 245Tire Markings................................................. 240Tire Safety Information.................................. 240Tire Service Kit.................. 197, 198, 200, 202Tires................................... 188, 248, 253, 259Aging (Life Of Tires)................................... 251Air Pressure............................................... 248Chains....................................................... 257Changing................................................... 190Compact Spare......................................... 253General Information........................ 248, 253High Speed................................................ 249Inflation Pressure...................................... 249Jacking...................................................... 190Life Of Tires............................................... 251Load Capacity............................................ 245Pressure Monitoring System (TPMS)............................... 51, 161Quality Grading.......................................... 259Radial........................................................ 250Replacement............................................. 251Rotation.................................................... 258
Safety.............................................. 240, 248Sizes......................................................... 241Snow Tires................................................ 253Spare Tires...................................... 253, 255Spinning................................................... 250Trailer Towing.............................................. 82Tread Wear Indicators.............................. 251Wheel Nut Torque..................................... 264To Open Hood.................................................. 40Tongue Weight/Trailer Weight......................... 81Torque Converter Clutch.................................. 66Towing....................................................78, 209Disabled Vehicle....................................... 209Guide........................................................... 81Recreational................................................ 85Weight......................................................... 81Towing Behind A Motorhome........................... 85Traction............................................................ 86Traction Control............................................ 154Trailer Sway Control (TSC)............................. 154Trailer Towing.................................................. 78Hitches........................................................ 80Minimum Requirements.............................. 81Tips.............................................................. 84Trailer And Tongue Weight........................... 81Wiring.......................................................... 83Trailer Towing Guide........................................ 81Trailer Weight................................................... 81
TransmissionAutomatic.......................................... 60, 226Fluid.......................................................... 270Maintenance............................................ 226Transporting Pets.......................................... 187Tread Wear Indicators................................... 251Turn Signals.....................................................54
U
UconnectPhone Call Features
................................. 118Things You Should Know About YourUconnect Phone................................... 121Uconnect Phone..........................113, 114, 116Answer Or Ignore An Incoming Call — Call Currently In Progress..................... 120Answer Or Ignore An Incoming Call —No Call Currently In Progress................ 119Bluetooth Communication Link................ 124Call Continuation...................................... 121Call Controls............................................. 119Call Termination....................................... 121Cancel Command..................................... 114Connecting To A Particular Mobile Phone Or Audio Device After Pairing................ 116Help Command......................................... 114Join Calls.................................................. 12111

21_VF_OM_EN_USC_t.book Page 281
