219
PEUGEOT Connect Nav
12Media
USB port
Insert the USB memory stick into the USB
port or connect the USB device to the
USB port using a suitable cable (not supplied).
To protect the system, do not use a USB hub.
The system builds playlists (in temporary
memory); this operation can take from a
few seconds to several minutes at the first
connection.
Reduce the number of non-music files and the
number of folders to reduce the waiting time.
Playlists are updated whenever the ignition
is switched off or a USB memory stick is
connected. The audio system memorises these
lists, which will subsequently load faster if they
have not been changed.
Auxiliary socket (AUX)
Depending on equipmentConnect a portable device (MP3 player,
etc.) to the auxiliary jack socket using an
audio cable (not supplied).
This source is only available if "Auxiliary input"
has been selected in the audio settings.
First adjust the volume on the portable device
(to a high level). Then adjust the volume of the
audio system.
Controls are managed via the portable device.
Selecting the source
Press Radio Media to display the main
page.
Select "SOURCES".
Select the source.
Watching a video
Depending on equipment/Depending on version/
Depending on country.
Insert a USB memory stick in the USB port.
Video control commands are accessible
only through the touch screen.
Press Radio Media to display the main
page.
Select "SOURCES".
Select Video to start the video.
To remove the USB memory stick, press the pause button to stop the video, then
remove the memory stick.
The system can play video files in the MPEG-4
Part 2, MPEG-2, MPEG-1, H.264, H.263, VP8,
WMV and RealVideo formats.
Streaming Bluetooth®
Streaming allows you to listen to the audio feed
from your smartphone.
The Bluetooth profile must be activated.
First adjust the volume on the portable device (to
a high level).
Then adjust the volume of the audio system.
If play does not start automatically, it may be
necessary to start the audio playback from the
smartphone.
Control is from the portable device or by using
the system's touch buttons.
Once connected in streaming mode, the
smartphone is considered to be a media
source.
Connecting Apple® players
Connect the Apple® player to the USB port using
a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
The classifications available are those of the portable device connected (artists/
albums/genres/playlists/audio books/
podcasts).
The default classification used is by artist. To
modify the classification used, return to the
first level of the menu then select the desired
classification (playlists for example) and
confirm to go down through the menu to the
desired track.
The version of software in the audio system may
not be compatible with the generation of the
Apple
® player.

220

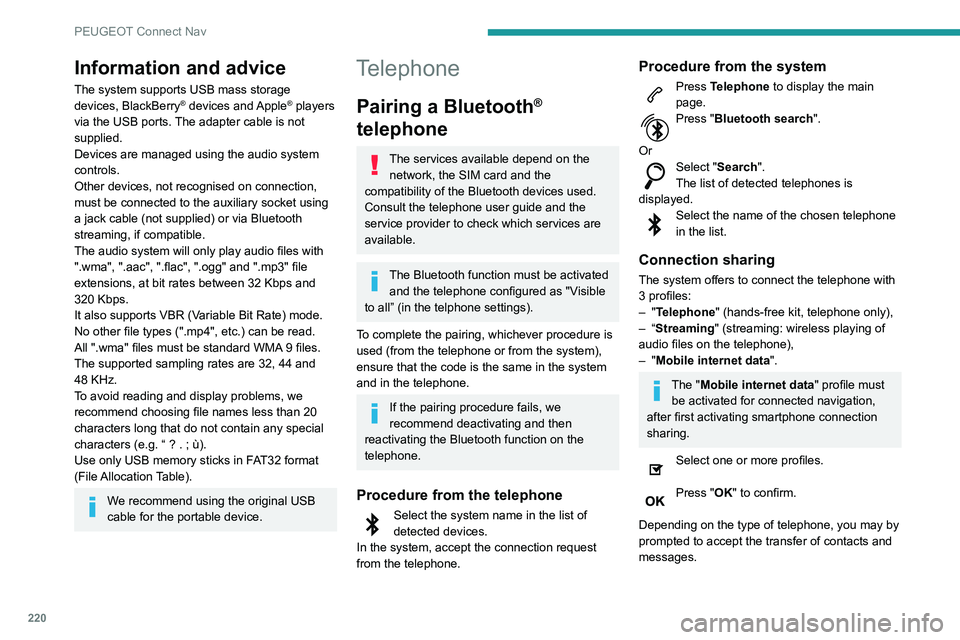

PEUGEOT Connect Nav
The ability of the system to connect just one profile depends on the telephone.
All three profiles may connect by default.
The profiles compatible with the system are: HFP, OPP, PBAP, A2DP, AVRCP,
MAP and PAN.
Visit the Brand's website for more information
(compatibility, additional help, etc.).
Automatic reconnection
On returning to the vehicle, if the last telephone
connected is present again, it is automatically
recognised and within about 30 seconds
after switching on the ignition, the pairing is
established automatically (Bluetooth activated).
To modify the connection profile:
Press Telephone to display the main
page.
Press the "OPTIONS " button to access the
secondary page.
Select "Bluetooth connection " to display
the list of paired devices.
Press the "Details" button.
Select one or more profiles.
Press "OK" to confirm.
Information and advice
The system supports USB mass storage
devices, BlackBerry® devices and Apple® players
via the USB ports. The adapter cable is not
supplied.
Devices are managed using the audio system
controls.
Other devices, not recognised on connection,
must be connected to the auxiliary socket using
a jack cable (not supplied) or via Bluetooth
streaming, if compatible.
The audio system will only play audio files with
".wma", ".aac", ".flac", ".ogg" and ".mp3" file
extensions, at bit rates between 32 Kbps and
320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other file types (".mp4", etc.) can be read.
All ".wma" files must be standard WMA 9 files.
The supported sampling rates are 32, 44 and
48 KHz.
To avoid reading and display problems, we
recommend choosing file names less than 20
characters long that do not contain any special
characters (e.g. “ ? .

; ù).
Use only USB memory sticks in FAT32 format
(File Allocation Table).
We recommend using the original USB
cable for the portable device.
Telephone
Pairing a Bluetooth®
telephone
The services available depend on the
network, the SIM card and the
compatibility of the Bluetooth devices used.
Consult the telephone user guide and the
service provider to check which services are
available.
The Bluetooth function must be activated and the telephone configured as "Visible
to all” (in the telphone settings).
To complete the pairing, whichever procedure is
used (from the telephone or from the system),
ensure that the code is the same in the system
and in the telephone.
If the pairing procedure fails, we
recommend deactivating and then
reactivating the Bluetooth function on the
telephone.
Procedure from the telephone
Select the system name in the list of
detected devices.
In the system, accept the connection request
from the telephone.
Procedure from the system
Press Telephone to display the main
page.
Press "Bluetooth search".
Or
Select "Search".
The list of detected telephones is
displayed.
Select the name of the chosen telephone
in the list.
Connection sharing
The system offers to connect the telephone with
3 profiles:
–
"Telephone" (hands-free kit, telephone only),
–
“Streaming" (streaming: wireless playing of
audio files on the telephone),
–
"Mobile internet data ".
The "Mobile internet data " profile must
be activated for connected navigation,
after first activating smartphone connection
sharing.
Select one or more profiles.
Press "OK" to confirm.
Depending on the type of telephone, you may by
prompted to accept the transfer of contacts and
messages.

221

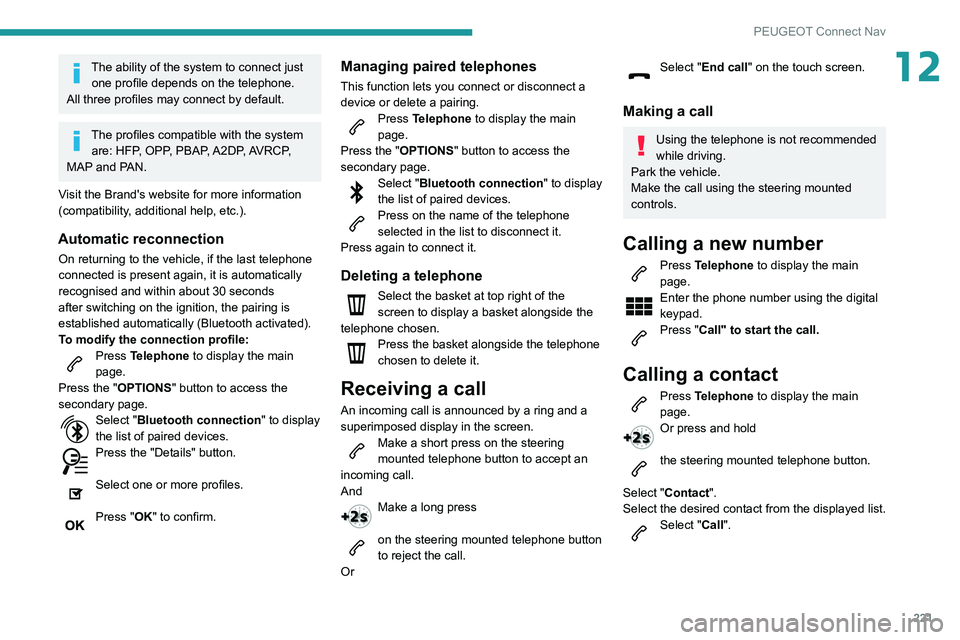

PEUGEOT Connect Nav
12The ability of the system to connect just one profile depends on the telephone.
All three profiles may connect by default.
The profiles compatible with the system are: HFP, OPP, PBAP, A2DP, AVRCP,
MAP and PAN.
Visit the Brand's website for more information
(compatibility, additional help, etc.).
Automatic reconnection
On returning to the vehicle, if the last telephone
connected is present again, it is automatically
recognised and within about 30 seconds
after switching on the ignition, the pairing is
established automatically (Bluetooth activated).
To modify the connection profile:
Press Telephone to display the main
page.
Press the "OPTIONS " button to access the
secondary page.
Select "Bluetooth connection " to display
the list of paired devices.
Press the "Details" button.
Select one or more profiles.
Press "OK" to confirm.
Managing paired telephones
This function lets you connect or disconnect a
device or delete a pairing.
Press Telephone to display the main
page.
Press the "OPTIONS " button to access the
secondary page.
Select "Bluetooth connection " to display
the list of paired devices.
Press on the name of the telephone
selected in the list to disconnect it.
Press again to connect it.
Deleting a telephone
Select the basket at top right of the
screen to display a basket alongside the
telephone chosen.
Press the basket alongside the telephone
chosen to delete it.
Receiving a call
An incoming call is announced by a ring and a
superimposed display in the screen.
Make a short press on the steering
mounted telephone button to accept an
incoming call.
And
Make a long press
on the steering mounted telephone button
to reject the call.
Or
Select "End call" on the touch screen.
Making a call
Using the telephone is not recommended
while driving.
Park the vehicle.
Make the call using the steering mounted
controls.
Calling a new number
Press Telephone to display the main
page.
Enter the phone number using the digital
keypad.
Press "Call" to start the call.
Calling a contact
Press Telephone to display the main
page.
Or press and hold
the steering mounted telephone button.
Select "Contact".
Select the desired contact from the displayed list.
Select "Call".

226
PEUGEOT Connect Nav
Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset.
Selecting an ambience imposes the treble and
bass settings, and vice versa.
► Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
► Modify the balance setting or the distribution
setting to obtain the desired sound quality.
There is a difference in sound quality
between audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source.
► Check that the sound settings are appropriate
to the sources listened to. We recommend
setting the sound functions (Bass:, Treble:,
Balance) to the middle position, setting the
musical ambience to "None", setting loudness
correction to "Active" in USB mode and "Inactive"
in Radio mode.
► In all cases, after applying sound settings,
adjust the volume level on the portable device (to
The aerial is missing or has been damaged
(for example while entering a car wash or
underground car park).
►

Have the aerial checked by a dealer
.
The environment (hills, buildings, tunnels,
basement car parks, etc.) is blocking reception,
including in RDS mode.
This is a perfectly normal phenomenon, and is
not indicative of an audio system malfunction.
I cannot find some radio stations in the list of
stations received.
The name of the radio station changes.
The station is no longer received or its name has
changed in the list.
Some radio stations send other information
in place of their name (the title of the song for
example).
The system interprets these details as the station
name.
►

Press the "Update list" button in the "Radio
stations” secondary menu.
Media
Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).
Some files supplied with the memory stick may
greatly slow down access to reading the memory
stick (multiplication by 10 of the cataloguing
time).
►

Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick. There may be an extended pause after
inserting a USB stick.
The system reads a variety of data (folder

, title,
artist, etc.). This can take from a few seconds to
a few minutes.
This is perfectly normal.
Some characters in information about the
currently playing media may not be displayed
correctly.
The audio system is unable to process certain
types of character.
►
Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
►

Start playback from the device.
T
rack names and playing times are not
displayed on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I cannot connect my Bluetooth telephone.
The telephone's Bluetooth function may be
switched off or the telephone may not be visible.
►

Check that the telephone has Bluetooth
switched on.
►


Check in the telephone settings that it is
"visible to all".
►


Deactivate then reactivate the telphone’
s
Bluetooth function. The Bluetooth telephone is not compatible with
the system.
►

Y
ou can check that your telephone is
compatible on the Brand's website (services).
The volume of the telephone connected in
Bluetooth mode is inaudible.
The volume depends on both the system and the
telephone.
►
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary
.
Ambient noise affects the quality of the
telephone call.
►
Reduce the ambient noise level (close
windows, reduce ventilation, slow down, etc.).
Some contacts are duplicated in the list.
The options for synchronising contacts are:
synchronise the contacts on the SIM card, the
contacts on the telephone, or both. When both
synchronisations are selected, some contacts
may be duplicated.
►

Select "Display SIM card contacts" or
"Display telephone contacts".
The contacts are not listed in alphabetical
order
.
Some telephones offer display options.
Depending on the settings chosen, contacts can
be transferred in a specific order.
►

Modify the telephone directory display
settings.
The system does not receive SMS.
SMS text messages cannot be sent to the
system in Bluetooth mode.

228
Alphabetical index
A
ABS 75
Accessories
71, 94
Access to the spare wheel

153–154
Active Safety Brake

118, 120
AdBlue®

146
AdBlue® tank

147
Additive, Diesel

144–145
Adjusting headlamps

67
Adjusting head restraints

46
Adjusting seat

41
Adjusting the air distribution

56–57
Adjusting the air flow

56–57
Adjusting the date

200, 224
Adjusting the height and reach of
the steering wheel

42
Adjusting the lumbar support

41
Adjusting the temperature

56–57
Adjusting the time

200, 224
Advanced Grip Control

77–78
Advice on care and maintenance

148
Advice on driving

7, 90
Airbags

81–84, 85
Airbags, curtain

83–84
Airbags, front

82, 83, 86
Airbags, lateral

82–83
Air conditioning

55, 57, 57–58
Air conditioning, digital

59
Air conditioning, dual-zone automatic

56–57
Air conditioning, manual

56, 58
Air intake

56–57
Air vents 55
Alarm
37–38
Alarm, volumetric

37
Android Auto connection

215
Anti-lock braking system (ABS)

75–76
Antitheft / Immobiliser

25
Apple CarPlay connection

196, 214
Applications

215
Area, loading

26, 33–34, 50
Armrest

41
Armrest, front

47
Assistance call

71–73
Assistance, emergency braking

75, 119
Audible warning

75
Audio streaming (Bluetooth)

183, 195, 219
B
Battery 139, 163, 165–166
Battery, 12 V
144, 163–164
Battery, charging

164–165
Battery, remote control

32, 62
Blind spot monitoring system

124
Blind spot monitoring system, active

125
Blind spot sensors

124–125
BlueHDi

144, 150
Bluetooth
(hands-free)

184–185, 197, 220–221
Bluetooth (telephone)

197–198, 220–221
Bodywork

149
Bonnet

141–142
Boot lid 29, 31
Bottle holder
47
Brake discs

145
Brake lamps

160
Brakes

145
Braking assistance system

75–76
Braking, automatic emergency

118, 120
Braking, dynamic emergency

96–97
Brightness

199
Bulbs

157
Bulbs (changing)

156–157
Bulbs (changing, type)

157
C
Cable, audio 219
Cable, Jack
219
Capacity, fuel tank

134–135
Cap, fuel filler

134–135
Care of the bodywork

149
CD

182, 195
CD, MP3

182, 195
Central locking

24, 29
Changing a bulb

156–157, 159
Changing a fuse

161–163
Changing a wheel

151, 153
Changing a wiper blade

68–69
Changing the remote control battery

32
Charger, induction

48
Charger, wireless

48
Checking the levels

142–143

229
Alphabetical index
Checking tyre pressures
(using the kit)
151, 153
Checks

142–143, 144–145
Checks, routine

144–145
Child lock

89
Children

80, 87
Children (safety)

89
Child seats

80, 84–85, 87
Child seats, conventional

86
Cleaning (advice)

148–149
Closing the doors

24, 29
Collision Risk Alert

118–119
Connected applications

216
Connection, Bluetooth

184, 197–198,
216, 220–221
Connection, MirrorLink

196–197, 215
Connection, Wi-Fi network

216–217
Connectivity

214
Container, AdBlue®

147
Control, emergency boot release

31
Control, emergency door

24, 30
Control, heated seats

42
Control stalk, lighting

63, 65
Control stalk, wipers

67–69
Courtesy lamp

62
Courtesy lamp, front

62
Courtesy lamp, rear

62
Courtesy lamps

62
Cruise control

109, 112–114, 117–118
Cruise control, adaptive

11 4
Cruise control by speed limit recognition

109
Cruise control, dynamic with Stop function

109Cup holder 47
D
DAB (Digital Audio Broadcasting) -
Digital radio

180, 194–195, 218
Date (setting)

200, 224
Daytime running lamps

65, 157–158
Daytime running lamps, LED

159
Deactivating the passenger airbag

82, 86
Deactivation of DSC (ESC)

76
Deadlocking

29–30
Defrosting

43, 58–59
Demisting

58–59
Demisting, rear

43, 59
Demisting, rear screen

43, 59
Dimensions

169
Dipstick

142
Direction indicators

64–65, 157, 159–160
Doors, side

35
Doors, side-hinged

29–30
Driver’s attention warning

126
Driving

90
Driving abroad

64
Driving aids camera (warnings)

106
Driving aids (recommendations)

105
Driving economically

7
Dynamic stability control (DSC)

75, 77
E
EBFD 75
Eco-driving (advice)
7
Economy mode

139
Electric windows

39
Electronic brake force distribution
(EBFD)

75–76
Emergency braking assistance (EBA)

75
Emergency call

71–73
Emergency warning lamps

74
Emissions control system, SCR

146
Energy economy mode

139
Engine compartment

142–143
Engine, Diesel

134, 142, 150, 174–175
Engine, petrol

142, 173
Engines

173–175
Environment

7, 32, 62
ESC (electronic stability control)

75
Expanded traffic sign recognition

11 0
F
Fatigue detection 126
Filling the AdBlue® tank
144, 147
Filling the fuel tank

134–135
Filter, air

144
Filter, oil

144
Filter, particle

144–145
Filter, passenger compartment

55, 144
Finisher

156

232
Alphabetical index
Range, AdBlue 144
RDS
193, 218
Rear screen, demisting

59
Recharging the battery

164–165
Recirculation, air

56–57
Recovery

167
Reduction of electrical load

140
Regeneration of the particle filter

144
Reinitialisation of the under-inflation
detection system

105
Reinitialising the remote control

32
Reminder, key in ignition

94
Reminder, lighting on

63–64
Remote control

24–27, 29–30, 91
Removing a wheel

154, 156
Removing the mat

47
Replacing bulbs

156–157
Replacing fuses

161–163
Replacing the air filter

144
Replacing the oil filter

144
Replacing the passenger compartment
filter

144
Reservoir, screenwash

143
Reversing camera

106, 129
Reversing lamps

160
Roof bars

140
Running out of fuel (Diesel)

150
S
Safety, children 82, 84–87
Saturation of the particle filter (Diesel) 144
Screen menu map
196
Screen, multifunction (with audio system)

178
Screenwash, front

67
Screenwash, rear

68
SCR (Selective Catalytic Reduction)

146
Seat belts

79–81, 86
Seat, bench front, 2-seat

44–45, 79
Seat, rear bench

46
Seats, front

40–42, 44–45
Seats, front bench

44–45
Seats, heated

42
Seats, Multiflex ~ Extenso Cab

51
Seats, rear

40, 44, 46, 85
Sensors (warnings)

106
Serial number, vehicle

176
Service indicator

16
Servicing

16, 144
Settings, system

199, 223
Sidelamps

63, 65, 157–159
Side parking sensors

128
Side repeater

158
Sliding side door, electric

29, 35
Snow chains

104, 136
Snow chains, link

136
Socket, 12 V accessory

47
Socket, 220 V

48
Socket, auxiliary

182, 195, 219
Socket, Jack

182, 219
Speed limiter

109–111, 117–118
Speed limit recognition

107–108
Speedometer

107Stability control (ESC) 75–78
Starting a Diesel engine
134
Starting the engine

91
Starting the vehicle

92, 94, 99–101
Starting using another battery

164
Station, radio

179, 192, 217–218
Stay, bonnet

141
Steering mounted controls, audio

178–179, 190,
204
Steering wheel, adjustment

42
Stickers, customising ~ Stickers,
expressive

149
Stopping the vehicle

94, 99–101
Stop & Start

22, 55, 59, 102–104,
134, 141, 144, 163, 166
Storage

47
Stowing rings

49
Sunshine sensor

55
Surround Rear Vision

130
Switching off the engine

91, 93
Synchronising the remote control

32
T
Tables of fuses 161–163
Tank, fuel
134–135
Technical data

173–175
Telephone

48, 184–186, 197–198, 220–222
Telephone, Bluetooth with voice
recognition

186
Temperature, coolant

16
