Have wo rkor repair sto decor ativefo ils car‐
ri ed out ataqu alif ied spec ialistwo rkshop,
e.g. atan aut hor ized Mercedes-Benz Center. No
teson car eof vehicl epar ts &
WARNIN GRisk ofentr apment ifth e
winds hieldwiper sar eswit ched on while
th ewindshield isbeing cleaned
If th ewindshield wipersar ese tin mo tion
while youar ecle anin gth ewindshield or
wiper blades, youcan betrapped bythe
wiper arm. #
Alw aysswitc hof fth ewindshield wipers
and theignition beforecleanin gth e
winds hieldorwiper blades. &
WARNIN GRisk ofburnsfrom theta il‐
pipe andtailpipe trims
The exhaus tta ilpipe andtailpipe trims can
becom eve ry hot.Ifyo uco me intoco ntact
wit hth ese partsof theve hicle, youco uld
bur nyo urself . #
Alw aysbe par ticular lycareful arou nd
th eta ilpipe andtheta ilpipe trims and
super visechildr enespec iallycloselyin
th is area. #
Allo wvehicle partsto cool down before
to uc hin gth em. To
avo iddamag eto theve hicle, observethe
no teson cleaning andcareof thefo llo wing vehi‐
cle parts:
Wheels andrims
R Use waterand acid-free alloy wheel cleaners.
R Donotuse acidic alloywheel cleanersto
re mo vebrak edus t.This could damag ewheel
bolts andbrak ecom ponen ts.
R Toavo idcor rosion ofthebr ak ediscs and
br ak epads, drive th eve hicle fora fe w
minut esafte rclea ning beforepar king it.The
br ak ediscs andbrak epa dswarm upand dry
out . Wi
ndo ws
R Clean thewindo wsinsid eand outs idewitha
dam pclo thand withacle anin gag ent recom‐
mend edforMer cedes-Benz.
R Donotuse dryclo thsor abr asiv eor sol vent-
ba sed cleani ng agents tocle an theinside of
windo ws.
Wi per blades
R Movethewiper arms intoth ere placemen t
position (/page12 0).
R With thewiper arms folded out,clean the
wiper blades withadam pclo th.
R Donotcle an thewiper blades tooof ten.
Ex terior light ing
R Clean thelenses withawe tsp ong eand mild
cle ani ng agent, e.g.car shampoo.
R Onlyuse cleaning agents orcleaning cloths
th at aresuit able forpla stic lens es.
Sensor s
R Clean thesensor sin thefront and rear
bum perswit hasof tclo thand carsham poo
(/ page15 8). Mai
ntenance andcare 31
1

#

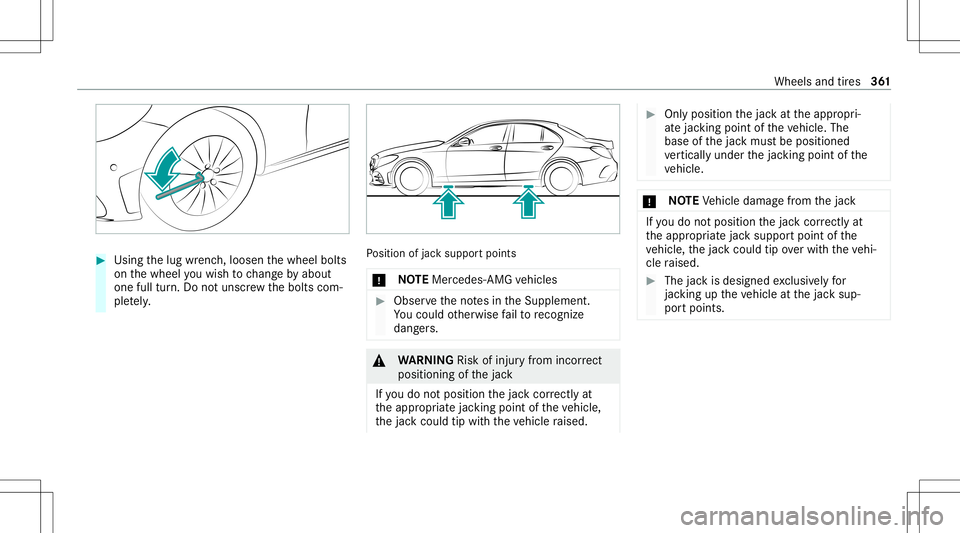

Using thelug wrenc h,loosen thewheel bolts
on thewheel youwish tochang eby about
on efull turn.Do notuns crew thebolts com‐
ple tely. Po
sition ofjac ksuppor tpoints
* NO
TEMer cedes-AMG vehicles #
Obser vetheno tesin theSupplement .
Yo uco uld other wise failto recogni ze
da ngers. &
WARNIN GRisk ofinju ryfrom incor rect
pos itioning ofthejac k
If yo udo notposi tionth ejac kcor rectl yat
th eappr opriatejac king point oftheve hicle,
th ejac kcould tipwithth eve hicle raised. #
Onlyposit ionthejac kat theappr opri‐
at ejac king point oftheve hicle. The
base ofthejac kmus tbe position ed
ve rticall yunder thejac king point ofthe
ve hicle. *
NO
TEVehicle damag efrom thejac k If
yo udo notposi tionth ejac kcor rectl yat
th eappr opriatejac ksuppor tpoint ofthe
ve hicle, thejac kcould tipove rwit hth eve hi‐
cle raised. #
The jackis design edexclu sively for
jac king uptheve hicle atthejac ksup‐
por tpoints . Wheels
andtires 36
1

#

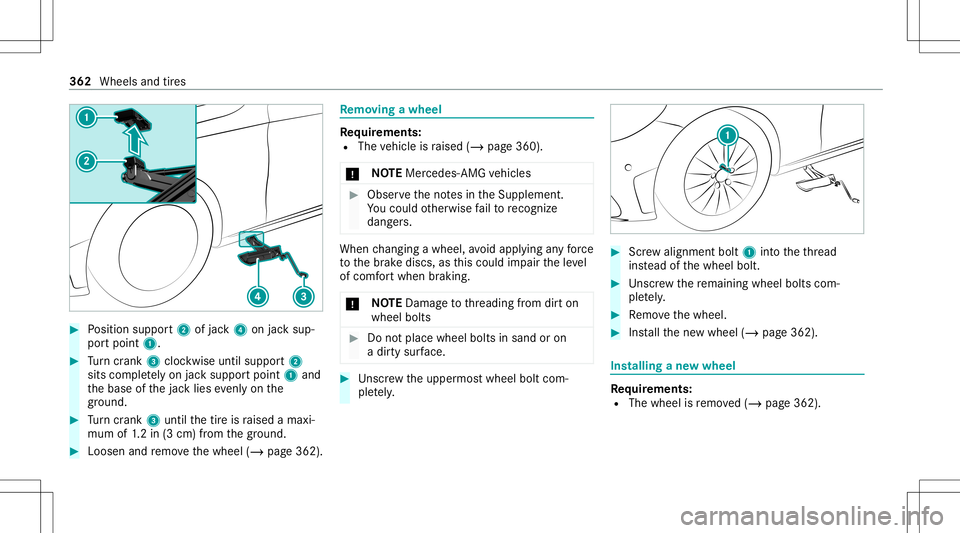

Position suppor t2 ofjac k4 onjacksup‐
por tpoint 1. #
Turn crank 3cloc kwiseunti lsu ppo rt2
sits com pletely on jacksuppor tpoint 1and
th ebase ofthejac klies evenlyon the
gr ou nd . #
Turn crank 3unti lth etir eis raised amaxi‐
mum of1.2 in (3 cm) from thegr ound. #
Loosen andremo vethewheel (/page362). Re
mo ving awh eel Re
quirement s:
R The vehicle israised (/page360).
* NO
TEMer cedes-AMG vehicles #
Obser vetheno tesin theSupplement .
Yo uco uld other wise failto recogni ze
da ngers. Whe
nch ang ingawheel, avoidapplyin gan yfo rc e
to thebr ak ediscs, asthis could impair theleve l
of comf ortwhen braking.
* NO
TEDama getothre adin gfrom dirton
wheel bolts #
Donotplace wheel boltsin san dor on
a dir tysur face. #
Unscr ew theupper mostwheel boltcom‐
ple tely. #
Screw align mentbolt 1intoth eth re ad
ins tead ofthewheel bolt. #
Unscr ew there maini ngwhee lbolts com‐
ple tely. #
Remo vethewheel. #
Installth ene wwheel (/page362). Ins
talling ane wwheel Re
quirement s:
R The wheel isremo ved(/ page362 ). 362
Wheels andtires

*
NO
TEMercede s-AMG vehicles #
Obser vetheno tesin theSupplement .
Yo uco uld other wise failto recogni ze
da ngers. &
WARNIN GRisk ofacci dent from losing a
whe el
Oil ed, grea sed ordamag edwhe elbol t/whe el
nut thre ads orwheel hub/wheel mounting
bolt thre ads can caus eth ewheel bolts/
wheel nutstocome loose.
As are sult, youco uld lose awheel whiledriv‐
ing . #
Neveroil orgrease theth re ads. #
Intheeve ntofdamag eto theth re ads,
con tact aqu alif ied spec ialistwo rkshop
immediat ely. #
Have thedamag edwheel boltsordam‐
ag ed hub thre ads replaced. #
Donotcon tinue driving. #
Obser vetheinf ormation onthech oice of
tir es (/ page355).
Fo rtir es wit haspecif ieddirection ofrotatio n,an
ar ro w on theside wallof thetir eindicat esthe
cor rect dire ction ofrotatio n.Ob serveth edir ec‐
tion ofrotatio nwh en installing. #
Slide thewheel tobe mount edont oth e
align mentbolt andpush iton . &
WARNIN GRisk ofinju ryfrom tight ening
whee lbol tsand nuts
If yo utig hten thewheel boltsorwheel nuts
when theve hicle israised, thejac kcould tip. #
Onlytight enwheel boltsorwheel nuts
when theve hicle ison thegr ound. #
Besureto obser vetheins truction sand
saf etyno teson "Cha nging awheel"
(/ page355). #
Forsaf etyre ason s,on lyuse wheel bolts
whic hha ve been approvedby Mer cedes-
Benz andforth ewheel inqu estion . *
NO
TEDama getopaintw orkof thewheel
ri m when screwing onthefirs twh eelbo lt If
th ewheel hastoomuc hpla ywhen screw‐
ing inthefirs twh eelbo lt, thewheel rim pai nt
can bedama ged. #
Press thewheel firm lyag ains tth e
wheel hubwhen screwing onthefirs t
wheel bolt. #
Tight enthewheel boltsevenlyin adi ag ona l
pa tter nin theor der indicat eduntil they are
fi ng er-tig ht. #
Unscr ew and remo vethealignment bolt. #
Tight enthelas twheel boltuntil itis fing er-
tig ht. #
Lowe rth eve hicle (/page363). Lo
we ring theve hicl eaf te ra wh eelch ang e Re
quirement s:
R The newwheel hasbeen installed
(/ page362) . Wheels
andtires 363

#
Tolowe rthe vehicl e:tur nth ecr ank ofthe
jac kcou nter-clo ckwise untilth eve hicle is
once again standi ngfirm lyon thegr ound. #
Tight enthewheel boltsevenlyin adi ag ona l
pa tter nin theor der indicat ed1 to5 with
an init ialmax imum forc eof 59 lb-ft(80 Nm). #
Tight enthewheel boltsevenlyin adi ag ona l
pa tter nin theor der indicat ed1 to5 to
th especif iedtight ening torq ue of96 lb-ft
(1 30 Nm) . &
WARNIN GRisk ofacci dent dueto inc or‐
re ct tigh tening torq ue
Th ewh eelscou ldcome looseifth ewheel
bolts orwheel nutsareno ttight ened tothe
pr escr ibed torq ue. #
Ensu rethat thewheel boltsorwheel
nuts aretight ened tothepr escr ibed
tight ening torq ue. #
Ifyo uar eno tsur e,do notmo vethe
ve hicle. Contactaqu alif ied spec ialist
wo rkshop andhave thetight ening tor‐
qu ech eckedimmediat ely. #
Chec kth etir epr essur eof thene wlyins talled
wheel andadjus tit ifnec essar y. #
Vehicl eswith tirepr ess urelos swa rning
sy stem: Restar tth etir epr essur eloss warn‐
ing system (/ page342).
Ex cep tion: thene wwheel isan emer gency
spa rewheel. #
Vehicl eswith atir epr ess uremonit oring
sy stem: Restar tth etir epr essur emonit oring
sy stem (/ page34 1).
Ex cep tion: thene wwheel isan emer gency
spa rewheel. Emer
gency spar ewheel No
teson theemer gency spar ewheel &
WARNIN GRisk ofacci dent caused by
inc orrect whe eland tiredimensi ons
The wheelor tiresize andthetir etype ofthe
emer gency sparewheel orspar ewheel and
th ewheel tobe replaced maydif fer. The
emer gency sparewheel orspar ewheel can
sign ifican tly im pair drivin gch aract eristic sof
th eve hicle.
To preve nthazardous situa tions: #
Adaptyo ur drivin gst yle accor dinglyand
dr ive car efull y. 36
