Shift-Lock System
The shift-lock system prevents shifting out
of P unless the brake pedal is depressed.

To shift from P:
1. Depress and hold the brake pedal.
2. Start the engine.
3. Press and hold the lock-release button.
4. Move the selector lever.
NOTE
When the ignition is switched to ACC or
the ignition is switched off, the selector
lever cannot be shifted from P position.
The ignition cannot be switched to OFF
if the selector lever is not in P position.
▼ Shift-Lock Override
If the selector lever will not move from P
using the proper shift procedure, continue
to hold down the brake pedal.
1. Remove the shift-lock override cover
using a cloth-wr apped flat head
screwdriver.
2. Insert a screwdriver and push it down.
Cover
3. Press and hold the lock-release button.
4. Move the selector lever.
Take the vehicle to an Authorized Mazda
Dealer to have the system checked.
Transaxle Ranges
The shift position indication in the
instrument cluster illuminates.
Refer to Indication/Indicator Lights on
page 4-25, 4-40, 4-53.
The selector lever must be in P or N
position to operate the starter.
P (Park)
WA R N I N G
Always set the selector lever to P position
and set the parking brake:
Only setting the selector lever to the P
position without using the parking brake to
hold the vehicle is dangerous. If P fails to
hold, the vehicle could move and cause an
accident.
CAUTION
 Shifting into P, N or R while the vehicle is
moving can damage your transaxle.
 Shifting into a driving gear or reverse
when the engine is running faster than
idle can damage the transaxle.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete stop
before shifting to or from R, except under
rare circumstances as explained in
Rocking the Vehicle (page 3-51).
NOTE
(With parking sensor system)
When Driving
Automatic Transaxle
4-60
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

When the selector lever is shifted to the R
position with the ignition switched ON, the
parking sensor system is activated and a
beep sound is heard.
Refer to Parking Sensor System on page
4-272.
N (Neutral)
WARNING
If the engine is running faster than idle, do
not shift from N or P into a driving gear:
It's dangerous to shift from N or P into a
driving gear when the engine is running
faster than idle. If this is done, the vehicle
could move suddenly, causing an accident
or serious injury.
Do not shift into N when driving the
vehicle:
Shifting into N while driving is dangerous.
Engine braking cannot be applied when
decelerating which could lead to an
accident or serious injury.
CAUTION
Do not shift into N when driving the
vehicle. Doing so can cause transaxle
damage.
NOTE
Apply the parking brake or depress the
brake pedal before moving the selector
lever from N position to prevent the
vehicle from moving unexpectedly.
D (Drive)
D is the normal driving position. From a
stop, the transaxle will automatically shift
through a 6-gear sequence.
M (Manual)
M is the manual shift mode position.
Gears can be shifted up or down by
operating the selector lever. Refer to
Manual Shift Mode on page 4-62.
▼ Shift Position Indication
Instrument Cluster (Type A)
Instrument Cluster (Type B/C)
The selector position is indicated when the
ignition is switched ON.
Gear position indication
In manual shift mode, the “M” of the shift
position indication illuminates and the
numeral for the selected gear is displayed.
▼Active Adaptive Shift (AAS)
Active Adaptive
Shift (AAS)
automatically controls the transaxle shift
points to best suit the road conditions and
driver input. This improves driving feel.
The transaxle may switch to AAS mode
when driving up and down slopes,
cornering, driving at high elevations, or
depressing the accelerator pedal quickly
while the selector lever is in the D
When Driving
Automatic Transaxle
4-61
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

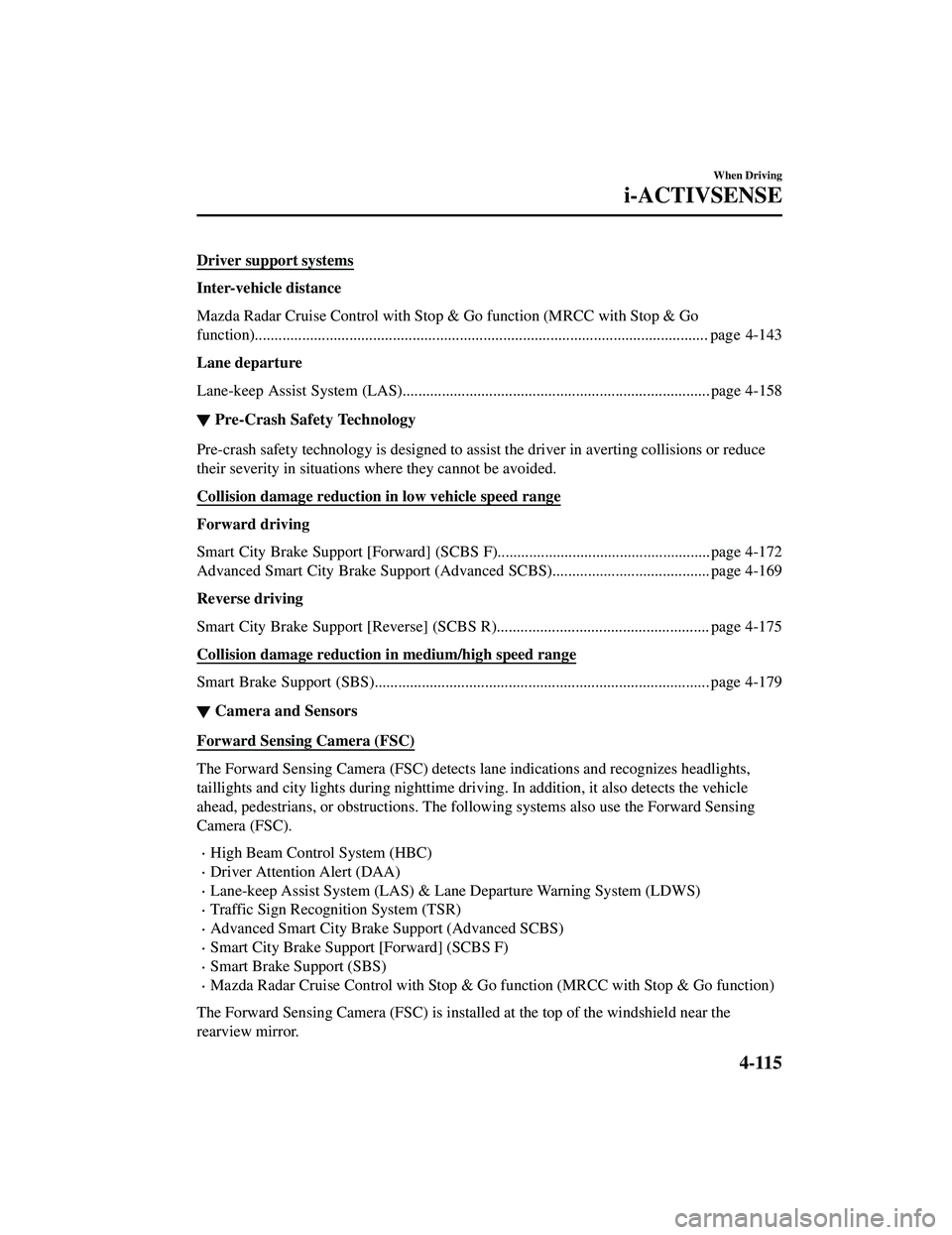

Driver support systems
Inter-vehicle distance
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function)................................................................................................................... pag e 4-143
Lane departure
Lane-keep Assist System (LAS)............................. ................................................. page 4-158
▼Pre-Crash Safety Technology
Pre-crash safety technology is designed to assi
st the driver in averting collisions or reduce
their severity in situations where they cannot be avoided.
Collision damage reduction in low vehicle speed range
Forward driving
Smart City Brake Support [Forward] (SCBS F)...................................................... page 4-172
Advanced Smart City Brake Support (Advan ced SCBS)........................................ page 4-169
Reverse driving
Smart City Brake Support [Reverse] (SCBS R)...................................................... page 4-175
Collision damage reduction in medium/high speed range
Smart Brake Support (SBS)..................................................................................... page 4-179
▼ Camera and Sensors
Forward Sensing Camera (FSC)
The Forward Sensing Camera (FSC) detects la
ne indications and recognizes headlights,
taillights and city lights during nighttime driv ing. In addition, it also detects the vehicle
ahead, pedestrians, or obstructions. The following systems also use the Forward Sensing
Camera (FSC).
High Beam Control System (HBC)
Driver Attention Alert (DAA)
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)
Traffic Sign Recognition System (TSR)
Advanced Smart City Brake Support (Advanced SCBS)
Smart City Brake Support [Forward] (SCBS F)
Smart Brake Support (SBS)
Mazda Radar Cruise Control wi th Stop & Go function (MRCC with Stop & Go function)
The Forward Sensing Camera (FSC) is installed at the top of the windshield near the
rearview mirror.
When Driving
i-ACTIVSENSE
4-115
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Refer to Forward Sensing Camera (FSC) on page 4-235.
Radar sensor (front)
The radar sensor (front) functions by detecting the radio waves reflected off a vehicle ahead
sent from the radar sensor. The following systems also use the radar sensor (front).
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function)
Distance Recognition Support System (DRSS)
Smart Brake Support (SBS)
The radar sensor (front) is mounted behind the radiator grille.
Refer to Radar Sensor (Front) on page 4-240.
Radar sensors (rear)
The radar sensors (rear) function by detecting the radio waves reflected off a vehicle
approaching from the rear or an obstruction sent from the radar sensors. The following
systems also use the radar sensors (rear).
Blind Spot Monitoring (BSM)
Rear Cross Traffic Alert (RCTA)
The radar sensors (rear) are installed inside th e rear bumper, one each on the left and right
sides.
Refer to Radar Sensors (Rear) on page 4-243.
Ultrasonic sensors (rear)
The ultrasonic sensors (rear) function by de tecting the ultrasonic waves reflected off
obstructions at the rear sent from the ultrason ic sensors. The following systems also use the
ultrasonic sensors (rear).
Smart City Brake Support [Reverse] (SCBS R)
The ultrasonic sensors (rear) are mounted in the rear bumper.
Refer to Ultrasonic Sensors (Rear) on page 4-245.
Front camera/side cameras/rear view camera
The front camera, side cameras, and rear camera shoot images of the area surrounding the
vehicle. The 360° View Monitor uses each camera.
Cameras are installed to the front bumper, door mirrors, and liftgate.
Refer to Front Camera/Side Cameras/Rear Camera on page 4-246.
When Driving
i-ACTIVSENSE
4-116
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Distance Recognition Support System (DRSS)*
The DRSS measures the distance between your vehicle and a vehicle ahead using a radar
sensor (front) while the vehicle speed is ab out 30 km/h (19 mph) or faster, and if your
vehicle approaches a vehicle ahead more closely than what is appropriate for maintaining
distance between the vehicles according to the vehicle speed, a notification in the
multi-information display is indicated to advise you to keep a safe distance from the vehicle
ahead.
WARNING
Do not rely completely on the DRSS and always drive carefully:
The ability to detect a vehicle ahead is limited depending on th e type of vehicle ahead, the
weather conditions, and the traffic conditions. Therefore, if the accelerator and brake pedals
are not operated correctly it could lead to an accident. Always verify the safety of the
surrounding area and depress the brake pedal or accelerator pedal while keeping a safer
distance from vehicles ahead or on-coming vehicles.
NOTE
The DRSS operates when all of the following conditions are met:
The ignition is switched ON.
The DRSS is on.
The selector lever is in a po sition other than reverse (R).
The vehicle speed is 30 km/h or faster (19 mph or faster).
The objects which activate the system are 4-wheeled vehicles.
The DRSS may also operate in the presence of motorcycles and bicycles.
The DRSS may not operate normally under the following conditions:
The Dynamic Stability Control (DSC) has a malfunction.
The vehicle ahead is traveling at an extremely slow speed.
The system does not operate with the following objects:
Vehicles approaching in the opposite direction.
Stationary objects (stopped vehicles, obstructions)
▼Indication on Display
The DRSS operation status is indicated in
the multi-information display. Regarding
malfunctions, check the vehicle conditions or have it inspected by an Authorized Mazda
Dealer according to the content of the displayed message.
When Driving
i-ACTIVSENSE
*Some models.4-133
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Mazda Radar Cruise Control with Stop & Go function(MRCC with Stop & Go function)
*
The MRCC with Stop & Go function system is designed to maintain headway control*1
with a vehicle ahead according to your vehicle's speed using a radar sensor (front) to detect
the distance to the vehicle ahead and a preset vehicle speed without you having to use the
accelerator or brake pedals.
*1 Headway Control: Control of the distance between your vehicle and the vehicle ahead
detected by the Mazda Radar Cruise Control (MRCC) system.
Additionally, if your vehicle starts closing in on the vehicle ahead such as if the vehicle
ahead brakes suddenly, a warning sound an d a warning indication in the display are
activated simultaneously to alert you to maintain a sufficient distance between the vehicles.
If the vehicle ahead stops while you are follo wing behind it, your vehicle will stop and be
held stopped automatically (stop hold control), and headway control will resume when you
resume driving the vehicle such as by pressing the RES switch.
Also refer to the following before usin g the MRCC with Stop & Go function.
AUTOHOLD (page 4-96)
Forward Sensing Camera (FSC) (page 4-235)
Radar sensor (front) (page 4-240)
*Some models.4-143
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

When traveling on a downslope for a
long period of time.
There is a problem with the system.
The engine has stalled.
Any of the doors is opened.
The driver's seat belt is unfastened.
The parking brake is automatically
applied during stop hold control.
The radar sensor (front) cannot detect
target objects (during rain, fog, snow or
other inclement weather conditions, or
when the radiator grille is dirty).
Resuming control
If the MRCC with Stop & Go function
system is canceled, you can resume
control at the previously set speed by
pressing the RES switch and after all of
the operation conditions have been met.
NOTE
If the set speed is not indicated in the
display, the control does not resume even
if the RES switch is pressed.
Turning off the system
Press the OFF/CANCEL switch 2 times
while the MRCC with Stop & Go function
system is operating to switch off the
system.
When Driving
i-ACTIVSENSE
4-153
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Smart City Brake Support [Reverse] (SCBS R)*
The SCBS R is a system which is designed to reduce damage in the event of a collision by
operating the brake control (SCBS brake) when the system’s ultrasonic sensors detect an
obstruction at the rear of the vehicle while driving at a speed of about 2 to 8 km/h (2 to 4
mph) and the system determines that a collision is unavoidable.
Reverse Ultrasonic sensor (rear)
WARNING
Do not rely completely on the SCBS R system:

The SCBS R system is only designed to red uce damage in the event of a collision. Over
reliance on the system leading to the accele rator pedal or brake pedal being mistakenly
operated could result in an accident.
 To assure the correct operation of the SCBS R, heed the following cautions.
 Do not apply a sticker to an ultrasonic sens or (rear) (including transparent stickers).
Otherwise, the ultrasonic sensor (rear) may no t be able to detect vehicles or obstructions
which could result in an accident.
 Do not disassemble an ultrasonic sensor (rear).
 If cracks or damage caused by flying gravel or debris is visible around an ultrasonic
sensor (rear), stop using the SCBS R system immediately and have your vehicle inspected
by an Authorized Mazda Dealer. If the vehi cle continues to be driven with cracks or
scratch marks left around an ultrasonic sensor, the system may operate unnecessarily
and cause an unexpected accident.
Refer to Stopping the Smart City Brake Supp ort [Reverse] (SCBS R) System Operation on
page 4-178.
 Consult an Authorized Mazda Dealer for rear bumper replacement.
Do not modify the suspension:
If the vehicle height or inclination is changed, the SCBS R system may not operate correctly
because it cannot detect obstructions correctly.
When Driving
i-ACTIVSENSE
*Some models.4-175
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44
