NOTE
When inserting the luggage mat,
support the luggage board with one
hand so that it does not come off
the holders.
5. Remove the cover on the right side.
Cover
6. Remove the cargo sub compartment.
Cargo sub compartment
7. Turn the wing bolt and jack screw
counterclockwise.

Wing boltJack screw
To secure the jack
1. Insert the wing bolt into the jack withthe jack screw pointing back and turn
the wing bolt clockwise to temporarily
tighten it.
2. Tighten the jack screw clockwise.

Wing boltJack screw
3. Turn the wing bolt completely tosecure the jack.
NOTE
If the jack is not completely secured, it
could rattle while driving. Make sure
the jack screw is sufficiently tightened.
Maintenance
Always keep the jack clean.
If Trouble Arises
Flat Tire
7-5
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Disconnect the sub-woofer connector.

Connector
7.(Vehicles with sub-woofer)
Turn the hold-down bolt
counterclockwise and remove the
sub-woofer and the spare tire.

(Vehicles without sub-woofer)
To secure the spare tire
Store the spare tire in the reverse order of
removal. After storing, verify that the
spare tire is stored securely.
CAUTION
(Vehicles with sub-woofer)
Secure the sub-woofer in its correct
position. If the sub-woofer is not installed
to the correct position, it may move while
the vehicle is driven which may damage
the sub-woofer or the wiring harness.
 Store the tool bag on the right side of the
vehicle. If the tool bag is stored on the left
side of the vehicle, it may move while the
vehicle is driven which may damage the
wiring harness.
Refer to Spare Tire and Tool Storage on
page 7-3.
If Trouble Arises
Flat Tire
7-8
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

1. Loosen the lug nuts by turning themcounterclockwise one turn each, but do
not remove any lug nuts until the tire
has been raised off the ground.

2. Place the jack on the ground.
3. Turn the jack screw in the directionshown in the figure and adjust the jack
head so that it is close to the jack-up
position.

Jack head
4. Set the jack to the designated jack-upposition closest to the tire being
removed.
(Jacking-up the vehicle front)
Set the groove on the top of the jack
head at a right angle into the center of
the designated jack-up position guide
projection closest to the vehicle front.

Jacking
position
Jacking head
Guide
projection
NOTE
Always set the jack into the designated
jack-up position shown in the figure
correctly.
(Jacking-up the vehicle rear)
Set the groove on the top of the jack
head at a right angle between the
If Trouble Arises
Flat Tire
7-10
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

6. Insert the jack lever and attach the lug
wrench to tire jack.

7. Turn the jack handle clockwise and raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.

WA R N I N G
Do not jack up the vehicle higher than
is necessary:
Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.
Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could result
in death or serious in jury if the vehicle
were to fall off the jack.
8. Remove the lug nuts by turning them counterclockwise; then remove the
wheel and center cap.
▼Locking Lug Nuts
If your vehicle has Mazda optional
antitheft wheel lug nuts, each wheel will
have one locking lug nut that locks the
wheel and tire, and you must use a special
key to unlock the locking lug nut. This key
is stored in the glove compartment.
Register the key and lug nuts with the lock
manufacturer by filling out the card
provided in the glove compartment and
mailing it in the accompanying envelope.
If you lose this key, consult an Authorized
Mazda Dealer or use the lock
manufacturer's order form, which is with
the registration card.
Accessory wheel locks cannot be used on
steel wheels. This includes situations when
the spare tire is inst
alled. When installing
If Trouble Arises
Flat Tire
7-12
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

a spare tire, original lug nut must be used
in place of the wheel lock.
Special key
Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the special key for the antitheft
lug nut.
2. Place the special key on top of the antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
To install the antitheft lug nut
1. Place the special key on top of the nut, and be sure to hold the key square to it.
If you hold the key at an angle, you
may damage both key and nut. Do not
use a power impact wrench.
2. Place the lug wrench on top of the special key, apply pressure, and turn it
clockwise.
Nut tightening torque
N

WA R N I N G
Make sure the mounting surfaces of the
wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire, not
removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.

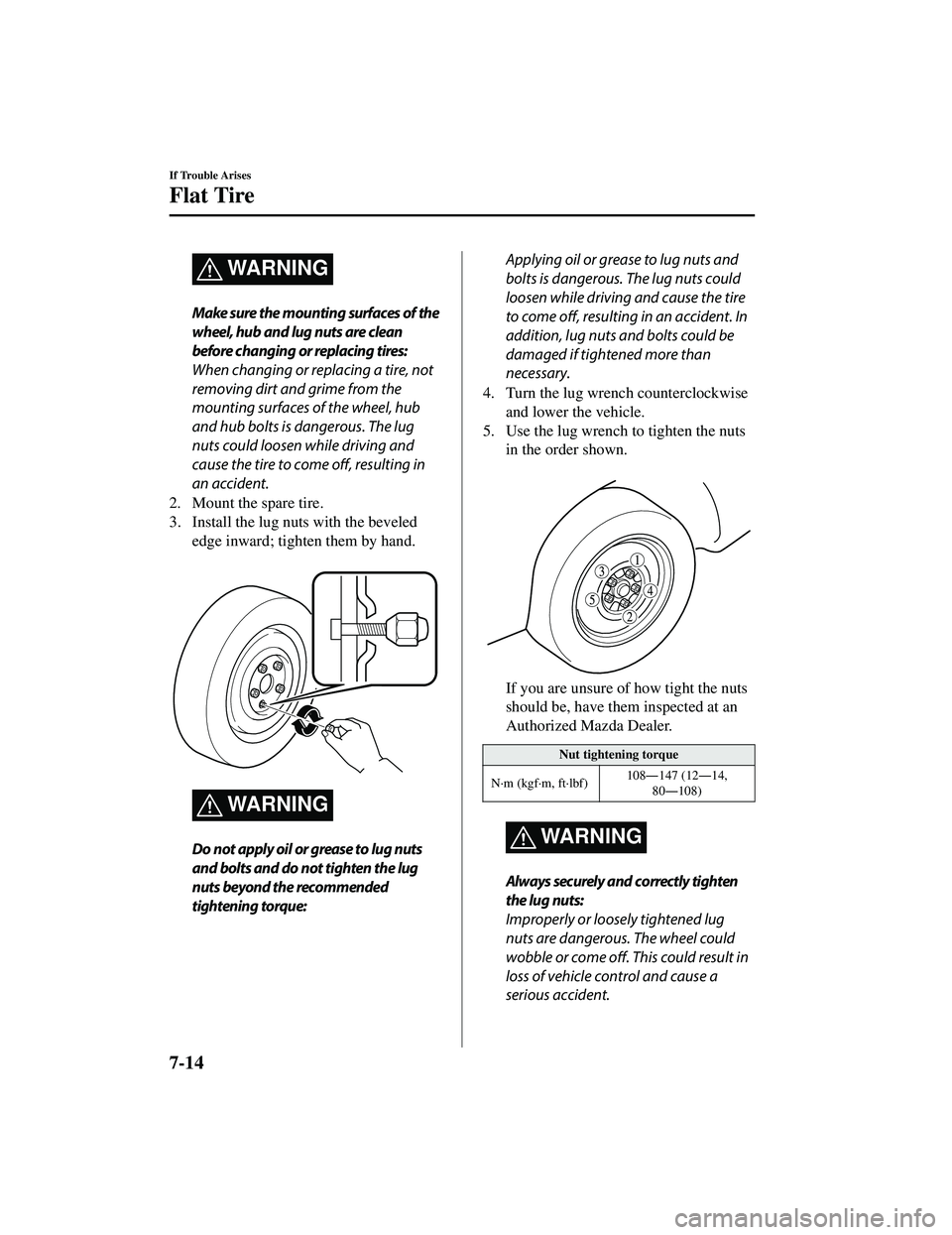

2. Mount the spare tire.
3. Install the lug nuts with the beveled edge inward; tighten them by hand.

WA R N I N G
Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off, resulting in an accident. In
addition, lug nuts and bolts could be
damaged if tightened more than
necessary.
4. Turn the lug wrench counterclockwise and lower the vehicle.
5. Use the lug wrench to tighten the nuts in the order shown.

If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N
