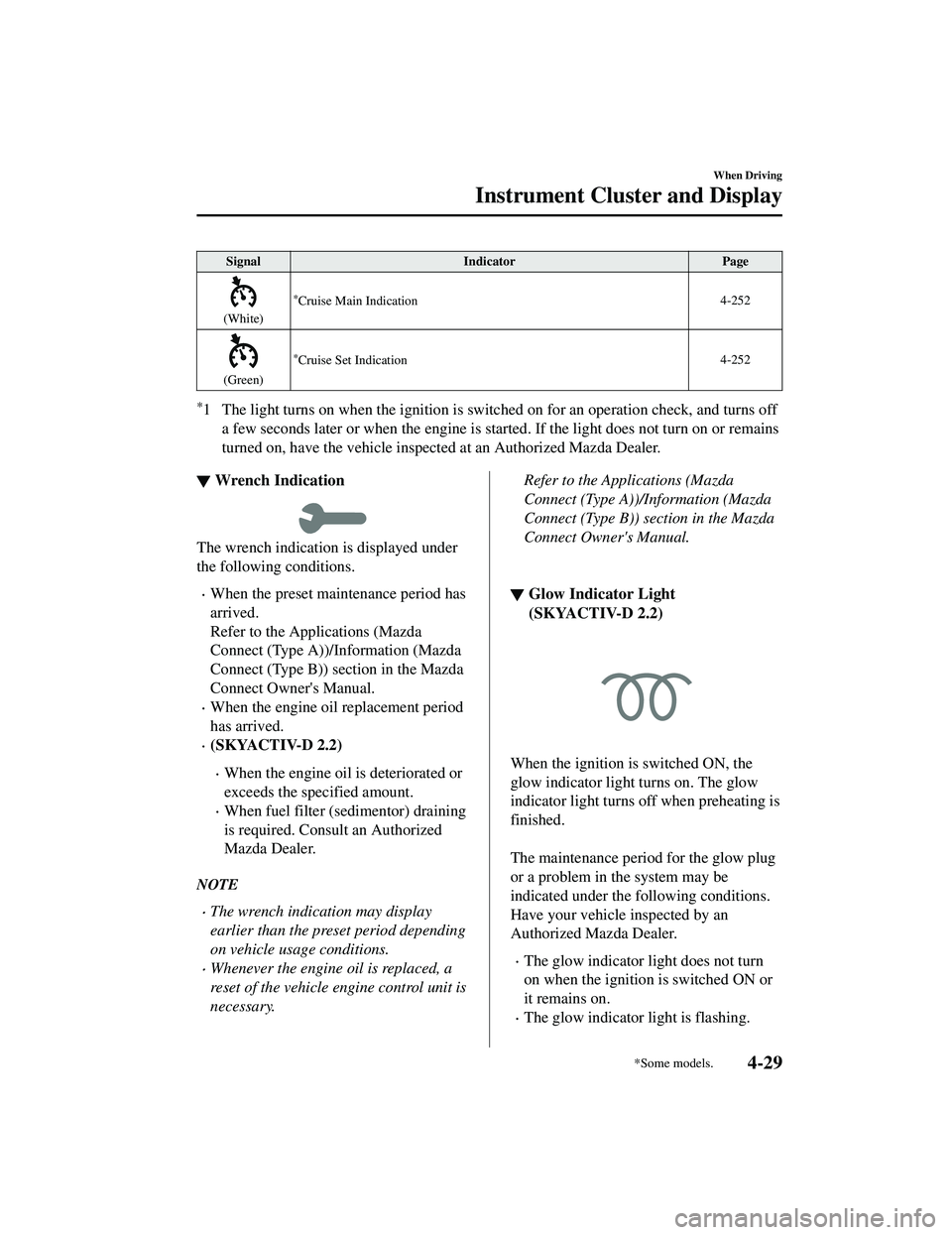

SignalIndicator Page
(White)
*Cruise Main Indication 4-252
(Green)
*Cruise Set Indication4-252
*1 The light turns on when the ignition is switched on for an operatio
n check, and turns off
a few seconds later or when the engine is star ted. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda Dealer.
▼ Wrench Indication
The wrench indication is displayed under
the following conditions.
When the preset maintenance period has
arrived.
Refer to the Applications (Mazda
Connect (Type A))/Information (Mazda
Connect (Type B)) section in the Mazda
Connect Owner's Manual.
When the engine oil replacement period
has arrived.
(SKYACTIV-D 2.2)
When the engine oil is deteriorated or
exceeds the specified amount.
When fuel filter (sedimentor) draining
is required. Consult an Authorized
Mazda Dealer.
NOTE
The wrench indication may display
earlier than the preset period depending
on vehicle usage conditions.
Whenever the engine oil is replaced, a
reset of the vehicle engine control unit is
necessary.
Refer to the Applications (Mazda
Connect (Type A))/Information (Mazda
Connect (Type B)) section in the Mazda
Connect Owner's Manual.

▼ Glow Indicator Light
(SKYACTIV-D 2.2)
When the ignition is
switched ON, the
glow indicator light turns on. The glow
indicator light turns off when preheating is
finished.

The maintenance period for the glow plug
or a problem in the system may be
indicated under the following conditions.
Have your vehicle inspected by an
Authorized Mazda Dealer.
The glow indicator light does not turn
on when the ignition is switched ON or
it remains on.
The glow indicator light is flashing.
When Driving
Instrument Cluster and Display
*Some models.4-29
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning Page
Master Warning Indication/Warning Light 7-26
Electric Parking Brake (EPB) Warning Indication/Warning Light*17-26
Check Engine Light*17-26
*Selective Catalytic Reduction (SCR) system Warning Indication/Warning
Light*17-26
Automatic Transaxle Wa rning Indication 7-26
*AWD Warning Indication 7-26
Air Bag/Front Seat Belt Pretensioner System Warning Light*17-26
Tire Pressure Monitoring System Warning Light*1
Flashing
7-26
Turns on 7-33
(Amber/White) KEY Warning Indication Amber
7-26
White 7-33
(Amber) High Beam Control System (HBC) Warning Indication/Warning Light
*17-26
Blind Spot Monitoring (BSM) Warning Indication
7-26
(Amber)
*Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop
& Go function) Warning Indication 7-26
*Lane-keep Assist System (LAS)
& Lane Departure Warning System
(LDWS) Warning Indication 7-26
LED Headlight Warning Light*17-26
*Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning In
‐
dication 7-33
Low Fuel Warnin
g Indication 7-33
Check Fuel Cap Warning Indication/Warning Light*17-33
When Driving
Instrument Cluster and Display
4-42*Some models.
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning Page
Engine Oil Level Warning Light*17-33
Seat Belt Warning Light (Front seat) 7-33
(Red)Seat Belt Warning Light (Rear seat) 7-33
*Low Washer Fluid Level Warning Indication
7-33
Door-Ajar Warning Indication
7-33
Liftgate-Ajar Warning Indication7-33
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.
▼ Indication/Indicator Lights
These lights turn on or flash to notify the us
er of the system operation status or a system
malfunction.
Signal Indicator Page
(Green)Seat Belt Indicator Light (Rear seat) 2-30
*Front Passenger Air Bag Deactivation Indicator Light*12-71
Security Indicator Light*13-47
Wrench Indication
4-46
(Blue)Low Engine Coolant Temperature Indicator Light 4-46
*Glow Indicator Light*14-46
When Driving
Instrument Cluster and Display
*Some models.4-43
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

*1 The light turns on when the ignition is switched on for an operation check, and turns off
a few seconds later or when the engine is sta rted. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda Dealer.
▼ Wrench Indication
The wrench indication is displayed under
the following conditions.
When the preset maintenance period has
arrived.
Refer to the Applications (Mazda
Connect (Type A))/Information (Mazda
Connect (Type B)) s
ection in the Mazda
Connect Owner's Manual.
When the engine oil replacement period
has arrived.
(SKYACTIV-D 2.2)
When the engine oil is deteriorated or
exceeds the specified amount.
When fuel filter (sedimentor) draining
is required. Consult an Authorized
Mazda Dealer.
NOTE
The wrench indication may display
earlier than the preset period depending
on vehicle usage conditions.
Whenever the engine oil is replaced, a
reset of the vehicle engine control unit is
necessary.
Refer to the Applications (Mazda
Connect (Type A))/Information (Mazda
Connect (Type B)) section in the Mazda
Connect Owner's Manual.

▼ Low Engine Coolant Temperature
Indicator Light (Blue)
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
▼Glow Indicator Light
(SKYACTIV-D 2.2)
4-46
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

SignalWarning Page
(Red)Brake Pedal Operation Demand Warning Light
*1
Flashing
4-102
Buzzer & Flash ‐
ing
7-26
Check Engine Light*17-26
Automatic Transaxle Warning Light*17-26
*AWD Warning Light 7-26
Air Bag/Front Seat Belt Pretensioner System Warning Light*17-26
Tire Pressure Monitoring System Warning Light*1
Flashing
7-26
Turns on 7-33
(Red) KEY Warning Light
*1
Turns on
7-26
Flashing 7-33
LED Headlight Warning Light*17-26
(Amber)
*Smart City Brake Support (SCBS) Warning Light*17-33
Low Fuel Warning Light 7-33
Check Fuel Cap Warning Light*17-33
Engine Oil Level Warning Light*17-33
Seat Belt Warning Light (Front seat) 7-33
(Red)Seat Belt Warning Light (Rear seat) 7-33
*Low Washer Fluid Level Warning Light
7-33
Door-Ajar Warning Light
7-33
When Driving
Instrument Cluster and Display
4-56*Some models.
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later orwhen the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.
▼ Indication/Indicator Lights
These lights turn on or flash to notify the us
er of the system operation status or a system
malfunction.
Signal Indicator Page
(Green)Seat Belt Indicator Light (Rear seat) 2-30
*Front Passenger Air Bag Deactivation Indicator Light*12-71
(Green)KEY Indicator Light 4-5
Security Indicator Light*13-47
Wrench Indication/Indicator Light*14-58
Shift Position Indication
4-65
Lights-On Indication/Indicator Light 4-74
Headlight High-Beam Indicator LightHeadlight
High-Low Beam 4-78
Flashing the Headlights 4-78
Turn Signal/Hazard Warning Indicator Lights Turn and
Lane-Change Signals4-81
Hazard Warning Flasher4-89
(Green) Brake Pedal Operation demand Indicator Light 4-98
AUTOHOLD Active Indicator Light*14-104
When Driving
Instrument Cluster and Display
*Some models.4-57
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

SignalIndicator Page
TCS/DSC Indicator Light*1
Traction Control
System (TCS) 4-109
Dynamic Stabil ‐
ity Control (DSC)4-111
Turns on 7-26
*TCS OFF Indicator Light *14-109
*Off-Road Traction Assist Indicator Light*14-112
*Select Mode Indication 4-115
*Blind Spot Monitoring (BSM) OFF Indicator Light*1
Malfunction
7-26
Except malfunc ‐
tion
4-130
(Red)
*Smart City Brake Support (SCBS) Indicator Light 4-178
*Smart City Brake Support (SCBS) OFF Indicator Light*14-178
(White)Cruise Main Indication 4-252
(Green)Cruise Set Indication 4-252
*1 The light turns on when the i
gnition is switched on for an operation check, and turns off
a few seconds later or when the engine is sta rted. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda Dealer.
▼ Wrench Indicator Light
When Driving
Instrument Cluster and Display
4-58*Some models.
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

Shift-Lock System
The shift-lock system prevents shifting out
of P unless the brake pedal is depressed.

To shift from P:
1. Depress and hold the brake pedal.
2. Start the engine.
3. Press and hold the lock-release button.
4. Move the selector lever.
NOTE
When the ignition is switched to ACC or
the ignition is switched off, the selector
lever cannot be shifted from P position.
The ignition cannot be switched to OFF
if the selector lever is not in P position.
▼ Shift-Lock Override
If the selector lever will not move from P
using the proper shift procedure, continue
to hold down the brake pedal.
1. Remove the shift-lock override cover
using a cloth-wr apped flat head
screwdriver.
2. Insert a screwdriver and push it down.
Cover
3. Press and hold the lock-release button.
4. Move the selector lever.
Take the vehicle to an Authorized Mazda
Dealer to have the system checked.
Transaxle Ranges
The shift position indication in the
instrument cluster illuminates.
Refer to Indication/Indicator Lights on
page 4-26, 4-43, 4-57.
The selector lever must be in P or N
position to operate the starter.
P (Park)
WA R N I N G
Always set the selector lever to P position
and set the parking brake:
Only setting the selector lever to the P
position without using the parking brake to
hold the vehicle is dangerous. If P fails to
hold, the vehicle could move and cause an
accident.
CAUTION
 Shifting into P, N or R while the vehicle is
moving can damage your transaxle.
 Shifting into a driving gear or reverse
when the engine is running faster than
idle can damage the transaxle.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete stop
before shifting to or from R, except under
rare circumstances as explained in
Rocking the Vehicle (page 3-52).
NOTE
(With parking sensor system)
When Driving
Automatic Transaxle
4-64
