Interior Equipment (View B)
▼Interior Equipment (View B)
ƒ
Instrument cluster............................................................................. page 4-12
„ Active driving display......................................................................... page 4-28
… Mazda Connect................................................................................ page 5-14
† Climate control system........................................................................ page 5-2
‡ Heated steering wheel switch............................................................. page 2-19
ˆ Seat warmer switches........................................................................ page 2-18
‰ Hazard warning flasher switch............................................................ page 4-57
Š Rear window defogger switch............................................................ page 4-55
‹ Glove compartment.......................................................................... page 5-43
ΠExternal input terminal.......................................................................page 5-14
Push button start................................................................................. page 4-4
Ž Horn................................................................................................ page 4-56
Lock release lever................................................................................ page 2-4
Hood release handle......................................................................... page 6-13
‘ Storage pocket.................................................................................. page 5-43
Pictorial Index
Interior Overview
1-4The equipment and installation position varies by vehicle
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

2. Adjust the steering wheel height sothat the gauges can be viewed
easily.
3. Raise the lever to securely lock the steering wheel.
Adjusting the head restraint position
To prevent shock to the head and
neck, adjust the head restraints to their
correct positions.
Refer to Height Adjustment on page
2-16.

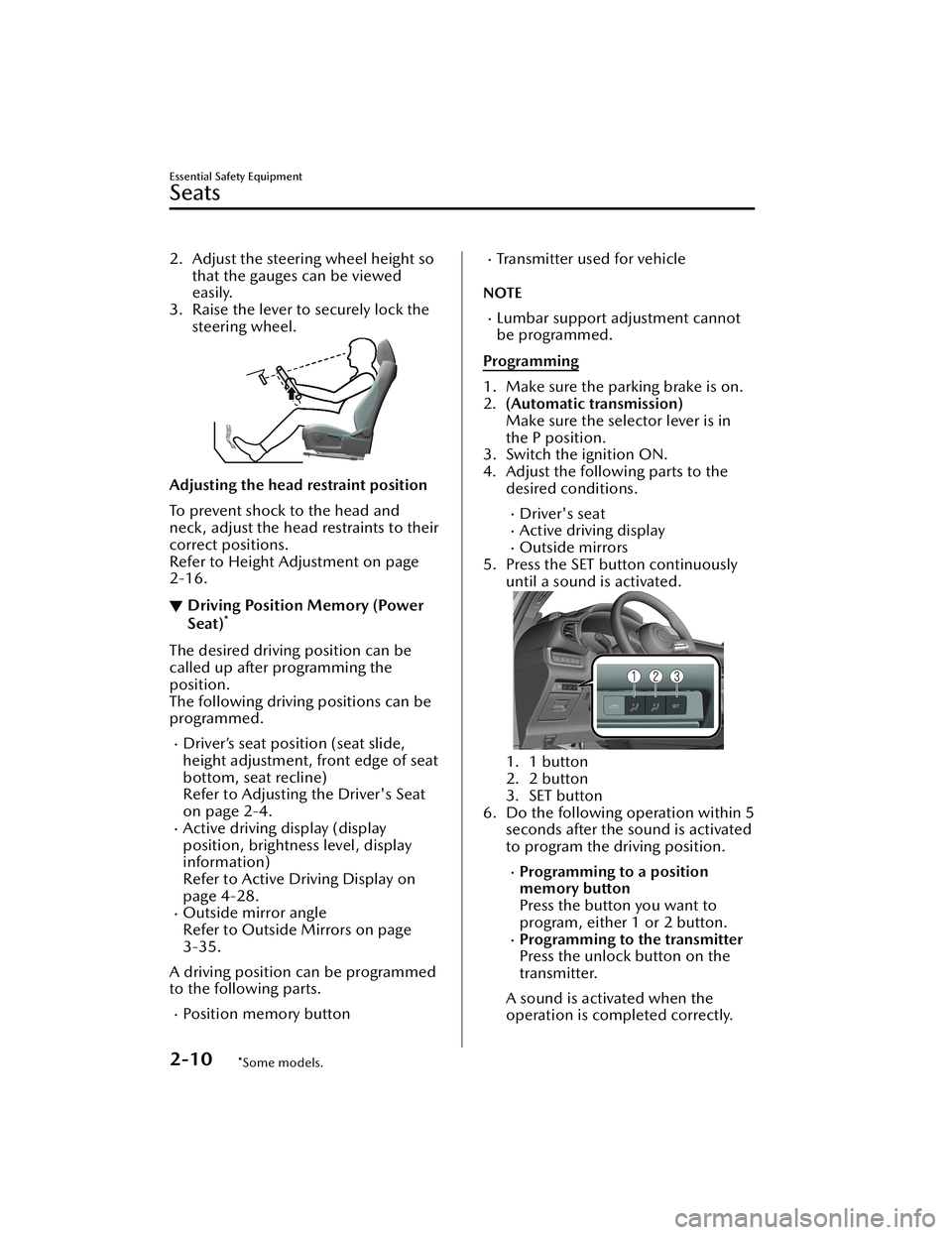

▼Driving Position Memory (Power
Seat)*
The desired driving position can be
called up after programming the
position.
The following driving positions can be
programmed.
Driver’s seat position (seat slide,
height adjustment, front edge of seat
bottom, seat recline)
Refer to Adjusting the Driver's Seat
on page 2-4.
Active driving display (display
position, brightness level, display
information)
Refer to Active
Driving Display on
page 4-28.
Outside mirror angle
Refer to Outside Mirrors on page
3-35.
A driving position can be programmed
to the following parts.
Position memory button
Transmitter used for vehicle
NOTE
Lumbar support adjustment cannot
be programmed.
Programming
1. Make sure the parking brake is on.
2. (Automatic transmission)
Make sure the selector lever is in
the P position.
3. Switch the ignition ON.
4. Adjust the following parts to the desired conditions.
Driver's seatActive driving displayOutside mirrors
5. Press the SET button continuously
until a sound is activated.
1. 1 button
2. 2 button
3. SET button
6. Do the following operation within 5 seconds after the sound is activated
to program the driving position.
Programming to a position
memory button
Press the button you want to
program, either 1 or 2 button.
Programming to the transmitter
Press the unlock button on the
transmitter.
A sound is activated when the
operation is completed correctly.
Essential Safety Equipment
Seats
2-10*Some models.
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

NOTE
If you do not perform the operation
correctly, a sound indicating that the
programming has failed is activated.
If the angle of the outer mirrors only
changes a little, the angle of the
outer mirrors may not have been
programmed correctly.
If the angle of the outer mirrors is
adjusted close to the limits of its
range of motion, the driving position
can be successfully programmed, but
it may fail when calling up the
programmed driving position.
Calling up the programmed driving
position
CAUTION
Do not place fingers or hands around
the bottom of the seat while the seat
memory function is operating. The seat
moves automatically while the seat
memory function is operating and
fingers or hands could get pinched and
injured.
Using the position memory button
1. Make sure the parking brake is on.
2. (Automatic transmission)
Make sure the selector lever is in
the P position.
3. Switch the ignition ON.
4. Press the programming button for the driving position you want to call
up (button 1 or 2).
5. A sound is activated when the adjustment to the programmed
driving position is completed.
NOTE
When adjustment of the driving
position is not necessary, a sound is
not activated.
The driving position adjustment is
canceled in the following cases:
The seat adjustment switch on the
driver's seat is operated.
The angle of the outer mirrors is
adjusted.
The SET button is pressed.Programming button 1 or 2 is
pressed.
The lock button or unlock button
on the transmitter is pressed.
The vehicle starts moving.The active driving display is
adjusted.
(Manual transmission)
The parking brake is released.
(Automatic transmission)
The selector lever is shifted to a
position other than P.
Using the transmitter
1. Unlock the driver's door using one of the following methods.
Touch the sensing area of the
door release touch sensor.
Press the unlock button on the
transmitter.
2. When you open the driver's door within 90 seconds after unlocking
the doors, the adjustment of the
following parts starts.
Driver's seatActive driving display (When the
ignition is switched ON, the
adjusted active driving display is
activated.)
Outside mirrors
A sound is activated when the
adjustment is completed.
NOTE
When adjustment of the driving
position is not necessary, a sound is
not activated.
Essential Safety Equipment
Seats
2-11
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

The driving position adjustment is
canceled in the following cases:
The seat adjustment switch on the
driver's seat is operated.
The angle of the outer mirrors is
adjusted.
The SET button is pressed.Programming button 1 or 2 is
pressed.
The lock button or unlock button
on the transmitter is pressed.
The vehicle starts moving.The active driving display is
adjusted.
(Manual transmission)
The parking brake is released.
(Automatic transmission)
The selector lever is shifted to a
position other than P.
Erasing programmed driving positions
Erasing the driving positions
programmed to the key
1. Switch the ignition OFF.
2. Press the SET button continuously until a sound is activated.
3. Press the lock button on the transmitter within 5 seconds after
the sound is activated.
NOTE
If you do not perform the operation
correctly, a sound indicating that the
programming has failed is activated.
▼Adjusting the Front Passenger's
Seat
1.
Seat Slide
To move a seat forward or
backward, raise the lever and slide
the seat to the desired position and
release the lever.
Make sure the lever returns to its
original position and the seat is
locked in place by attempting to
push it forward and backward.
2. Seat Recline
To change the seatback angle, lean
forward slightly while raising the
lever. Then lean back to the desired
position and release the lever.
Make sure the lever returns to its
original position and the seatback is
locked in place by attempting to
push it forward and backward.

Essential Safety Equipment
Seats
2-12
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

Do not remove interior air bag parts:
Removing any components such as the
front seats, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along the
roof edge, containing air bag parts or
sensors is dangerous. These parts
contain essential air bag components.
The air bag could accidentally activate
and cause serious injuries. Always have
an Authorized Mazda Dealer remove
these parts.
Properly dispose of the air bag
system:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all safety
procedures are followed, injury could
result. Have an Authorized Mazda
Dealer safely dispose of the air bag
system or scrap an air bag equipped
vehicle.
NOTE
If it becomes necessary to have the
components or wiring system for the
supplementary restraint system
modified to accommodate a person
with certain medical conditions in
accordance with a certified
physician, contact an Authorized
Mazda Dealer, refer to “Customer
Assistance (U.S.A.)” (page 8-2).
When an air bag deploys, a loud
inflation noise can be heard and
some smoke will be released.
Neither is likely to cause injury,
however, the texture of the air bags
may cause light skin injuries on body
parts not covered with clothing
through friction.
Should you sell your Mazda, we urge
you to tell the new owner of its air
bag systems and that familiarization
with all instructions about them,
from the Owner's Manual, is
important.
This highly-visible label is displayed
which warns against the use of a
rear-facing child-restraint system on
the front passenger seat.

(Mexico)

(Except Mexico)

Essential Safety Equipment
SRS Air Bags
2-57
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

Keyless Entry System
▼Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors,
liftgate, and fuel-filler lid, and opens/
closes the liftgate.
The system can start the engine
without having to take the key out of
your purse or pocket.
It can also help you signal for attention
or help.
Operating the theft-deterrent system is
also possible on theft-deterrent
system-equipped vehicles.

System malfunctions or warnings are
indicated by the following warning
lights or beeps.
Check the displayed message for more
information and, if necessary, have the
vehicle inspected at an Authorized
Mazda Dealer, according to the
indication.
KEY Warning Indication/Warning
Light (Red)
Refer to KEY Warning Indication/
Warning Light (Red) on page 7-28.
Ignition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched
Off
(STOP) Warning Beep on page
7-38.
Key Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-38.
If you have a problem with the key,
consult an Authorized Mazda Dealer.

If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to
make the lost or stolen key inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
NOTE
The keyless entry system operation
may vary due to local conditions.
The keyless entry system is fully
operational when the ignition is
switched off. The system does not
operate if the ignition is switched to
any position other than off.
If the key does not operate when
pressing a button or the operational
range becomes too small, the battery
may be weak. To install a new
battery, refer to Key Battery
Replacement (page 6-29).
Battery life is about 1 year. Replace
the battery with a new one if the
messages are displayed in the
instrument cluster. Replacing the
battery about once a year is
recommended because the KEY
warning indication may not display
depending on the rate of battery
depletion.
Additional keys can be obtained at
an Authorized Mazda Dealer. Up to
6 keys can be used with the keyless
functions per vehicle. Bring all keys
to an Authorized Mazda Dealer
when additional keys are required.
Before Driving
Keys
3-4
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

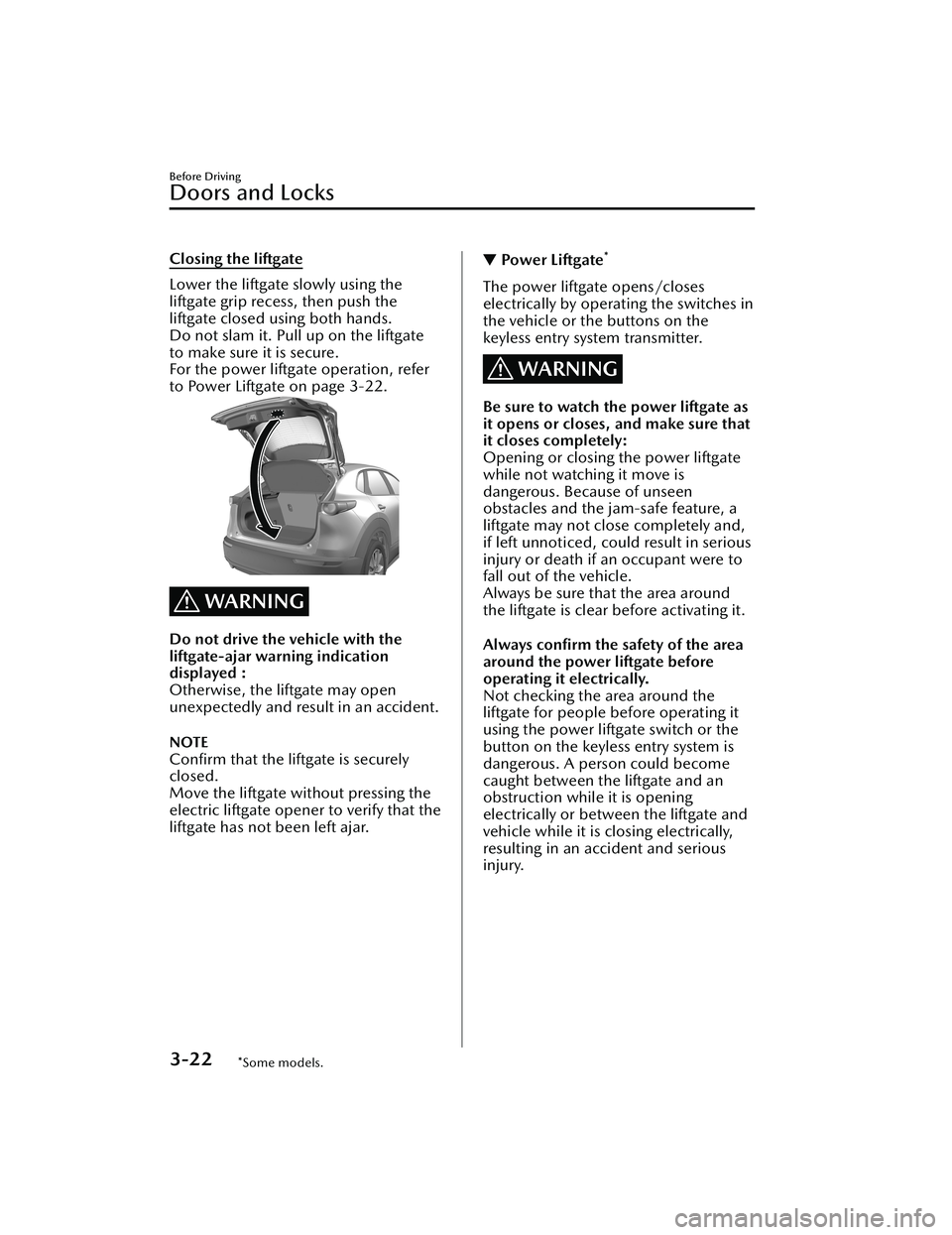

Closing the liftgate
Lower the liftgate slowly using the
liftgate grip recess, then push the
liftgate closed using both hands.
Do not slam it. Pull up on the liftgate
to make sure it is secure.
For the power liftgate operation, refer
to Power Liftgate on page 3-22.
WARNING
Do not drive the vehicle with the
liftgate-ajar warning indication
displayed :
Otherwise, the liftgate may open
unexpectedly and result in an accident.
NOTE
Confirm that the liftgate is securely
closed.
Move the liftgate without pressing the
electric liftgate opener to verify that the
liftgate has not been left ajar.
▼Powe r L i ft g ate*
The power liftgate opens/closes
electrically by operating the switches in
the vehicle or the buttons on the
keyless entry system transmitter.
WARNING
Be sure to watch the power liftgate as
it opens or closes, and make sure that
it closes completely:
Opening or closing the power liftgate
while not watching it move is
dangerous. Because of unseen
obstacles and the jam-safe feature, a
liftgate may not close completely and,
if left unnoticed, could result in serious
injury or death if an occupant were to
fall out of the vehicle.
Always be sure that the area around
the liftgate is clear before activating it.
Always confirm the safety of the area
around the power liftgate before
operating it electrically.
Not checking the area around the
liftgate for people before operating it
using the power liftgate switch or the
button on the keyless entry system is
dangerous. A person could become
caught between the liftgate and an
obstruction while it is opening
electrically or between the liftgate and
vehicle while it is closing electrically,
resulting in an accident and serious
injury.
Before Driving
Doors and Locks
3-22*Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09

4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine..................... 4-4 Ignition Switch.......................4-4
Starting the Engine................. 4-5
Turning the Engine Off.......... 4-10
Cylinder Deactivation...........4-11
Instrument Cluster and
Display.................................. 4-12 Instrument Cluster and
Display................................4-12
Instrument Cluster............... 4-12
Active Driving Display
*......... 4-28
Manual Transmission
Operation.............................. 4-30 Manual Transmission Shift
Pattern................................ 4-30
Automatic Transmission........... 4-33 Automatic Transmission
Controls.............................. 4-33
Shift-Lock System................. 4-34
Transmission Ranges............ 4-35
Manual Shift Mode.............. 4-36
Direct Mode
*.......................4-42
Driving Tips......................... 4-43
Switches and Controls............. 4-44 Lighting Control................... 4-44
Turn and Lane-Change
Signals................................ 4-49
Windshield Wipers and
Washer............................... 4-50
Rear Window Wiper and
Washer............................... 4-54
Rear Window Defogger........ 4-55
Horn................................... 4-56
Hazard Warning Flasher....... 4-57
HomeLink Wireless Control
System
*............................... 4-57
Brake.....................................4-63 Brake System....................... 4-63
AUTOHOLD........................ 4-69
Hill Launch Assist (HLA)........4-73
ABS/TCS/DSC/Off-Road
Traction Assist.........................4-75 Antilock Brake System
(ABS).................................. 4-75
Tra c t i o n C o n t r o l Sy s t e m
(TCS).................................. 4-76
Dynamic Stability Control
(DSC)................................. 4-78
Off-Road Traction Assist
*...... 4-79
Drive Selection....................... 4-81 Drive Selection
*................... 4-81
i-ACTIV AWD......................... 4-83 i-ACTIV AWD Operation
*..... 4-83
Power Steering....................... 4-85 Power Steering.....................4-85
*Some models.4-1
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09
