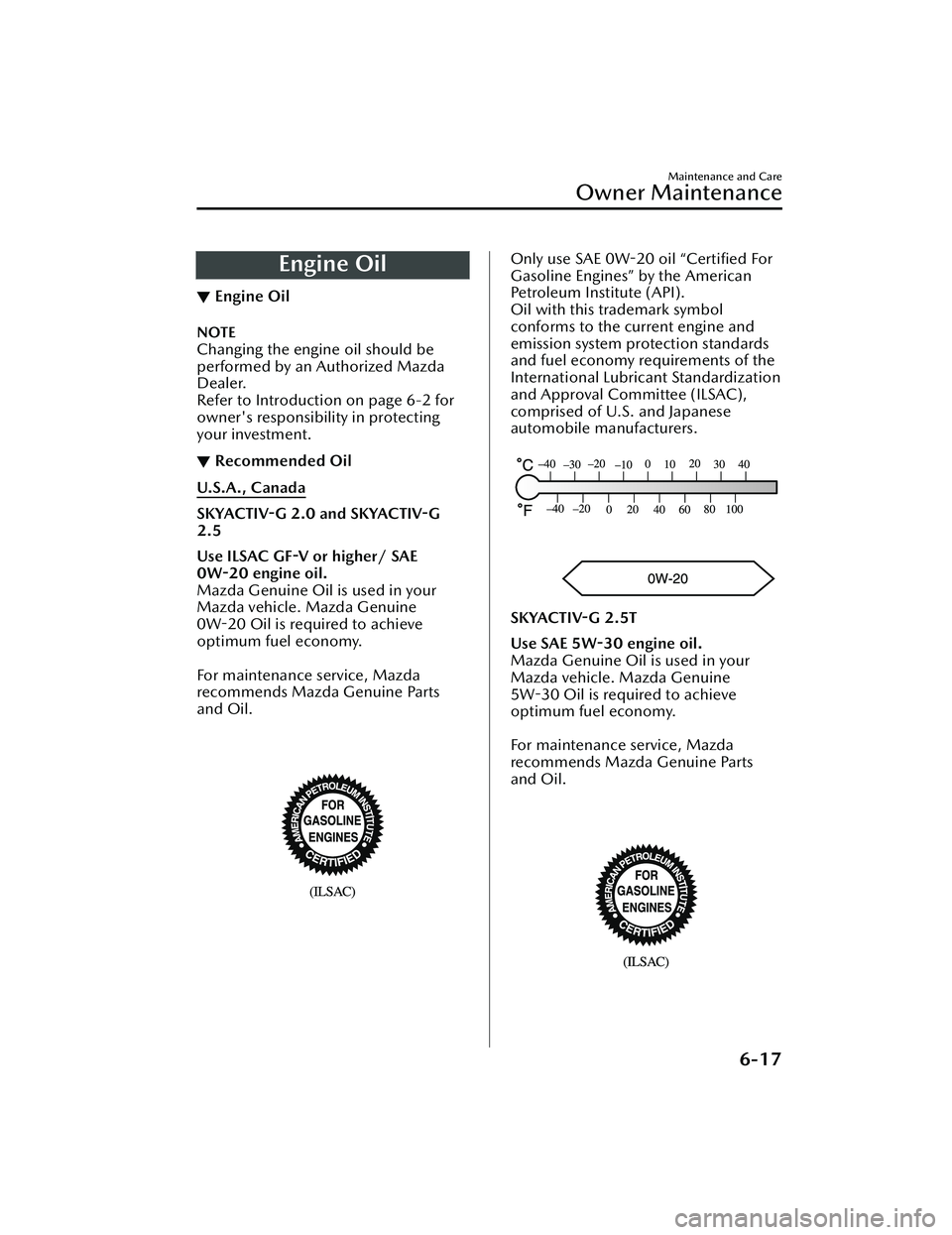

2021 MAZDA MODEL CX-30 Engine

Engine Oil
▼Engine Oil
NOTE
Changing the engine oil should be
performed by an Authorized Mazda
Dealer.
Refer to Introduction on page 6-2 for
owner's responsibility in protecting
your investment.
▼Recommended Oil
U.S.A., Canada
SKYACTIV-G 2.0 and SKYACTIV-G
2.5
Use ILSAC GF-V or higher/ SAE
0W-20
engine oil.
Mazda Genuine Oil is used in your
Mazda vehicle. Mazda Genuine
0W-20 Oil is required to achieve
optimum fuel economy.

For maintenance service, Mazda
recommends Mazda Genuine Parts
and Oil.

Only use SAE 0W-20 oil “Certified For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol
conforms to the current engine and
emission system protection standards
and fuel economy requirements of the
International Lubricant Standardization
and Approval Committee (ILSAC),
comprised of U.S. and Japanese
automobile manufacturers.

SKYACTIV-G 2.5T
Use SAE 5W-30 engine oil.
Mazda Genuine Oil is used in your
Mazda vehicle. Mazda Genuine
5W-30 Oil is required to achieve
optimum fuel economy.

For maintenance service, Mazda
recommends Mazda Genuine Parts
and Oil.

Maintenance and Care
Owner Maintenance
6-17
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

Only use SAE 5W-30 oil “Certified For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol
conforms to the current engine and
emission system protection standards
and fuel economy requirements of the
International Lubricant Standardization
and Approval Committee (ILSAC),
comprised of U.S. and Japanese
automobile manufacturers.

Except U.S.A., Canada
Use SAE 5W-30 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil
makes to fuel economy is reducing the
amount of fuel necessary to overcome
engine friction.

For maintenance service, Mazda
recommends Mazda Genuine Parts.

(Mexico)
SKYACTIV-G 2.0 and
SKYACTIV-G
2.5
Use API SM or higher, or ILSAC GF-IV
or higher/SAE 5W-30 engine oil. If SAE
5W-30 engine oil is not available, use
SAE 5W-20 engine oil.

The quality designation SM, or ILSAC
must be on the label.

SKYACTIV-G 2.5T
Use SAE 5W-30 engine oil. If SAE
5W-30 engine oil is not available, use
SAE 0W-30 or SAE 10W-30 engine oil.

The quality designation SM or SN, or
ILSAC must be on the label.

▼ Inspecting Engine Oil Level
NOTE
If the engine oil level warning
indication/warning light turns on,
add 1 L (0.26 US gal, 0.22 Imp gal)
of engine oil.
1. Be sure the vehicle is on a level surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait at least 5 minutes for the oil to return to the
oil pan.
Maintenance and Care
Owner Maintenance
6-18
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

4. Pull out the dipstick, wipe it clean,and reinsert it fully.

1. MAX
2. OK
3. MIN

5. Pull it out again and examine the level.
The level is normal if it is between
the MIN and MAX marks.
If it is near or below MIN, add
enough oil to bring the level to
MAX.
CAUTION
Do not overfill the engine oil. This
may cause engine damage.
6. Make sure the O-ring on the dipstick is positioned properly
before reinserting the dipstick.
7. Reinsert the dipstick fully.
Engine Coolant
▼ Inspecting Coolant Level
WARNING
Do not use a match or live flame in
the engine compartment. DO NOT
ADD COOLANT WHEN THE ENGINE
IS HOT:
A hot engine is dangerous. If the
engine has been running , parts of the
engine compartment can become very
hot. You could be burned. Carefully
inspect the engine coolant in the
coolant reservoir, but do not open it.
Pull over to a safe location, then
switch the ignition off and make sure
the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either
cooling system cap when the engine
and radiator are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury.
Maintenance and Care
Owner Maintenance
6-19
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

NOTE
Changing the coolant should be done
by an Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year―at the beginning of
the winter season ―and before
traveling where temperatures may drop
below freezing.

Inspect the condition and connections
of all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.

The coolant should be at full in the
radiator and between the FULL and
LOW marks on the coolant reservoir
when the engine is cool.
SKYACTIV-G 2.0 and SKYACTIV-G
2.5

SKYACTIV-G 2.5T

If it is at or near LOW, add enough
coolant to the coolant reservoir to
provide freezing and corrosion
protection and to bring the level to
FULL.
Securely tighten the coolant reservoir
tank cap after adding coolant.
CAUTION
 Radiator coolant will damage paint.
Rinse it off quickly if spilled.
 If the “FL22” mark is shown on or
near the cooling system cap, use of
FL-22 is recommended when
replacing engine coolant. Using
engine coolant other than FL-22 may
cause serious damage to the engine
and cooling system.

If the coolant reservoir is empty or new
coolant is required frequently, consult
an Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
6-20
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

NOTE
State or local regulations may restrict
the use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides
adequate freeze resistance for all
regions and climates in which the
vehicle will be operated.
Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.
1. F
2. E
The top of the
float should be between
F and E.

Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold
weather to prevent it from freezing.
NOTE
Front and rear washer fluid is supplied
from the same reservoir.
Body Lubrication
▼ Body Lubrication
All moving points of the body, such as
door and hood hinges and locks,
should be lubricated each time the
engine oil is changed. Use a
nonfreezing lubricant on locks during
cold weather.

Make sure the hood's secondary latch
keeps the hood from opening when
the primary latch is released.
Maintenance and Care
Owner Maintenance
6-22
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09

3. Pull the fuse straight out with thefuse puller provided on the fuse
block located in the engine
compartment.
4. Inspect the fuse and replace it if it is
blown.
1. Normal
2. Blown

5. Insert a new fuse of the same
amperage rating, and make sure it
fits tightly. If it does not
fit tightly,
have an expert install it. Consult an
Authorized Mazda Dealer.
If you have no spare fuses, borrow
one of the same rating from a
circuit not essential to vehicle
operation, such as the audio or
accessory socket circuit.
CAUTION
Always replace a fuse with a
genuine Mazda fuse or equivalent
of the same rating. Otherwise, you
may damage the electric system.
6. Reinstall the cover and make sure that it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses
in the cabin are normal, inspect the
fuse block under the hood.
If a fuse is blown, it must be replaced.
Follow these steps:

1. Make sure the ignition is switched
off, and other switches are
off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is blown, replace it with a new one of
the same amperage rating .
1. Normal
2. Blown

Maintenance and Care
Owner Maintenance
6-36
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

▼Fuse Panel Description
Fuse block (Engine compartment)
No. FUSE RAT-
ING PROTECTED COMPONENT
F1 ――
F2 20 A Windshield wiper de-icer
*
F330 A Engine control system
20 A
―
F4 20 A S-VT
F5 40 A Engine control system
F6 20 A ―
Maintenance and Care
Owner Maintenance
6-38*Some models.
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

No.FUSE RAT-
ING PROTECTED COMPONENT
F7 15 A
―
20 A Fuel pump
F8 15 A Engine control system
F9 15 A Transmission control system
*
F1015 A Engine control system
F11 7.5 A Air conditioner
F12 15 A Engine control system
F13 15 A ―
F14 20 A
Front seat warmer
*
F15 20 A ―
F16 15 A For protection of various circuits
F17 ――
F18 15 A For protection of various circuits
F19 60 A Power steering system
F20 15 A Headlight (LH) 1
F21 15 A Headlight (RH) 1
F22 15 A Keyless system
F23 30 A ABS, Dynamic stability control system
F24 15 A Headlight (LH) 2
F25 15 A Headlight (RH) 2
F26 7.5 A On board diagnostics
F27 25 A For protection of various circuits
F28 25 A For protection of various circuits
F29 15 A Windshield washer
F30 15 A Accessory sockets
F31 15 A Horn
F32 15 A Headlights
F33 ――
F34 ――
F35 50A ABS, Dynamic stability control system
F36 ――
F37 40 A Rear window defogger
F38 50 A For protection of various circuits
Maintenance and Care
Owner Maintenance
*Some models.6-39
