FUSE PRECAUTIONS
WARNING: Always disconnect the
battery before servicing high current fuses. WARNING:
To reduce risk of
electrical shock, always replace the cover
to the power distribution box before
reconnecting the battery or refilling fluid
reservoirs. WARNING:
Always replace a fuse
with one that has the specified amperage
rating. Using a fuse with a higher
amperage rating can cause severe wire
damage and could start a fire. UNDER HOOD FUSE BOX
Locating the Under Hood Fuse Box Accessing the Under Hood Fuse Box
Accessing the Under Hood Fuse Box -
Top
316
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing FusesE327062 E330178

Accessing the Under Hood Fuse Box -
Bottom 1.
Release the latches on both sides of the
fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.
317
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing FusesE145983

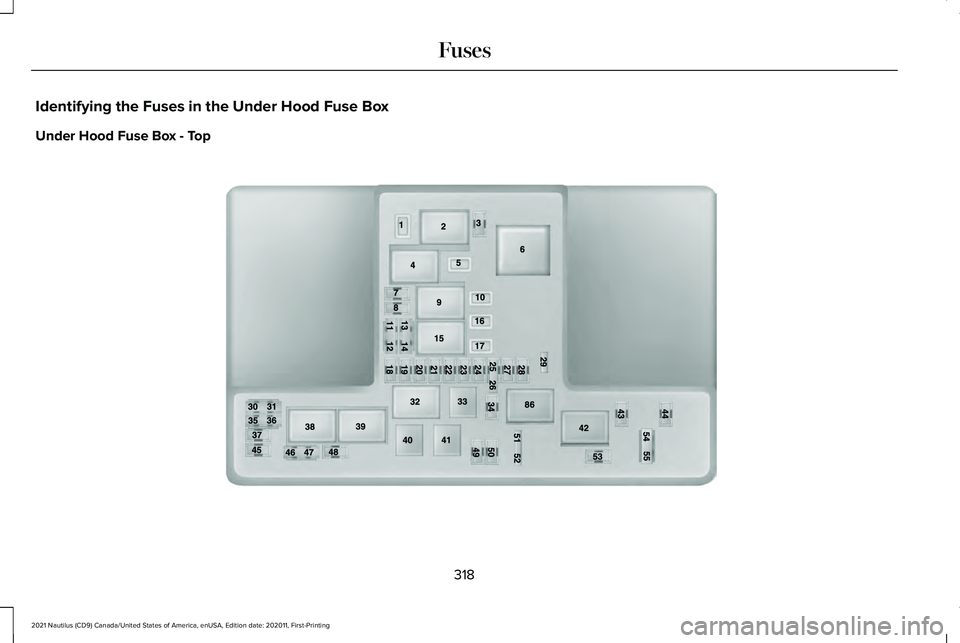

Identifying the Fuses in the Under Hood Fuse Box
Under Hood Fuse Box - Top
318
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing FusesE190797

Protected Component
Fuse Rating
Fuse Number
Second row power seat.
30 A
1
Starter relay.
—
2
Rear window wiper.
15 A
3
Rain sensor.
Rear wash relay coil.
Blower motor relay.
—
4
Not used.
—
5
Not used.
—
6
Powertrain control module - vehicle power 1.
20 A
7
Powertrain control module - vehicle power 2.
20 A
8
Canister vent.
Vapor blocking value.
Heated oxygen post.
Powertrain control module relay.
—
9
Power outlet 5-main bin.
20 A
10
Powertrain control module - vehicle power 4.
15 A
11
Powertrain control module - vehicle power 3.
15 A
12
319
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Fuses

Protected Component
Fuse Rating
Fuse Number
Not used.
—
13
Not used.
—
14
Run-start relay.
—
15
Power outlet 2 - back of console.
20 A
16
Power outlet 4 - luggage compartment.
20 A
17
Not used.
—
18
Run-start electronic power assist steering.
10 A
19
Run/start lighting.
10 A
20
Not used.
—
21
Air conditioner clutch solenoid.
10 A
22
Front split view camera.
15 A
23
Rear view camera.
Forward looking radar.
360° camera module.
Blind spot information system.
Voltage quality module (start/stop).
Not used (spare).
10 A
24
Run-start anti-lock brake system.
10 A
25
320
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Fuses

Protected Component
Fuse Rating
Fuse Number
Run-start powertrain control module.
10 A
26
USB power outlet - back of console.
5 A
27
Rear window washer pump.
10 A
28
Not used.
—
29
Not used.
—
30
Not used.
—
31
Electronic fan 1 relay.
—
32
A/C clutch relay.
—
33
Not used.
—
34
Not used.
—
35
Not used.
—
36
Not used.
—
37
Electronic fan 2 relay.
—
38
Electronic fan 3 relay.
—
39
Horn relay.
—
40
Left-hand high beam and stoplamp relay.
—
41
321
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Fuses

Protected Component
Fuse Rating
Fuse Number
Fuel pump relay.
—
42
Right-hand high beam and stoplamp.
15 A
43
Not used.
—
44
Not used.
—
45
Not used.
—
46
Not used.
—
47
Left-hand high beam and stoplamp.
15 A
48
Not used.
—
49
Horn.
20 A
50
Not used.
—
51
Not used.
—
52
Massaging seats.
10 A
53
Brake on-off switch.
10 A
54
Alternator A-line.
10 A
55
Not used.
—
86
322
