When you are decelerating with either your
foot off the accelerator pedal or on the brake
pedal you will see a green or white solid bar
indicating the power being used to slow
down the vehicle. You may also see a green
rectangular box which shows the amount of
power that can be recaptured by the
regenerative braking system and returned
to the high voltage battery.
•
When your power level is completely
within the box the color of the bar will be
all green. This means that the
regenerative braking system is being
used to efficiently slow the vehicle down
and return the maximum percentage of
energy to the high voltage battery.
• When your power level is outside of the
green box then the bar will be white. This
means that both the regenerative braking
system and conventional braking system
are being used. Electric Efficiency
This screen shows your average driving
distance per kWh of electricity used on your
hybrid vehicle. The value is calculated only
when your available electric range is being
used and the gasoline engine is off.
Distance per full charge is also shown. This
is an estimate of the electric range you would
have if you plugged in and fully charged your
vehicle right now. The higher your electric
efficiency, the higher your distance per full
charge.
Your electric efficiency is affected by your
driving style and route, climate control use,
outside temperature and other factors. Best
efficiency is achieved in mild ambient
temperatures with mild to moderate
acceleration and braking, moderate speeds
and low climate control usage.
INFORMATION MESSAGES
Move the selector switch to the
right to acknowledge and remove
some messages from the
information display. Other messages will be
removed automatically after a short time.
Certain messages need to be confirmed
before you can access the menus.
Active Park Action
Message
The system requires service. Have the system checked as soon as possible.
Active Park Fault
140
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Information DisplaysE281220 E265041

Adaptive Cruise Control
Action
Message
A radar concern is preventing the adaptive cruise from engaging. See How Does Adaptive
Cruise Control With Stop and Go Work (page 291).
Adaptive Cruise Malfunction
Front Sensor Not Aligned Conditions exist such that the adaptive cruise cannot function properly.
See How Does
Adaptive Cruise Control With Stop and Go Work (page 291).
Adaptive Cruise Not Available
The radar is blocked because of poor radar visibility due to inclement weather, ice, mud or
water in front of radar. You can typically clean the sensor to resolve. See How Does Adaptive Cruise Control With Stop and Go Work
(page 291).
Adaptive Cruise Not Available Sensor Blocked
See Manual
Displays when the system disables automatic braking.
Normal Cruise Active Adaptive Braking Off
Displays when the system reinstates adaptive cruise control to you.
Adaptive Cruise - Driver Resume Control
Displays when the vehicle speed is too slow to activate the adaptive cru\
ise.
Adaptive Cruise Speed Too Low to Activate
Adaptive Headlamps Action
Message
Displays when the system detects a concern. Have the system checked as soon as possible.
Check Headlamp System See Manual
141
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Information Displays

AdvanceTrac
™ and Traction Control Action
Message
The system detects a condition that requires service. Have the system checked as soon as possible.
Service AdvanceTrac
The status of the system after you switch it off.
AdvanceTrac Off
The status of the system after you switch it on.
AdvanceTrac On
The status of the system after you switch it on.
AdvanceTrac SPORT MODE
The status of the system after you switch it off.
Traction Control Off
The status of the system after you switch it on.
Traction Control On
Alarm Action
Message
Alarm triggered due to unauthorized entry. See Anti-Theft Alarm (page 98).
Vehicle Alarm To Stop Alarm, Start Vehicle.
142
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Information Displays

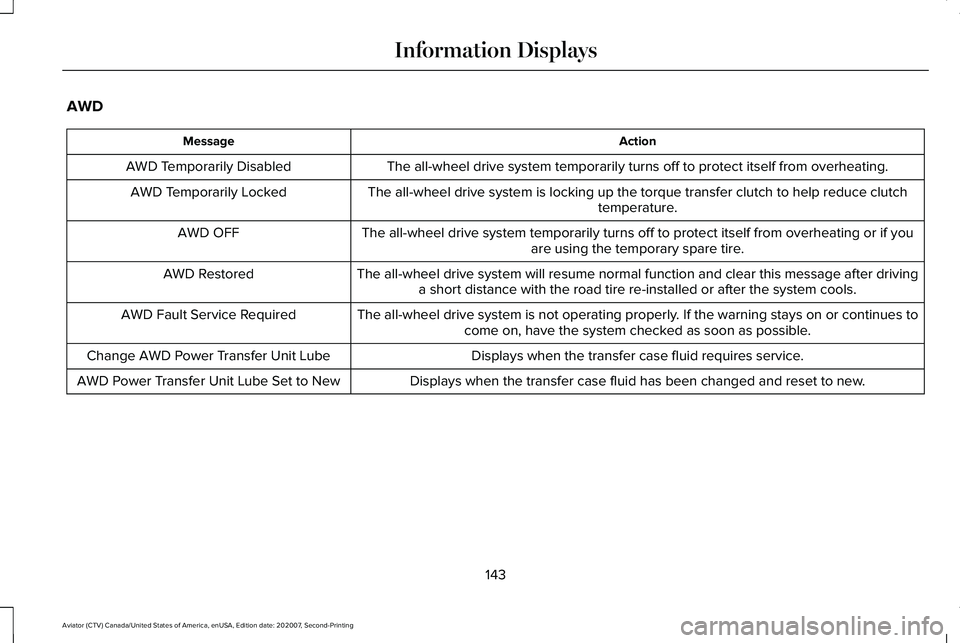

AWD
Action
Message
The all-wheel drive system temporarily turns off to protect itself from \
overheating.
AWD Temporarily Disabled
The all-wheel drive system is locking up the torque transfer clutch to h\
elp reduce clutchtemperature.
AWD Temporarily Locked
The all-wheel drive system temporarily turns off to protect itself from \
overheating or if youare using the temporary spare tire.
AWD OFF
The all-wheel drive system will resume normal function and clear this me\
ssage after drivinga short distance with the road tire re-installed or after the system coo\
ls.
AWD Restored
The all-wheel drive system is not operating properly. If the warning stays on or continues tocome on, have the system checked as soon as possible.
AWD Fault Service Required
Displays when the transfer case fluid requires service.
Change AWD Power Transfer Unit Lube
Displays when the transfer case fluid has been changed and reset to new.
AWD Power Transfer Unit Lube Set to New
143
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Information Displays

Battery and Charging System (12 volt)
Action
Message
The charging system needs servicing. If the warning stays on or continue\
s to come on, havethe system checked as soon as possible.
Check Charging System
The charging system needs servicing. If the warning stays on or continue\
s to come on havethe system checked as soon as possible.
Charging System Service Soon
The charging system needs servicing. Have the system checked as soon as possible.
Charging System Service Now
The battery management system determines that the 12V battery is at a lo\
w state of charge.Start the engine to charge the battery or charge the battery using an aft\
ermarket battery
charger. This message clears once you restart your vehicle and the battery stat\
e of charge has recovered.
Battery State of Charge Low
The battery management system determines that the battery is at a low st\
ate of charge. Turnthe ignition off as soon as possible to protect the battery. This message will clear once the
vehicle has been started and the battery state of charge has recovered. \
Turning off unneces- sary electrical loads will allow faster battery state-of-charge recovery\
.
Turn Power Off To Save Battery
Displays when the battery management system detects an extended low-volt\
age condition.
Various vehicle features will be disabled to help preserve the battery. Turn off as many of the electrical loads as soon as possible to improve system voltage. If the system voltage has recovered, the disabled features will operate again as normal.
Low Battery Features Temporarily Turned Off
144
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Information Displays

Battery and Charging System (High Voltage)
Action
Message
Your vehicle needs confirmation it is unplugged before allowing a start. \
You must make sure
your vehicle is unplugged and you respond to the message prompt before s\
tarting your
vehicle.
Vehicle Plugged In ? Yes No
Your vehicle detects it is still plugged in after you attempt to start it\
.
Unplug Prior to Starting Vehicle
Your vehicle is ready to drive.
Ready to Drive
Your vehicle is ready to drive. You have XXX% plug-in energy available.
Ready to Drive {percent charged:##0}%
Charged
Your vehicle enables the engine due to the climate control defrost settin\
g. This is normal
operation.
Engine Enabled Due to Defrost Setting
For full defrost heat select a drive mode other than Pure EV. The engine may run to provide
more cabin heat.
Press EV Button for Full Defrost
Your vehicle enables the engine for system performance. This is normal operation.
Engine Enabled for System Performance
You can press OK to enable the engine temporarily for increased performan\
ce when in Pure
EV drive mode.
Press OK to Enable Engine
145
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Information Displays

Blind Spot Information and Cross Traffic Alert System
Action
Message
The system may require service. Have the system checked as soon as possible.
Blind Spot System Fault
The system sensors are blocked. See Blind Spot Information System (page 312).
Blind Spot Not Available Sensor Blocked See
Manual
The system detects a vehicle and automatically applied the brakes.
Cross Traffic Alert Applying Brakes
The blind spot information system and cross traffic alert system sensors\
are blocked.
See
Cross Traffic Alert (page 316).
Cross Traffic Not Available Sensor Blocked
See Manual
The system may require service. Have the system checked as soon as possible.
Cross Traffic System Fault
The system automatically turns off and displays this message when you co\
nnect a trailer to
the vehicle that does not have a trailer blind spot system or when you s\
witch the trailer blind spot system off through the information display.
See Cross Traffic Alert (page 316).
Cross Traffic Alert Deactivated Trailer
Attached
The system automatically turns off and displays this message when you co\
nnect a trailer to
the vehicle that does not have a trailer blind spot system or when you s\
witch the trailer blind spot system off through the information display.
See Blind Spot Information System (page
312).
Blind Spot Alert Deactivated Trailer Attached
146
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Information Displays

Doors and Locks
Action
Message
The driver door is not completely closed.
Driver Door Ajar
The passenger door is not completely closed.
Passenger Door Ajar
The rear left-hand door is not completely closed.
Rear Left Door Ajar
The rear right-hand door is not completely closed.
Rear Right Door Ajar
The liftgate is not completely closed.
Liftgate Ajar
The hood is not completely closed.
Hood Ajar
The system has disabled the door switches.
Switches Inhibited Security Mode
Displays when the door lock is turned on and you attempt to open the doo\
r.
Doors Locked Unlock Before Opening
Indicates a driver door concern that requires manually opening the door \
by the override lever.Have the system checked as soon as possible.
Driver Door Fault Use Inside Override Lever
In Map Pocket
Indicates a concern with the electronic door system. Have the system che\
cked as soon as possible.
Door Fault Service Required
Displays when the system requires service. Have the system checked as soon as possible.
Child Lock Malfunction Service Required
147
