632-1. Instrument cluster
2
Vehicle status information and indicators
*1: These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2: This light illuminates on the multi-infor-
mation display.
*3: This light illuminates on the center panel.
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
(U.S.A.)
ABS warning light*1 (  P.303)
(Canada)
ABS warning light*1 ( P.303)
Brake Override System warn-
ing light/Drive-Start Control
warning light
*2 (  P.304)
(U.S.A.)
Parking brake warning light
( P.304)
(Canada)
Parking brake warning light
( P.304)
Electric power st eering system
warning light
*1 (  P.304)
(orange)
LDA (Lane Departure Alert)
indicator ( P.305)
(flashes or
illuminates)PCS warning light*1 (  P.305)
Slip indicator
*1 (  P.305)
Automatic headlight leveling
system warning light ( P.306)
Open door warning light
(  P.306)
Low fuel level warning light
(  P.306)
Driver’s and front passenger’s
seat belt reminder light
(  P.306)
Rear passenger’s seat belt
reminder lights
*3 (  P.307)
Master warning light
*1
(  P.307)
Tire pressure warning light
*1
(  P.307)
WARNING
■If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS warning light not come on
when you start the engine, this could
mean that these systems are not available
to help protect you in an accident, which
could result in death or serious injury.
Have the vehicle inspected by your
Lexus dealer immediately if this occurs.
Indicators
Turn signal indicator ( P.136)
(U.S.A.)
Headlight indicator ( P.138)
(Canada)
Tail light indicator ( P.138)
Headlight high beam indicator
(  P.139)
Automatic High Beam indica-
tor
*1 (  P.140)

652-1. Instrument cluster
2
Vehicle status information and indicators
• When the engine switch is turned to IGNITION ON mode while the
BSM main switch is turned on.
• When the BSM main switch is turned on while the engine switch is
in IGNITION ON mode.
If the system is fu nctioning correctly,
the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror
indicators do not illuminate or do not
turn off, there may be a malfunction in
the system. If this occurs, have the vehi-
cle inspected by your Lexus dealer.
*4: This light illuminates on the outside rear view mirrors.
*5: This light illuminates on the multi-infor-mation display.
*6: This light illuminates on the center panel.
*7: When the outside temperature is approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.

662-1. Instrument cluster
■Locations of gauges and meters
If the drive mode is changed, some of th e meter displays and the gauge layout will
be changed.
The units used on the meters may differ depending on the target region.
Normal mode
Multi-information display
Presents the driver with a variety of vehicle data ( P.73)
Displays warning messages in case of a malfunction (P.310)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor ( ) enters the red zone, a buzzer will so und and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Gauges and meters
Meter display
A
B
C
D
E

672-1. Instrument cluster
2
Vehicle status information and indicators
Tachometer
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position/shift range/gear position (P.132)
Odometer and trip meter display ( P.72)

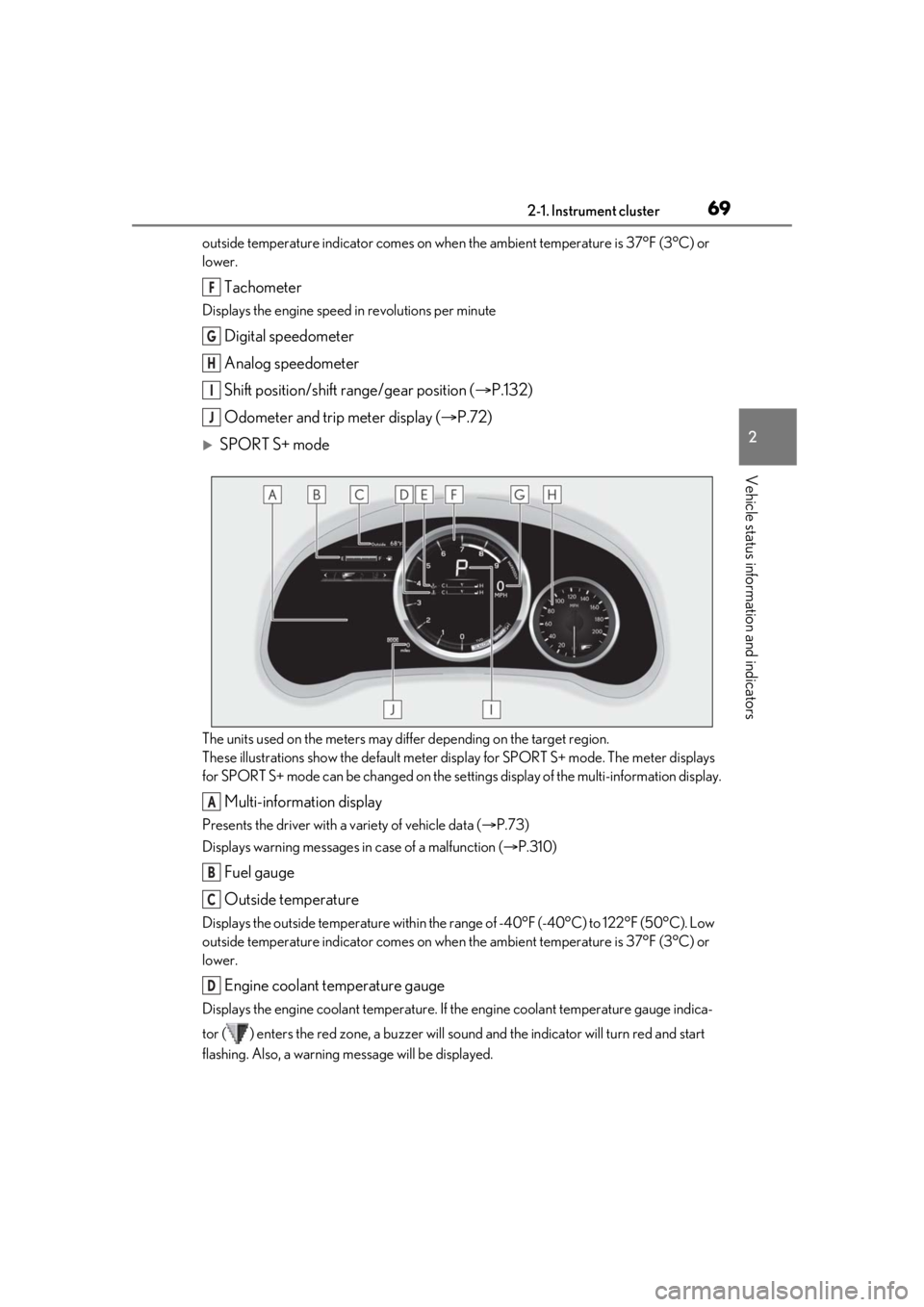

Eco drive mode
Multi-information display
Presents the driver with a variety of vehicle data ( P.73)
Displays warning messages in case of a malfunction (P.310)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor ( ) enters the red zone, a buzzer will so und and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Eco driving meter
F
G
H
I
J
A
B
C
D
E
F

682-1. Instrument cluster
Displays the vehicle acceleration. The more rapidly the vehicle is accelerated, the lower the
number of blue segments displayed, indicating that your driving is less ecofriendly. This
meter is designed as a guid eline to show the eco-friendliness of your driving.
Digital speedometer
Analog speedometer
Shift position/shift range/gear position ( P.132)
Odometer and trip meter display ( P.72)
SPORT S mode
The units used on the meters may differ depending on the target region.
These illustrations show the default meter display for SPORT S mode. The meter displays
for SPORT S mode can be changed on the setti ngs display of the multi-information display.
Multi-information display
Presents the driver with a variety of vehicle data ( P.73)
Displays warning messages in case of a malfunction (P.310)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor ( ) enters the red zone, a buzzer will so und and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
G
H
I
J
A
B
C
D
E

692-1. Instrument cluster
2
Vehicle status information and indicators
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Tachometer
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position/shift range/gear position (P.132)
Odometer and trip meter display ( P.72)
SPORT S+ mode
The units used on the meters may differ depending on the target region.
These illustrations show the default meter display for SPORT S+ mode. The meter displays
for SPORT S+ mode can be changed on the sett ings display of the multi-information display.
Multi-information display
Presents the driver with a variety of vehicle data ( P.73)
Displays warning messages in case of a malfunction (P.310)
Fuel gauge
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor ( ) enters the red zone, a buzzer will so und and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
F
G
H
I
J
A
B
C
D

702-1. Instrument cluster
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Tachometer
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position/shift range/gear position (P.132)
Odometer and trip meter display ( P.72)
■Speed indicator
When the vehicle reaches the set
speed, the speed unit display will turn
yellow.
The indicators will be displayed in yellow
(corresponding to a speed set by a user) or
red (fixed at 100 mph [160 km/h])
*.
This setting can be enabled on the
multi-information display.
*: Always observe the legal speed limit when driving on public roads.
■Rev indicator (SPORT S
mode/SPORT S+ mode)
When the shift lever is in M, an indica-
tor on the tachometer will be displayed
in 3 steps. When the 3rd level indicator
is displayed, the in dicator will flash and
a buzzer will sound to notify you of
shift-up timing.
The indicator may be displayed when
downshifting, depending on the engine
speed.
These illustrations show the default meter
display for SPORT S mode and SPORT S+
mode. The meter displays for SPORT S
mode and SPORT S+ mode can be
changed on the settings display of the
multi-information display.
SPORT S mode
SPORT S+ mode
E
F
G
H
I
J
A
B

712-1. Instrument cluster
2
Vehicle status information and indicators
■Rev peak (Normal mode/SPORT
S mode)
The engine speed reaches or exceeds
3600 rpm, an afterimage of the
tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.
■Meter display and layout
If the drive mode is changed, some of
the meter displays and the gauge lay-
out will be changed. ( P.192)
■The meters and display illuminate when
The engine switch is in IGNITION ON
mode.
■Welcome illumination of the analog
speedometer
●When the driver’s door is opened, the
analog speedometer will illuminate. Then,
when the driver’s door is closed, the ana-
log speedometer will illuminate and go
off (pulsate) 3 times.
●In the following situations, the analog
speedometer will not pulsate even
though the driver’s door is opened and
closed:
• Within 60 seconds after the analog
meter pulsation completes
• Within 60 seconds of turning the engine switch off
■Variable red zone
To help protect the engine, the engine
speed is controlled by starting the red zone
of the tachometer at different engine
speeds ranging from 3700 rpm to 7300
rpm depending on the engine coolant tem-
perature. Before driv ing under extremely
high load conditions, make sure to suffi-
ciently warm up the engine.
■Eco driving meter
●The number of blue segments displayed
on the eco driving meter
decreases/increases depending on the
vehicle acceleration. Use this meter as a
guideline when you wish to drive in an
eco-friendly manner that reduces fuel
consumption.
However, on a downward grade where
the vehicle can accelerate without the
accelerator pedal being depressed, the
eco driving meter may not display the
eco-driving state correctly.
●When the shift lever is moved to P, N or
R, the segments will turn gray and the eco
driving meter will not operate.
■Dimming the analog speedometer light-
ing
The analog speedometer lighting will be
dimmed when the ambient light is bright,
such as during the daytime, and SPORT S
or SPORT S+ mode is selected.
■Outside temperature display
●In the following situations, the correct
outside temperature may not be dis-
played, or the display may take longer
than normal to change:
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has
Changing the display
