2021 LEXUS RC350 sensor

3017-2. Steps to take in an emergency
7
When trouble arises
■Brake hold operated indicator (warning buzzer)
■SRS warning light
This warning light system monitors the air-
bag sensor assembly, fr ont impact sensors,
side impact sensors (door), side impact
sensors (front), side impact sensors (rear),
driver’s seat position sensor, driver’s seat
belt buckle switch, front passenger occu-
pant classification system, “AIR BAG ON”
indicator light, “AIR BAG OFF” indicator
light, front passenger’s seat belt buckle
switch, seat belt pret ensioners, airbags,
interconnecting wiring and power sources.
(  P.29)
■Front passenger detection sensor, seat
belt reminder and warning buzzer
●If luggage is placed on the front passen-
ger seat, the front passenger detection
sensor may cause th e warning light to
flash and the warning buzzer to sound
even if a passenger is not sitting in the
seat.
●If a cushion is placed on the seat, the sen-
sor may not detect a passenger, and the
warning light may not operate properly.
■If the malfunction indicator lamp comes
on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving
trips.
If the light does not go off even after several
trips, contact your Lexus dealer as soon as
possible.
■Electric power steering system warning
light (warning buzzer)
When the battery charge becomes insuffi- cient or the voltage temporarily drops, the
electric power steering system warning
light may come on and the warning buzzer
may sound.
■When the tire pressure warning light
comes on
Check the tire inflatio n pressure and adjust
to the appropriate leve l. Pushing the tire
pressure warning reset switch will not turn
off the tire pressure warning light.
■The tire pressure warning light may
come on due to natural causes
The tire pressure wa rning light may come
on due to natural causes such as natural air
leaks and tire inflation pressure changes
caused by temperature. In this case, adjust-
ing the tire inflation pressure will turn off the
warning light (after a few minutes).
■When a tire is replaced with the spare
tire
The spare tire is not equipped with a tire
pressure warning valve and transmitter. If a
tire goes flat, the tire pressure warning light
will not turn off even though the flat tire has
been replaced with the spare tire.
■Conditions that the tire pressure warn-
ing system may not function properly
 P.268
■If the tire pressure warning light fre-
quently comes on after blinking for 1
minute
If the tire pressure wa rning light frequently
comes on after blinking for 1 minute when
the engine switch is turned to IGNITION
ON mode, have it checked by your Lexus
dealer.
■Warning buzzer
In some cases, the buzzer may not be heard
due to being in a noisy location or audio
sound.
Warning lightDetails/Actions
(flashes)
Indicates a malfunction in the brake hold system
 Have the vehicle inspected by your Lexus dealer immediately.

3578-2. Customization
8
Vehicle specifications
■Automatic light control system (P.142)
■Lights ( P.142)
■PCS (Pre-Collision System) ( P.162)
■LDA (Lane Departure Alert with steering control) ( P.169)
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before head-
lights automatically turn off
after doors are closed
30 seconds
Off
O—O60 seconds
90 seconds
ABC
FunctionDefault settingCustomized setting
Daytime running light system
(except Canada)OnOffO—O
FunctionDefault settingCustomized setting
PCS (Pre-Collision System)OnOff—O—
Adjust alert timingMiddleFar—O—Near
FunctionDefault settingCustomized setting
Steering assist functionOnOff—O—
Alert typeSteering wheel
vibrationBuzzer—O—
Alert sensitivityStandardHigh—O—
Vehicle sway warning func-
tionOnOff—O—
Vehicle sway warning sensi-
tivityStandardHigh—O—Low
ABC
ABC
ABC

3588-2. Customization
■Intuitive parking assist*( P.185)
*:If equipped
■Driving mode select switch ( P.199)
*:If equipped
■Automatic air conditioning system ( P.215)
■Seat heaters* ( P.223)
*:If equipped
FunctionDefault settingCustomized setting
Detection distance of the
front center sensorFarNearO—O
Detection distance of the rear
center sensorFarNearO—O
Buzzer volume21 to 3O—O
ABC
FunctionDefault settingCustomized setting
Powertrain control in custom
mode
*NormalPowerO——Eco
Chassis control in custom
mode
*NormalSportO——
Air conditioning operation in
custom mode
*NormalEcoO——
ABC
FunctionDefault settingCustomized setting
A/C auto switch operationOnOffO—O
Exhaust gas sensor sensitivityStandard-3 to 3O—O
ABC
FunctionDefault settingCustomized setting
Seat heater timer controlOffOnO—O
ABC

3648-4. Certifications

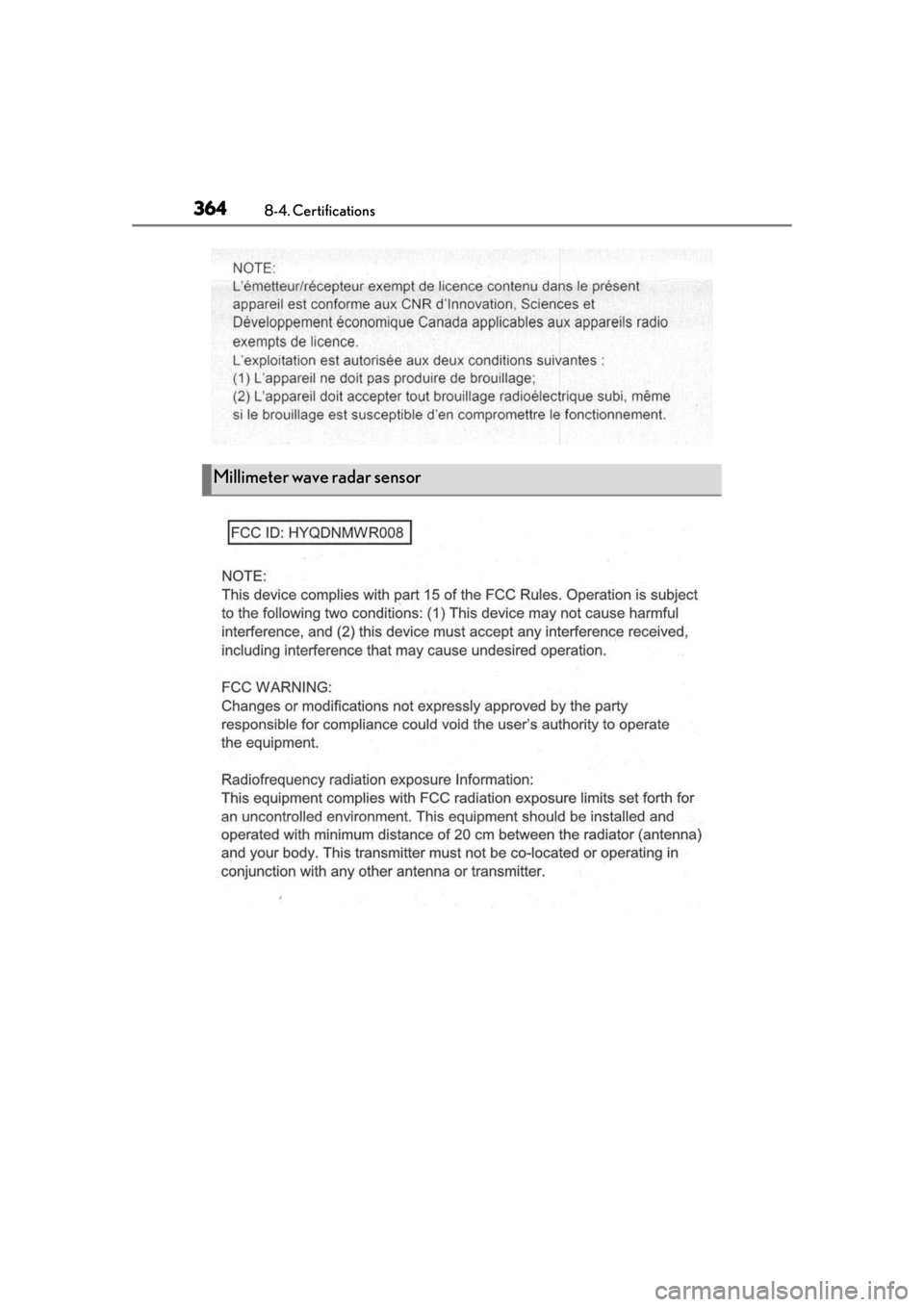

Millimeter wave radar sensor

3658-4. Certifications
8
Vehicle specifications
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions; (1) This
device may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including
interference that may cause undesired
operation.
This ISM device complies with Cana-
dian ICES-001.Cet appareil ISM est conforme a la
norme NMB-001 du Canada.
Intuitive parking assist sensor

383What to do if... (Troubleshooting)
ON mode?
If you cannot release the shift lever by
depressing the brake pedal with the engine
switch in IGNITION ON mode. (P.132)
 It is locked automatically to prevent
theft of the vehicle. ( P.127)
 Is the window lock switch pressed?
The power window except for the one at
the driver’s seat cannot be operated if the
window lock switch is pressed. ( P.113)
 The auto power off function will be
operated if the vehicle is left in
ACCESSORY or IGNITION ON
mode (the engine is not running) for
a period of time. ( P.130)
 The seat belt reminder light is flash-
ing
Are the driver and the front passenger
wearing the seat belts? ( P.299)
 The parking brake indicator is on
Is the parking brake released? ( P.137)
Depending on the situation, other types of warning buzzer may also
sound. (
P.295, 303)
 Did anyone inside the vehicle open
a door during setting the alarm?
The sensor detects it and the alarm sounds.
( P.57)
Do one of the following to deactivate
or stop the alarm:
 Unlock the doors.
 Open the trunk using the entry
function or wireless remote control.
 Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine.
 Is the message displayed on the
multi-information display?
Check the message on the multi-informa-
tion display. ( P.303)
 When a warning light turns on or a
warning message is displayed, refer
to P.295, 303.
The steering wheel cannot be
turned after the engine is
stopped
The windows do not open or
close by operating the power
window switches
The engine switch is turned off
automatically
A warning buzzer sounds during
driving
An alarm is activated and the
horn sounds
A warning buzzer sounds when
leaving the vehicle
A warning light turns on or a
warning message is displayed

386Alphabetical Index
CareExterior ........................................................... 242
Interior ............................................................. 245
Seat belts........................................................ 245
Wheels and wheel ornaments............ 242
Cargo capacity...............................................125
Cargo hooks ................................................. 229
Center Display ............................................... 212
Chains .............................................................. 206
Child restraint system Child seats definition................................... 40
Child seats installation........................ 44, 47
Front passenger occupant classification system ............................................................. 36
Installing a CRS to the front passenger seat ....................................................................42
Installing CRS with LATCH anchors . 48
Installing CRS with top tether strap.....50
Riding with children ..................................... 40
Types of child restraint system installation method ............................................................. 41
Using an anchor bracket .......................... 49
Child safety Airbag precautions.......................................32
Battery precautions ........................ 264, 321
Child restraint system.......................... 40, 41
Heated steering wheel or seat heater precautions................................................ 223
How your child should wear the seat belt ............................................................................ 25
Installing child restraints ............................ 40
Moon roof precautions ............................. 116
Power window lock switch...................... 113
Seat belt extender precautions ............. 25
Seat belt precautions .................................. 40
Trunk precautions .......................................... 91
Cleaning Exterior ........................................................... 242
Interior ............................................................. 245
Radar sensor................................................. 158
Seat belts........................................................ 245
Wheels and wheel ornaments............ 242 Clock ........................................................66, 230
Clock settings ............................................... 230
Coat hooks..................................................... 230
Compass ......................................................... 237
Condenser ..................................................... 262
Console box .................................................. 228
Consumption screen .....................................79
Cooling system............................................. 260
Engine overheating................................... 322
Cornering lights .............................................143 Replacing light bulbs ................................282
Cruise control Dynamic radar cruise control with full-speed range ........................................176
Cup holders ................................................... 228
Current fuel consumption ...........................73
Curtain shield airbags .................................. 28
Customizable features ................................351
D
Daytime running light system ................... 142
Daytime running lights Replacing light bulbs ................................282
Defogger Outside rear view mirrors.......................219
Rear window ..................................................219
Windshield ......................................................219
Differential Front differential oil............. .......................333
Rear differential oil......... ..................... .......333
Dimension ...................................................... 328
Dinghy towing.................................................126
Display Center Display .............................................. 212
Drive information .......................................... 73
LDA (Lane Departure Alert with steering control) ........................................................... 171
Multi-information display ............................ 71
Warning messages.................................. 305
Distance until next engine oil change .... 70
Do-it-yourself maintenance .................... 249
Door courtesy lights ................................... 225

393Alphabetical Index
Seats, FrontChild seats/child restraint system installa-tion .................................................................... 40
Sensor Automatic headlight system................... 142
Automatic High Beam system.............. 144
Inside rear view mirror............................... 110
LDA (Lane Departure Alert with steering control) ..........................................................169
Radar sensor................................................. 158
Rain-sensing windshield wipers...........153
Service reminder message ..................... 248
Shift lever Automatic transmission ............................. 131
Side airbags ...................................................... 28
Side marker lights Light switch ..................................................... 142
Replacing light bulbs................................ 282
Side mirrors Adjustment....................................................... 110
BSM (Blind Spot Monitor) ...................... 191
Folding ................................................................. 111
Linked mirror function when reversing111
Mirror position memory...........................102
RCTA function ............................................... 191
Side turn signal lights Replacing light bulbs................................ 282
Turn signal lever ...........................................136
Wattage..........................................................338
Side windows ................................................... 112
Smart access system with push-button startAntenna location........................................... 95
Entry functions................................................88
Starting the engine ...................................... 127
Warning message.....................................303
Snow mode ......................................................133
Snow tires ....................................................... 205
Spare tire......................................................... 307 Storage location ......................................... 307
Spark plug ...................................................... 332
Specifications ................................................ 328 Speed indicator ............................................... 68
Speed meter
Speed indicator..............................................68
Speedometer ................................................... 66
Steering lock Column lock release .................................. 127
Steering lock system warning message............................................................................ 127
Steering wheel Adjustment ..................................................... 108
Heated steering wheel ............................ 223
Meter control switches .............................. 72
Power easy access system .................... 102
Steering wheel position memory........ 102
Stop lights Replacing light bulbs ................................282
Wattage ......................................................... 338
Storage features ...........................................227
Stuck If the vehicle becomes stuck ................326
Sun visors ..........................................................231
Sunshade Roof...................................................................... 115
Switch ASC (Active Sound Control) dial........ 141
Meter control switches .............................. 72
Switches Activating the Automatic High Beam144
Automatic High Beam system ..............144
Brake Hold switch...................................... 139
Door lock switches ......................................90
Driving mode select switch ................... 199
Driving position memory switches .... 102
Emergency flashers switch .................. 286
Engine switch ................................................. 127
Garage door opener switches........... 232
Heated steering wheel switch ............. 223
Ignition switch ................................................ 127
Instrument panel light control switches71
Light switches ................................................142
Moon roof switches..................................... 114
“ODO TRIP” switch .................................... 70
