12Pictorial index
Precautions for winter season ..................................................................................... P.243
To prevent freezing (windshield wiper de-icer)
*................................................. P.259
Precautions for car wash ................................................................................................ P.281
Fuel filler door ........................................................................................................... P.16 1
Refueling method ............................................................................................................... .P.161
Fuel type/fuel tank capacity ...... ................................................................................... P.374
Tires.......................................................................................................................... .P.303
Tire size/inflation pressure ............................................................................... P.303, 379
Winter tires/tire chains .................................................................................................. P.243
Checking/rotation/tire pressure warning system..............................................P.303
Coping with flat tires........................................................................................................ P .349
Hood ..........................................................................................................................P.293
Opening ........................................................................................................................ ....... P.293
Engine oil ..................................................................................................................... ......... P.374
Coping with overheating ............................................................................................... P.365
Warning messages .......................................................................................................... P.346
Headlights ................................................................................................................. P.14 9
Turn signal lights ...................................................................................................... P.142
Parking lights/daytime running lights............................................................... P.149
Side marker lights ................................................................................................... P.149
Tail lights .................................................................................................................... P.149
Stop lights
Tail lights .................................................................................................................... P.149
Back-up lights
Shifting the shift lever to R .............................................................................................. P.13 9
License plate lights ................................................................................................. P.149
*:If equipped
Light bulbs of the exterior lights for driving
(Replacing method: P.321, Watts: P.381)
E
F
G
H
I
J
K
L
M
N
O

1434-2. Driving procedures
4
Driving
■Turn signals can be operated when
The engine switch is in IGNITION ON
mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear
turn signal lights has not burned out.
■If the turn signals stop flashing before a
lane change has been performed
Operate the lever again.
■Customization
Some functions can be customized.
(  P.394)
■Using the manual mode
The parking brake can be set and
released manually.
U.S.A.
Canada
1 Push the switch to set the parking
brake
The parking brake indi cator light will turn
Parking brake
The parking brake can be set or
released automatically or manually.
In automatic mode, the parking
brake can be set or released auto-
matically according to the shift
lever operation. Also, even in auto-
matic mode, the parking brake can
be set or released manually.
Operating instructions
A
B

3226-3. Do-it-yourself maintenance
Front turn signal light (bulb type)
Rear turn signal light
■Replacing the following bulbs
If any of the lights listed below has
burnt out, have it replaced by your
Lexus dealer.
 Headlight
 Parking lights and daytime running
lights
 Front turn signal lights (LED type)
 Side marker lights
 Side turn signal lights
 Stop/tail lights
 Tail lights
 Back-up light
 High mounted stoplight
 License plate lights
■LED Lights
The lights other than the front turn signal
lights (bulb type) and rear turn signal lights
each consist of a number of LEDs. If any of the LEDs burn out, take your vehicle to your
Lexus dealer to have
the light replaced.
■Condensation build-up on the inside of
the lens
Temporary condensation build-up on the
inside of the headlight lens does not indi-
cate a malfunction. Contact your Lexus
dealer for more information in the following
situations:
●Large drops of water have built up on the
inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
 P.319
Bulb locations
A
B

3236-3. Do-it-yourself maintenance
6
Maintenance and care
■Front turn signal lights (bulb type)
1 For the left side only: Pinch the clip
to remove the washer fluid filler
opening.
2 Turn the bulb base counterclock-
wise.
3 Remove the light bulb.
4 Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.
After installing the light bulb, turn on the
front turn signal light to visually check that
there is no light leaking from the bulb base.
5 After replacing the left side bulb,
install the washer fluid filler opening
to its original position.
■Rear turn signal lights
1 Open the trunk and apply protec-
tive tape to the vehicle body around
the light unit.
Use masking tape, etc. Do not use duct
tape, as it may leave residue or damage the
paint when removed.
2Insert a flathead screw-driver
between the cover and the light unit
and pry up the cover in several
positions as shown in the illustration
to disengage the claws (indicated
by a dotted line).
To prevent scratching the vehicle, wrap the
tip of the flathead scre wdriver with a cloth,
Replacing light bulbs

3256-3. Do-it-yourself maintenance
6
Maintenance and care
by inserting it and turning it clock-
wise.
9 Install the light unit.
Align the tabs and push the light unit
toward the front of the vehicle to install it.
10Install the 2 bolts. 11
Install the cover.
12 Remove the protective tape.
■When replacing the front turn signal
lights (bulb type)
When the washer fluid filler opening is
removed with a large amount of washer
fluid contained in the washer tank, washer
fluid may spill onto the vehicle and cleaning
may be required.
WARNING
■Replacing light bulbs
●Turn off the lights. Do not attempt to
replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may
cause burns.
●Do not touch the glass portion of the
light bulb with bare hands. When it is
unavoidable to hold the glass portion,
use and hold with a clean dry cloth to
avoid getting moisture and oils on the
bulb.
Also, if the bulb is scratched or
dropped, it may blow out or crack.
●Fully install light bulbs and any parts
used to secure them. Failure to do so
may result in heat damage, fire, or
water entering the he adlight unit. This
may damage the headlights or cause
condensation to build up on the lens.
■To prevent damage or fire
●Make sure bulbs are fully seated and
locked.

3818-1. Specifications
8
Vehicle specifications
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
*: Light bulbs not listed in this table are LED bulbs.

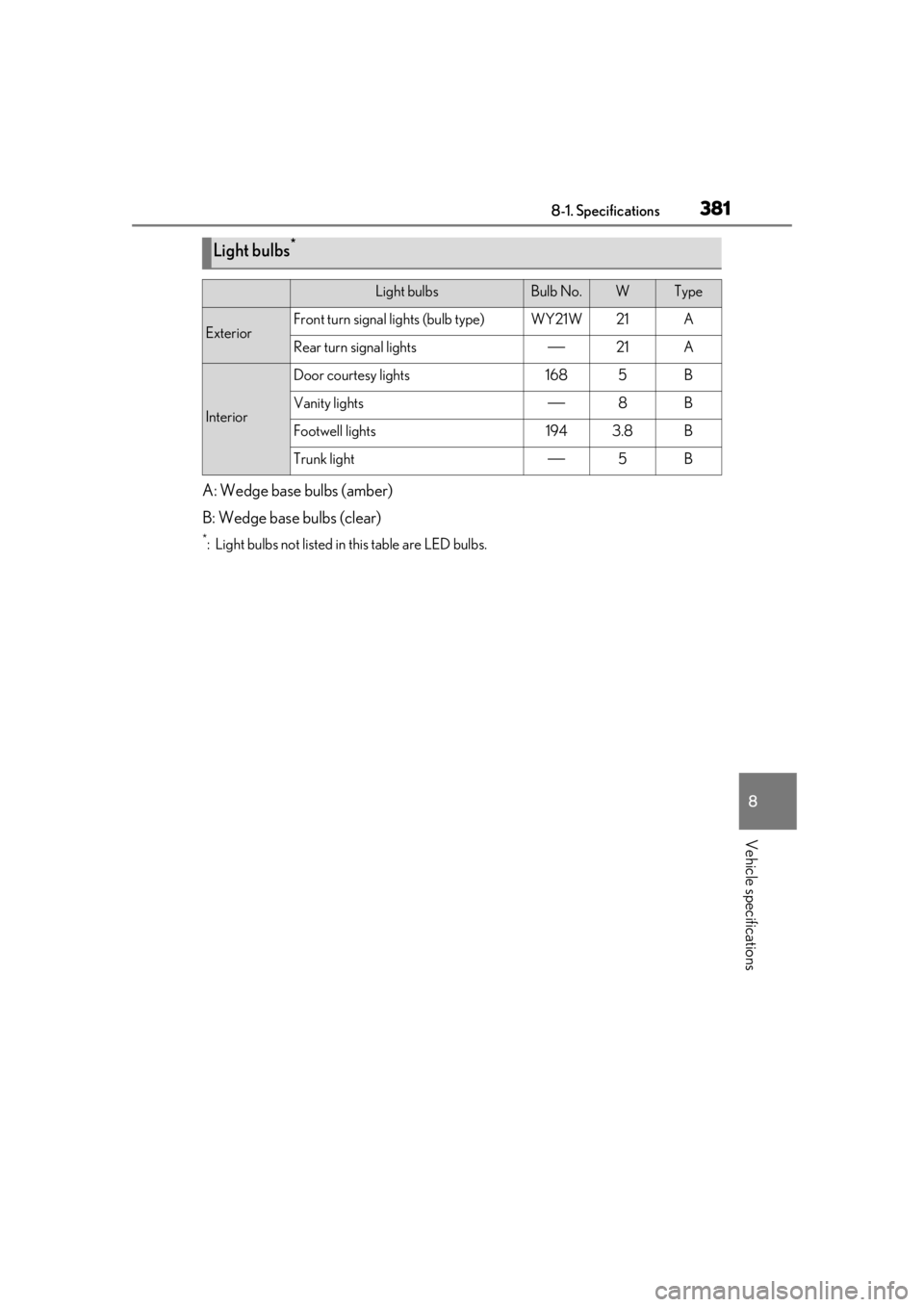

Light bulbs*
Light bulbsBulb No.WType
ExteriorFront turn signal lights (bulb type)WY21W21A
Rear turn signal lights21A
Interior
Door courtesy lights1685B
Vanity lights8B
Footwell lights1943.8B
Trunk light5B

424Alphabetical Index
Hood................................................................ 293
How to start the engine............................134
Identification number ............................... 373
If the engine will not start ....................... 357
If your vehicle has to be stopped in an
emergency ................................................ 328
Ignition switch (engine switch) ............. 134
Overheating.................................................365
Tachometer ............................................... 71, 72
Engine coolant Capacity ......................................................... 376
Checking .......................................................298
Preparing and checking before winter......................................................................... 243
Engine coolant temperature gauge . 71, 72
Engine immobilizer system ........................ 60
Engine oil Capacity ......................................................... 374
Checking ....................................................... 296
Preparing and checking before winter......................................................................... 243
Warning light ...............................................338
Engine oil maintenance data .................. 298
Engine oil pressure gauge .......................... 80
Engine oil temperature gauge .................. 80
Engine switch ..................................................134 Auto power off function ...........................136
Changing the engine switch modes..136
If your vehicle has to be stopped in an
emergency ................................................ 328
Enhanced Vehicle Stability Control (Enhanced VSC) ...................................... 238
Enhanced VSC (Enhanced Vehicle Stabil- ity Control) .................................................. 238
EPS (Electric Power Steering) .............. 238 Warning light ...............................................340
Event data recorder (EDR) ............................7
F
First-aid kit storage belt ............................ 268
Flat tire Tire pressure warning system ............ 305 Vehicles with a spare tire.......................349
Floor mats ...........................................................22
Fluid Automatic transmission .......................... 377
Brake ................................................................378
Washer ...........................................................302
Footwell lights ............................................... 263 Wattage ........................................................... 381
Front passenger occupant classification system .............................................................. 36
Front seats Adjustment ..................................................... 106
Cleaning .........................................................283
Correct driving posture ............................ 23
Driving position memory ........................ 108
Head restraints................................................. 111
Memory recall function............................ 109
Power easy access system .................... 108
Seat heaters ....................................................261
Seat position memory ..............................108
Seat ventilators ..............................................261
Front side marker light Light switch .................................................... 149
Replacing light bulbs ................................ 322
Front turn signal lights Replacing light bulbs .................... 322, 323
Turn signal lever ...........................................142
Wattage ........................................................... 381
Fuel Capacity ......................................................... 374
Fuel gauge ..................................................71, 72
Fuel pump shut off system.....................336
Information ....................................................382
Refueling............................................................ 161
Type .................................................................. 374
Warning light .............................................. 340
Fuel consumption Average fuel economy .............................. 79
Current fuel consumption ........................ 79
Fuel filler door If the fuel filler do or cannot be opened
......................................................................... 359

426Alphabetical Index
KeysBattery-saving function ........................... 100
Electronic key .................................................88
Engine switch................................................. 134
If the electronic key does not operate properly.......................................................359
If you lose your keys................................ 358
Key number plate .........................................88
Keyless entry .......................................... 92, 99
Mechanical key..............................................88
Replacing the battery.................................316
Warning buzzer ............................................ 99
Wireless remote control........................... 90
Knee airbags .................................................... 28
L
Lane Tracing Assist (LTA) Operation....................................................... 180
Warning messages ................................... 189
Language (multi-information display) ... 82
LATCH anchors ............................................. 49
Lever Auxiliary catch lever ................................. 293
Hood lock release lever......................... 293
Internal trunk release lever ...................... 98
Shift lever......................................................... 138
Turn signal lever ........................................... 142
Wiper lever.....................................................154
Lexus Enform Safety Connect.................. 54
Lexus Safety System + 2.5 AHB (Automatic High Beam)............... 151
Dynamic radar cruise control with full-speed range ........................................ 192
LTA (Lane Tracing Assist)..................... 180
PCS (Pre-Collision System)..................170
RSA (Road Sign Assist) .......................... 189
License plate lights Light switch .....................................................149
Replacing light bulbs................................ 322
Light bulbs Replacing ......................................................... 321 Lights
Automatic High Beam system ............... 151
Front interior lights ....................................263
Front personal lights................................. 264
Headlight switch.......................................... 149
Interior lights .................................................263
Interior lights list ..........................................263
Rear interior lights .....................................263
Rear personal lights .................................. 264
Replacing light bulbs ................................ 322
Trunk lid light................................................... 97
Trunk light ......................................................... 97
Turn signal lever ...........................................142
Vanity lights .................................................... 271
Wattage ........................................................... 381
Lock steering column ..................................134
LTA (Lane Tracing Assist) Operation .......................................................180
Warning messages.................................... 189
Luggage mats ............................................... 268
M
Maintenance Do-it-yourself maintenance ...................291
General maintenance ............................. 287
Maintenance data ...................................... 372
Maintenance requirements ................. 286
Malfunction indicator lamp ..................... 338
Menu icons......................................................... 77
Meter Changing the main meter location...... 74
Clock.............................................................71, 72
Indicators...........................................................68
Instrument panel light control................. 75
Meter control switches ...............................77
Meters................................................................... 71
Multi-information display .......................... 76
Settings............................................................... 82
Warning lights ............................................. 337
Warning message .....................................346
Micro dust and pollen filter ..................... 258
