2TABLE OF CONTENTS
For your information ......................................6
Reading this manual .................................... 10
How to search ................................................. 11
Pictorial index ................................................. 12
1-1. For safe use Before driving .................................... 22
For safe driving.................................. 23
Seat belts ............................................. 24
SRS airbags ....................................... 28
Front passenger occupant classifi- cation system ................................. 37
Exhaust gas precautions ............... 42
1-2. Child safety Riding with children........................ 43
Child restraint systems ................. 43
1-3. Lexus Enform Lexus Enform Safety Connect .. 55
1-4. Hybrid system Hybrid system features ................... 61
Hybrid system precautions ......... 64
1-5. Theft deterrent system Immobilizer sy stem ........................ 69
Alarm...................................................... 71
2-1. Instrument cluster Warning lights and indicators ..... 74
Gauges and meters ....................... 78
Multi-information display.............. 81
Head-up display .............................. 86
Energy monitor/consumption screen ............................................... 903-1. Key information
Keys ...................................................... 98
3-2. Opening, closing and locking the doors and trunk
Doors .................................................. 101
Trunk .................................................. 105
Smart access system with push- button start...................................... 112
3-3. Adjusting the seats Front seats.......................................... 119
Driving position memory ........... 120
Head restraints ............................... 123
3-4. Adjusting the steering wheel and mirrors
Steering wheel ................................ 125
Inside rear view mirror ................ 126
Outside rear view mirrors.......... 127
3-5. Opening and closing the windows and moon roof
Power windows ............................. 130
Moon roof ......................................... 132
4-1. Before driving Driving the vehicle........................ 136
Cargo and luggage........................ 141
Vehicle load limits.......................... 143
Trailer towing................................... 144
Dinghy towing ................................. 144
4-2. Driving procedures Power (ignition) switch ............... 145
EV drive mode ............................... 150
1For safety and security
2Vehicle status information and
indicators
3Before driving
4Driving

4TABLE OF CONTENTS
6-3. Do-it-yourself maintenanceDo-it-yourself service precautions............................................................ 317
Hood................................................... 319
Positioning a floor jack................ 319
Engine compartment................... 321
12-volt battery................................ 326
Tires ................................................... 329
Tire inflation pressure ................. 339
Wheels............................................... 341
Air conditioning filter..................342
Cleaning the hybrid battery (trac- tion battery) air intake vent and fil-
ter..................................................... 344
Electronic key battery ................ 347
Checking and replacing fuses 349
Headlight aim.................................. 351
Light bulbs ....................................... 352
7-1. Essential information Emergency flashers..................... 358
If your vehicle has to be stopped in an emergency ............................. 358
If the vehicle is trapped in rising water............................................... 359
7-2. Steps to take in an emergency If your vehicle needs to be towed............................................................ 361
If you think something is wrong ........................................................... 364
If a warning light turns on or a warn- ing buzzer sounds ..................... 365
If a warning message is displayed ........................................................... 375
If you have a flat tire..................... 379If the hybrid syst
em will not start
.......................................................... 386
If you lose your keys.................... 388
If the fuel filler door cannot be opened .......................................... 388
If the electronic key does not oper- ate properly ................................. 389
If the 12-volt battery is discharged ........................................................... 391
If your vehicle overheats ........... 396
If the vehicle becomes stuck ... 399
8-1. Specifications Maintenance data (fuel, oil level, etc.) ................................................. 402
Fuel information............................ 409
Tire information ............................... 411
8-2. Customization Customizable features .............. 420
8-3. Items to initialize Items to initialize ............................. 431
9-1. For owners Reporting safety defects for U.S. owners ........................................... 434
Seat belt instructions for Canadian owners (in French) ................... 434
SRS airbag instructions for Cana- dian owners (in French) ......... 436
Headlight aim instructions for Canadian owners (in French) 44
2
7When trouble arises
8Vehicle specifications
9For owners

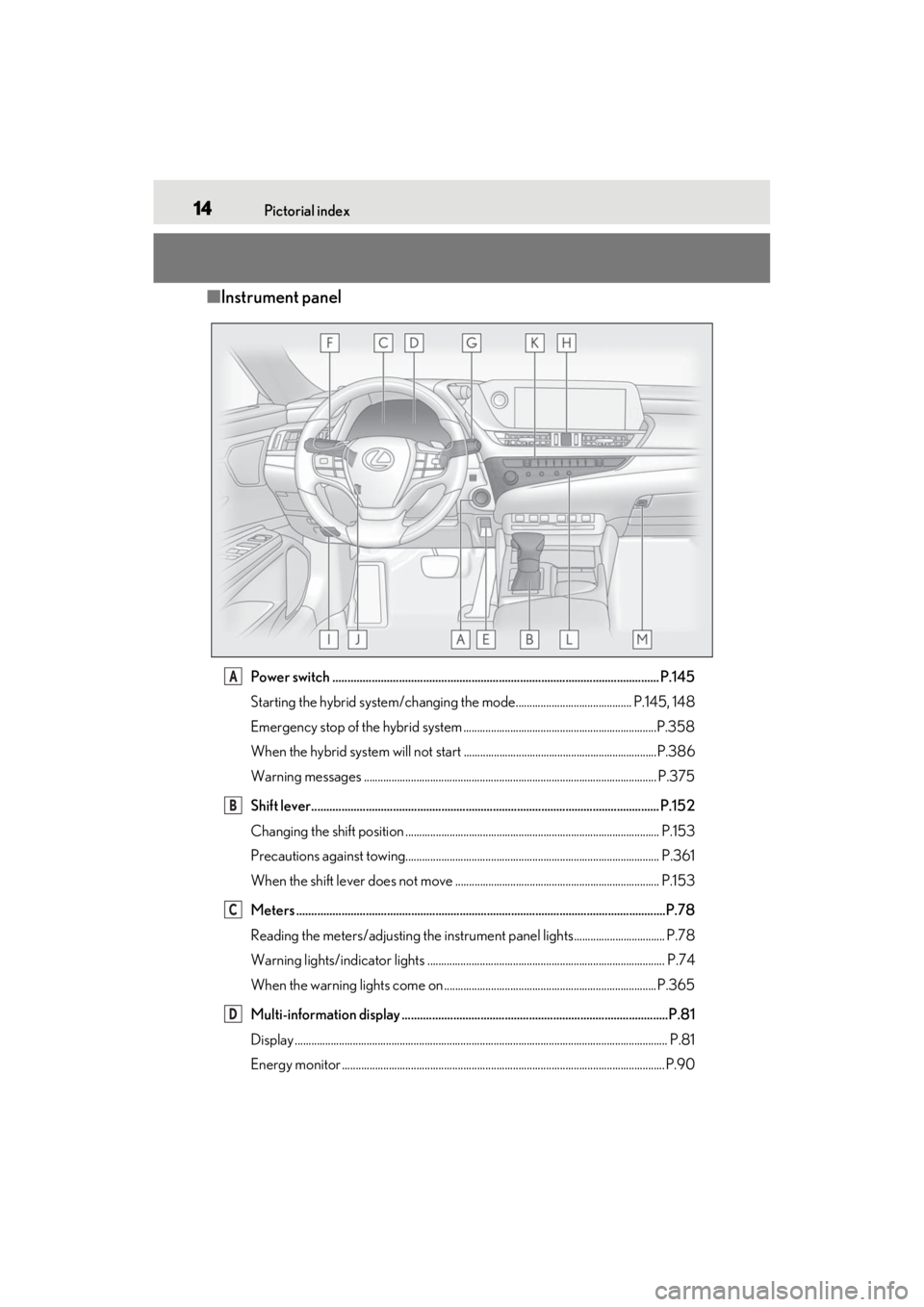

14Pictorial index
■Instrument panel
Power switch ............................................................................................................ P.145
Starting the hybrid system/changing the mo de.......................................... P.145, 148
Emergency stop of the hybrid system ......................................................................P.358
When the hybrid system will not start ......................................................................P.386
Warning messages .......................................................................................................... P.375
Shift lever................................................................................................................... P .152
Changing the shift position ............................................................................................ P.153
Precautions against towing............................................................................................ P.361
When the shift lever does not move .......................................................................... P.153
Meters ......................................................................................................................... .P.78
Reading the meters/adjusting the instrume nt panel lights................................. P.78
Warning lights/indicator lights ...................................................................................... P.74
When the warning lights come on ............................................................................. P.365
Multi-information display ........................................................................................P.81
Display ....................................................................................................................................... P.81
Energy monitor ..................................................................................................................... P.90A
B
C
D

15Pictorial index
When the warning messages are displayed.......................................................... P.375
Parking brake switch ............................................................................................. P.157
Applying/releasing ............................................................................................................P.157
Precautions against winter season ............................................................................ P.255
Warning buzzer/message............................................................................................ P.375
Turn signal lever ...................................................................................................... P.156
Headlight switch....................................................................................................... P.161
Headlights/parking lights/tail lights/daytime running lights ............................. P.161
Automatic High Beam ......................................................................................................P.164
Windshield wiper and washer switch ................................................................ P.167
Usage.......................................................................................................................... .............P.167
Adding washer fluid ......................................................................................................... P.3 25
Warning messages .......................................................................................................... P.375
Emergency flasher switch .................................................................................. P.358
Hood lock release lever ........................................................................................ P.319
Tilt and telescopic stee ring control switch/
tilt and telescopic steering lock release lever................................................ P.125
Adjustment ..................................................................................................................... ...... P.125
Driving position memory
*1............................................................................................. P.120
Air conditioning system .......................................................................................P.265
Usage.......................................................................................................................... ........... P.265
Rear window defogger................................................................................................... P.266
Audio system
*2
Trunk opener main switch ...................................................................................... P.111
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
E
F
G
H
I
J
K
L
M

16Pictorial index
■Switches
Camera switch*1, 2
Head-up display switch*1........................................................................................P.86
Instrument panel light control switches ............................................................ P.80
Odometer/trip meter/trip meter reset button .............................................. P.80
VSC OFF switch.....................................................................................................P.249
Driving Mode Select switch ................................................................................P.213
Trunk opener switch............................................................................................... P.107
Fuel filler door opener switch.............................................................................. P.173
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
A
B
C
D
E
F
G
H

501-2. Child safety
■Child restraint LATCH anchors
LATCH anchors are provided for the
outboard rear seat. (Marks displaying
the location of the anchors are
attached to the seats.)
WARNING
■When installing a child restraint sys-
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.
●Do not allow children to play with the
seat belt. If the seat belt becomes
twisted around a child’s neck, it may
lead to choking or other serious inju-
ries that could result in death.
If this occurs and the buckle cannot be
unfastened, scissors should be used to
cut the belt.
●Ensure that the belt and plate are
securely locked and the seat belt is not
twisted.
●Shake the child restraint system left
and right, and forward and backward
to ensure that it has been securely
installed.
●After securing a child restraint system,
never adjust the seat.
●When a booster seat is installed,
always ensure that th e shoulder belt is
positioned across the center of the
child’s shoulder. The belt should be
kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.
●Follow all installation instructions pro-
vided by the child restraint system
manufacturer.
●When securing some types of child
restraint systems in rear seats, it may
not be possible to properly use the
seat belts in position s next to the child
restraint without interfering with it or
affecting seat belt effectiveness. Be
sure your seat belt fits snugly across
your shoulder and low on your hips. If it
does not, or if it interferes with the
child restraint, move to a different
position. Failure to do so may result in
death or serious injury.
■When installing a booster seat
To prevent the belt from going into ALR
lock mode, do not fully extend the shoul-
der belt. ALR mode causes the belt to
tighten only. This could cause injury or
discomfort to the child. ( P.26)
■Do not use a seat belt extender
If a seat belt extender is used when
installing a child restra int system, the seat
belt will not securely hold the child
restraint system, which could cause
death or serious injury to the child or
other passengers in the event of sudden
braking, sudden swerving or an accident.
Child restraint system fixed with
a child restraint LATCH anchor

671-4. Hybrid system
1
For safety and security
There is an air intake vent under the
rear seat (right side) for the purpose of
cooling the hybrid battery (traction
battery). If the vent becomes blocked,
the hybrid battery (traction battery)
may overheat, leading to a reduction in
the hybrid battery (traction battery)
output.When a certain level of impact is
detected by the impact sensor, the
emergency shut off system blocks the
high voltage current and stops the fuel
pump to minimize the risk of electrocu-
tion and fuel leakage. If the emergency
shut off system activates, your vehicle
will not restart. To restart the hybrid
system, contact your Lexus dealer.
A message is automatically displayed
when a malfunction occurs in the
hybrid system or an improper opera-
tion is attempted.
If a warning message is shown on the
multi-information display, read the
NOTICE
■Hybrid battery (traction battery)
Do not carry large amounts of water
such as water cooler bottles in the vehi-
cle. If water spills onto the hybrid battery
(traction battery), the battery may be
damaged. Have the vehicle inspected by
your Lexus dealer.
Hybrid battery (traction battery)
air intake vent
NOTICE
■Hybrid battery (traction battery) air
intake vent
●Make sure not to block the air intake
vent with anything, such as a seat
cover, plastic cover, or luggage. If the
vents become blocked, the hybrid bat-
tery (traction battery) input and output
may be restricted, leading to a reduc-
tion in hybrid battery (traction battery)
output and a malfunction.
●When dust etc. has accumulated in the
air intake vent, periodically clean it
with a vacuum cleaner to prevent the
vent from clogging.
●A filter is installed to the air intake vent.
When the filter re mains noticeably
dirty even after cleaning the air intake
vent, filter cleaning or replacement is
recommended. When cleaning or
replacing the filter, contact your Lexus
dealer.
Refer to P.344 for details on how to
clean the filter.
●Do not get water or foreign materials
in the air intake vent as this may cause
a short circuit and damage the hybrid
battery (traction battery).
●Do not carry large amounts of water
such as water cooler bottles in the
vehicle. If water spills onto the hybrid
battery (traction battery), the battery
may be damaged. Have the vehicle
inspected by your Lexus dealer.
Emergency shut off system
Hybrid warning message
