Features of your vehicle
Light
One Touch Turn Signal :
- Off: The one touch turn signal
function will be deactivated.
- 3, 5, 7 Flashes : The lane change
signals will blink 3, 5 or 7 times
when the turn signal lever is
moved slightly.
❈For more details, refer to “Light” in
this chapter.
Ambient Light Brightness (if
equipped) : Adjust the brightness
of the Ambient light.
- Off/Level 1,2,3,4
Ambient Light Color (if equipped) :
Select the color of the ambient
light.
- White, Yellow, Red, Green, Blue,
Violet
Head Light Delay :
- If this item is checked, the head
light delay function will be activat-
ed.Sound
Parking Distance Warning Volume
(if equipped)
- Adjust the Parking Distance
Warning volume. (Level 1 ~ 3)
❈For more details, refer to “Parking
Distance Warning” in this chapter.
Welcome Sound (if equipped) :
- If this item checked, the welcome
sound function will be activated.Convenience
Seat Easy Access (if equipped)
- Off : The seat easy access func-
tion will be deactivated.
- Normal/Extended : When you
turn off the engine, the driver’s
seat will automatically move rear
for you to enter or exit the vehicle
more comfortably.
If you change the Engine
Start/Stop Button from OFF posi-
tion to the ACC function, the dri-
ver’s seat will return to the original
position.
❈For more details, refer to “Driver
Position Memory System” in chap-
ter 3.

487
Features of your vehicle

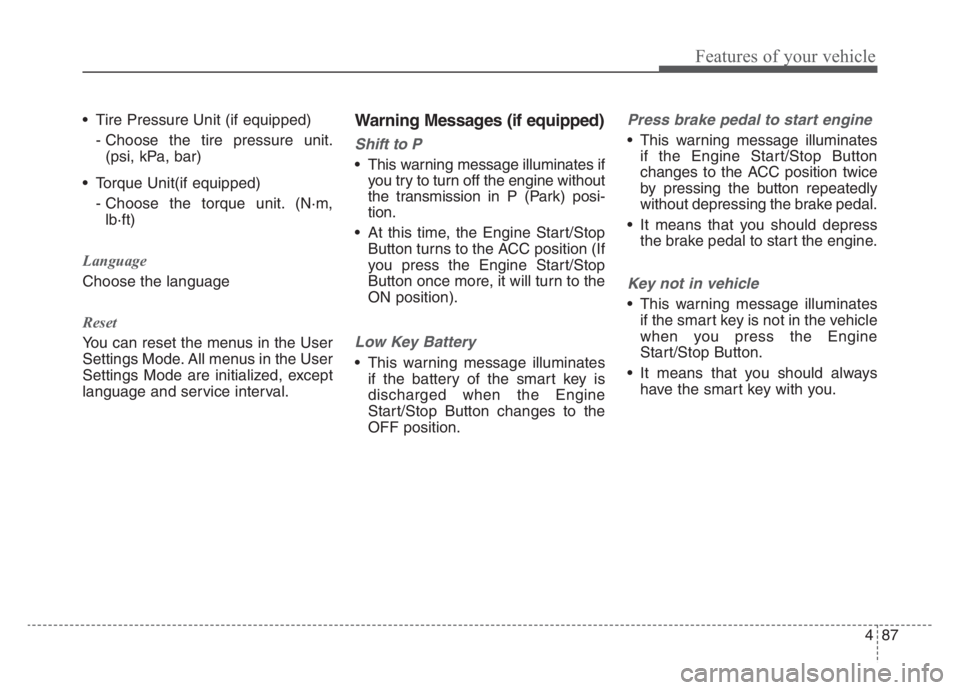

Tire Pressure Unit (if equipped)
- Choose the tire pressure unit.
(psi, kPa, bar)
Torque Unit(if equipped)
- Choose the torque unit. (N·m,
lb·ft)
Language
Choose the language
Reset
You can reset the menus in the User
Settings Mode. All menus in the User
Settings Mode are initialized, except
language and service interval.Warning Messages (if equipped)
Shift to P
This warning message illuminates if
you try to turn off the engine without
the transmission in P (Park) posi-
tion.
At this time, the Engine Start/Stop
Button turns to the ACC position (If
you press the Engine Start/Stop
Button once more, it will turn to the
ON position).
Low Key Battery
This warning message illuminates
if the battery of the smart key is
discharged when the Engine
Start/Stop Button changes to the
OFF position.
Press brake pedal to start engine
This warning message illuminates
if the Engine Start/Stop Button
changes to the ACC position twice
by pressing the button repeatedly
without depressing the brake pedal.
It means that you should depress
the brake pedal to start the engine.
Key not in vehicle
This warning message illuminates
if the smart key is not in the vehicle
when you press the Engine
Start/Stop Button.
It means that you should always
have the smart key with you.

Features of your vehicle
88 4
Key not detected
This warning message illuminates
if the smart key is not detected
when you press the Engine
Start/Stop Button.
Press start button again
This warning message illuminates
if you can not operate the Engine
Start/Stop Button when there is a
problem with the Engine Start/Stop
Button system.
It means that you could start the
engine by pressing the Engine
Start/ Stop Button once more.
If the warning illuminates each time
you press the Engine Start/Stop
Button, have the vehicle inspected
by an authorized Kia dealer.
Press start button with key
This warning message illuminates
if you press the Engine Start/Stop
Button while the warning message
“Key not detected” is illuminating.
At this time, the immobilizer indica-
tor light blinks.
Check BRAKE SWITCH fuse
This warning message illuminates
if the brake switch fuse for stop
lamp is disconnected.
In this case, the Engine does not
start by pressing brake pedal and
Engine Start/Stop button.
If you cannot replace the fuse with
a new one and want to start the
Engine, press Engine Start/Stop
button once to ACC position. Then
press the Engine Start/Stop button
for 10 seconds in the ACC position
and you can start the Engine.
It is dangerous to drive the vehicle
when the stop lamp does not oper-
ate. You should replace the fuse
with a new one immediately.
Shift to P or N to start engine
This warning message illuminates
if you try to start the engine with
the transmission not in the P (Park)
or N (Neutral) position.
✽ ✽
NOTICE
You can start the engine with the
transmission in the N (Neutral) posi-
tion. But, for your safety, we recom-
mend that you start the engine with
the transmission in the P (Park) posi-
tion.

491
Features of your vehicle
Check headlights (if equipped)
This warning message illuminates if
there is a malfunction (burned-out
bulb or circuit malfunction) with the
head lights (high and low beam). In
this case, have the vehicle inspected
by an authorized Kia dealer.
✽ ✽
NOTICE
• When replacing the bulb, use the
same wattage bulb.
For more information, refer to
“BULB WATTAGE” in chapter 8.
• If the different wattage bulb is
equipped with the vehicle, this
warning message is not displayed.
Low Fuel
This warning message illuminates
if the fuel tank is nearly empty.
- When the low fuel level warning
light is illuminated, add fuel as
soon as possible.
Device in Wireless Charger
(if equipped)
If a smart phone is still left in the
wireless charging pad unattended,
even when the Engine Start/Stop
Button is in the ACC or OFF position,
a warning message will appear on
the instrument panel.
❈For more details, refer to “Smart
Phone Wireless Charger” in this
chapter.

Features of your vehicle
92 4

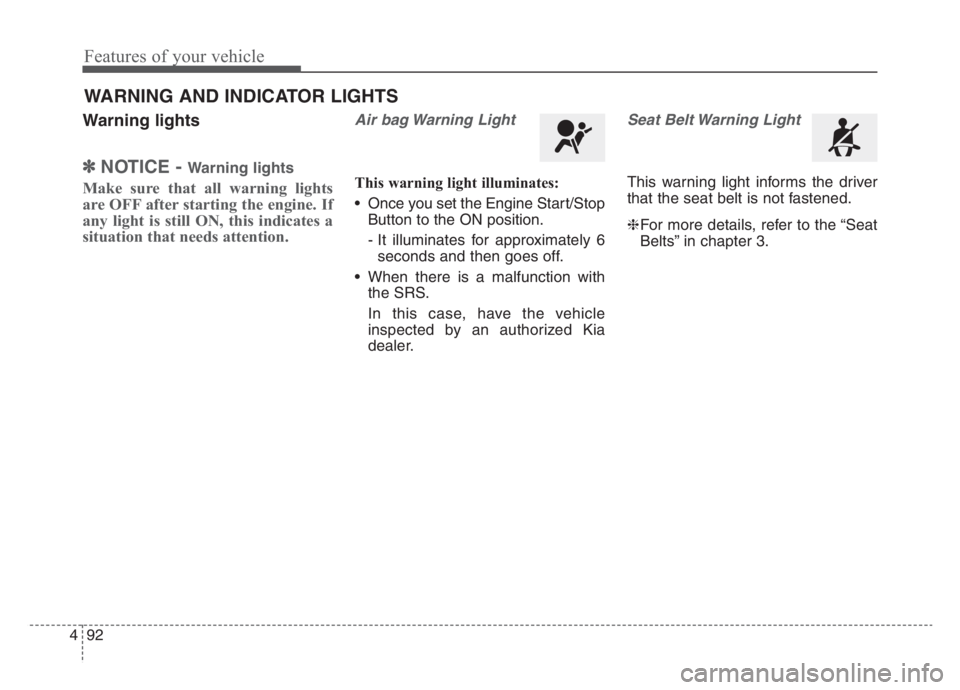

Warning lights
✽
✽
NOTICE - Warning lights
Make sure that all warning lights
are OFF after starting the engine. If
any light is still ON, this indicates a
situation that needs attention.
Air bag Warning Light
This warning light illuminates:
Once you set the Engine Start/Stop
Button to the ON position.
- It illuminates for approximately 6
seconds and then goes off.
When there is a malfunction with
the SRS.
In this case, have the vehicle
inspected by an authorized Kia
dealer.
Seat Belt Warning Light
This warning light informs the driver
that the seat belt is not fastened.
❈For more details, refer to the “Seat
Belts” in chapter 3.
WARNING AND INDICATOR LIGHTS

493
Features of your vehicle
Parking Brake & Brake
Fluid Warning Light
This warning light illuminates:
Once you set the Engine Start/Stop
Button to the ON position.
- It illuminates for approximately 3
seconds
When the parking brake is applied,
the warning light will remain on.
When the brake fluid level in the
reservoir is low.
- If the warning light illuminates
with the parking brake released, it
indicates the brake fluid level in
reservoir is low.If the brake fluid level in the reservoir
is low:
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. With the engine stopped, check
the brake fluid level immediately
and add fluid as required (For
more details, refer to “Brake Fluid”
in chapter 7). Then check all brake
components for fluid leaks. If any
leak on the brake system is still
found, the warning light remains
on, or the brakes do not operate
properly, do not drive the vehicle.
In this case, have your vehicle
towed to an authorized Kia dealer
and inspected.Dual-diagonal braking system
Your vehicle is equipped with dual-
diagonal braking systems. This
means you still have braking on two
wheels even if one of the dual sys-
tems should fail.
With only one of the dual systems
working, greater pedal pressure will
be required to stop the vehicle.
Also, the vehicle will require
increased stopping distance with
only a portion of the brake system
working.
If the brakes fail while you are driv-
ing, shift to a lower gear for addition-
al engine braking and stop the vehi-
cle as soon as it is safe to do so.
Driving the vehicle with a warning
light ON is dangerous. If the Parking
Brake & Brake Fluid Warning Light
illuminate with the parking brake
released, this indicates that the
brake fluid level is low.
In this case, have your vehicle
inspected by an authorized Kia deal-
er.

Features of your vehicle
94 4
Anti-lock Brake System
(ABS) Warning Light
This warning light illuminates:
Once you set the Engine Start/Stop
Button to the ON position.
- It illuminates for approximately 3
seconds and then goes off.
When there is a malfunction with
the ABS, the warning light will
remain on. The braking system will
be operational without the assis-
tance of the anti-lock brake sys-
tem.
In this case, have the vehicle
inspected by an authorized Kia
dealer.
Electronic
Brake force
Distribution
(EBD) System Warning Light
These two warning lights illuminate at
the same time while driving:
When the ABS and regular brake
system may not work normally.
In this case, have the vehicle
inspected by an authorized Kia
dealer.
WARNING - Electronic
Brake force Distribution
(EBD) System Warning Light
When both ABS and Parking
Brake & Brake Fluid Warning
Lights are on, the brake system
will not work normally and you
may experience an unexpected
and dangerous situation during
sudden braking thereby
increasing the risk of a crash
and injury.
In this case, avoid high speed
driving and abrupt braking.
Have your vehicle inspected by
an authorized Kia dealer as
soon as possible.

495
Features of your vehicle
✽ ✽
NOTICE- Electronic Brake
force Distribution (EBD)
System Warning Light
When the ABS Warning Light is on
or both the ABS and the Parking
Brake & Brake Fluid Warning
Lights are on, the speedometer,
odometer, or tripmeter may not
work. Also, the EPS Warning Light
may illuminate and the steering
effort may increase or decrease.
In this case, have the vehicle inspect-
ed by an authorized Kia dealer.
Electric Power Steering
(EPS) Warning Light
This warning light illumi-
nates:
Once you set the Engine Start/Stop
Button to the ON position.
- It remains on until the engine is
started.
When there is a malfunction with
the EPS.
In this case, have the vehicle
inspected by an authorized Kia
dealer.
Malfunction Indicator
Lamp (MIL)
This warning light illuminates:
Once you set the Engine Start/Stop
Button to the ON position.
- It remains on until the engine is
started.
When there is a malfunction with
the emission control system.
In this case, have the vehicle
inspected by an authorized Kia
dealer.
