2021 KIA SPORTAGE transmission

Maintenance
767
Fuse NameFuse ratingCircuit Protected
FUSE
FCA10AForward Collision-avoidance Assist (FCA) Sensor
ABS 310AESC Module
VACUUMPUMP 215AVacuum Pump, Vacuum Switch
POWER
OUTLET 120AFront Power Outlet #2
ECU 610APCM
TCU 215ATransmission Range Switch
B/UP LAMP10ARear Bumper Lamp LH/RH, Electro Chromic Mirror
POWER
OUTLET 220ARear Power Outlet
ECU 130AEngine Control Relay

Specifications, Consumer information, Reporting safety defects
88

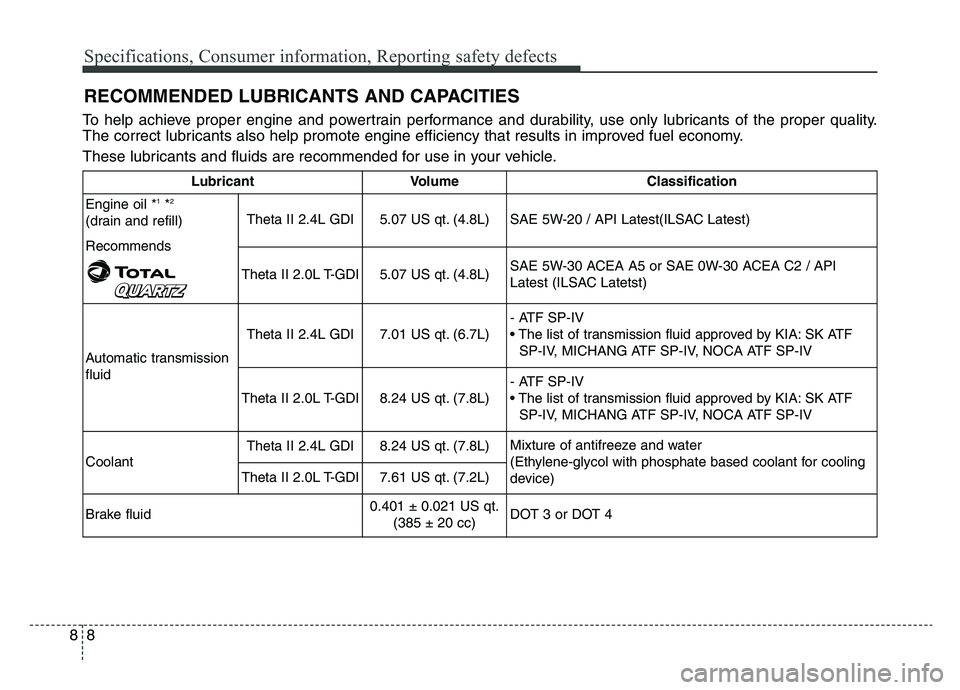

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *
1*2
(drain and refill)
Recommends Theta II 2.4L GDI5.07 US qt. (4.8L) SAE 5W-20 / API Latest(ILSAC Latest)
Theta II 2.0L T-GDI
5.07 US qt. (4.8L) SAE 5W-30 ACEA A5 or SAE 0W-30 ACEA C2 / API
Latest (ILSAC Latetst)
Automatic transmission
fluid Theta II 2.4L GDI
7.01 US qt. (6.7L)
- ATF SP-IV
• The list of transmission fluid approved by KIA: SK ATF
SP-IV, MICHANG ATF SP-IV, NOCA ATF SP-IV
Theta II 2.0L T-GDI
8.24 US qt. (7.8L) - ATF SP-IV
• The list of transmission fluid approved by KIA: SK ATF
SP-IV, MICHANG ATF SP-IV, NOCA ATF SP-IV
Coolant Theta II 2.4L GDI
8.24 US qt. (7.8L)
Mixture of antifreeze and water
(Ethylene-glycol with phosphate based coolant for cooling
device)
Theta II 2.0L T-GDI
7.61 US qt. (7.2L)
Brake fluid
0.401 ± 0.021 US qt. (385 ± 20 cc) DOT 3 or DOT 4

Index
2I
Air bag - advanced supplemental restraint system ........3-45Adding equipment to or modifying your airbag-equipped vehicle ................................................3-72
Air bag warning label ................................................3-72
Air bag warning light ..................................................3-48
Curtain air bag ............................................................3-64
Driver's and passenger's front air bag ........................3-60
How does the air bag system operate? ......................3-46
Occupant Detection System (ODS) ............................3-52
Side air bag ................................................................3-62
SRS Care ....................................................................3-71\
SRS components and functions ..................................3-49
Air cleaner ....................................................................7-36\
Filter replacement ......................................................7-36
Air conditioning system ..................................................8-7
All Wheel Drive(AWD) ................................................5-23 All Wheel Drive (AWD) transfer mode selection ......5-25
For safe all wheel drive operation ..............................5-26
Reducing the risk of a rollover ..................................5-29
Tight corner brake effect ............................................5-24
Appearance care ............................................................7-94 Exterior care ................................................................7-94
Interior care ................................................................7-99
Audio system ..............................................................4-190 Antenna ....................................................................4-19\
0
Aux, USB port ..........................................................4-192 How vehicle radio works ..........................................4-192
Steering wheel audio controls ..................................4-190
Automatic climate control system ..............................4-155 Air Conditioning refrigerant label ............................4-166
Automatic heating and air conditioning ..................4-156
Checking the amount of air conditioner refrigerant and compressor lubricant ........................................4-167
Climate control air filter ..........................................4-165
Manual heating and air conditioning ........................4-157
System operation ......................................................4-163
Automatic transmission ................................................5-15 Automatic transmission operation ..............................5-15
Good driving practices ................................................5-22
Battery........................................................................\
....7-43 For best battery service ..............................................7-43
Recharging the battery ................................................7-44
Reset items ..................................................................7-45
Before driving ..................................................................5-5 Before entering vehicle ................................................5-5
Before starting ..............................................................5-5
Necessary inspections ..................................................5-5
Blind-Spot Collision Warning (BCW) ..........................5-99 System description ......................................................5-99
System setting and activation ..................................5-100
A
B

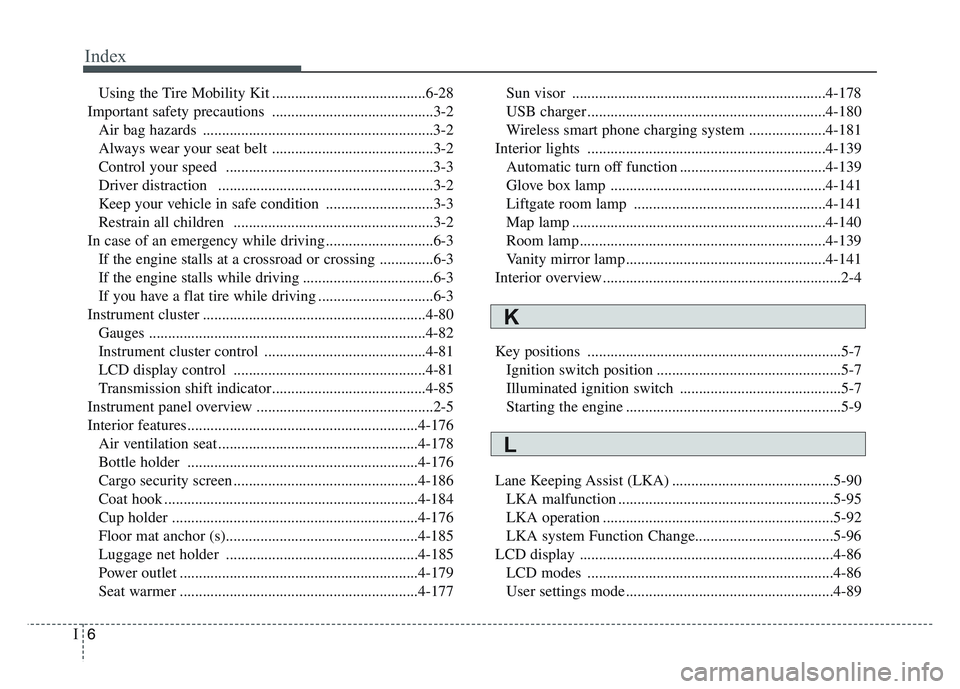

Index
6I
Using the Tire Mobility Kit ........................................6-28
Important safety precautions ..........................................3-2 Air bag hazards ............................................................3-2
Always wear your seat belt ..........................................3-2
Control your speed ......................................................3-3
Driver distraction ........................................................3-2
Keep your vehicle in safe condition ............................3-3
Restrain all children ....................................................3-2
In case of an emergency while driving ............................6-3 If the engine stalls at a crossroad or crossing ..............6-3
If the engine stalls while driving ..................................6-3
If you have a flat tire while driving ..............................6-3
Instrument cluster ..........................................................4-80 Gauges ........................................................................\
4-82
Instrument cluster control ..........................................4-81
LCD display control ..................................................4-81
Transmission shift indicator........................................4-85
Instrument panel overview ..............................................2-5
Interior features............................................................4-176 Air ventilation seat ....................................................4-178
Bottle holder ............................................................4-176
Cargo security screen ................................................4-186
Coat hook ..................................................................4-184
Cup holder ................................................................4-176
Floor mat anchor (s)..................................................\
4-185
Luggage net holder ..................................................4-185
Power outlet ..............................................................4-179
Seat warmer ..............................................................4-177 Sun visor ..................................................................4-178
USB charger ..............................................................4-180
Wireless smart phone charging system ....................4-181
Interior lights ..............................................................4-139 Automatic turn off function ......................................4-139
Glove box lamp ........................................................4-141
Liftgate room lamp ..................................................4-141
Map lamp ..................................................................4-140
Room lamp ................................................................4-139
Vanity mirror lamp ....................................................4-141
Interior overview..............................................................2-4
Key positions ..................................................................5-7 Ignition switch position ................................................5-7
Illuminated ignition switch ..........................................5-7
Starting the engine ........................................................5-9
Lane Keeping Assist (LKA) ..........................................5-90 LKA malfunction ........................................................5-95
LKA operation ............................................................5-92
LKA system Function Change....................................5-96
LCD display ..................................................................4-86 LCD modes ................................................................4-86
User settings mode ......................................................4-89
K
L
