2021 KIA RIO window

*IF EQUIPPED2RIO FEATURES & FUNCTIONS GUIDE
TABLE OF CONTENTS
VIDEOS & QR CODES ..............02
INSTRUMENT CLUSTER
Instrument Cluster Overview .............03
Indicators & Warning Lights ..............04
Tire Pressure Monitoring System ( TPMS) ....05
Fuel Economy .........................05
Instant Fuel Consumption Mode ...........05
VEHICLE SETTINGS
Trip Mode/ Trip Computer ................06
LCD Instrument Cluster Modes ............06
User Settings - Instrument Cluster .........07
Service Interval Mode ...................07
ADVANCED DRIVER ASSISTANCE
SYSTEMS (ADAS)
Lane Keeping Assist (LK A)* ..............08
Lane Following Assist (LFA)* .............10
Forward Collision-Avoidance Assist (FCA)* ...11
Driver Attention Warning (DAW )* ..........12
DRIVER’S PANEL
Instrument Cluster Control ...............13
Electronic Stability Control (ESC) ...........13
Hill-Start Assist Control (HAC) .............13
Power Windows, Window Lock
& Central Door Lock ...................14
Auto Door Lock/Unlock ..................14
Power/Heated Outside Mirrors .............14
Engine Start /Stop Button ................14
STEERING WHEEL CONTROLS
Headlights & High Beams ................15
Turn Signals ..........................15
Windshield Wipers & Washers .............16
Rear Wiper & Washer (5-Door Only)* ........16
Tilt Steering Wheel .....................17
Cruise Control* ........................17
AUDIO SYSTEMS
Bluetooth® Wireless Technology ...........18
Audio Controls .........................19
Android Auto™ / Apple CarPlay® Setup ......20
UVO link Activation* / UVO Assistance* ......21
Standard Audio System* .................22
Kia Access with UVO link App Download .....23
Kia Access with UVO link App Features Guide .23
Standard Audio System - Value
with UVO link* .......................24
CENTER PANEL
Digital Clock ..........................25
Aux /Multimedia USB Ports, Power Outlets
& USB Charger Port* .................25
Automatic Climate Control* ...............26
Manual Climate Control ..................27
Automatic Gear Shift / Sportmatic® Shifting*. .28
S E AT I N G
6-Way Adjustable Driver’s Seat ............29
Front Seat Headrest Adjustment ...........29
Rear Occupant Alert (ROA)
with Door Monitoring* .................30
Folding Rear Seatback ...................30
OTHER KEY FEATURES
Smart Key ............................31
Remote Keyless Entry (Folding Key)* ........32
Door Locks / Double-Turn Unlock All ........32
Fuel Cap / Malfunction Indicator ...........32
Hood Release Lever and Latch ............33
Fuel Door Release Lever .................33
Trunk Release Lever (4-Door)*. . . . . . . . . . . . .33
Sunvisor .............................33
Map/Room Lamps ......................34
Rear View Monitor (RVM)* ................35
Child-Protector Rear Door Locks ...........35
Liftgate Release Button (5-Door)* ..........35
SAFETY FEATURES
Occupant Detection System (ODS) /
Passenger Airbag Off Indicator ...........36
Seat Belts ............................36
MAINTENANCE SCHEDULE ..Back Cover
LEGAL DISCLAIMERS ...Inside Back Cover

*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER14RIO FEATURES & FUNCTIONS GUIDE
DRIVER'S PANEL
DRIVER’SPANEL
Power Windows, Window Lock
& Central Door Lock
A Pull/Press to operate Driver’s Window Auto Up/Down*
B Press to Unlock /Lock All Doors
C Press the Power Window Lock button* to disable the
Rear Passenger Window switches
Automatic Door
Lock/Unlock*
Auto Door Lock /Unlock will engage
when the gear shift is moved into
or out of the P (Park) position. Refer
to the User Settings in the LCD
Instrument Cluster modes on how to
turn Auto Door Lock/Unlock ON/OFF.
Power/Heated
Outside Mirrors
To adjust outside mirror positions,
press the switch D left or right to
select mirror, then press the arrows E to adjust.
Mirror heaters are activated when
Rear Defroster is turned on.
Press button again to stop Auto Up/Down function.
QUICK TIP
LR
M I R R O R
For illustrative purposes only. Your actual display, buttons and/or features may vary.
A
B
C
D
E
Engine Start/Stop Button*†1 0
To start the engine:
1. Depress the brake pedal
2.
Press the Engine Start /Stop button while
gear shift is in P (Park) or N (Neutral)
To turn the engine OFF: Press
the Engine Start /Stop button.
To use the Engine Start /
Stop button, you must have
the Smart Key fob inside the
vehicle.
To use electrical accessories:
ACC position •When in the OFF position and without depressing the brake pedal, press the Engine Start/Stop button once (amber light)
ON position •When already in the ACC position (amber light) and without depressing the brake pedal, press the Engine Start /Stop button (red light) •
When in the OFF position and without depressing the brake pedal, press the Engine Start /Stop button twice (red light)
Keeping the vehicle in the ACC or ON position for extended periods of time without turning the engine on may discharge the vehicle’s battery.
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
Engine Start/Stop Button Video
See section 5 in the Owner’s Manual for more information.

ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER19
AUDIO SYSTEMS
AUDIOSYSTEMS
Voice Recognition and Phone Contact Tips
The system may have difficulty understanding some accents or uncommon
names. Improve the performance by making a few simple changes to your
phone contacts, listed below. To help optimize the Bluetooth® Wireless
Technology Voice Recognition system, see other tips and reminders under
Quick Tips.
• Use full names (first and last names) vs. short or single-syllable names
(“John Smith” vs. “Dad,” “Smith Residence” vs. “Home”)
• Avoid using special characters, emojis or hyphenated names
(@, &, #, /, -, *, +, etc.)
• Avoid using acronyms (“In Case of Emergency” vs. “ICE”) or words with all
capital letters
• Spell words completely, no abbreviations (“Doctor Smith” vs. “Dr. Smith”)
Bluetooth® Wireless Technology† 5 ,19 (continued)
• Bluetooth® Music Streaming – If the Bluetooth® music is inaudible or too low, you may need to turn up the volume on the connected phone
• When placing a call, speak in a natural, moderate tone, with clear pronunciation. The system may have trouble recognizing commands if you speak too softly or too loudly
• Always wait for the beep before speaking any commands
• Close windows and turn off A /C – Open windows, weather (wind/rain), or an A /C fan operating at higher speeds can interfere with Voice Recognition
• Press the talk button and say “Help” to get a list of available commands
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
Voice Recognition Tips Video
A Audio MODE button: Press to cycle through FM/AM/SiriusXM® *†16/Media modes
Audio System ON/OFF: Press to turn power on; Press and hold to turn power off
B Seek/Preset button
FM/AM/SiriusXM® †16 Modes: Press to advance through Preset Stations. Press and
hold to Auto Seek
Media Modes: Press to move Track Forward/Back. Press & hold to Fast Forward/
Rewind (except for Bluetooth® Audio)
C Volume button: Press up/down to raise/lower volume
Mute button: Press to mute all audio
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.
Your vehicle’s steering wheel buttons may differ from those in the illustrations. See your Owner’s Manual for more details.
For further audio system operation, refer to pages 20-24.
OKR ES+
SET
-
Audio Controls†19
CB
A

*IF EQUIPPED26RIO FEATURES & FUNCTIONS GUIDE
Automatic Climate Control*
Defrost Outside Windshield:
1. Set Temperature to Hot
2.
Press the Front Defrost button
Defog Inside Windshield:
1. Set Fan Speed to highest position
2. Set Temperature to highest position
3. Press the Front Defrost button
Air Flow Modes:
To select Air Flow Modes, press
the Mode selection buttons:
Auto Defogging System:
Auto Defogging is designed to reduce the fogging
up of the inside of the windshield by automatically
sensing the moisture of the inside of the windshield.
The system will automatically change to defrost mode
when needed.
Auto Defogging is set ON by default. To cancel Auto
Defogging, press the Front Defrost button FRONT for three
seconds, when the ignition is in on (ADS OFF icon will
illuminate). To turn Auto Defogging on again, press the
Front Defrost button FRONT for three seconds.
Climate Control Auto Function:
1. Press AUTO to select Full Auto Operation – The Auto setting
automatically controls the airflow modes, fan speeds, air intake
and air conditioning according to the temperature setting selected
2. Set desired Temperature
3. Rotate Passenger Temperature knob to select Dual Temperature
Control OperationREMINDERS:
•
Cold or warm ambient air may flow in through vents if Recirculated Air button is not pressed ON (LED lit)
•
Pressing any button during AUTO operation will deactivate the AUTO function and switch to manual mode, except for Temperature Control or SYNC Temperature Control
•
Continuous use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle which may fog the glass and obscure visibility
•
When in AUTO mode, Air Flow Mode and Fan Speed do not display on the Climate Control Display

•Defrost Mode activates A /C and opens Fresh Air Vent to help dehumidify the air and improve Defroster performance
•During Auto Operation, the A /C indicator will NOT illuminate. The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidity
•Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
Face-Level
Bi-Level
Flo o r- L evel
Floor/Defrost-LevelYour Automatic Climate Control system may differ from those in the illustrations. Refer to section 4 in the Owner’s Manual for more information.
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
Automatic Climate Control Video
Auto Defogging System Video
FRONTREAR
A/C
A/C
AUTO
OFF
AUTO+
-8 88°C
A Auto climate control button
B Temperature control knob
C Front windshield defroster
D System OFF button
E Mode selection control
F Recirculated air button
G Air conditioning ON/OFF button
H Fan speed control knob
I Rear windshield defroster
AG
H
CI
DEF
B
CENTER PANEL
CENTER PANEL

ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED27

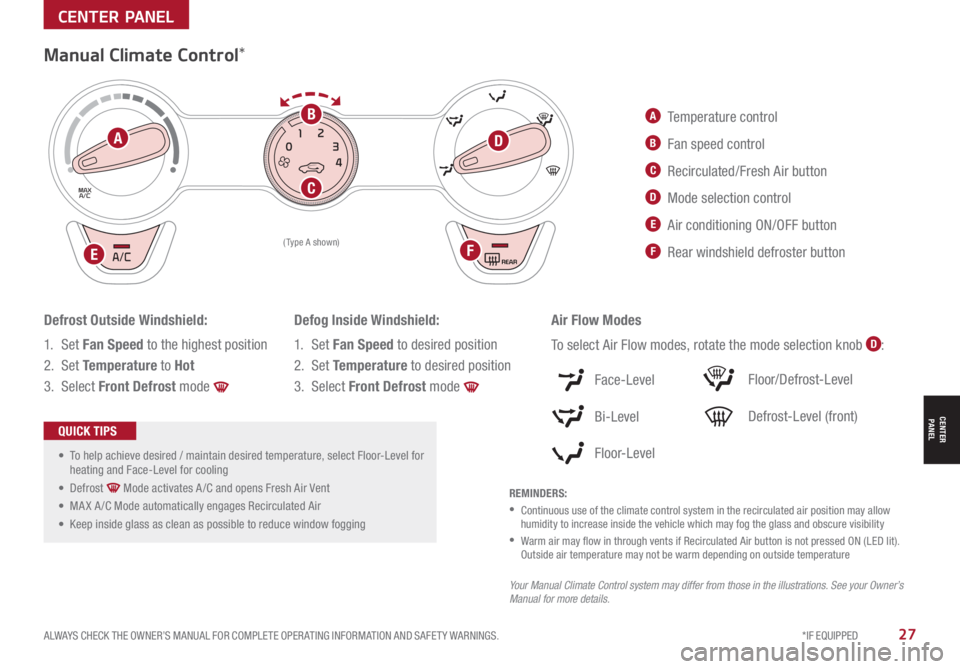

A Temperature control
B Fan speed control
C Recirculated/Fresh Air button
D Mode selection control
E Air conditioning ON/OFF button
F Rear windshield defroster button
Manual Climate Control*
Defrost Outside Windshield:
1. Set Fan Speed to the highest position
2. Set Temperature to Hot
3. Select Front Defrost mode
Defog Inside Windshield:
1. Set Fan Speed to desired position
2. Set Temperature to desired position
3. Select Front Defrost mode
REMINDERS:
•
Continuous use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle which may fog the glass and obscure visibility
•
Warm air may flow in through vents if Recirculated Air button is not pressed ON (LED lit). Outside air temperature may not be warm depending on outside temperature
Your Manual Climate Control system may differ from those in the illustrations. See your Owner’s Manual for more details.
• To help achieve desired / maintain desired temperature, select Floor-Level for heating and Face-Level for cooling
• Defrost Mode activates A /C and opens Fresh Air Vent
• MA X A /C Mode automatically engages Recirculated Air
• Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
REARA/C
MAX
A/C
１ 2
0 3
4
(Type A shown)
Air Flow Modes
To select Air Flow modes, rotate the mode selection knob D:
Face-Level
Bi-Level
F lo o r- L evel
Floor/Defrost-Level
Defrost-Level (front)
B
D
FE
C
A
CENTER PANEL
CENTER PANEL

ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER33
OTHER KEY FEATURES
OTHER KEY FEATURES
(Lever located on the driver’s floor near door sill; Image shown is 4-door model)
B
(Lever located under Driver’s Panel buttons)
(Latch located inside hood)
REMINDERS:
•Sunvisor may not shield all direct light
•
The Sunvisor may impair visibility if not adjusted properly. Do not operate the vehicle if Sunvisor is impairing your visibility
•
Be aware of seating position when adjusting or swinging Sunvisor around to or from the front or side windows
Hood Release Lever and Latch
Opening the Hood:
1. Pull the Hood Release Lever A
to unlatch the Hood
In the front of the vehicle, lift the
Hood slightly, push the secondary
Latch B to the left inside of the
hood’s center and lift the Hood
2. Pull out the support rod from the
Hood and set into place to hold
the Hood open
Fuel Door Release Lever
Pull the lever C upwards to release the
fuel door.
REMINDER: Open the Hood only after turning the engine off, on a flat surface, with the gear shift in P (Park) position and setting the parking brake.
Closing the Hood:
Lower the Hood by pressing the front center of the Hood. Then, press
down to securely lock in place.
REMINDER: While lowering and closing, keep hands away from under the Hood.
Tr u n k* Release Lever
(4-door model)
Pull the lever D upwards to open the
trunk lid.
Sunvisor†2 0
Use the Sunvisor to shield direct light through the front or side
windows. Slide the Sunvisor out and adjust as needed.
For illustrative purposes only. Your actual display, buttons and/or features may vary.
D
C
A
