2021 HYUNDAI TUCSON HYBRID bulb

09
9-53
Rear combination lamp
replacement
Type A
ONX4090025
(1) Tail lamp
(2)
Tail/S
top lamp
(3)
Turn signal lamp
(4

)
Backup lamp
ONX4090026
Stop/Tail lamp (Outside), Reverse lamp
1.
Turn o
ff the engine.
2.
Open the liftga

te.
3.
Loosen the lamp assembly r

etaining
screws with a cross-tip screwdriver.
4.
Remo

ve the rear combination lamp
assembly from the body of the
vehicle.
5.
Remo

ve the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
ONX4090045
6. Remove the bulb from the socket
b y pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
7.
Insert a new bulb b

y inserting it into
the socket and rotating it until it locks
into place.
8.
Install the sock

et into the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
9.
Reins

tall the lamp assembly to the
body of the vehicle.

Maintenance
9-54
ONX4090027

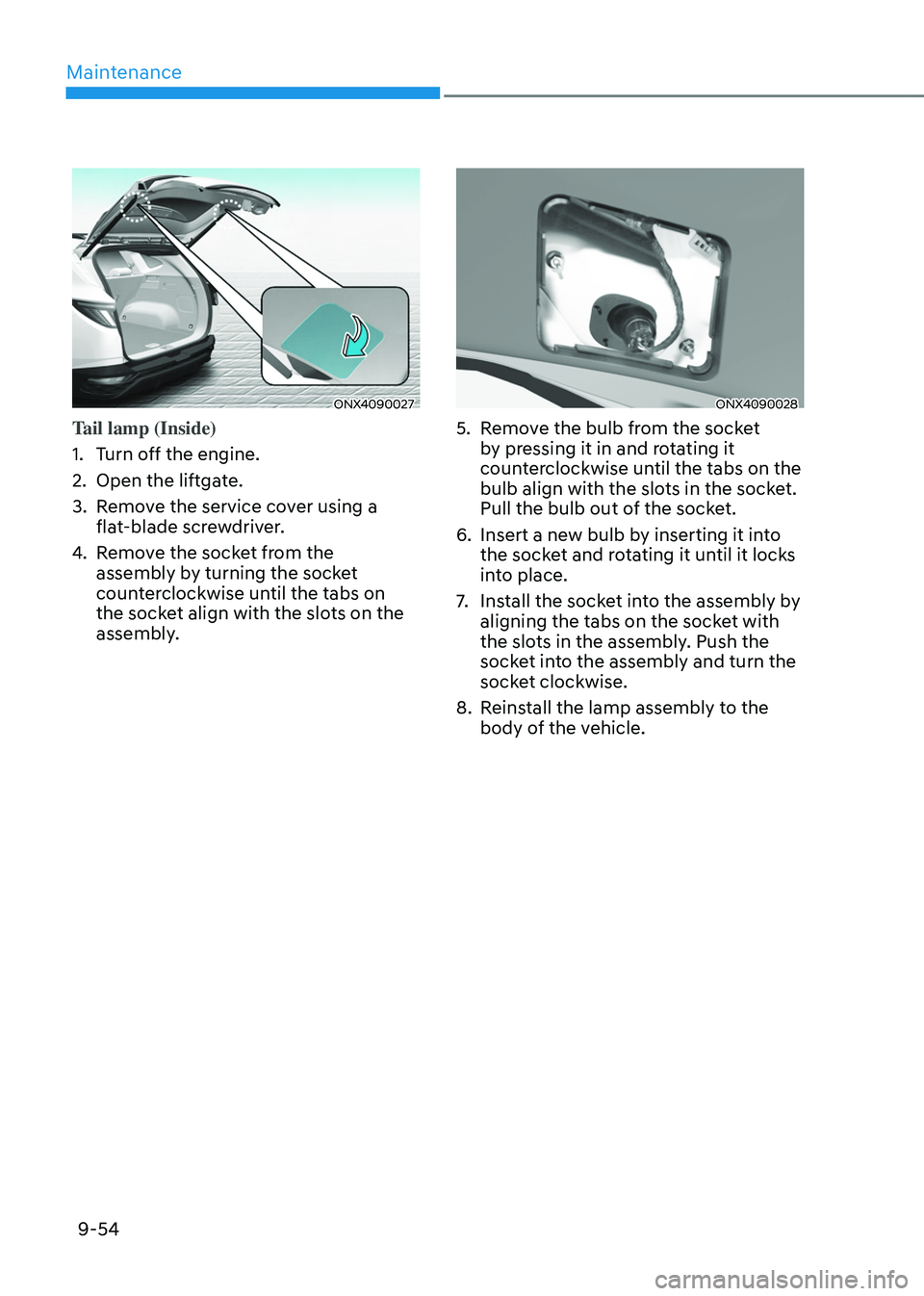

Tail lamp (Inside)
1.
Turn o
ff the engine.
2.
Open the liftga

te.
3.
Remo

ve the service cover using a
flat-blade screwdriver.
4.
Remo

ve the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
ONX4090028
5. Remove the bulb from the socket
b y pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
6.
Insert a new bulb b

y inserting it into
the socket and rotating it until it locks
into place.
7.
Install the sock

et into the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
8.
Reins

tall the lamp assembly to the
body of the vehicle.

09
9-55
ONX4090029

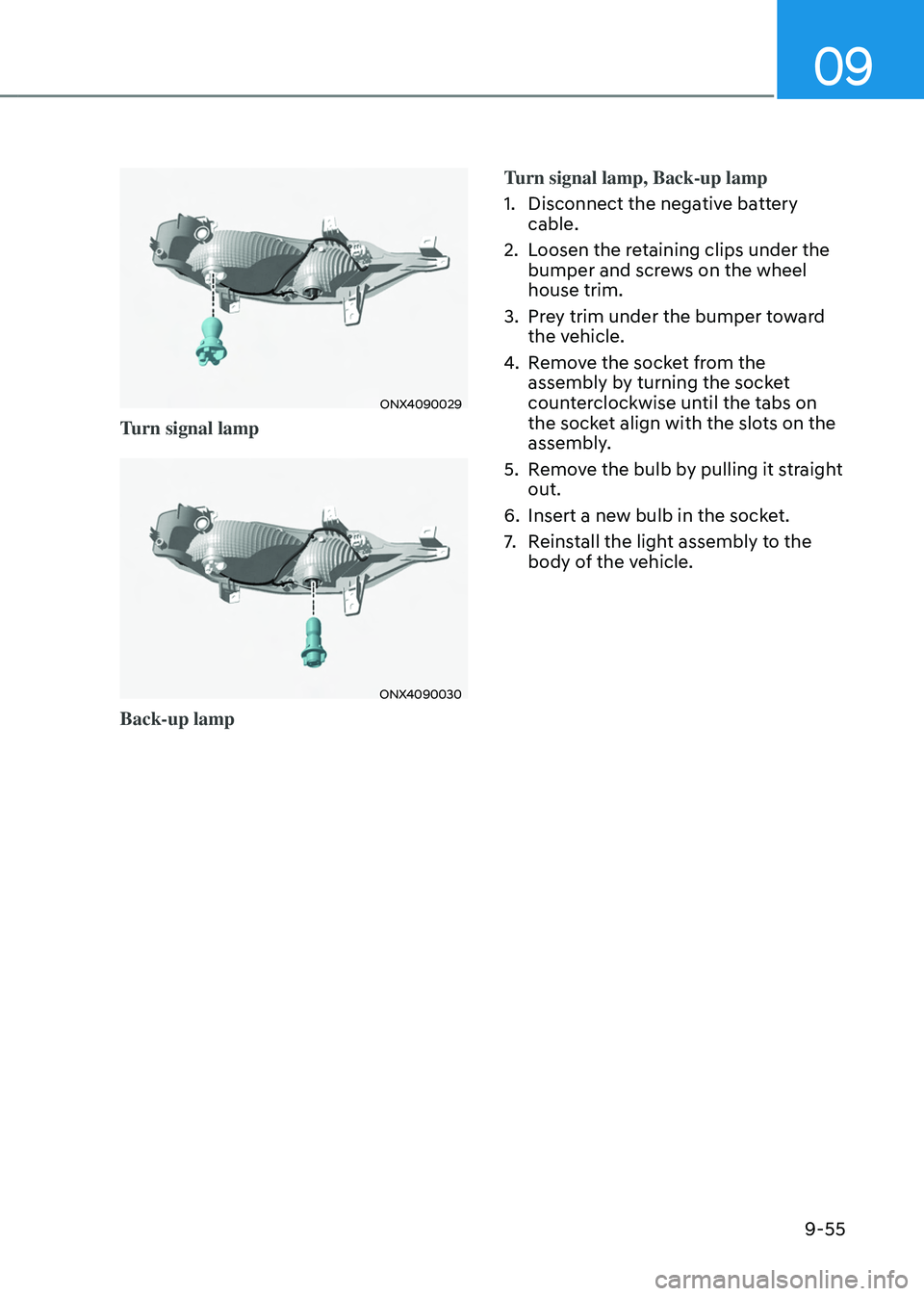

Turn signal lamp
ONX4090030
Back-up lampTurn signal lamp, Back-up lamp
1.
Disconnect the negativ

e battery
cable.
2.
Loosen the r
etaining clips under the
bumper and screws on the wheel
house trim.
3.
Pre
y trim under the bumper toward
the vehicle.
4.
Remo
ve the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
5.
Remo
ve the bulb by pulling it straight
out.
6.
Insert a new bulb in the sock
et.
7.
Reins
tall the light assembly to the
body of the vehicle.

09
9-57

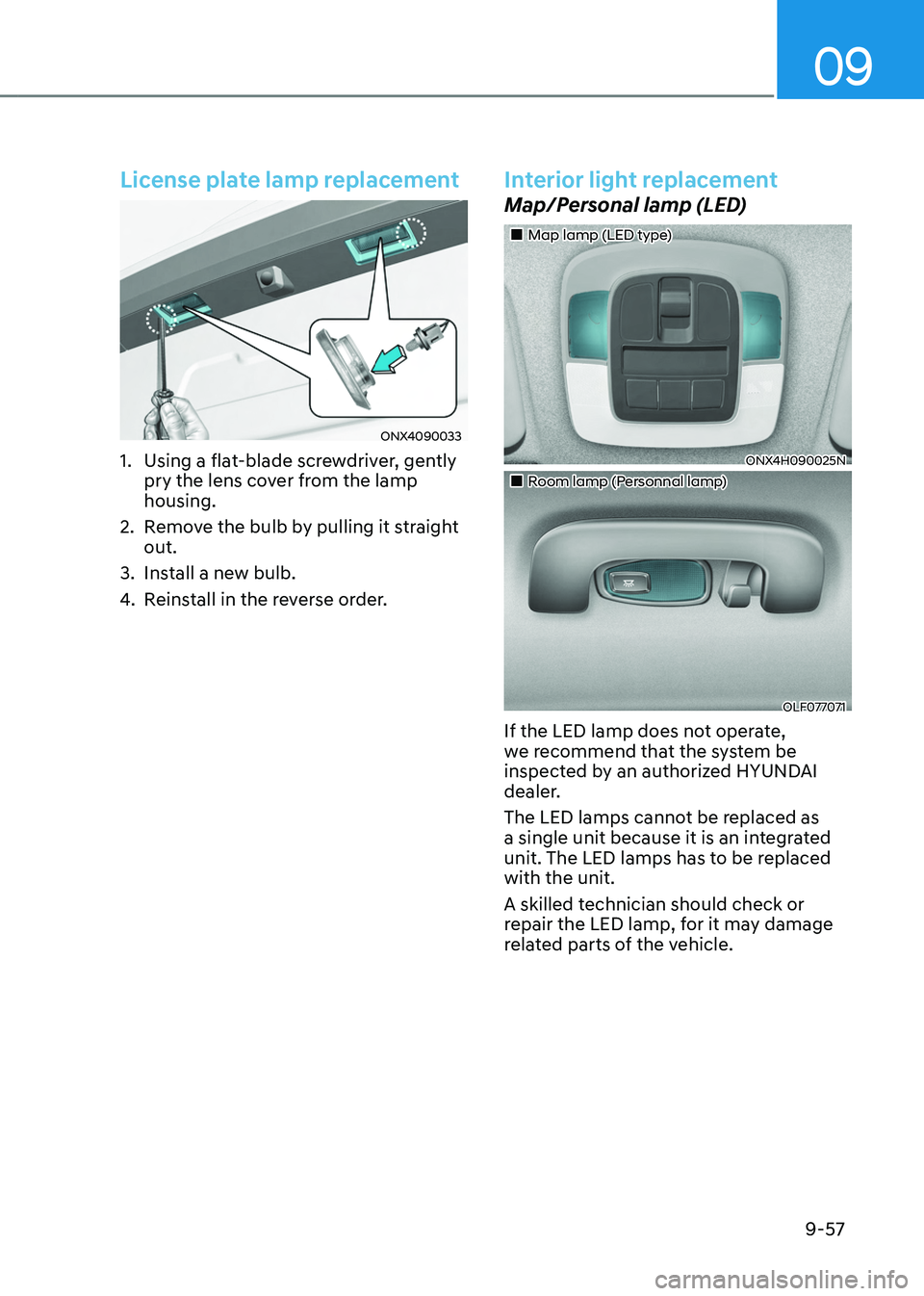

License plate lamp replacement
ONX4090033
1. Using a flat-blade screwdriver, gently
pry the lens cover from the lamp
housing.
2.
Remo

ve the bulb by pulling it straight
out.
3.
Install a ne

w bulb.
4.
Reins

tall in the reverse order.
Interior light replacement
Map/Personal lamp (LED)
„„Map lamp (LED type)
ONX4H090025N
„„Room lamp (Personnal lamp)
OLF077071
If the LED lamp does not operate,
we recommend that the system be
inspected by an authorized HYUNDAI
dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

Maintenance
9-58

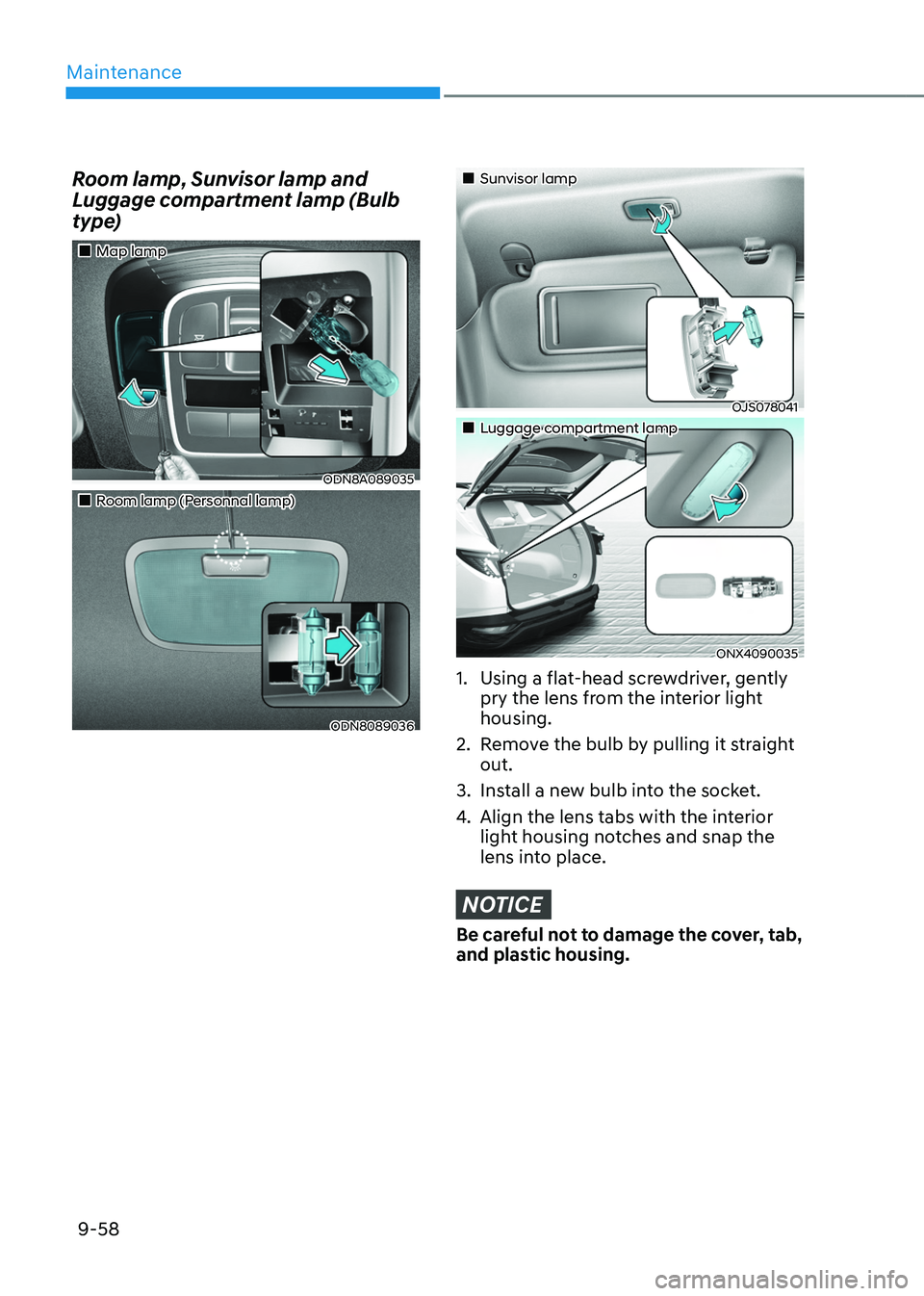

Room lamp, Sunvisor lamp and
Luggage compartment lamp (Bulb
type)
„„Map lamp
ODN8A089035
„„Room lamp (Personnal lamp)
ODN8089036
„„Sunvisor lamp
OJS078041
„„Luggage compartment lamp
ONX4090035
1. Using a flat-head screwdriver, gently
pry the lens from the interior light
housing.
2.
Remo

ve the bulb by pulling it straight
out.
3.
Install a ne

w bulb into the socket.
4.
Align the lens tabs with the int

erior
light housing notches and snap the
lens into place.
NOTICE
Be careful not to damage the cover, tab,
and plastic housing.
