08
8-23

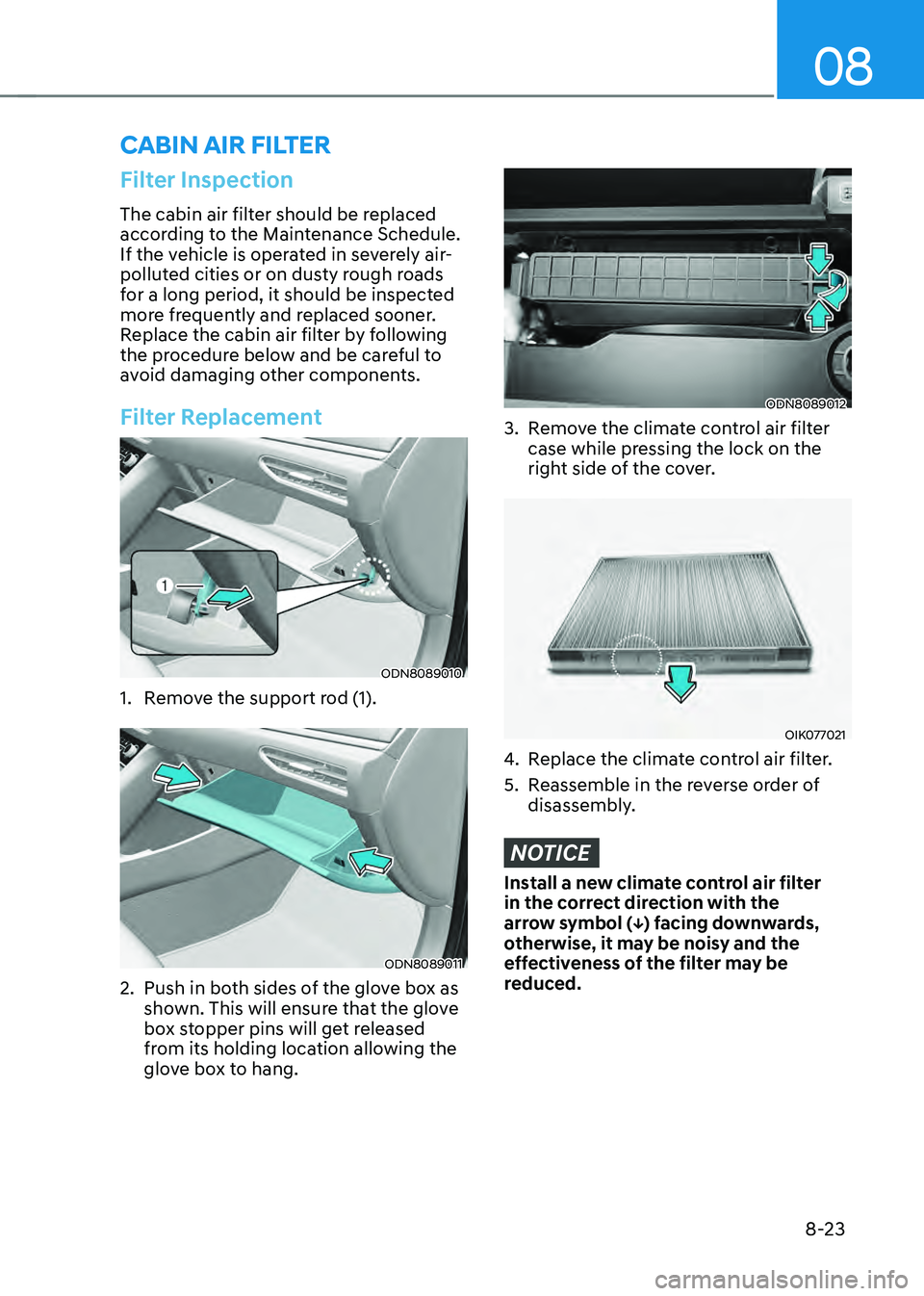

Filter Inspection
The cabin air filter should be replaced
according to the Maintenance Schedule.
If the vehicle is operated in severely air-
polluted cities or on dusty rough roads
for a long period, it should be inspected
more frequently and replaced sooner.
Replace the cabin air filter by following
the procedure below and be careful to
avoid damaging other components.
Filter Replacement
ODN8089010
1. Remove the support rod (1).
ODN8089011
2. Push in both sides of the glove box as
shown. This will ensure that the glove
box stopper pins will get released
from its holding location allowing the
glove box to hang.
ODN8089012
3. Remove the climate control air filter
case while pressing the lock on the
right side of the cover.
OIK077021
4. Replace the climate control air filter.
5. Reassemble in the reverse order of
disassembly.
NOTICE
Install a new climate control air filter
in the correct direction with the
arrow symbol (↓) facing downwards,
otherwise, it may be noisy and the
effectiveness of the filter may be
reduced.
CABIN AIR FILTER

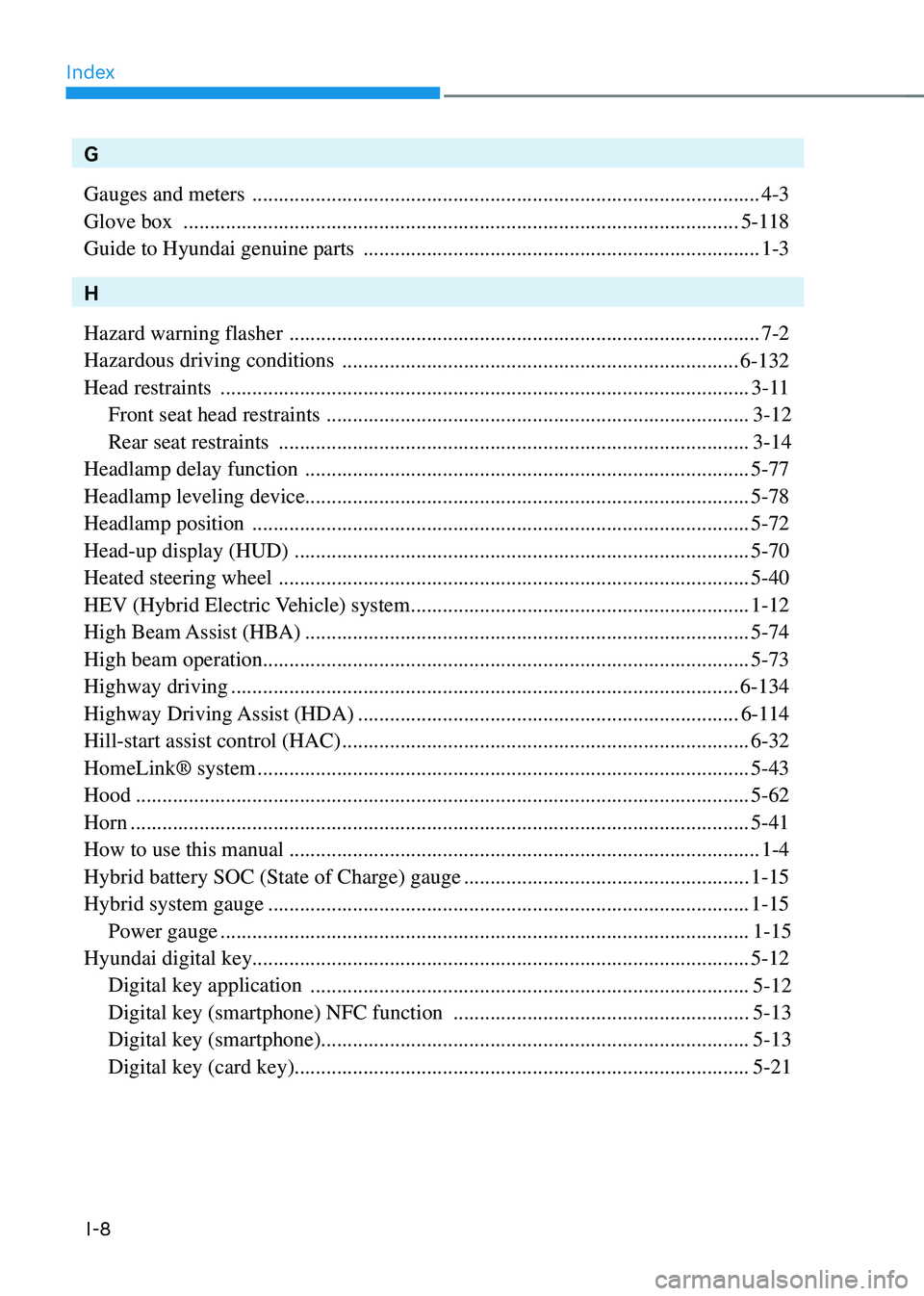

Index
I-8
G
Gauges and meters
........................................................................\
........................4-3
Glove box
........................................................................\
.................................5-118
Guide to Hyundai genuine parts
........................................................................\
...1-3
H
Hazard warning flasher
........................................................................\
.................7-2
Hazardous driving conditions
........................................................................\
...6-132
Head restraints
........................................................................\
............................3-11
Front seat head restraints
........................................................................\
........3-12
Rear seat restraints
........................................................................\
.................3-14
Headlamp delay function
........................................................................\
............5-77
Headlamp leveling device ........................................................................\
............ 5-78
Headlamp position
........................................................................\
......................5-72
Head-up display (HUD)
........................................................................\
..............5-70
Heated steering wheel
........................................................................\
.................5-40
HEV (Hybrid Electric Vehicle) system
................................................................1-12
High Beam Assist (HBA)
........................................................................\
............5-74
High beam operation ........................................................................\
.................... 5-73
Highway driving
........................................................................\
........................6-134
Highway Driving Assist (HDA)
........................................................................\
6-114
Hill-start assist control (HAC)
........................................................................\
.....6-32
HomeLink® system
........................................................................\
.....................5-43
Hood
........................................................................\
............................................5-62
Horn
........................................................................\
.............................................5-41
How to use this manual
........................................................................\
.................1-4
Hybrid battery SOC (State of Charge) gauge
......................................................1-15
Hybrid system gauge
........................................................................\
...................1-15
Power gauge
........................................................................\
............................1-15
Hyundai digital key ........................................................................\
...................... 5-12
Digital key application
........................................................................\
...........5-12
Digital key (smartphone) NFC function
........................................................5-13
Digital key (smartphone) ........................................................................\
......... 5-13
Digital key (card key) ........................................................................\
.............. 5-21

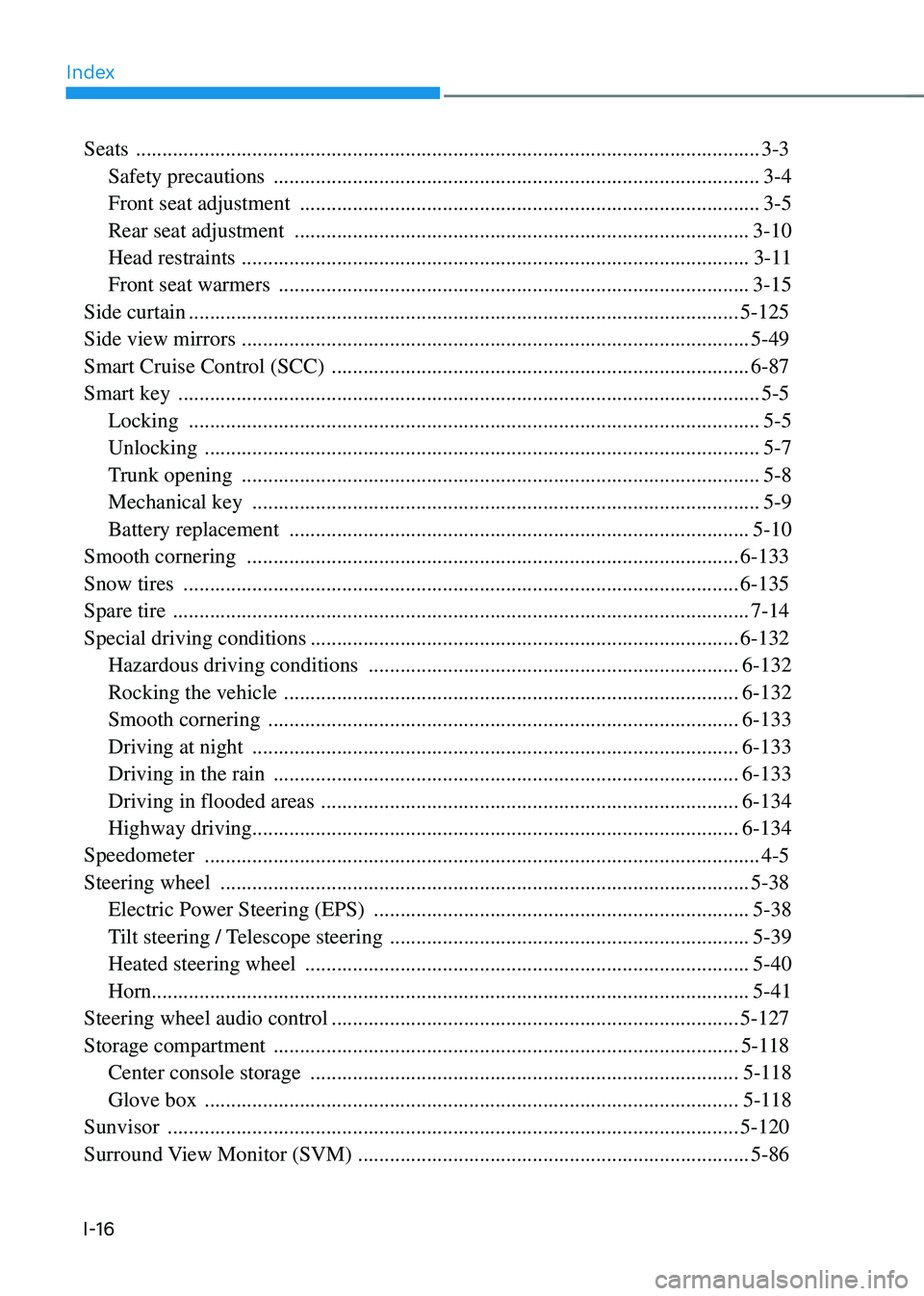

Index
I-16
Seats ........................................................................\
..............................................3-3
Safety precautions
........................................................................\
....................3-4
Front seat adjustment
........................................................................\
...............3-5
Rear seat adjustment
........................................................................\
..............3-10
Head restraints
........................................................................\
........................3-11
Front seat warmers
........................................................................\
.................3-15
Side curtain
........................................................................\
................................5-125
Side view mirrors
........................................................................\
........................5-49
Smart Cruise Control (SCC)
........................................................................\
.......6-87
Smart key
........................................................................\
......................................5-5
Locking
........................................................................\
....................................5-5
Unlocking
........................................................................\
.................................5-7
Trunk opening
........................................................................\
..........................5-8
Mechanical key
........................................................................\
........................5-9
Battery replacement
........................................................................\
...............5-10
Smooth cornering
........................................................................\
.....................6-133
Snow tires
........................................................................\
.................................6-135
Spare tire
........................................................................\
.....................................7-14
Special driving conditions
........................................................................\
.........6-132
Hazardous driving conditions
......................................................................6-132
Rocking the vehicle
........................................................................\
..............6-132
Smooth cornering
........................................................................\
.................6-133
Driving at night
........................................................................\
....................6-133
Driving in the rain
........................................................................\
................6-133
Driving in flooded areas
........................................................................\
.......6-134
Highway driving ........................................................................\
.................... 6-134
Speedometer
........................................................................\
.................................4-5
Steering wheel
........................................................................\
............................5-38
Electric Power Steering (EPS)
.......................................................................5-38
Tilt steering / Telescope steering
....................................................................5-39
Heated steering wheel
........................................................................\
............5-40
Horn ........................................................................\
......................................... 5-41
Steering wheel audio control
........................................................................\
.....5-127
Storage compartment
........................................................................\
................5-118
Center console storage
........................................................................\
.........5-118
Glove box
........................................................................\
.............................5-118
Sunvisor
........................................................................\
....................................5-120
Surround View Monitor (SVM)
........................................................................\
..5-86
