7-48
Maintenance
F FU
US
SE
ES
S
A vehicle's electrical system is pro-
tected from electrical overload dam-
age by fuses.
This vehicle has 2 (or 3) fuse panels,
one located in the driver's side panel
bolster, the other in the engine com-
partment near the battery.
If any of your vehicle's lights, acces-
sories, or controls do not work, check
the appropriate circuit fuse. If a fuse
has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not
work, first check the driver's side
fuse panel. Before replacing a blown
fuse, turn the engine and all switches
off, and then disconnect the negative
battery cable. Always replace a
blown fuse with one of the same rat-
ing.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved and imme-
diately consult an authorized
HYUNDAI dealer.Do not use a screwdriver or any
other metal object to remove
fuses because it may cause a
short circuit and damage the sys-
tem.
NOTICE
NEVER replace a fuse with any-
thing but another fuse of the
same rating.
A higher capacity fuse could
cause damage and possibly
cause a fire.
Do not install a wire or alu-
minum foil instead of the
proper fuse - even as a tem-
porary repair. It may cause
extensive wiring damage and
possibly a fire.
WARNING ■Blade type
Normal
■Cartridge typeBlown
NormalBlown
■Multi fuse
Normal
Blown
OTM078035

7-61
7
Maintenance
L LI
IG
GH
HT
T
B
BU
UL
LB
BS
S
Consult an authorized HYUNDAI
dealer to replace most vehicle light
bulbs. It is difficult to replace vehicle
light bulbs because other parts of the
vehicle must be removed before you
can get to the bulb. This is especially
true for removing the headlamp
assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
Information
The headlamp and tail lamp lenses
could appear frosty if the vehicle is
washed after driving or the vehicle is
driven at night in wet weather. This
condition is caused by temperature
difference between the lamp inside
and outside and, it does not indicate a
problem with your vehicle. When
moisture condenses in the lamp, it will
be removed after driving with the
headlamp on. The removable level
may differ depending on lamp size,
lamp position and environmental con-
dition. However, if moisture is not
removed, we recommend that your
vehicle is inspected by an authorized
HYUNDAI dealer.
Headlamp, Parking lamp,
Daytime Running Light, Turn
signal lamp and Side marker
Type A
(1) Turn signal lamp
(2) Daytime running light /
Parking lamp
(3) Side marker lamp
(4) Headlamp (Low)
(5) Headlamp (High)
(6) Side reflex reflector
i
Prior to replacing a lamp,
depress the brake pedal,
move the shift button into P
(Park) apply the parking
brake, place the ignition
switch to the OFF position,
and take the key with you
when leaving the vehicle to
avoid sudden movement of
the vehicle and to prevent
possible electric shock.
Be aware the bulbs may be
hot and may burn your fin-
gers.
WARNING
OLX2079029N

7-63
7
Maintenance
Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.
A bulb should be operated only
when installed in a headlamp.
If a bulb becomes damaged or
cracked, replace it immediately
and carefully dispose of it.Type B
(1) Turn signal lamp
(2) Daytime running light /
Parking lamp
(3) Side marker lamp
(4) Headlamp (Low/High)
(5) Headlamp (High)
(6) Side reflex reflector Handle halogen bulbs with
care. Halogen bulbs contain
pressurized gas that will pro-
duce flying pieces of glass
that could cause injuries if
broken.
Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-
dling it.
WARNING
OLMB073042LOLX2079029N

7-67
7
Maintenance1. Using a flat-blade screwdriver,
gently pry the lens from the interi-
or lamp housing.
Map lamp, room lamp, vanity mirror lamp and luggage compartment lamp (Bulb type)
Interior Light Bulb Replacement
Prior to working on the Interior
Lights, ensure that the "OFF"
button is depressed to avoid
burning your fingers or receiv-
ing an electric shock.
WARNING
OLX2078050L
■Map lamp
OLX2078051L
■Room lamp
OLX2078052L
■Luggage compartment lamp
OLX2078043
■Glove box lamp
OLF074069
■Vanity mirror lamp

7-69
7
Maintenance
A AP
PP
PE
EA
AR
RA
AN
NC
CE
E
C
CA
AR
RE
E
Exterior Care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution statements that appear
on the label.
Protecting your vehicle's finish
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash it
thoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign
materials. Make sure the drain holes
in the lower edges of the doors and
rocker panels are kept clear and
clean.Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.
Even prompt washing with plain
water may not completely remove all
these deposits. A mild soap, safe for
use on painted surfaces, should be
used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the fin-
ish. Do not use strong soap, chemi-
cal detergents or hot water, and
do not wash the vehicle in direct
sunlight or when the body of the
vehicle is warm.
Be careful when washing the
side windows of your vehicle.
Especially, with high-pressure
water, water may leak through
the windows and wet the interi-
or.
To prevent damage to the plastic
parts, do not clean with chemi-
cal solvents or strong deter-
gents.
NOTICE
After washing the vehicle, test
the brakes while driving slowly
to see if they have been affected
by water before getting on the
road. If braking performance is
impaired, dry the brakes by
applying them lightly while
maintaining a slow forward
speed.
WARNING

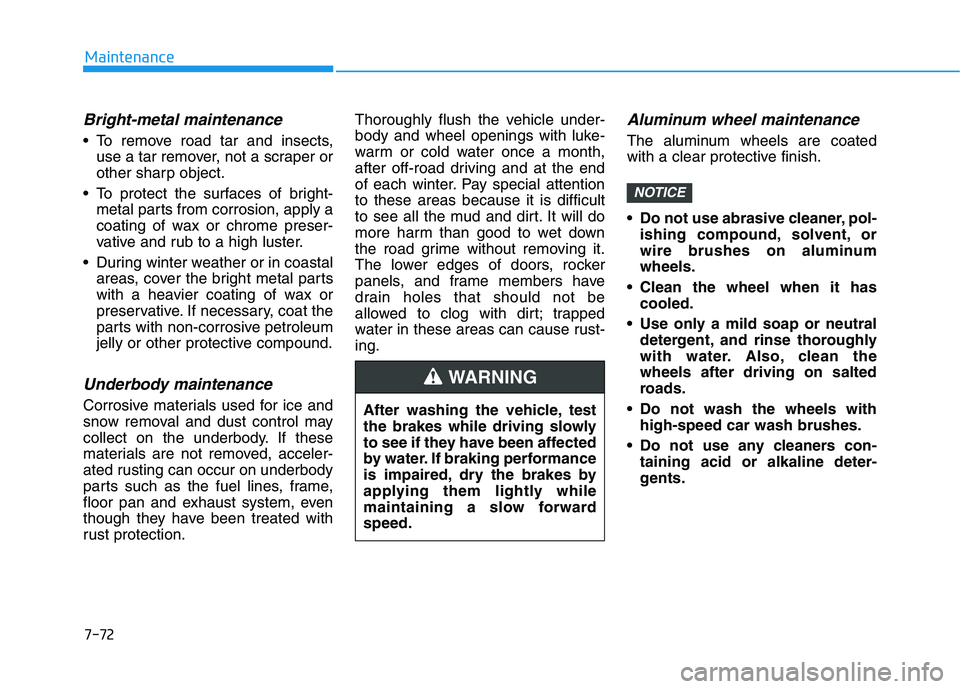

7-72
Maintenance
Bright-metal maintenance
To remove road tar and insects,
use a tar remover, not a scraper or
other sharp object.
To protect the surfaces of bright-
metal parts from corrosion, apply a
coating of wax or chrome preser-
vative and rub to a high luster.
During winter weather or in coastal
areas, cover the bright metal parts
with a heavier coating of wax or
preservative. If necessary, coat the
parts with non-corrosive petroleum
jelly or other protective compound.
Underbody maintenance
Corrosive materials used for ice and
snow removal and dust control may
collect on the underbody. If these
materials are not removed, acceler-
ated rusting can occur on underbody
parts such as the fuel lines, frame,
floor pan and exhaust system, even
though they have been treated with
rust protection.Thoroughly flush the vehicle under-
body and wheel openings with luke-
warm or cold water once a month,
after off-road driving and at the end
of each winter. Pay special attention
to these areas because it is difficult
to see all the mud and dirt. It will do
more harm than good to wet down
the road grime without removing it.
The lower edges of doors, rocker
panels, and frame members have
drain holes that should not be
allowed to clog with dirt; trapped
water in these areas can cause rust-
ing.
Aluminum wheel maintenance
The aluminum wheels are coated
with a clear protective finish.
Do not use abrasive cleaner, pol-
ishing compound, solvent, or
wire brushes on aluminum
wheels.
Clean the wheel when it has
cooled.
Use only a mild soap or neutral
detergent, and rinse thoroughly
with water. Also, clean the
wheels after driving on salted
roads.
Do not wash the wheels with
high-speed car wash brushes.
Do not use any cleaners con-
taining acid or alkaline deter-
gents.
NOTICE
After washing the vehicle, test
the brakes while driving slowly
to see if they have been affected
by water. If braking performance
is impaired, dry the brakes by
applying them lightly while
maintaining a slow forward
speed.
WARNING

I-2
AC inverter ...................................................................3-198
Air bag warning labels ....................................................2-79
Air bags ...........................................................................2-57
Additional safety precautions .....................................2-79
Air bag collision sensors ............................................2-73
Air bag inflation conditions .......................................2-75
Air bag non-inflation conditions ................................2-76
Air bag warning labels ...............................................2-79
Curtain air bags ..........................................................2-62
Do not install a child restraint on the front
passenger seat..........................................................2-72
Driver's air bag ...........................................................2-59
Driver's knee air bag ..................................................2-59
How does the air bags system operate? .....................2-63
Occupant classification system (OCS) .......................2-68
Passenger's front air bag.............................................2-59
Side air bags ...............................................................2-60
SRS Care ....................................................................2-78
SRS components and functions..................................2-63
SRS warning light ......................................................2-63
What to expect after an air bag inflates .....................2-67
Why didn't my air bag go off in a collision ...............2-73
Air cleaner filter replacement .........................................7-22
Air conditioning refrigerant label .................................3-185
Air conditioning system specification ..............................8-6
All Wheel Drive (AWD) .................................................5-43Antenna .............................................................................4-2
Anti-lock Brake System (ABS) ......................................5-33
Appearance care..............................................................7-69
Exterior care ...............................................................7-69
Interior care ................................................................7-74
Armrest ...........................................................................2-20
Audio/Video/Navigation system .......................................4-4
Auto defogging system .................................................3-188
Auto headlamp position ................................................3-132
Automatic climate control system ................................3-171
Air conditioning .......................................................3-178
Air intake control .....................................................3-176
Automatic heating and air conditioning ...................3-172
Fan speed control .....................................................3-177
Manual heating and air conditioning .......................3-173
Mode selection .........................................................3-174
OFF mode.................................................................3-178
Rear climate control button ......................................3-178
System maintenance .................................................3-184
Temperature control .................................................3-175
Automatic transmission ..................................................5-15
Good driving practices ...............................................5-20
Paddle shifter ..............................................................5-22
Parking........................................................................5-18
Shift lock system ........................................................5-17
Automatic ventilation ...................................................3-191
Index
A

I-3
Battery .............................................................................7-29
Battery recharging ......................................................7-31
Battery saver function ...................................................3-138
Before driving ...................................................................5-5
Blind-Spot Collision Warning (BCW) system ...............5-78
Blind-Spot Collision-Avoidance Assist (BCA) system ..5-78
Blind-spot view monitor system ...................................3-150
Bluetooth
®Wireless Technology ......................................4-4
Brake fluid ......................................................................7-21
Brake system ...................................................................5-23
Anti-lock Brake System (ABS)..................................5-33
Auto hold ....................................................................5-29
Disc brakes wear indicator .........................................5-24
Downhill Brake Control (DBC) .................................5-39
Electronic Parking Brake (EPB) ................................5-24
Electronic Stability Control (ESC).............................5-35
Good braking practices ..............................................5-42
Hill-start Assist Control (HAC) .................................5-39
Power brakes ..............................................................5-23
Trailer Stability Assist (TSA) .....................................5-42
Vehicle Stability Management (VSM) .......................5-38Bulb replacement ............................................................7-61
Daytime running light (DRL) ...........................7-61, 7-63
Front parking lamp ...........................................7-61, 7-63
Front turn signal lamp.......................................7-61, 7-63
Headlamp ..........................................................7-61, 7-63
High mounted stop lamp ............................................7-66
Interior light................................................................7-67
License plate light ......................................................7-66
Rear combination light bulb .......................................7-64
Side marker lamp ..............................................7-61, 7-63
Side repeater lamp ......................................................7-64
Bulb wattage .....................................................................8-3
Capacities (Lubricants) .....................................................8-7
Care
Exterior care ...............................................................7-69
Interior care ................................................................7-74
Tire care ......................................................................7-33
Cargo security screen ....................................................3-205
Center console storage ..................................................3-192
Central door lock/unlock switch .....................................3-17
Certification label ...........................................................8-10
Check tire inflation pressure ...........................................7-35
I
Index
B
C
