2021 HYUNDAI KONA glove box

3-133
Convenient features of your vehicle
3
S ST
TO
OR
RA
AG
GE
E
C
CO
OM
MP
PA
AR
RT
TM
ME
EN
NT
T
To avoid possible theft, do not
leave valuables in the storage
compartments.

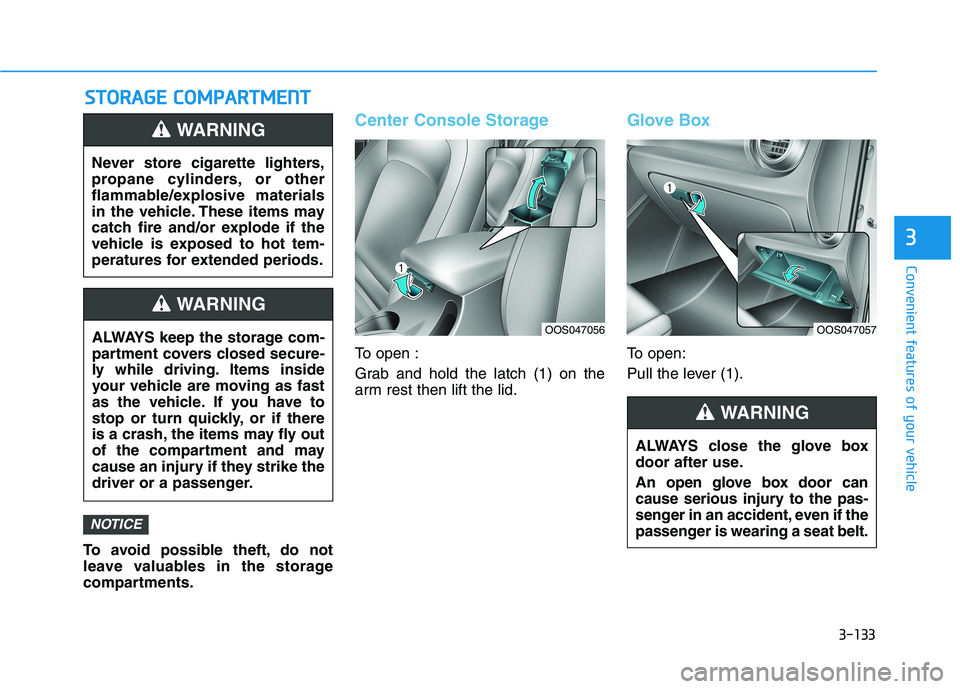

Center Console Storage
To open :
Grab and hold the latch (1) on the
arm rest then lift the lid.
Glove Box
To open:
Pull the lever (1).
NOTICE
Never store cigarette lighters,
propane cylinders, or other
flammable/explosive materials
in the vehicle. These items may
catch fire and/or explode if the
vehicle is exposed to hot tem-
peratures for extended periods.
WARNING
ALWAYS keep the storage com-
partment covers closed secure-
ly while driving. Items inside
your vehicle are moving as fast
as the vehicle. If you have to
stop or turn quickly, or if there
is a crash, the items may fly out
of the compartment and may
cause an injury if they strike the
driver or a passenger.
WARNING
ALWAYS close the glove box
door after use.
An open glove box door can
cause serious injury to the pas-
senger in an accident, even if the
passenger is wearing a seat belt.
WARNING
OOS047056OOS047057

7-30
Maintenance
Information
If the vehicle is operated in extremely
dusty or sandy areas, replace the ele-
ment more often than the usual rec-
ommended intervals (refer to
"Maintenance Under Severe Usage
Conditions" in this chapter).
Do not drive with the air cleaner
filter removed. This will result in
excessive engine wear.
When removing the air cleaner
filter, be careful that dust or dirt
does not enter the air intake, or
damage may result.
Use HYUNDAI genuine parts.
Use of non-genuine parts could
damage the air flow sensor.
Filter Inspection
The climate control air filter should
be replaced according to the
Maintenance Schedule. If the vehicle
is operated in severely air-polluted
cities or on dusty rough roads for a
long period, it should be inspected
more frequently and replaced earlier.
When you replace the climate control
air filter, replace it performing the fol-
lowing procedure, and be careful to
avoid damaging other components.
1. With the glove box open, remove
the stoppers on both sides to allow
the glove box to hang freely on the
hinges.
NOTICE
i
C CL
LI
IM
MA
AT
TE
E
C
CO
ON
NT
TR
RO
OL
L
A
AI
IR
R
F
FI
IL
LT
TE
ER
R
OOS077018

7-59
7
Maintenance
Fuse NameFuse RatingProtected Component
INTERIOR
LAMP7.5AGlove Box Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Wiresess Charger Unit,
Driver Console Switch, Luggage Lamp
B/ALARM
HORN10AICM Relay Box(Burglar Alarm Horn Relay)
MEMORY10AA/C Control Module, Head Up Display, Instrument Cluster, Electro Chromic Mirror
AMP30AAMP
MODULE 67.5ASmart Key Control Module, BCM
MDPS7.5AMDPS Unit
MODULE 17.5AActive Air Flap, Ignition key Interlock Switch, BCM, Hazard Switch, Data Link Connector, Rain sensor
MODULE 77.5AFront Air Ventilation Seat Module, Front Seat Warmer Module
A/BAG IND7.5AInstrument Cluster, A/C Control Modulee
BRAKE
SWITCH7.5AStop Lamp Switch, Smart Key Control Module
START7.5ATransaxle Range Switch(A/T), ECM, ICM Relay Box(Burglar Alarm Relay)
CLUSTER7.5AHead Up Display, Instrument Cluster
Instrument panel fuse panel

7-78
Maintenance

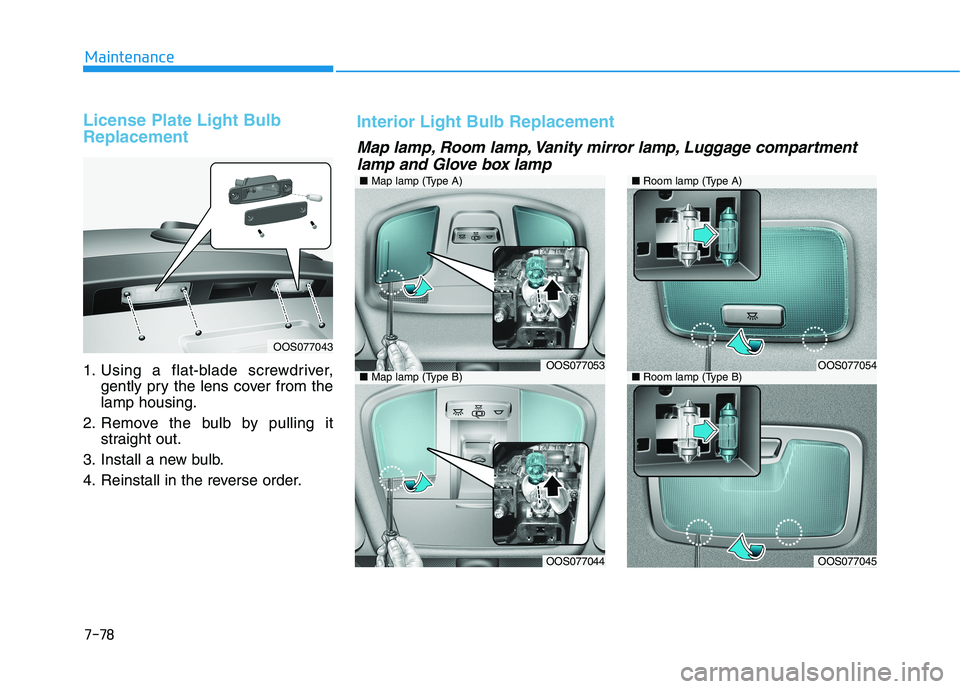

License Plate Light Bulb
Replacement
1. Using a flat-blade screwdriver,
gently pry the lens cover from the
lamp housing.
2. Remove the bulb by pulling it
straight out.
3. Install a new bulb.
4. Reinstall in the reverse order.
OOS077043
Map lamp, Room lamp, Vanity mirror lamp, Luggage compartment
lamp and Glove box lamp
Interior Light Bulb Replacement
■Map lamp (Type A)
OOS077053
OOS077044
■Room lamp (Type A)
■Room lamp (Type B)OOS077054
OOS077045
■Map lamp (Type B)

7-79
7
Maintenance
1. Using a flat-blade screwdriver,
gently pry the lens from the interi-
or lamp housing.
2. Remove the bulb by pulling it
straight out.3. Install a new bulb in the socket.
4. Align the lens tabs with the interi-
or lamp housing notches and snap
the lens into place.
Use care not to dirty or damage
lens, lens tab, and plastic hous-
ings.
NOTICE
Prior to working on the Interior
Lights, ensure that the "OFF"
button is depressed to avoid
burning your fingers or receiv-
ing an electric shock.
WARNING
■Vanity mirror lamp
■Luggage compartment lampOOS077046
OOS077048
■Glove box lamp
OOS077047

8-4
Specifications, Consumer information and Reporting safety defects
Light Bulb Bulb Type Wattage
InteriorMap lamp W10W 10
Room lamp (with sunroof) FESTOON 10
Room lamp (without sunroof) FESTOON 8
Sunvisor lamp FESTOON 5
Tailgate room lampFESTOON10
Glove box lamp FESTOON 5

I-7
Recommended Lubricants and Capacities ........................8-7
Recommended SAE viscosity number .........................8-9
Reporting Safety Defects ................................................8-13
Scheduled maintenance services.......................................7-7
Maintenance Under Severe Usage Conditions
(Gamma 1.6 T-GDI) ................................................7-16
Maintenance Under Severe Usage Conditions
(Nu 2.0 MPI) ...........................................................7-11
Normal Maintenance Schedule
(Gamma 1.6 T-GDI) ................................................7-13
Normal Maintenance Schedule (Nu 2.0 MPI) .............7-8
Seat Belts ........................................................................2-21
Additional Seat Belt Safety Precautions ....................2-30
Care of Seat Belts .......................................................2-33
Seat Belt Restraint System .........................................2-23
Seat Belt Safety Precautions ......................................2-21
Seat Belt Warning Light .............................................2-22
Seats ..................................................................................2-3
Front Seats ....................................................................2-5
Head Restraints ..........................................................2-14
Rear Seats ...................................................................2-11
Safety Precautions ........................................................2-4
Seat Warmers and Air Ventilation Seats.....................2-18Smart Cruise Control system ..........................................5-98
Conventional Cruise Control Mode .........................5-109
Limitations of the System ........................................5-109
SCC Reaction Setting...............................................5-108
Sensor to Detect Distance to the Vehicle Ahead ......5-106
Smart Cruise Control Speed .......................................5-99
Smart Cruise Control Switch .....................................5-98
Smart Cruise Control Vehicle-to-Vehicle Distance ..5-103
Special driving conditions.............................................5-115
Driving at Night........................................................5-116
Driving in Flooded Areas .........................................5-117
Driving in the Rain ...................................................5-116
Hazardous Driving Conditions .................................5-115
Highway Driving ......................................................5-117
Reducing the risk of a rollover.................................5-118
Rocking the Vehicle..................................................5-115
Smooth Cornering ....................................................5-116
Steering Wheel ................................................................3-18
Electric Power Steering (EPS) ...................................3-18
Heated Steering Wheel (for Canada) .........................3-20
Horn ............................................................................3-21
Tilt Steering / Telescope Steering ..............................3-19
Storage Compartment ...................................................3-133
Center Console Storage ............................................3-133
Glove Box ................................................................3-133
Multi Box .................................................................3-134
Sunglass Holder........................................................3-134
