2021 HYUNDAI KONA EV child lock

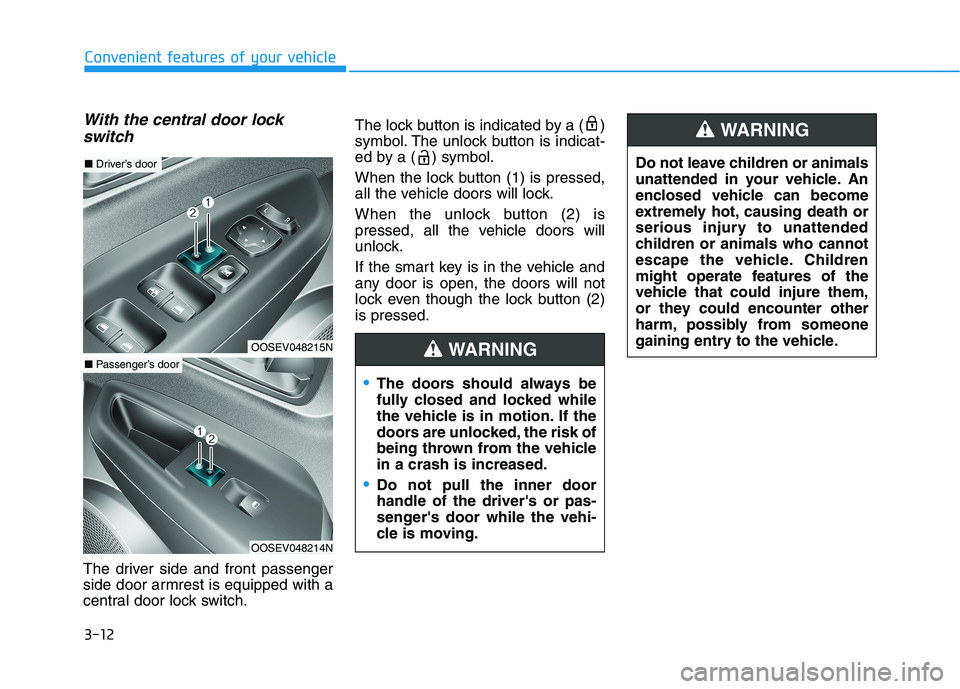

3-12
Convenient features of your vehicle
With the central door lock
switch
The driver side and front passenger
side door armrest is equipped with a
central door lock switch.The lock button is indicated by a ( )
symbol. The unlock button is indicat-
ed by a ( ) symbol.
When the lock button (1) is pressed,
all the vehicle doors will lock.
When the unlock button (2) is
pressed, all the vehicle doors will
unlock.
If the smart key is in the vehicle and
any door is open, the doors will not
lock even though the lock button (2)
is pressed.
OOSEV048215N
■Driver’s door
OOSEV048214N
■Passenger’s door
The doors should always be
fully closed and locked while
the vehicle is in motion. If the
doors are unlocked, the risk of
being thrown from the vehicle
in a crash is increased.
Do not pull the inner door
handle of the driver's or pas-
senger's door while the vehi-
cle is moving.
WARNING
Do not leave children or animals
unattended in your vehicle. An
enclosed vehicle can become
extremely hot, causing death or
serious injury to unattended
children or animals who cannot
escape the vehicle. Children
might operate features of the
vehicle that could injure them,
or they could encounter other
harm, possibly from someone
gaining entry to the vehicle.
WARNING

3-14
Convenient features of your vehicle
Auto UNLOCK - Enable on Shift
When this feature is set in the LCD
cluster display, all the doors will be
unlocked automatically when the
vehicle is shifted back into P (Park).
For more information on these
features, refer to the LCD Display
section later in this chapter.
Additional Unlock Safety
Feature - Air Bag Deployment
As an additional safety feature, all
doors will be automatically unlocked
when an impact causes the air bags
to deploy.
Child-Protector Rear Door Locks
The child safety lock is provided to
help prevent children seated in the
rear from accidentally opening the
rear doors. The rear door safety locks
should be used whenever children
are in the vehicle.
The child safety lock is located on
the edge of each rear door. When the
child safety lock is in the lock posi-
tion, the rear door will not open if the
inner door handle is pulled.
To lock the child safety lock, insert a
small flat blade tool (like a screwdriv-
er or similar) (1) into the slot and turn
it to the lock position as shown.To allow a rear door to be opened
from inside the vehicle, unlock the
child safety lock.
OOSEV048003
If children accidently open the
rear doors while the vehicle is
in motion, they could fall out of
the vehicle. The rear door safety
locks should always be used
whenever children are in the
vehicle.
WARNING

3-35
Convenient features of your vehicle
3
Information
The automatic reverse feature is only
active when the "Auto Up" feature is
used by fully pulling up the switch to
the second detent.
Do not install any accessories on
the windows. The automatic reverse
feature may not operate.
Power window lock switch
The driver can disable the power
window switches on the rear passen-
ger doors by pressing the power win-
dow lock switch.
When the power window lock switch
is pressed:
The rear passenger control will not
be able to operate the rear passen-
ger power window
Note that the front passenger con-
trol is still able to operate the front
passenger window, and that the
driver master control can still oper-
ate all the power windows. To prevent possible damage to
the power window system, do
not open or close two windows
or more at the same time. This
will also ensure the longevity of
the fuse.
Never try to operate the main
switch on the driver's door and
the individual door window
switch in opposite directions at
the same time. If this is done, the
window will stop and cannot be
opened or closed.
NOTICE
NOTICE
i
Do not allow children to play
with the power windows. Keep
the driver's door power window
lock switch in the LOCK posi-
tion. Serious injury or death can
result from unintentional win-
dow operation by a child.
WARNING
Make sure body parts or other
objects are safely out of the way
before closing the windows to
avoid injuries or vehicle damage.
Objects less than 0.16 inch
(4 mm) in diameter caught
between the window glass and
the upper window channel may
not be detected by the automatic
reverse window and the window
will not stop and reverse direc-
tion.
WARNING
OOS047019

I-3
Battery (12 volt)..............................................................7-21
Battery saver function ...................................................3-105
Before driving ...................................................................5-4
Blind-Spot Collision Warning (BCW)............................5-62
Blue Link
®center ...........................................................3-19
Bluetooth®Wireless Technology .....................................4-4
Bottle holder .................................................................3-139
Brake fluid ......................................................................7-13
Brake system ...................................................................5-29
Anti-lock Brake System (ABS)..................................5-40
Auto hold ....................................................................5-36
Disc brakes wear indicator .........................................5-30
Electronic Parking Brake (EPB) ................................5-30
Electronic Stability Control (ESC).............................5-42
Good braking practices ..............................................5-47
Hill-start Assist Control (HAC) .................................5-47
Power brakes ..............................................................5-29
Vehicle Stability Management (VSM) .......................5-45
Bulb replacement ............................................................7-53
Daytime running lamp................................................7-54
Front position lamp ....................................................7-54
Front turn signal lamp ................................................7-54
Headlamp....................................................................7-54
High mounted stop lamp ............................................7-60
Interior light bulb .......................................................7-61
License plate light bulb ..............................................7-60Rear combination light bulb .......................................7-59
Side repeater lamp .....................................................7-59
Bulb wattage .....................................................................8-3
Capacities (Lubricants) .....................................................3-6
Care
Exterior care ...............................................................7-63
Interior care ................................................................7-69
Tire care ......................................................................7-24
Cargo area cover ...........................................................3-147
Center console storage ..................................................3-137
Central door lock switch .................................................3-12
Certification label .............................................................8-7
Chains
Tire chains ................................................................5-117
Charging door .................................................................3-45
Checking tire inflation pressure ......................................7-26
Child restraint system (CRS) ..........................................2-36
Booster seats...............................................................2-39
Forward-facing child restraint system........................2-39
Installing a child restraint system (CRS) ...................2-39
Rearward-facing child restraint system......................2-38
Selecting a child restraint system (CRS) ...................2-37
Child-protector rear door lock ........................................3-14
Climate control air filter replacement.............................7-15
Clock .............................................................................3-144
I
Index
B
C

I-4
Cluster ionizer ...............................................................3-136
Coat hook ......................................................................3-145
Combined instrument, see instrument cluster ................3-46
Consumer information ......................................................8-9
Coolant ............................................................................7-12
Cruise control system .....................................................5-89
Cup holder.....................................................................3-139
Curtain air bags ...............................................................2-51
Dashboard illumination, see instrument panel
illumination ...................................................................3-47
Dashboard, see instrument cluster ..................................3-46
Daytime Running Light (DRL) ......................................3-99
Declaration of conformity .............................................5-75
Defogging (Windshield) ...............................................3-132
Defroster .......................................................................3-135
Rear window defroster .............................................3-135
Defrosting (Windshield) ...............................................3-132
Dimensions .......................................................................8-2
Display illumination, see instrument panel illumination ..3-47
Displays, see instrument cluster .....................................3-46
Distance to empty ..........................................................3-51
Door locks .......................................................................3-10
Auto door lock/unlock features ..................................3-13
Central door lock switch ............................................3-12
Child-protector rear door lock....................................3-14Drinks holders, see cup holders ....................................3-139
Drive mode system ........................................................5-48
Driver Attention Warning (DAW) .................................5-83
Driver's air bag................................................................2-49
Driving at night .............................................................5-113
Driving in flooded areas ...............................................5-114
Driving in the rain .........................................................5-113
Electric Power Steering (EPS) ........................................3-16
Electric vehicle specifications ..........................................8-2
Electrochromic mirror (ECM) with HomeLink
®system,
compass and Blue Link®..............................................3-20
Electronic Parking Brake (EPB) .....................................5-30
Electronic Stability Control (ESC) .................................5-42
Emergency towing ..........................................................6-23
EPB (Electronic Parking Brake) .....................................5-30
EV dive motor compartment ............................................7-3
EV drive motor compartment ...........................................1-6
Explanation of scheduled maintenance items .................7-11
Exterior care....................................................................7-63
Exterior overview
Front view ....................................................................1-2
Rear view......................................................................1-3
Index
D
E

I-6
If the vehicle stalls at a crossroad or crossing ..................6-2
If the vehicle stalls while driving .....................................6-2
If the vehicle will not start ................................................6-3
If you have a flat tire ......................................................6-13
If you have a flat tire while driving ..................................6-3
Immobilizer system...........................................................3-8
Important safety precautions.............................................2-2
Air bag hazards ............................................................2-2
Always wear your seat belt ..........................................2-2
Control your speed .......................................................2-3
Driver distraction..........................................................2-2
Keep your vehicle in safe condition.............................2-3
Restrain all children .....................................................2-2
In case of emergency while driving..................................6-2
Indicator light..................................................................3-53
Inside rearview mirror ....................................................3-19
Instrument cluster ...........................................................3-46
Assist mode ................................................................3-80
Gauges and meters .....................................................3-48
Instrument panel illumination ....................................3-47
LCD display control ...................................................3-78
LCD display messages ...............................................3-65
LCD display modes ....................................................3-79
Master warning mode .................................................3-81
Regenerative braking level indicator .........................3-52Shift indicator .............................................................3-52
Shift indicator pop-up ................................................3-52
Smart ECO pedal guide..............................................3-53
Trip computer mode ...................................................3-80
User settings mode .....................................................3-82
Warning and indicator lights ......................................3-53
Instrument panel fuse replacement .................................7-40
Instrument panel overview ...............................................1-5
Interior care .....................................................................7-68
Interior features
Bottle holder .............................................................3-139
Cargo area cover.......................................................3-147
Clock ........................................................................3-144
Coat hook .................................................................3-145
Cup holder ................................................................3-139
Floor mat anchor(s) ..................................................3-145
Luggage net (holder) ................................................3-146
Power outlet..............................................................3-141
Sunvisor ....................................................................3-140
USB charger .............................................................3-142
Wireless cellular phone charging system .................3-142
Interior lamp AUTO cut................................................3-107
Interior lights.................................................................3-107
Front lamps...............................................................3-107
Interior lamp AUTO cut ...........................................3-107
Luggage compartment lamp .....................................3-108
Rear lamp .................................................................3-108
Vanity mirror lamp ...................................................3-109
Interior overview...............................................................1-4
Index
I
