2021 HYUNDAI I10 ESP

2-13
02
5HFRPPHQGHG6$(YLVFRVLW\QXPEHU
&$87,21
$OZD\VEHVXUHWRFOHDQWKHDUHDDURXQGDQ\ILOOHUSOXJGUDLQSOXJRUGLS-
stick before checking or draining any lubricant. This is especially impor-
tant in dusty or sandy areas and when the vehicle is used on unpaved
roads. Cleaning the plug and dipstick areas will prevent dirt and grit from
entering the engine and other mechanisms that could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils
can provide better fuel economy and cold weather performance, however, high-
er viscosity engine oils are required for satisfactory lubrication in hot weather.
Using oils of any viscosity other than those recommended could result in engine
damage.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change.
Proceed to select the recommended oil viscosity from the chart.
7HPSHUDWXUH5DQJHIRU6$(9LVFRVLW\1XPEHUV
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Petrol Engine Oil *1
20W-50
:
:
::::
*1 : For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 0W-20 API Latest
(SN Plus). However, if the engine oil is not available in your country, select the proper engine oil using the
engine oil viscosity chart.

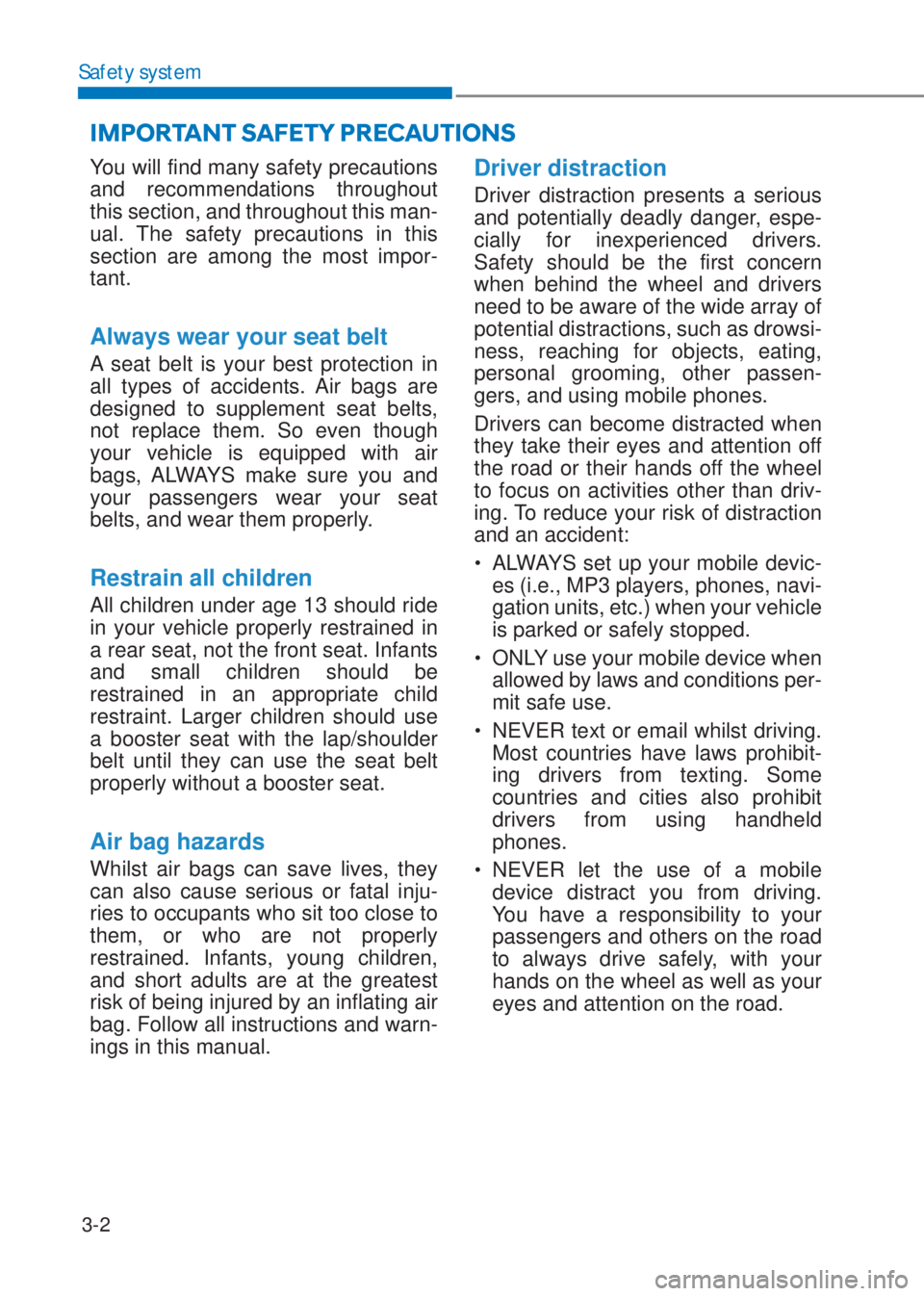

3-2
Safety system
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
and recommendations throughout
this section, and throughout this man-
ual. The safety precautions in this
section are among the most impor-
tant.
Always wear your seat belt
A seat belt is your best protection in
all types of accidents. Air bags are
designed to supplement seat belts,
not replace them. So even though
your vehicle is equipped with air
bags, ALWAYS make sure you and
your passengers wear your seat
belts, and wear them properly.
Restrain all children
All children under age 13 should ride
in your vehicle properly restrained in
a rear seat, not the front seat. Infants
and small children should be
restrained in an appropriate child
restraint. Larger children should use
a booster seat with the lap/shoulder
belt until they can use the seat belt
properly without a booster seat.
Air bag hazards
Whilst air bags can save lives, they
can also cause serious or fatal inju-
ries to occupants who sit too close to
them, or who are not properly
restrained. Infants, young children,
and short adults are at the greatest
risk of being injured by an inflating air
bag. Follow all instructions and warn-
ings in this manual.
Driver distraction
Driver distraction presents a serious
and potentially deadly danger, espe-
cially for inexperienced drivers.
Safety should be the first concern
when behind the wheel and drivers
need to be aware of the wide array of
potential distractions, such as drowsi-
ness, reaching for objects, eating,
personal grooming, other passen-
gers, and using mobile phones.
Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel
to focus on activities other than driv-
ing. To reduce your risk of distraction
and an accident:
‡ALWAYS set up your mobile devic-
es (i.e., MP3 players, phones, navi-
gation units, etc.) when your vehicle
is parked or safely stopped.
‡ONLY use your mobile device when
allowed by laws and conditions per-
mit safe use.
‡
NEVER text or email whilst driving.
Most countries have laws prohibit-
ing drivers from texting. Some
countries and cities also prohibit
drivers from using handheld
phones.
‡NEVER let the use of a mobile
device distract you from driving.
You have a responsibility to your
passengers and others on the road
to always drive safely, with your
hands on the wheel as well as your
eyes and attention on the road.

3-6
Safety system
Seat belts
Always fasten your seat belt before
starting any trip.
At all times, passengers should sit
upright and be properly restrained.
Infants and small children must be
restrained in appropriate child
restraint systems. Children who have
outgrown a booster seat and adults
must be restrained using the seat
belts.
WARNING
Take the following precautions
when adjusting your seat belt:
‡NEVER use one seat belt for
more than one occupant.
‡Always position the seatback
upright with the lap portion of
the seat belt snug and low across
the hips.
‡NEVER allow children or small
infants to ride in a passenger’s
lap.
‡Do not route the seat belt across
your neck, across sharp edges,
or reroute the shoulder strap
away from your body.
‡Do not allow the seat belt to
become caught or jammed.
Front seats
The front seat can be adjusted by
using the control lever or switches
located on the outside of the seat
cushion. Before driving, adjust the
seat to the proper position so that you
can easily control the steering wheel,
foot pedals and controls on the instru-
ment panel.
WARNING
Take the following precautions
when adjusting your seat:
‡NEVER attempt to adjust the seat
whilst the vehicle is moving. The
seat could respond with unex-
pected movement and may
cause loss of vehicle control
resulting in an accident.
‡Do not place anything under the
front seats. Loose objects in the
driver’s foot area could interfere
with the operation of the foot
pedals, causing an accident.
‡Do not allow anything to inter-
fere with the normal position and
proper locking of the seatback.
‡Do not place a cigarette lighter
on the floor or seat. When you
operate the seat, gas may exit
out of the lighter causing a fire.
‡Use extreme caution when pick-
ing small objects trapped under
the seats or between the seat
and the centre console. Your
hands might be cut or injured by
the sharp edges of the seat
mechanism.

3-12
Safety system
WARNING
Cargo
Cargo should always be secured
to prevent it from being thrown
about the vehicle in a collision and
causing injury to the vehicle occu-
pants. Do not place objects in the
rear seats, since they cannot be
properly secured and may hit the
front seat occupants in a collision.
WARNING
Cargo loading
Make sure the engine is off, the
Automated manual transmission
is in N (Neutral) or the Manual
transmission is in R (Reverse) or
1st, and the parking brake is
securely applied whenever loading
or unloading cargo. Failure to take
these steps may allow the vehicle
to move if the shift lever is inadver-
tently moved to another position.
Head restraint
The vehicle’s front and rear seats
have adjustable head restraints. The
head restraints provide comfort for
passengers, but more importantly
they are designed to help protect
passengers from whiplash and other
neck and spinal injuries during an
accident, especially in a rear impact
collision.
WARNING
To reduce the risk of serious injury
or death in an accident, take the
following precautions when adjust-
ing your head restraints:
‡Always properly adjust the head
restraints for all passengers
BEFORE starting the vehicle.

3-16
Safety system
OAI3039009
Removal and installation
To remove the head restraint :
1. Raise it as far as it can go.
2. Press the release button (1) whilst
pulling upward (2).
To reinstall the head restraint :
1. Put the head restraint poles (3) into
the holes whilst pressing the
release button (1).
2. Adjust the head restraint to the
appropriate height.
Seat warmers (if equipped)
Seat warmers are provided to warm
the seats during cold weather.
WARNING
The seat warmers can cause a
SERIOUS BURN, even at low tem-
peratures and especially if used
for long periods of time.
Passengers must be able to feel if
the seat is becoming too warm so
they can turn it off, if needed.
People who cannot detect temper-
ature change or pain to the skin
should use extreme caution, espe-
cially the following types of pas-
sengers:
‡Infants, children, elderly or dis-
abled persons, or hospital outpa-
tients.
‡People with sensitive skin or
who burn easily.
‡Fatigued individuals.
‡Intoxicated individuals.
‡People taking medication that
can cause drowsiness or sleepi-
ness.

3-20
Safety system
i Information
‡
Although the front passenger seat is
not occupied, the seat belt warning
light will blink or illuminate for 6
seconds. Also, when the front passen-
ger gets off the vehicle whilst the
warning is activating, the warning
may continue for 6 seconds even
after the passenger gets off.
‡ 7he front passenger¶s seat belt warn-
ing may operate when luggage, lap-
top or other electronic device is aced
on the front passenger seat.
Rear seat belt warning
(if equipped)
OAC3039043R
Rear left (1) and right side (3) seat
As a reminder to the rear passenger,
the rear passenger’s seat belt warn-
ing lights will illuminate for approxi-
mately 6 seconds each time you turn
the ignition switch ON regardless of
belt fastening.
If the seat belt is not fastened when
the ignition switch is turned ON, the
corresponding warning light will illu-
minate until the seat belt is fastened.If you start to drive without the seat
belt fastened or you unfasten the seat
belt when you drive under 12 mph (20
km/h), the corresponding warning
light will continue to illuminate until
you fasten the seat belt.
If you continue to drive without the
seat belt fastened or you unfasten the
seat belt when you drive 12 mph (20
km/h) and faster, the seat belt warn-
ing chime will sound for approximate-
ly 35 seconds and the corresponding
warning light will blink.
When the seat belt is unfastened dur-
ing driving, the warning lights will illu-
minate when the speed is under 12
mph (20 km/h).
When the speed is 12 mph (20 km/h)
and faster, the warning light will blink
and warning chime will sound for
approximately 35 seconds.
Rear centre seat (2)
(5 Seater, if equipped)
As a reminder to the rear passenger,
the rear passenger’s seat belt warn-
ing lights will illuminate for approxi-
mately 6 seconds each time you turn
the ignition switch ON regardless of
belt fastening.

3-21
03
Whether or not a passenger are seat-
ed :
If the seat belt is not fastened when
the ignition switch is turned ON, the
seat belt warning light will illuminate
for approximately 70 seconds.
If you start to drive without the seat
belt fastened the corresponding
warning light will continue to illumi-
nate for approximately 70 seconds
regardless of the speed.
If you unfasten the seat belt when
you drive under 12 mph (20 km/h),
the corresponding warning light will
illuminate for approximately 70 sec-
onds. If you unfasten the seat belt
when you drive over 12 mph (20
km/h), the seat belt warning chime
will sound for approximately 35 sec-
onds and the corresponding warning
light will blink.
If the rear door is opened whilst driv-
ing under 12 mph (20 km/h), warning
light and warning sound does not
work even if driving over 12 mph (20
km/h).
WARNING
Riding in an improper position
adversely affects the rear passen-
ger’s seat belt warning system. It
is important for the driver to
instruct the passenger to properly
be seated as instructed in this
manual.
i Information
‡ Although the rear side passenger
seat is not occupied, the seat belt
warning light will blink or illuminate
for 6 seconds.
‡ seat belt warning light on the centre
fascia panel.
‡ 7he rear side passenger¶s seat belt
warning may operate when luggage,
laptop or other electronic device is
placed on the rear side passenger
seat.
Seat belt restraint system
Lap/shoulder belt
ODH034055R
7o fasten your seat belt
Pull it out of the retractor and insert
the metal tab (1) into the buckle (2).
There will be an audible “click” when
the tab locks into the buckle.

3-31
03
OIB034017
Forward-facing Child Restraint
System
A forward-facing Child Restraint
System provides restraint for the
child’s body with a harness. Keep
children in a forward-facing Child
Restraint System with a harness until
they reach the top height or weight
limit allowed by your Child Restraint
System’s manufacturer.
Once your child outgrows the for-
ward-facing Child Restraint System,
your child is ready for a booster seat.
Booster seats
A booster seat is Child Restraint
System designed to improve the fit of
the vehicle’s seat belt system. A
booster seat positions the seat belt
so that it fits properly over the stron-
ger parts of your child’s body. Keep
your children in booster seats until
they are big enough to fit in a seat
belt properly.
For a seat belt to fit properly, the lap
belt must lie comfortable across the
upper thighs, not the stomach. The
shoulder belt should lie comfortable
across the shoulder and chest and
not across the neck or face. Children
under age 13 must always be prop-
erly restrained to minimise the risk of
injury in an accident, sudden stop or
sudden manoeuvre.
Installing a Child Restraint
System (CRS)
WARNING
Before installing your Child
Restraint System always:
Read and follow the instructions
provided by the manufacturer of
the Child Restraint System.
Failure to follow all warnings and
instructions could increase the
risk of the SERIOUS INJURY or
DEATH if an accident occurs.
WARNING
If the vehicle head restraint pre-
vents proper installation of a Child
Restraint System, the head
restraint of the respective seating
position shall be readjusted or
entirely removed.
After selecting a proper Child
Restraint System and checking that
the Child Restraint System fits prop-
erly in the rear of this vehicle, you are
ready to install the Child Restraint
System according to the manufactur-
er’s instruction. There are three gen-
eral steps in installing the Child
Restraint Systems properly:
‡Properly secure the Child
Restraint System to the vehicle.
All Child Restraint System must be
secured to the vehicle with the lap
belt or lap part of a lap/shoulder belt
or with the ISOFIX top-tether and/or
ISOFIX anchorage.
