2021 HYUNDAI I10 ABS

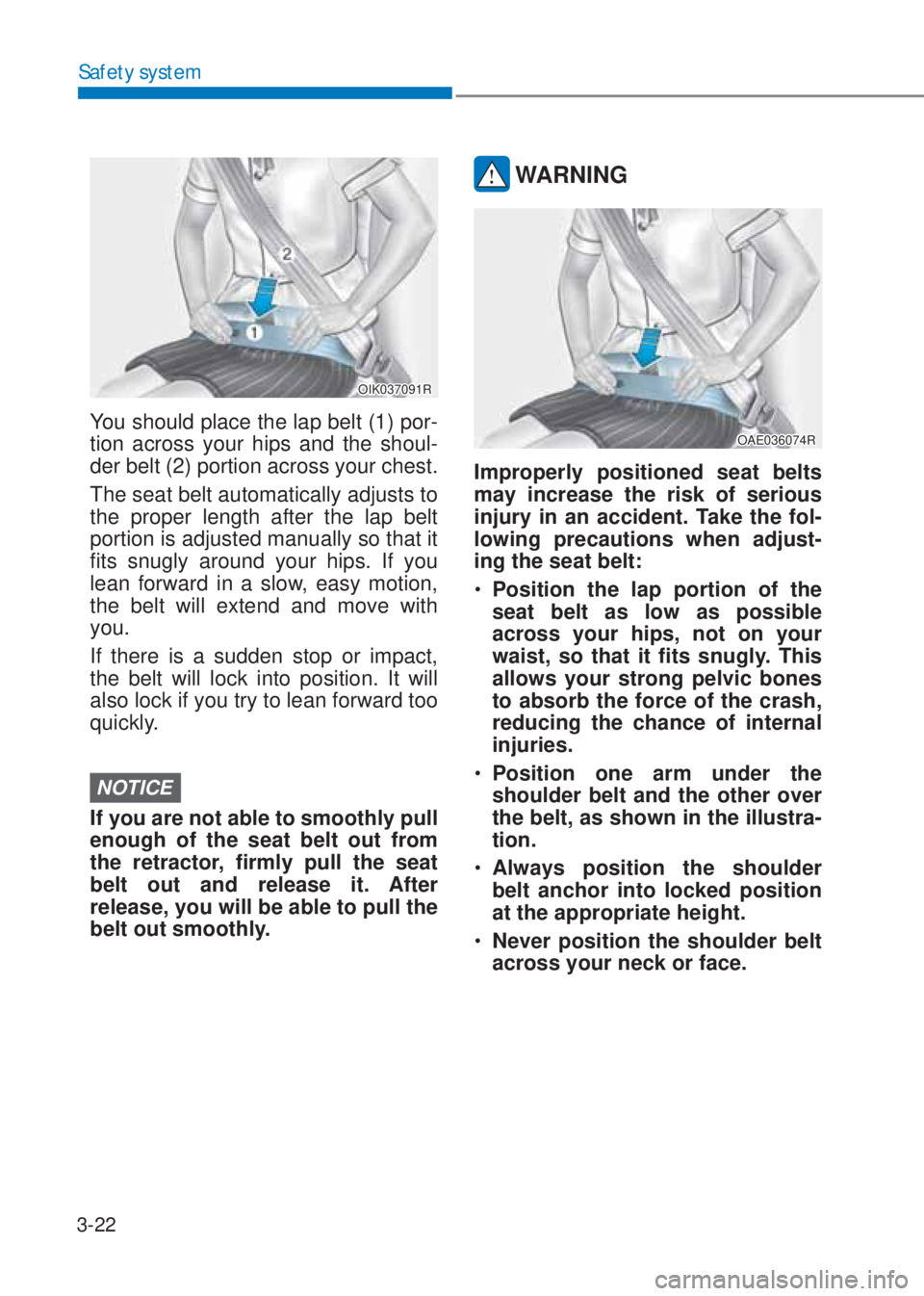

3-22
Safety system
OIK037091R
You should place the lap belt (1) por-
tion across your hips and the shoul-
der belt (2) portion across your chest.
The seat belt automatically adjusts to
the proper length after the lap belt
portion is adjusted manually so that it
fits snugly around your hips. If you
lean forward in a slow, easy motion,
the belt will extend and move with
you.
If there is a sudden stop or impact,
the belt will lock into position. It will
also lock if you try to lean forward too
quickly.
NOTICE
If you are not able to smoothly pull
enough of the seat belt out from
the retractor, firmly pull the seat
belt out and release it. After
release, you will be able to pull the
belt out smoothly.
WARNING
OAE036074R
Improperly positioned seat belts
may increase the risk of serious
injury in an accident. Take the fol-
lowing precautions when adjust-
ing the seat belt:
‡Position the lap portion of the
seat belt as low as possible
across your hips, not on your
waist, so that it fits snugly. This
allows your strong pelvic bones
to absorb the force of the crash,
reducing the chance of internal
injuries.
‡Position one arm under the
shoulder belt and the other over
the belt, as shown in the illustra-
tion.
‡Always position the shoulder
belt anchor into locked position
at the appropriate height.
‡Never position the shoulder belt
across your neck or face.

3-52
Safety system
Why didn’t my air bag go off in
a collision?
There are certain types of accidents
in which the air bag would not be
expected to provide additional pro-
tection. These include rear impacts,
second or third collisions in multiple
impact accidents, as well as low
speed impacts. Damage to the vehi-
cle indicates a collision energy
absorption, and is not an indicator of
whether or not an air bag should have
inflated.
Air bag collision sensors
WARNING
To reduce the risk of an air bag
deploying unexpectedly and caus-
ing serious injury or death:
‡Do not hit or allow any objects to
impact the locations where air
bags or sensors are installed.
‡Do not perform maintenance on
or around the air bag sensors. If
the location or angle of the sen-
sors is altered, the air bags may
deploy when they should not or
may not deploy when they
should.
‡Do not install bumper guards or
replace the bumper with a non-
genuine part. This may adversely
affect the collision and air bag
deployment performance.
‡Place the ignition switch to the
LOCK/OFF or ACC position,
when the vehicle is being towed
to prevent inadvertent air bag
deployment.
‡We recommend that all air bag
repairs are conducted by a
HYUNDAI authorised repairer.

3-56
Safety system
OAC3039033TU
Just before impact, drivers often
brake heavily. Such heavy braking
lowers the front portion of the vehicle
causing it to “ride” under a vehicle
with a higher ground clearance. Air
bags may not inflate in this “under-
ride” situation because deceleration
forces that are detected by sensors
may be significantly reduced by such
“underride” collisions.
OHI038166
Front air bags may not inflate in roll-
over accidents because front air bag
deployment would not provide addi-
tional occupant protection.
i Information
‡ 9ehicles equipped with rollover sen-
sor
7he side and curtain air bags may
inflate in a rollover situation, when it
is detected by the rollover sensor.
‡ 9ehicles not equipped with rollover
sensor
7he side and/or curtain air bags may
inflate when the vehicle is rolled over
by a side impact collision, if the vehi-
cle is equipped with side and/or cur-
tain air bags.
OAC3039034TU
Air bags may not inflate if the vehicle
collides with objects such as utility
poles or trees, where the point of
impact is concentrated and the colli-
sion energy is absorbed by the vehi-
cle structure.

4-10
Instrument cluster
Anti-lock Brake
System (ABS) Warning
Light
7his warning light illuminates
‡When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- It illuminates for approximately 3
seconds and then goes off.
‡When there is a malfunction with
the ABS (The normal braking sys-
tem will still be operational without
the assistance of the anti-lock brake
system).
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
Electronic Brake Force
Distribution (EBD)
System Warning Light
7hese two warning lights illuminate
at the same time whilst driving
‡When the ABS and regular brake
system may not work normally.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
WARNING
Electronic Brake Force
Distribution (EBD) System
Warning Light
When both ABS and Parking Brake
& Brake Fluid Warning Lights are
on, the brake system will not work
normally and you may experience
an unexpected and dangerous sit-
uation during sudden braking.
In this case, avoid high speed driv-
ing and abrupt braking.
We recommend you have the vehi-
cle inspected by a HYUNDAI autho-
rised repairer as soon as possible.
i Information
- Electronic Brake Force
Distribution (EBD) System
Warning Light
When the ABS Warning Light is on or
both ABS and Parking Brake Brake
Fluid Warning Lights are on, the
speedometer, odometer, or tripmeter
may not work. Also, the (PS Warning
Light may illuminate and the steering
effort may increase or decrease.
In this case, we recommend you have
the vehicle inspected by a +<81'AI
authorised repairer as soon as possible.

Before driving ......................................................................................................6-5
Before entering the vehicle ...........................................................................6-5
Before starting ................................................................................................6-5
Ignition switch..................................................................................................... 6-7
Key ignition switch
......................................................................................... 6-7
Engine Start/Stop button ............................................................................. 6-10
Manual transmission
........................................................................................ 6-15
Manual transmission operation ................................................................... 6-15
Good driving practices ..................................................................................6-17
Automated manual transmission (AMT)
......................................................... 6-18
Automated Manual Transmission (AMT) operation .................................... 6-19
Features of the Automated Manual Transmission (AMT) .......................... 6-19
LCD display for transmission temperature and warning message ............ 6-23
Transmission ranges ......................................................................................6-28
Parking ........................................................................................................... 6-31
Good driving practices ................................................................................. 6-31
Braking system
..................................................................................................6-33
Power brakes ................................................................................................6-33
Disc brakes wear indicator ...........................................................................6-33
Rear drum brakes ..........................................................................................6-34
Parking brake ................................................................................................6-34
Anti-lock Brake System (ABS) .......................................................................6-35
Electronic Stability Control (ESC)................................................................. 6-37
Vehicle Stability Management (VSM) ......................................................... 6-40
Hill-Start Assist Control (HAC) ...................................................................... 6-41
Emergency Stop Signal (ESS) ...................................................................... 6-42
Good braking practices ............................................................................... 6-42
ISG (Idle Stop and Go) system
........................................................................ 6-44
To activate the ISG system ........................................................................... 6-44
To deactivate the ISG system ......................................................................6-47
ISG system malfunction ................................................................................6-47
The battery sensor deactivation .................................................................. 6-48
6. Whilst driving
6

6-35
06
Parking brake warning light
 &KHFN WKH 3DUNLQJ %UDNH
Warning Light by placing
the ignition switch to the
ON position (do not start
the engine).
This light will be illuminated when the
parking brake is applied with the igni-
tion switch in the START or ON posi-
tion.
%HIRUH GULYLQJ EH VXUH WKH SDUNLQJ
EUDNH LV UHOHDVHG DQG WKH %UDNH
Warning Light is OFF.
,I WKH 3DUNLQJ %UDNH :DUQLQJ /LJKW
remains on after the parking brake is
released whilst the engine is running,
there may be a malfunction in the
brake system. Immediate attention is
necessary.
If at all possible, cease driving the
vehicle immediately. If that is not pos-
sible, use extreme caution whilst
operating the vehicle and only con-
tinue to drive the vehicle until you can
reach a safe location.
Anti-lock Brake System (ABS)
WARNING
$Q $QWL/RFN %UDNLQJ 6\VWHP
(ABS) or an Electronic Stability
Control (ESC) system will not pre-
vent accidents due to improper or
dangerous driving manoeuvres.
Even though vehicle control is
improved during emergency brak-
ing, always maintain a safe dis-
tance between you and objects
ahead of you. Vehicle speeds
should always be reduced during
extreme road conditions. The brak-
ing distance for vehicles equipped
with ABS or ESC may be longer
than for those without these sys-
tems in the following road condi-
tions.
Drive your vehicle at reduced
speeds during the following condi-
tions:

6-36
Whilst driving
Using ABS
To obtain the maximum benefit from
\RXU$%6 LQ DQ HPHUJHQF\ VLWXDWLRQ
do not attempt to modulate your
brake pressure and do not try to
pump your brakes. Depress your
brake pedal as hard as possible.
When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the
brakes, or feel a corresponding sen-
sation in the brake pedal. This is nor-
PDODQGLWPHDQV\RXU$%6LVDFWLYH
$%6GRHVQRWUHGXFHWKHWLPHRUGLV-
tance it takes to stop the vehicle.
Always maintain a safe distance from
the vehicle in front of you.
$%6ZLOOQRWSUHYHQWDVNLGWKDWUHVXOWV
from sudden changes in direction,
such as trying to take a corner too
fast or making a sudden lane change.
Always drive at a safe speed for the
road and weather conditions.
$%6 FDQQRW SUHYHQW D ORVV RI VWDELOL-
ty. Always steer moderately when
braking hard. Severe or sharp steer-
ing wheel movement can still cause
your vehicle to veer into oncoming
traffic or off the road.
On loose or uneven road surfaces,
operation of the anti-lock brake sys-
tem may result in a longer stopping
distance than for vehicles equipped
with a conventional brake system.
7KH$%6ZDUQLQJOLJKW
) will stay
on for several seconds after the igni-
tion switch is in the ON position.
'XULQJ WKDW WLPH WKH $%6 ZLOO JR
through self-diagnosis and the light
will go off if everything is normal. If
the light stays on, you may have a
SUREOHP ZLWK \RXU $%6 :H UHFRP-
mend that you contact a HYUNDAI
authorised repairer as soon as pos-
sible.
WARNING
If the ABS warning light () is on
and stays on, you may have a
problem with the ABS. Your power
brakes will work normally. To
reduce the risk of serious injury or
death, we recommend that you
contact a HYUNDAI authorised
repairer as soon as possible.
NOTICE
When you drive on a road having
poor traction, such as an icy road,
and apply your brakes continuous-
ly, the ABS will be active continu-
ously and the ABS warning light
(
) may illuminate. Pull your
vehicle over to a safe place and
turn the engine off.
Restart the engine. If the ABS
warning light is off, then your ABS
system is normal.
Otherwise, you may have a prob-
lem with your ABS system. We rec-
ommend that you contact a
HYUNDAI authorised repairer as
soon as possible.
i Information
When you jump start your vehicle
because of a drained battery, the ABS
warning light (
) may turn on at the
same time. 7his happens because of the
low battery voltage. It does not mean
your ABS is malfunctioning. +ave the
battery recharged before driving the
vehicle.

6-44
Whilst driving
The ISG system is to reduce the fuel
consumption by automatically shut-
ting down the engine, when the vehi-
cle is at a standstill (i.e. red stop light,
VWRSVLJQDQGWUDIILFMDP
The engine is automatically started
upon satisfying the starting condi-
tions.
The ISG system is always active,
when the engine is running.
i Information
When the engine is automatically
started by the IS* system, some warn-
ing lights (i.e. ABS, ESC, ESC 2FF,
EPS, and parking brake warning light)
may illuminate for a few seconds due
to the low battery voltage. +owever, it
does not indicate a malfunction with
the IS* system.
To activate the ISG system
Prerequisite for activation
The ISG system operates in the fol-
lowing situations.
‡ 7KHGULYHU‹VVHDWEHOWLVIDVWHQHG
