9
Tires and Wheels ............................................................................................. 9-30Tire Care .....................................................................................................................9-30
Recommended Cold Tire Inflation Pressures .......................................................... 9-30
Check Tire Inflation Pressure ..................................................................................... 9-31
Tire Rotation ............................................................................................................... 9-32
Wheel Alignment and Tire Balance ...........................................................................9-33
Tire Replacement .......................................................................................................9-33
Wheel Replacement ...................................................................................................9-34
Tire Traction ................................................................................................................9-34
Tire Maintenance........................................................................................................9-34
Tire Sidewall Labeling ................................................................................................9-35
Tire Terminology and Definitions ............................................................................. 9-38
All Season Tires ........................................................................................................... 9-41
Summer Tires ............................................................................................................. 9-41
Snow Tires.................................................................................................................. 9-42
Radial-Ply Tires .......................................................................................................... 9-42
Low Aspect Ratio Tires .............................................................................................. 9-43
Fuses ................................................................................................................ 9-44
Instrument Panel Fuse Replacement ....................................................................... 9-45
Engine Compartment Panel Fuse Replacement ..................................................... 9-46
Fuse/Relay Panel Description....................................................................................9-47
Light Bulbs .......................................................................................................9-60Headlamp, Position Lamp, Turn Signal Lamp, Daytime Running Light (DRL)
Replacement .............................................................................................................. 9-61
Puddle Lamp Replacement ...................................................................................... 9-62
Rear Combination Lamp Replacement ................................................................... 9-62
High Mounted Stop Lamp Replacement ................................................................. 9-63
License Plate Lamp Replacement ............................................................................ 9-63
Interior Light Replacement ....................................................................................... 9-63
Appearance Care ............................................................................................ 9-65
Exterior Care .............................................................................................................. 9-65
Interior Care ................................................................................................................9-7 0
Emission Control System ................................................................................ 9-73
California Perchlorate Notice ..........................................................................9-75

09
9-47
Fuse/Relay Panel Description
Instrument panel fuse panel
OJK090014OJK090014
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
OJK091054N

Maintenance
9-48

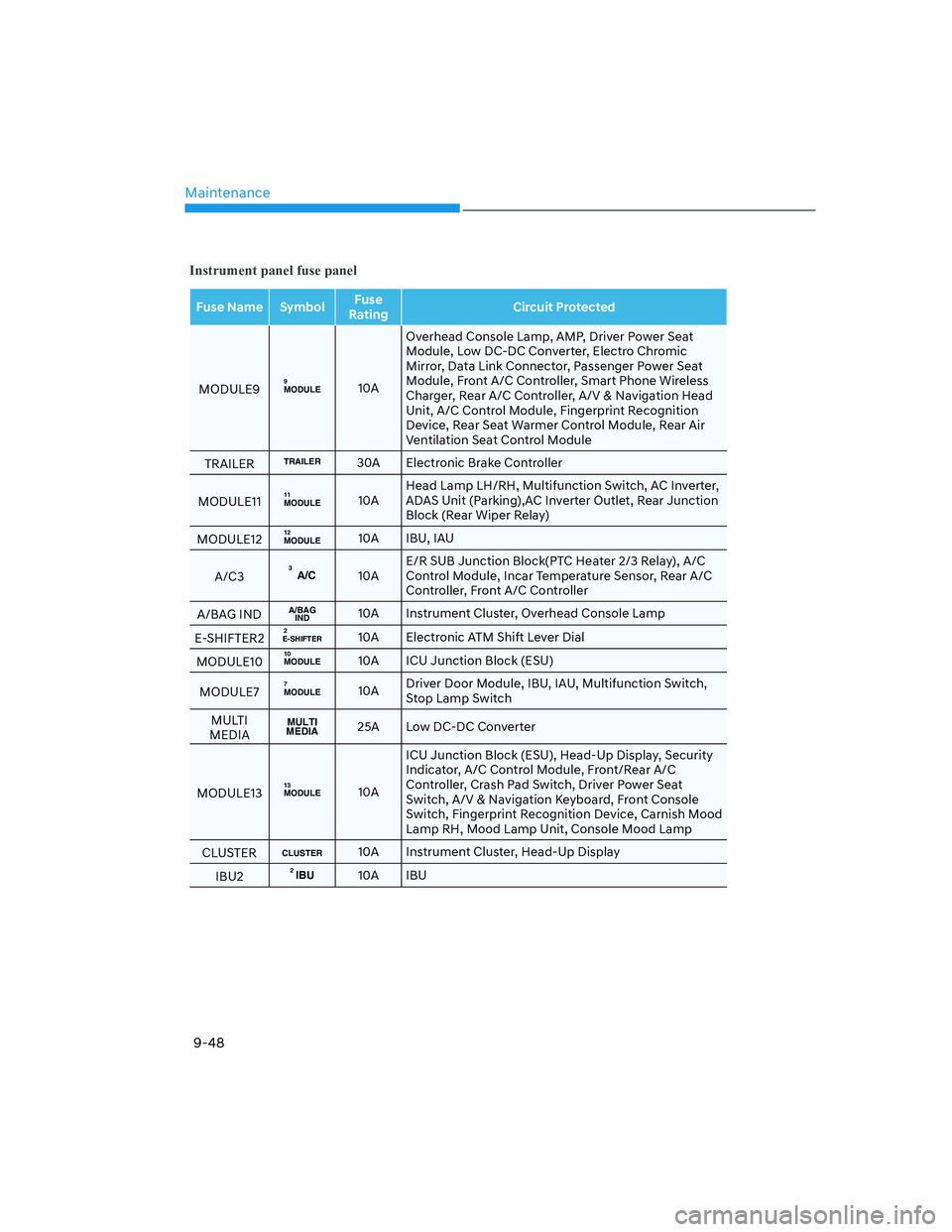

Instrument panel fuse panel
Fuse Name SymbolFuse
RatingCircuit Protected
MODULE9MODULE910AOverhead Console Lamp, AMP, Driver Power Seat
Module, Low DC-DC Converter, Electro Chromic
Mirror, Data Link Connector, Passenger Power Seat
Module, Front A/C Controller, Smart Phone Wireless
Charger, Rear A/C Controller, A/V & Navigation Head
Unit, A/C Control Module, Fingerprint Recognition
Device, Rear Seat Warmer Control Module, Rear Air
Ventilation Seat Control Module
TRAILER
TRAILER30A Electronic Brake Controller
MODULE11
MODULE1110AHead Lamp LH/RH, Multifunction Switch, AC Inverter,
ADAS Unit (Parking),AC Inverter Outlet, Rear Junction
Block (Rear Wiper Relay)
MODULE12
MODULE1210A IBU, IAU
A/C3
A/C310AE/R SUB Junction Block(PTC Heater 2/3 Relay), A/C
Control Module, Incar Temperature Sensor, Rear A/C
Controller, Front A/C Controller
A/BAG IND
A/BAG
IND10A Instrument Cluster, Overhead Console Lamp
E-SHIFTER2
E-SHIFTER210A Electronic ATM Shift Lever Dial
MODULE10
MODULE1010A ICU Junction Block (ESU)
MODULE7
MODULE710ADriver Door Module, IBU, IAU, Multifunction Switch,
Stop Lamp Switch
MULTI
MEDIA
MULTI
MEDIA25A Low DC-DC Converter
MODULE13
MODULE1310AICU Junction Block (ESU), Head-Up Display, Security
Indicator, A/C Control Module, Front/Rear A/C
Controller, Crash Pad Switch, Driver Power Seat
Switch, A/V & Navigation Keyboard, Front Console
Switch, Fingerprint Recognition Device, Carnish Mood
Lamp RH, Mood Lamp Unit, Console Mood Lamp
CLUSTER
CLUSTER10A Instrument Cluster, Head-Up Display
IBU2
IBU210A IBU

Maintenance
9-50
Instrument panel fuse panel
Fuse Name SymbolFuse
RatingCircuit Protected
SUNROOFSUNROOF25A Sunroof Control Unit (Master)
P/SEAT
DRV1
P/SEAT
DRV125A[With IMS] Driver Power Seat Module
[W/O IMS] Driver Power Seat Switch
ECS
ECS15A ECS Unit
POWER
HANDLE
POWER
HANDLE15A Steering Tilt & Telescopic Unit
IBU1
IBU110AIBU, IAU, BLE Unit, Driver/Passenger Door Outside
Handle
MODULE14
MODULE1410AFront Corner Radar LH/RH, Rear Corner Radar LH/
RH, Head-Up Display, Smart Phone Wireless Charger,
Instrument Cluster, Front A/C Controller, Front
Console Keyboard, Rear A/C Controller
P/SEAT
DRV2
P/SEAT
DRV225A[With IMS] Driver Power Seat Module
[W/O IMS] Driver Power Seat Switch
P/SEAT
PASS1
P/SEAT
PASS1125A[With Walk In] Passenger Power Seat Module
[W/O Walk In] Passenger Power Seat Switch
S/HEATER
DRV
S/HEATER
DRV15A Driver Power Seat Module
S/HEATER
PASS1
S/HEATER
PASS115A Passenger Power Seat Module
DOOR
LOCK
DOOR
LOCK20ACenter Door Lock Relay, Center Door Unlock Relay, T/
Turn Unlock Relay
MODULE6
MODULE610AArmrest Lamp, IBU, IAU, Low DC-DC Converter, Rear
USB Charger, Electronic ATM Shift Lever Dial, E/R Sub
Junction Block (Power Outlet Relay)
BRAKE
SWITCH
BRAKE
SWITCH10A Stop Lamp Switch, IBU

09
9-51
Engine compartment fuse panel
(Engine room junction block)
OJX1099021OJX1099021
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJK091055N

Maintenance
9-52
Engine compartment fuse panel (Engine room junction block)
Type Fuse Name SymbolFuse
RatingCircuit Protected
MINEMDPS1
1MDPS100A MDPS Unit
ALT
ALT225A Alternator
MULTIE-CVVT1
E-CVVT140A [G4KR] E-CVVT Relay
OIL PUMP
OIL
PUMP50A Electronic Oil Pump
COOLING
FAN
COOLING
FAN100A Cooling Fan Motor
SBHEAD
LAMP LH
HEAD
LAMP
LH30A Head Lamp LH
START
START30A Start Relay
HEAD
LAMP RH
HEAD
LAMP
RH30A Head Lamp RH
MICROFUEL PUMP
FUEL
PUMP20A Fuel Pump Relay
4WD
4WD20A AWD ECU
ECU1
1ECU15A ECM
TCU1
1TCU20A TCM
HORN
HORN15A PCB Block (Horn Relay)
A/C1
A/C115A A/C Relay
E-CVVT2
E-CVVT220A [G4KR] ECM
E-CVVT3
E-CVVT320A [G4KR] ECM

09
9-53

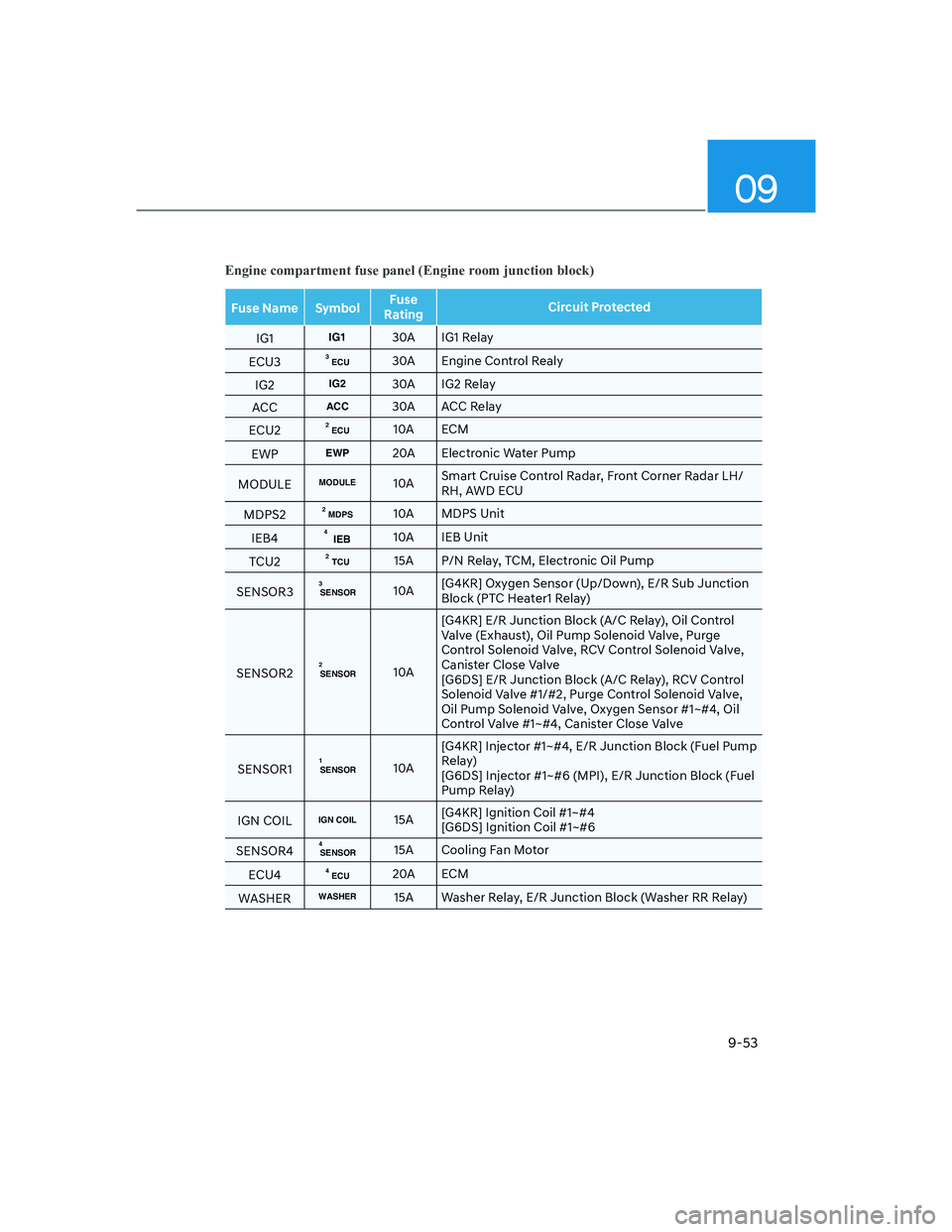

Engine compartment fuse panel (Engine room junction block)
Fuse Name SymbolFuse
RatingCircuit Protected
IG1IG130A IG1 Relay
ECU3
ECU330A Engine Control Realy
IG2
IG230A IG2 Relay
ACC
ACC30A ACC Relay
ECU2
ECU210A ECM
EWP
EWP20A Electronic Water Pump
MODULE
MODULE10ASmart Cruise Control Radar, Front Corner Radar LH/
RH, AWD ECU
MDPS2
MDPS210A MDPS Unit
IEB4
IEB410A IEB Unit
TCU2
TCU215A P/N Relay, TCM, Electronic Oil Pump
SENSOR3
SENSOR310A[G4KR] Oxygen Sensor (Up/Down), E/R Sub Junction
Block (PTC Heater1 Relay)
SENSOR2
SENSOR210A[G4KR] E/R Junction Block (A/C Relay), Oil Control
Valve (Exhaust), Oil Pump Solenoid Valve, Purge
Control Solenoid Valve, RCV Control Solenoid Valve,
Canister Close Valve
[G6DS] E/R Junction Block (A/C Relay), RCV Control
Solenoid Valve #1/#2, Purge Control Solenoid Valve,
Oil Pump Solenoid Valve, Oxygen Sensor #1~#4, Oil
Control Valve #1~#4, Canister Close Valve
SENSOR1
1SENSOR10A[G4KR] Injector #1~#4, E/R Junction Block (Fuel Pump
Relay)
[G6DS] Injector #1~#6 (MPI), E/R Junction Block (Fuel
Pump Relay)
IGN COIL
IGN COIL15A[G4KR] Ignition Coil #1~#4
[G6DS] Ignition Coil #1~#6
SENSOR4
SENSOR415A Cooling Fan Motor
ECU4
ECU420A ECM
WASHER
WASHER15A Washer Relay, E/R Junction Block (Washer RR Relay)

Maintenance
9-54
Engine compartment fuse panel
(Engine room sub junction block)
OJK090036OJK090036
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJK091056NOJK091056N
