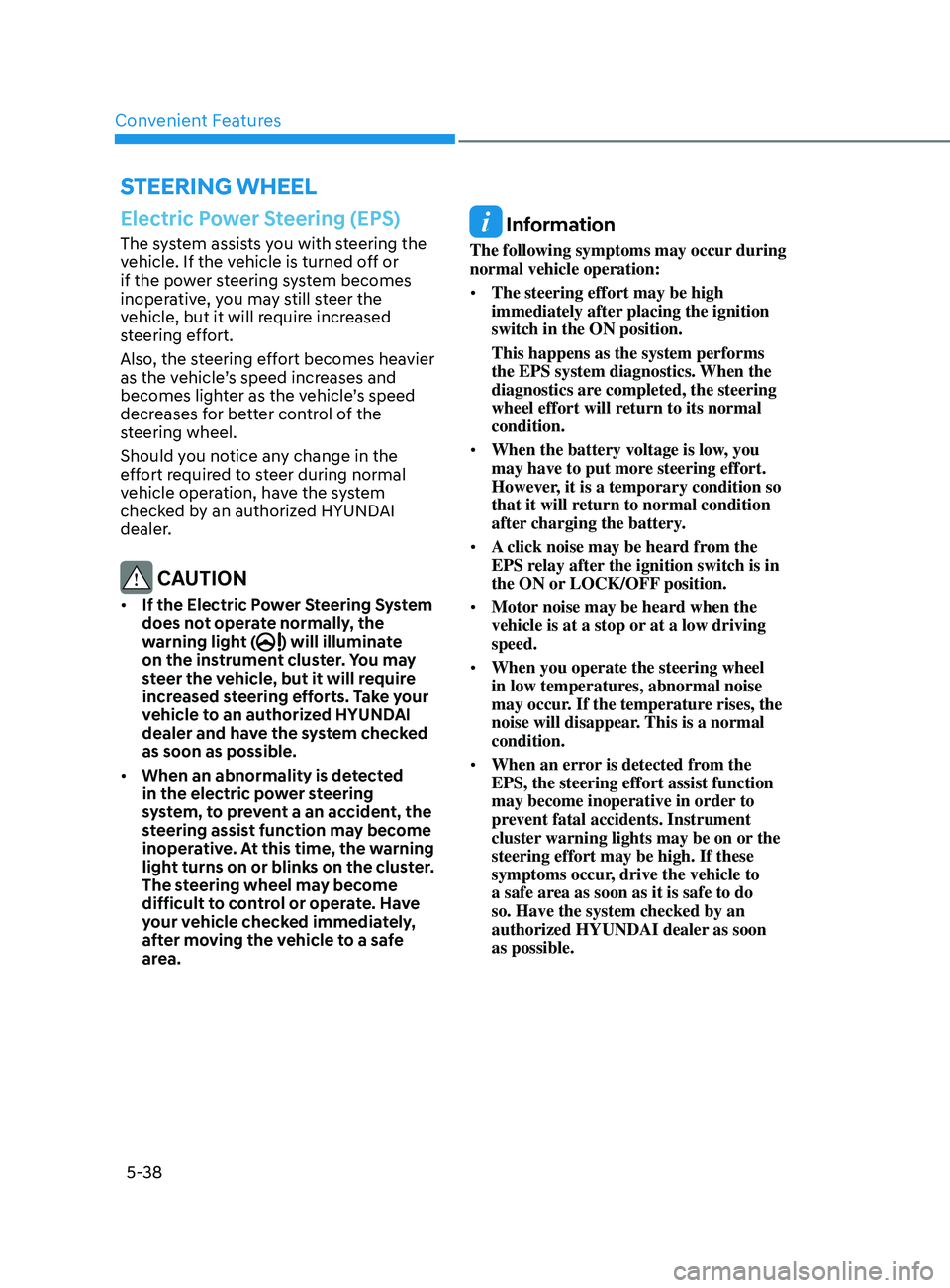

Convenient Features5-38
steering Wheel
Electric Power Steering (EPS)
The system assists you with steering the
vehicle. If the vehicle is turned off or
if the power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
Also, the steering effort becomes heavier
as the vehicle’s speed increases and
becomes lighter as the vehicle’s speed
decreases for better control of the
steering wheel.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the system
checked by an authorized HYUNDAI
dealer.
CAUTION
• If the Electric Power Steering System
does not operate normally, the
warning light (
) will illuminate
on the instrument cluster. You may
steer the vehicle, but it will require
increased steering efforts. Take your
vehicle to an authorized HYUNDAI
dealer and have the system checked
as soon as possible.
• When an abnormality is detected
in the electric power steering
system, to prevent a an accident, the
steering assist function may become
inoperative. At this time, the warning
light turns on or blinks on the cluster.
The steering wheel may become
difficult to control or operate. Have
your vehicle checked immediately,
after moving the vehicle to a safe
area.
Information
The following symptoms may occur during
normal vehicle operation:
• The steering effort may be high
immediately after placing the ignition
switch in the ON position.
This happens as the system performs
the EPS system diagnostics. When the
diagnostics are completed, the steering
wheel effort will return to its normal
condition.
• When the battery voltage is low, you
may have to put more steering effort.
However, it is a temporary condition so
that it will return to normal condition
after charging the battery.
• A click noise may be heard from the
EPS relay after the ignition switch is in
the ON or LOCK/OFF position.
• Motor noise may be heard when the
vehicle is at a stop or at a low driving
speed.
• When you operate the steering wheel
in low temperatures, abnormal noise
may occur. If the temperature rises, the
noise will disappear. This is a normal
condition.
• When an error is detected from the
EPS, the steering effort assist function
may become inoperative in order to
prevent fatal accidents. Instrument
cluster warning lights may be on or the
steering effort may be high. If these
symptoms occur, drive the vehicle to
a safe area as soon as it is safe to do
so. Have the system checked by an
authorized HYUNDAI dealer as soon
as possible.

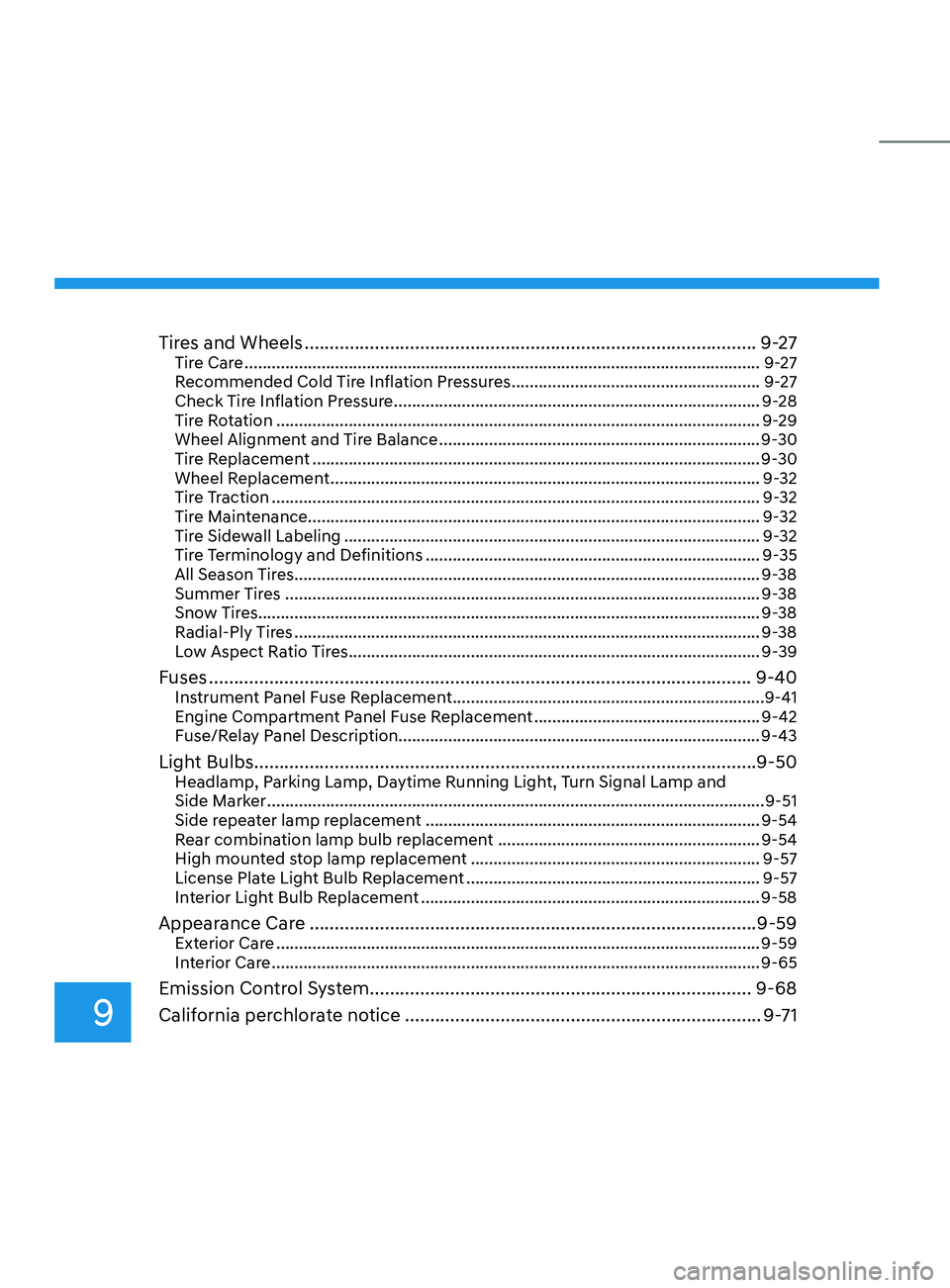

Tires and Wheels ........................................................................\
..................9-27Tire Care ........................................................................\
.......................................... 9-27
R ecommended Cold Tire Inflation Pressures ....................................................... 9-
27
Check Tire Inflation Pressure
........................................................................\
......... 9-

28
Tire Rotation
........................................................................\
................................... 9-

29
Wheel Alignment and Tire Balance
....................................................................... 9-30
Tir

e Replacement
........................................................................\
........................... 9-

30
Wheel Replacement
........................................................................\
....................... 9-

32
Tire Traction
........................................................................\
.................................... 9-

32
Tire Maintenance........................................................................\
............................ 9-32
Tire Sidewall Labeling
........................................................................\
.................... 9-

32
Tire Terminology and Definitions
........................................................................\
.. 9-35
All Season Tir

es
........................................................................\
............................... 9-

38
Summer Tires
........................................................................\
................................. 9-

38
Snow Tires........................................................................\
....................................... 9-38
Radial-Ply Tires
........................................................................\
............................... 9-

38
Low Aspect Ratio Tires
........................................................................\
................... 9-

39
Fuses ........................................................................\
....................................9-40Instrument Panel Fuse Replacement .....................................................................9-41
E ngine Compartment Panel Fuse Replacement .................................................. 9-42
F
use/Relay Panel Description........................................................................\
........ 9-43
Light Bulbs ........................................................................\
............................ 9-50Headlamp, Parking Lamp, Daytime Running Light, Turn Signal Lamp and
Side Marker ........................................................................\
.....................................
.9-51
Side repeater lamp replacement
........................................................................\
.. 9-54
Rear combina

tion lamp bulb replacement
.......................................................... 9-54
High moun

ted stop lamp replacement
................................................................ 9-57
License Pla

te Light Bulb Replacement
................................................................. 9-57
Int

erior Light Bulb Replacement
........................................................................\
... 9-58
Appearance Care ........................................................................\
................. 9-59Exterior Care ........................................................................\
................................... 9-59
Int erior Care ........................................................................\
.................................... 9-65
Emission Control System ........................................................................\
....9-68
California per chlorate notice
....................................................................... 9-719

9-3
09
Tires and Wheels ........................................................................\
..................9-27Tire Care ........................................................................\
.......................................... 9-27
Recommended Cold Tire Inflation Pressures ....................................................... 9-27
Check Tire Inflation Pressure ........................................................................\
......... 9-28
Tire Rotation ........................................................................\
................................... 9-29
Wheel Alignment and Tire Balance ....................................................................... 9-30
Tire Replacement ........................................................................\
........................... 9-30
Wheel Replacement ........................................................................\
....................... 9-32
Tire Traction ........................................................................\
.................................... 9-32
Tire Maintenance........................................................................\
............................ 9-32
Tire Sidewall Labeling ........................................................................\
.................... 9-32
Tire Terminology and Definitions ........................................................................\
.. 9-35
All Season Tires ........................................................................\
............................... 9-38
Summer Tires ........................................................................\
................................. 9-38
Snow Tires........................................................................\
....................................... 9-38
Radial-Ply Tires ........................................................................\
............................... 9-38
Low Aspect Ratio Tires ........................................................................\
................... 9-39
Fuses ........................................................................\
....................................9-40Instrument Panel Fuse Replacement ..................................................................... 9-41
Engine Compartment Panel Fuse Replacement .................................................. 9-42
Fuse/Relay Panel Description........................................................................\
........ 9-43
Light Bulbs ........................................................................\
............................ 9-50Headlamp, Parking Lamp, Daytime Running Light, Turn Signal Lamp and
Side Marker ........................................................................\
...................................... 9-51
Side repeater lamp replacement ........................................................................\
.. 9-54
Rear combination lamp bulb replacement .......................................................... 9-54
High mounted stop lamp replacement ................................................................ 9-57
License Plate Light Bulb Replacement ................................................................. 9-57
Interior Light Bulb Replacement ........................................................................\
... 9-58
Appearance Care ........................................................................\
................. 9-59Exterior Care ........................................................................\
................................... 9-59
Interior Care ........................................................................\
.................................... 9-65
Emission Control System ........................................................................\
.... 9-68
California perchlorate notice ....................................................................... 9-71

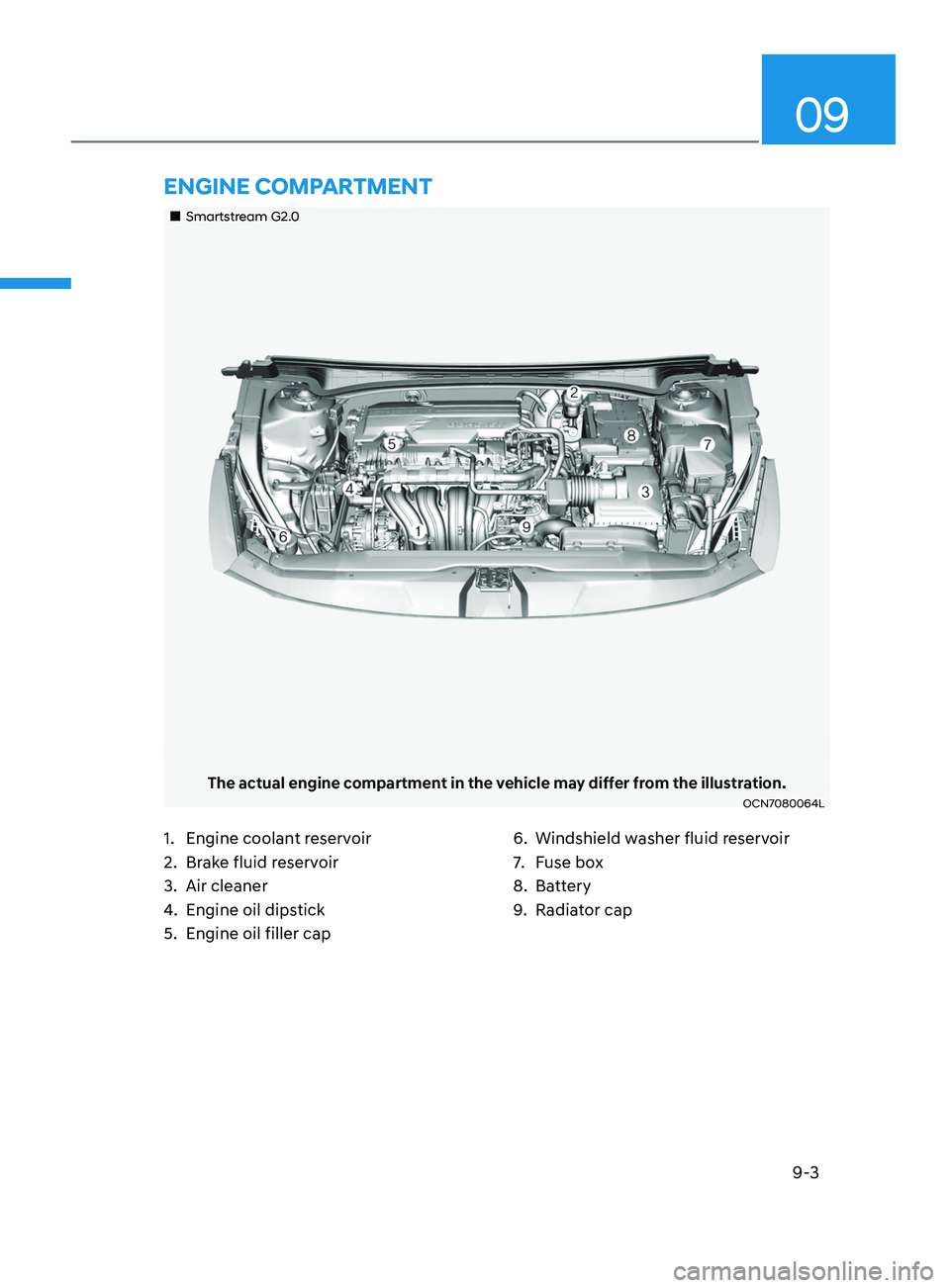

1. Engine coolant reservoir
2.
Brak
e fluid reservoir
3.
Air cleaner
4.
Engine oil dips

tick
5.
Engine oil filler cap 6.
Windshield washer fluid r
eservoir
7.
Fuse bo

x
8.
Batt

ery
9.
Radiat

or cap
EnginE CompartmEnt
„„Smartstream G2.0
The actual engine compartment in the vehicle may differ from the illustration.OCN7080064L

09
9-43
OCN7090013N

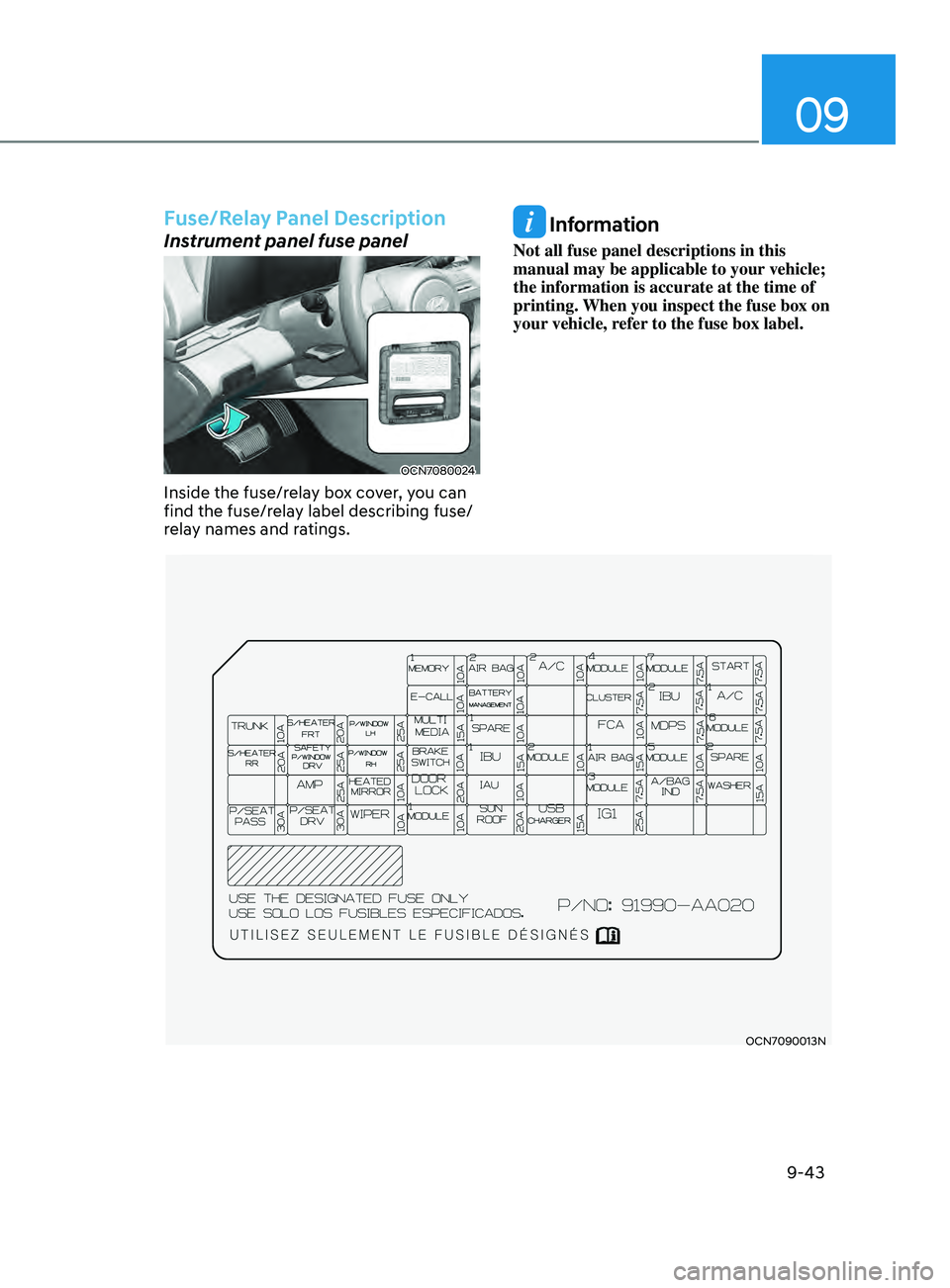

Fuse/Relay Panel Description
Instrument panel fuse panel
OCN7080024
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.

Maintenance
9-44

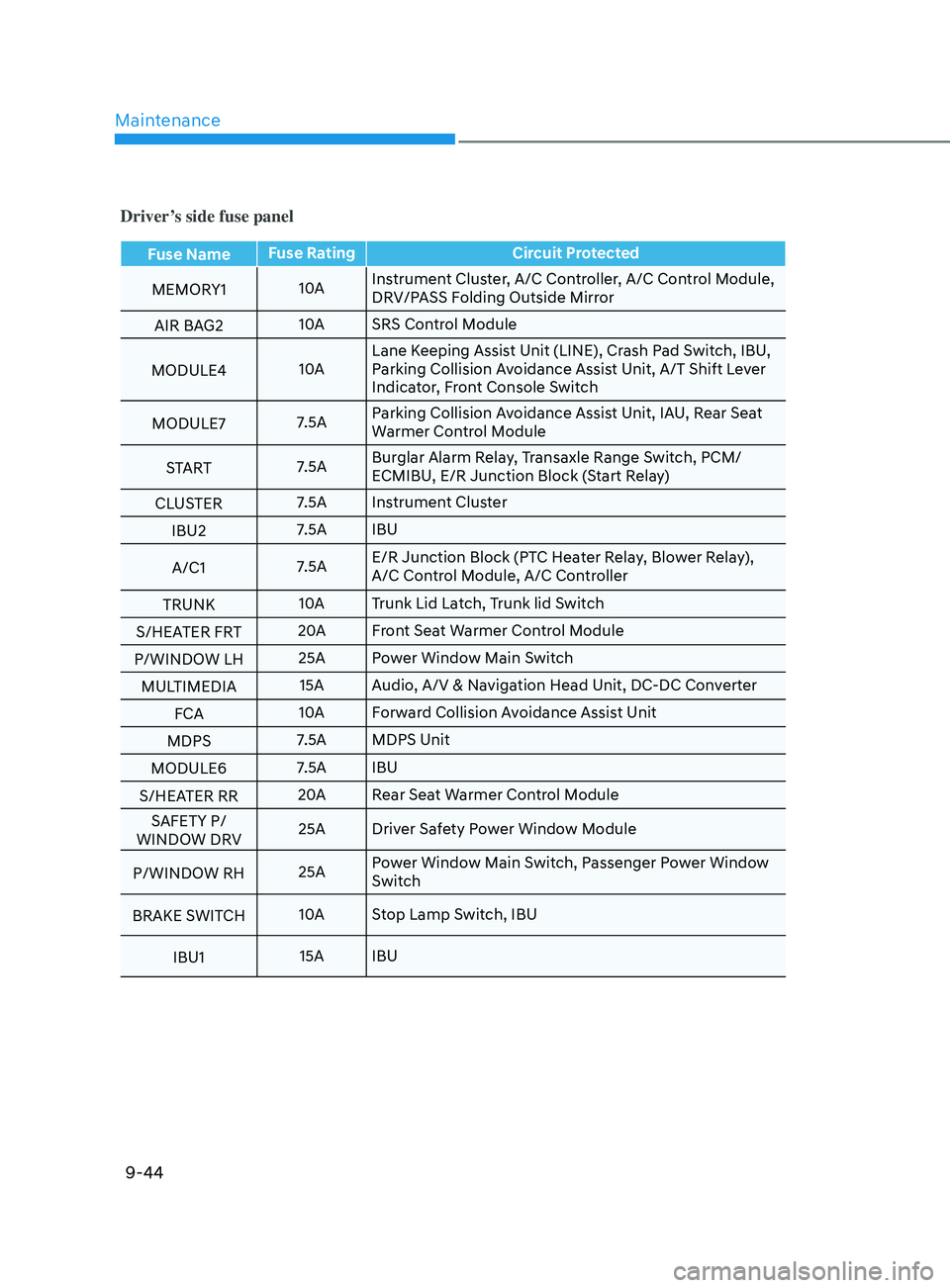

Driver’s side fuse panel
Fuse NameFuse Rating
Circuit Protected
MEMORY1 10AInstrument Cluster, A/C Controller, A/C Control Module,
DRV/PASS Folding Outside Mirror
AIR BAG2 10A
SRS Control Module
MODULE4 10ALane Keeping Assist Unit (LINE), Crash Pad Switch, IBU,
Parking Collision Avoidance Assist Unit, A/T Shift Lever
Indicator, Front Console Switch
MODULE7 7.5AParking Collision Avoidance Assist Unit, IAU,
Rear Sea

t
Warmer Control Module
START 7.5ABurglar Alarm Relay, Transaxle Range Switch, PCM/
ECM
IBU, E/R Junction Block (

Start Relay)
CLUSTER 7.5A Instrument Cluster
IBU2 7.5A IBU
A/C1 7.5AE/R Junction Block (PTC Heater Relay, Blower Relay),
A/C Control Module, A/C Controller
TRUNK 10A
Trunk Lid Latch, Trunk lid Switch
S/HEATER FRT 20A
Front Seat Warmer Control Module
P/WINDOW LH 25A Power Window Main Switch
MULTIMEDIA 15A Audio, A/V & Navigation Head Unit, DC-DC Converter
FCA 10A
Forward Collision Avoidance Assist Unit
MDPS 7.5A MDPS Unit
MODULE6 7.5A IBU
S/HEATER RR 20A
Rear Seat Warmer Control Module
SAFETY P/
WINDOW DRV 25A Driver Safety Power Window Module
P/WINDOW RH 25APower Window Main Switch, Passenger Power Window
Switch
BRAKE SWITCH 10A
Stop Lamp Switch, IBU
IBU1 15A IBU

09
9-45
Driver’s side fuse panel
Fuse NameFuse Rating
Circuit Protected
MODULE2 10AE/R Junction Block (Power Outlet Relay), AMP, IBU,
IAU, Audio, Power Outside Mirror Switch, Parking
Collision Avoidance Assist Unit, DC-DC Converter, A/V &
Navigation Head Unit
AIR BAG1 15ASRS Control Module, Passenger Occupant Detection
Sensor
MODULE5 10AA/T Shift Lever Indicator, Front Wireless Charger, A/C
Controller,
Electro Chr

omic Mirror, A/C Control Module,
Audio, A/V & Navigation Head Unit, AMP, DC-DC
Converter,
Data Link Connect

or, Rear Seat Warmer
Control Module, Front Seat Warmer Control Module
AMP 25A AMP, DC-DC Converter
HEATED MIRROR 10ADRV/PAS Outside Mirror Heated, A/C Control Module,
A/C Controller
DOOR LOCK 20A
DRV/PAS DOOR ACTUATOR
IAU 10A
BLE Unit, IAU, Driver/Passenger Door NFC Module
MODULE3 7.5A Stop Lamp Switch, IAU
A/BAG IND 7.5A Instrument Cluster, Overhead Console Lamp
WASHER 15A Multifunction Switch
P/SEAT
P

ASS 30A
Passenger Seat Manual Switch
P/SEAT
DR

V 30A
Driver Seat Manual Switch
WIPER 10A
PCM/ECM, IBU
MODULE1 10ADriver/Passenger Smart Key Outside Handle, Crash
Pad Switch, Sport Mode Switch, Data Link Connector,
Hazard Switch, Key Solenoid
SUNROOF 20A
Sunroof Motor, Data Link Connector
USB
CHAR

GER 15A Front USB Charger
IG1 25A PCB Block (Fuse - ABS3, ECU5, EOP2, TCU2)

Maintenance
9-46
OCN7090014N

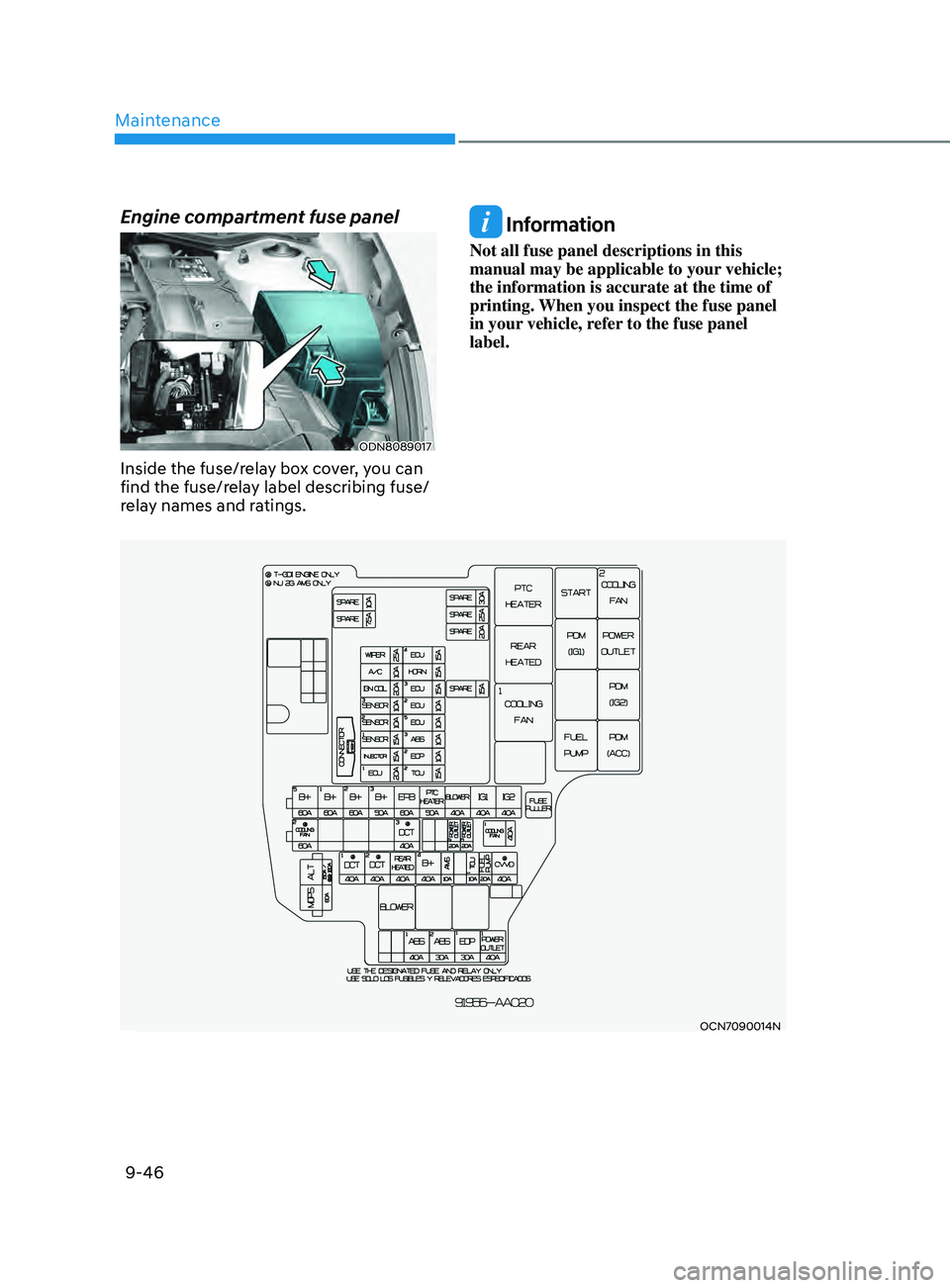

Engine compartment fuse panel
ODN8089017
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.

09
9-47

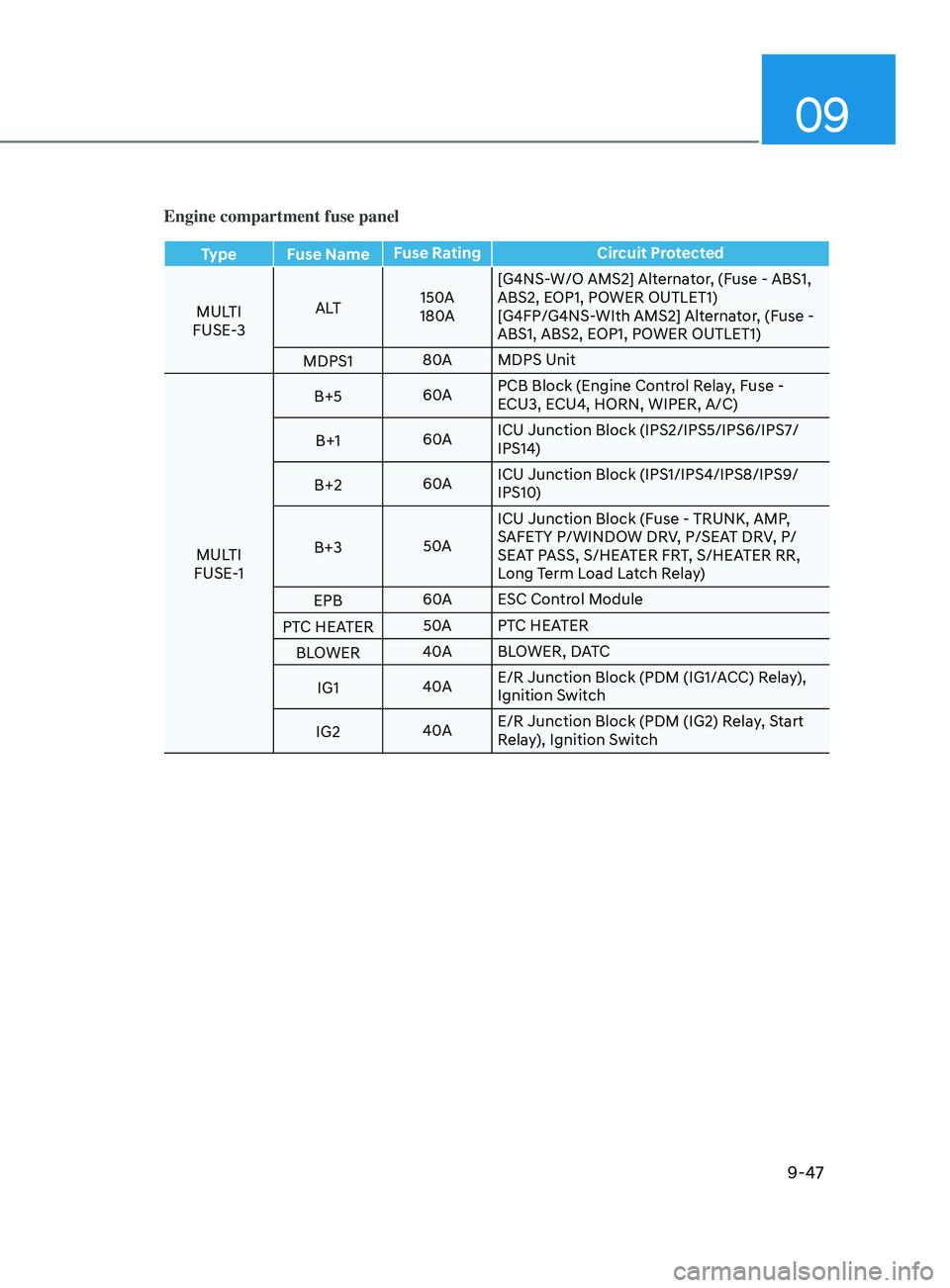

Engine compartment fuse panel
Type Fuse NameFuse Rating
Circuit Protected
MULTI
FUSE-3 A LT
150A
180A [G4NS-W/O AMS2] Alternator, (Fuse - ABS1,
ABS2, EOP1, POWER OUTLET1)
[G4FP/G4NS-WIth AMS2] Alternator, (Fuse -
ABS1, ABS2, EOP1, POWER OUTLET1)
MDPS1 80A
MDPS Unit
MULTI
FUSE-1 B+5
60APCB Block (Engine Control Relay, Fuse -
ECU3, ECU4, HORN, WIPER, A/C)
B+1 60AICU Junction Block (IPS2/IPS5/IPS6/IPS7/
IPS14)
B+2 60AICU Junction Block (IPS1/IPS4/IPS8/IPS9/
IPS10)
B+3 50AICU Junction Block (Fuse - TRUNK, AMP,
SAFETY P/WINDOW DRV, P/SEAT DRV, P/
SEAT PASS, S/HEATER FRT, S/HEATER RR,
Long Term Load Latch Relay)
EPB 60A
ESC Control Module
PTC HEATER 50A
PTC HEATER
BLOWER 40A
BLOWER, DATC
IG1 40AE/R Junction Block (PDM (IG1/ACC) Relay),
Ignition Switch
IG2 40AE/R Junction Block (PDM (IG2) Relay, Start
Relay), Ignition Switch
