2021 HYUNDAI ELANTRA SEL bulb

Maintenance
9-50
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlamp
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING
• Prior to replacing a lamp, depress
the foot brake, move the shift button
into P (Park) apply the parking brake,
place the ignition switch to the
LOCK/OFF position, and take the key
with you when leaving the vehicle
to avoid sudden movement of the
vehicle and to prevent possible
electric shock.
• Be aware the bulbs may be hot and
may burn your fingers.
• When the bulb is disconnected or the
lamp connector is removed while the
lamp is operating normally, the fuse
box electronics may recognize the
lamp as a malfunction. Therefore, a
fault record for the lamp may remain
in the Diagnostic Trouble Code (DTC)
recorded in the fuse box.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electrical wiring system.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled at an authorized
HYUNDAI dealer.

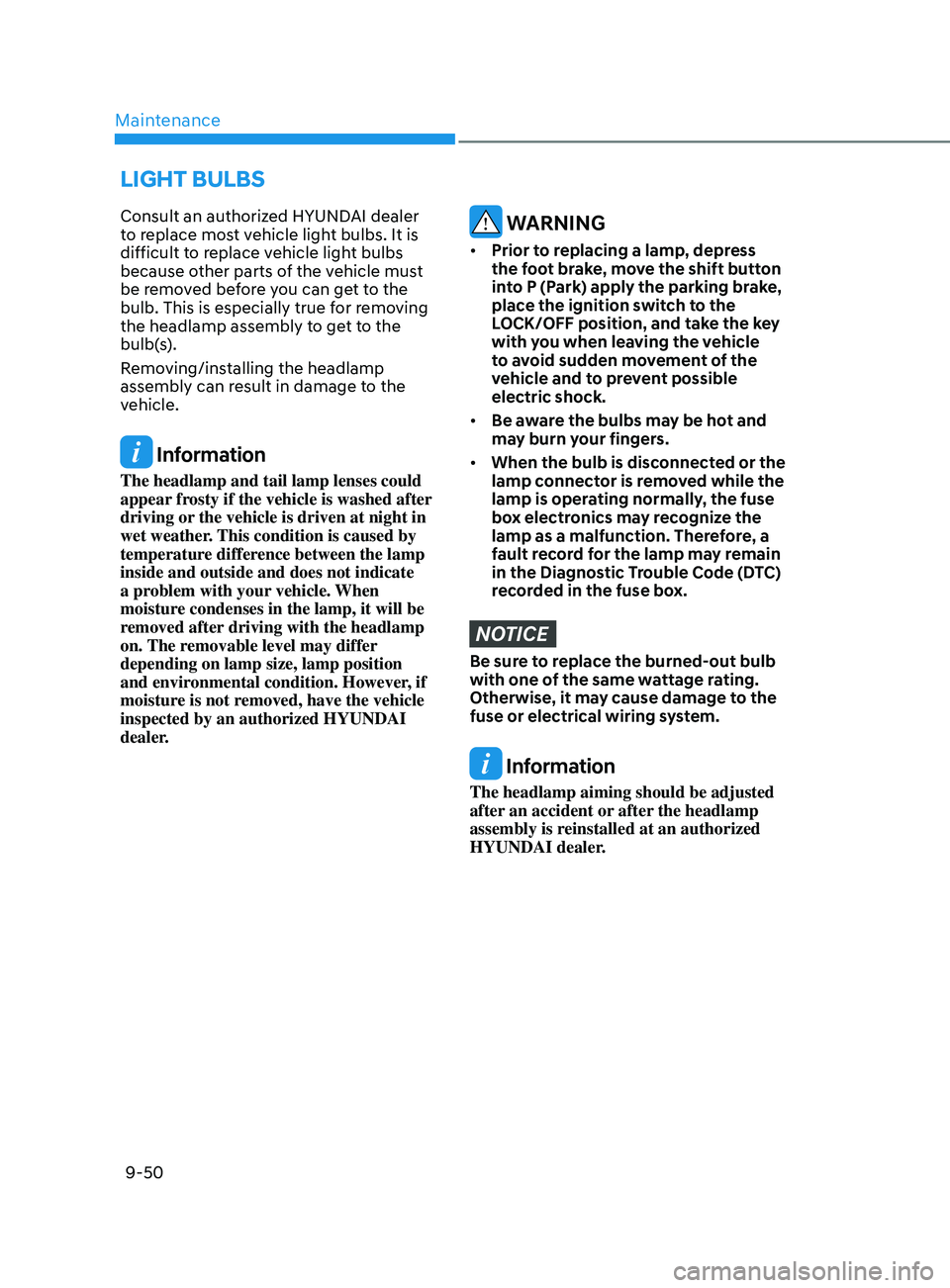

light BulBS

09
9-51

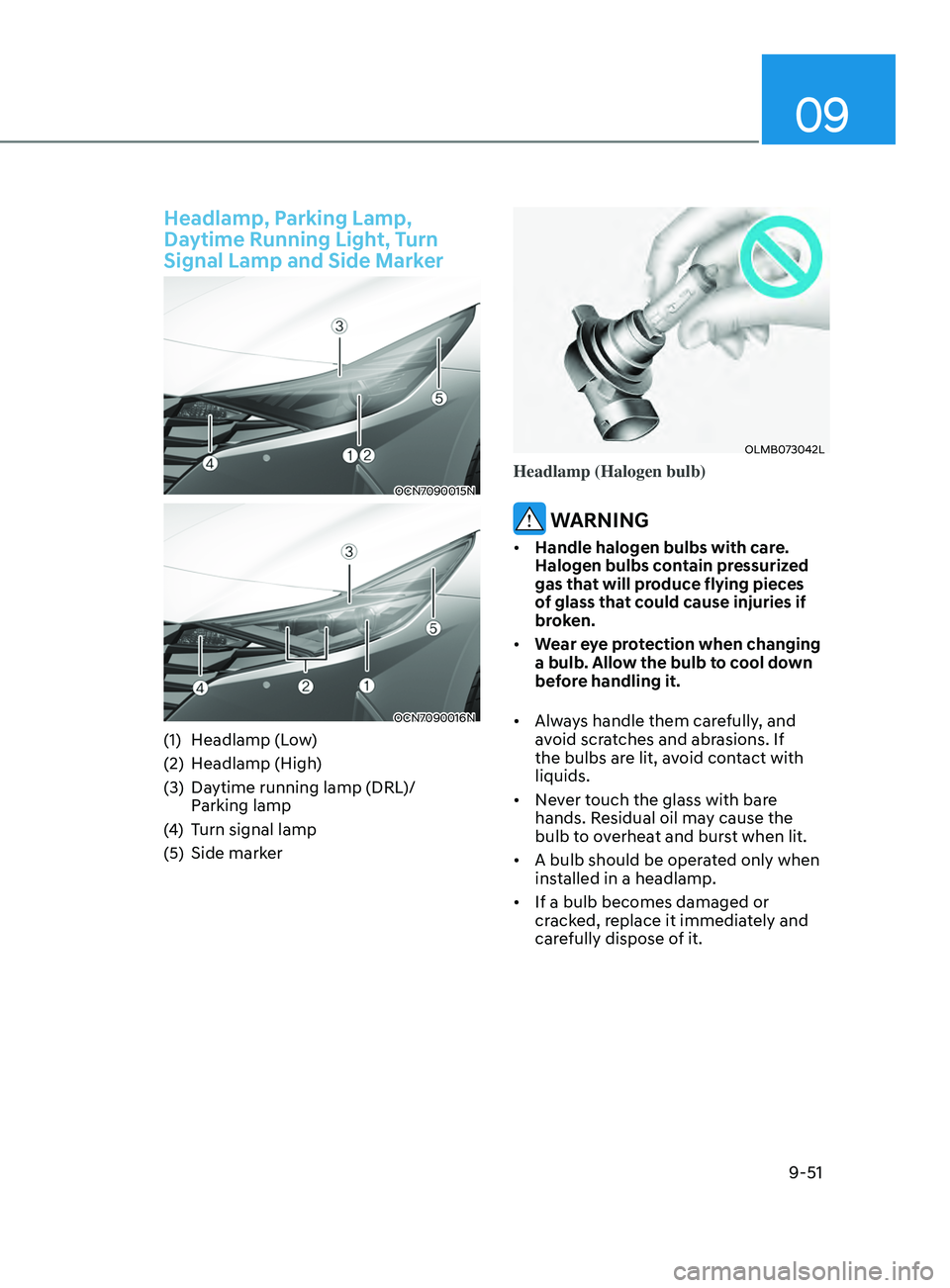

Headlamp, Parking Lamp,
Daytime Running Light, Turn
Signal Lamp and Side Marker
OCN7090015N
OCN7090016N
(1) Headlamp (Low)
(2)
Headlamp (High
)
(3)
Daytime running lamp (DRL

)/
Parking lamp
(4)
Turn signal lamp
(5)
Side marker
OLMB073042L
Headlamp (Halogen bulb)
WARNING
• Handle halogen bulbs with care.
Halogen bulbs contain pressurized
gas that will produce flying pieces
of glass that could cause injuries if
broken.
• Wear eye protection when changing
a bulb. Allow the bulb to cool down
before handling it.
• Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
• Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.
• A bulb should be operated only when
installed in a headlamp.
• If a bulb becomes damaged or
cracked, replace it immediately and
carefully dispose of it.

Maintenance
9-52
OCN7080042

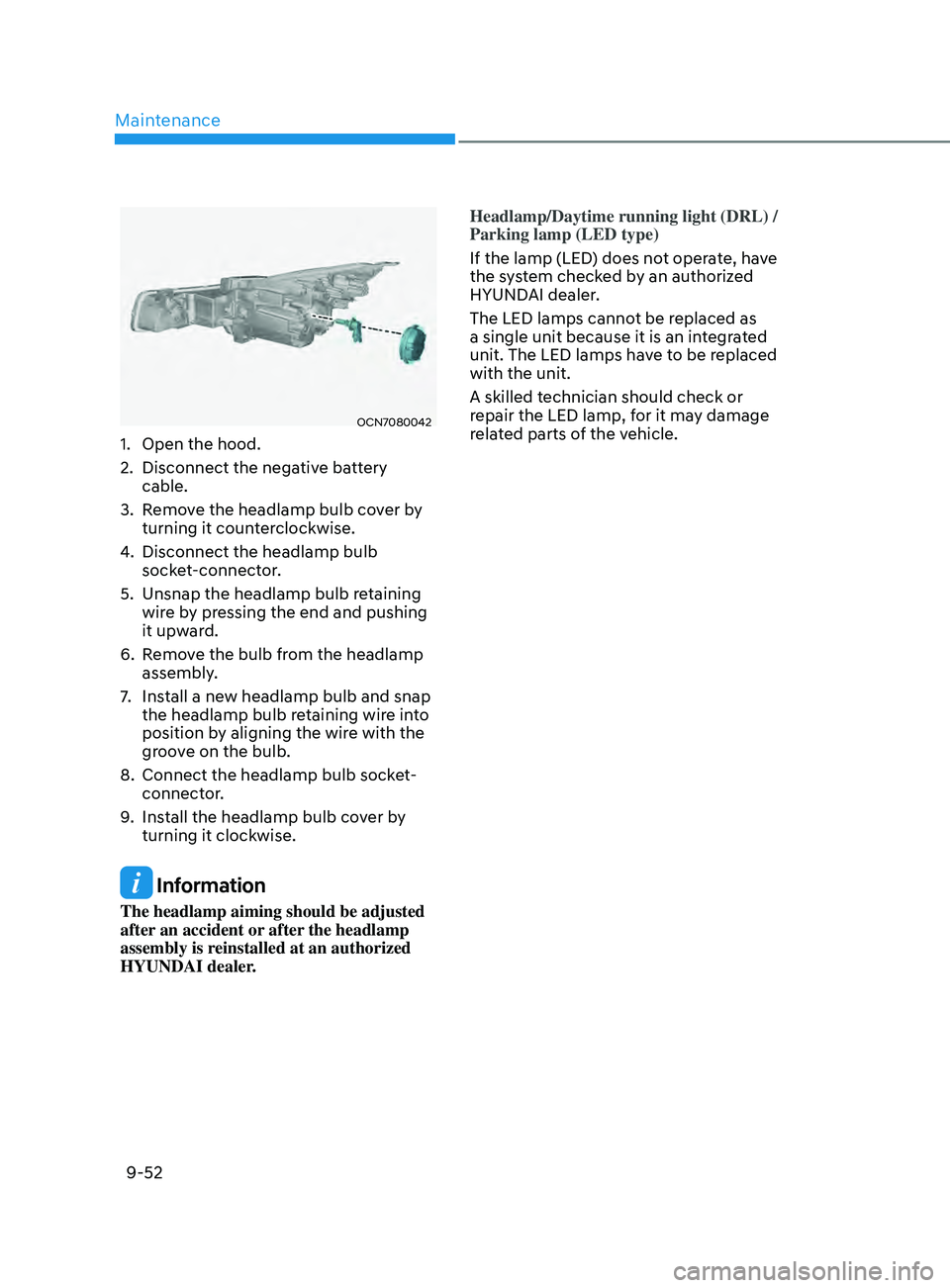

1. Open the hood.
2.
Disconnect the negativ
e battery
cable.
3.
Remo

ve the headlamp bulb cover by
turning it counterclockwise.
4.
Disconnect the headlamp bulb
socke

t-connector.
5.
Unsnap the headlamp bulb re

taining
wire by pressing the end and pushing
it upward.
6.
Remo

ve the bulb from the headlamp
assembly.
7.
Install a ne

w headlamp bulb and snap
the headlamp bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
8.
Connect the headlamp bulb socke

t-
connector.
9.
Install the headlamp bulb co

ver by
turning it clockwise.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled at an authorized
HYUNDAI dealer. Headlamp/Daytime running light (DRL) /
Parking lamp (LED type)
If the lamp (LED) does not operate, have
the system checked by an authorized
HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps have to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

09
9-53
OCN7080043

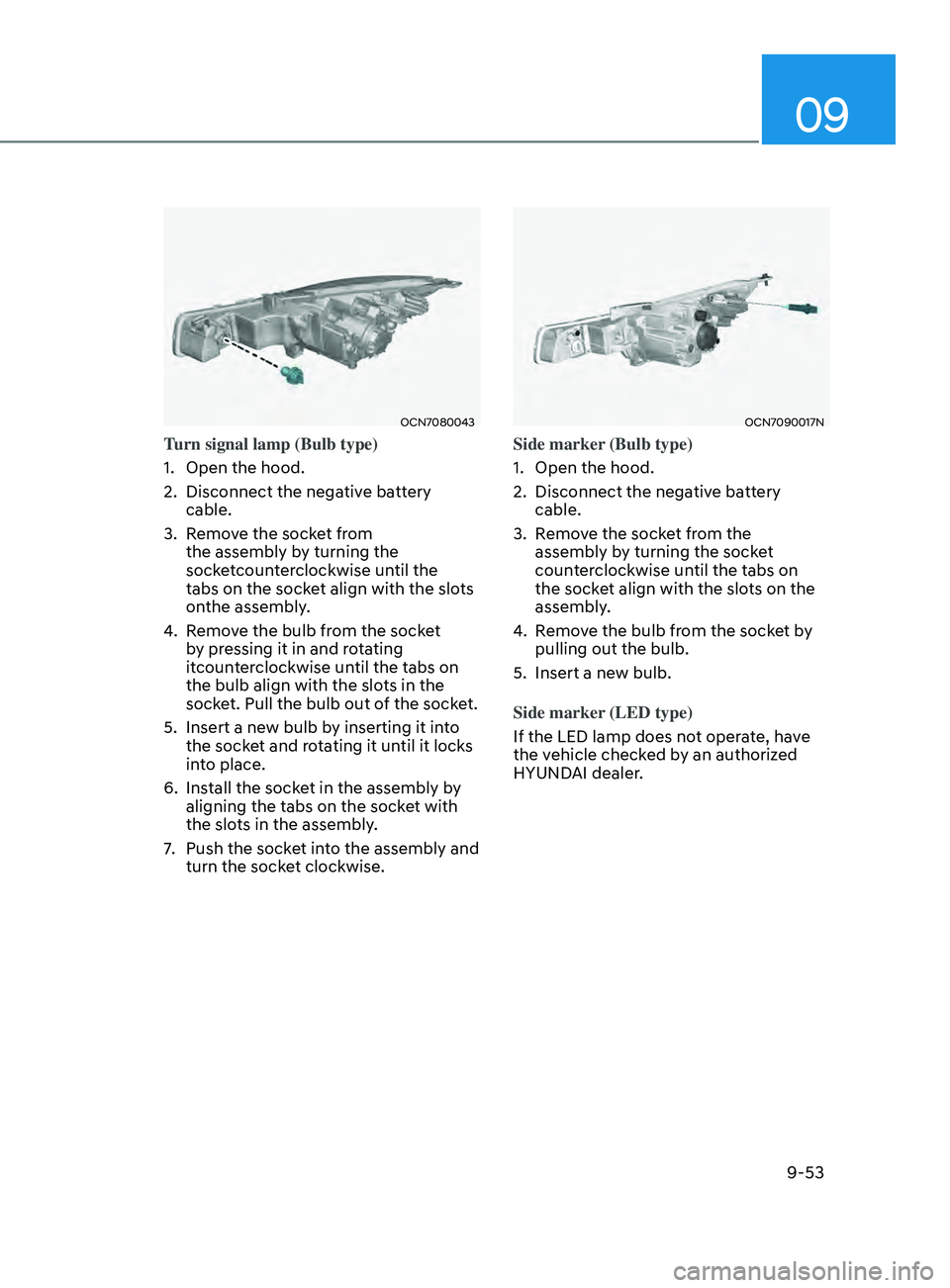

Turn signal lamp (Bulb type)
1.
Open the hood.
2.
Disconnect the negativ

e battery
cable.
3.
Remo

ve the socket from
the assembly by turning the
socketcounterclockwise until the
tabs on the socket align with the slots
onthe assembly.
4.
Remo

ve the bulb from the socket
by pressing it in and rotating
itcounterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the socket.
5.
Insert a new bulb b

y inserting it into
the socket and rotating it until it locks
into place.
6.
Install the sock

et in the assembly by
aligning the tabs on the socket with
the slots in the assembly.
7.
Push the socke

t into the assembly and
turn the socket clockwise.
OCN7090017N
Side marker (Bulb type)
1.
Open the hood.
2.
Disconnect the negativ

e battery
cable.
3.
Remo

ve the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
4.
Remo

ve the bulb from the socket by
pulling out the bulb.
5.
Insert a new bulb.
Side marker

(LED type)
If the LED lamp does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.

Maintenance
9-54

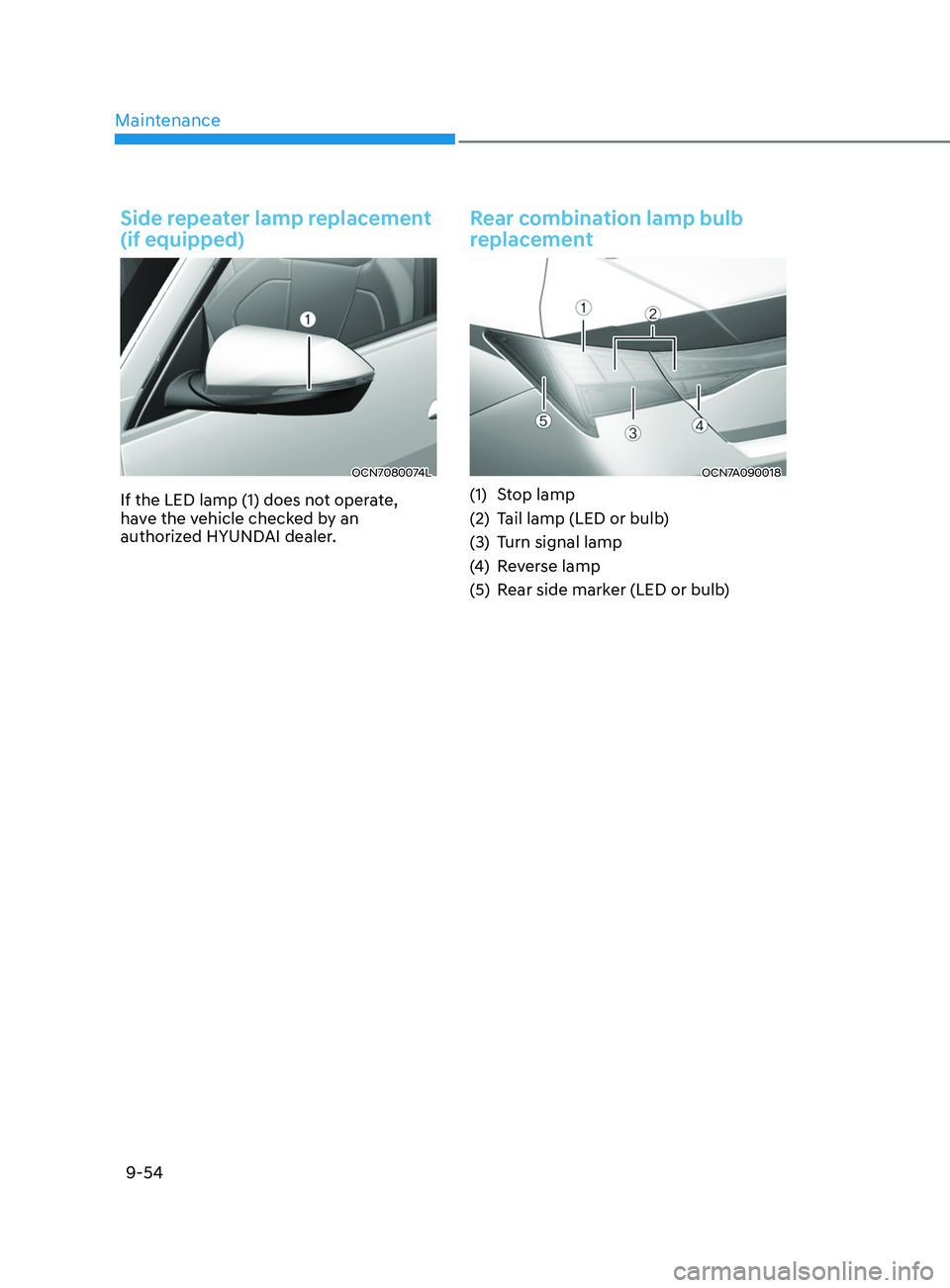

Side repeater lamp replacement
(if equipped)
OCN7080074L
If the LED lamp (1) does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
Rear combination lamp bulb
replacement
OCN7A090018
(1) Stop lamp
(2)
Tail lamp (LED or bulb
)
(3)
Turn signal lamp
(4

)
Re
verse lamp
(5)
Rear side mark

er (LED or bulb)

09
9-55

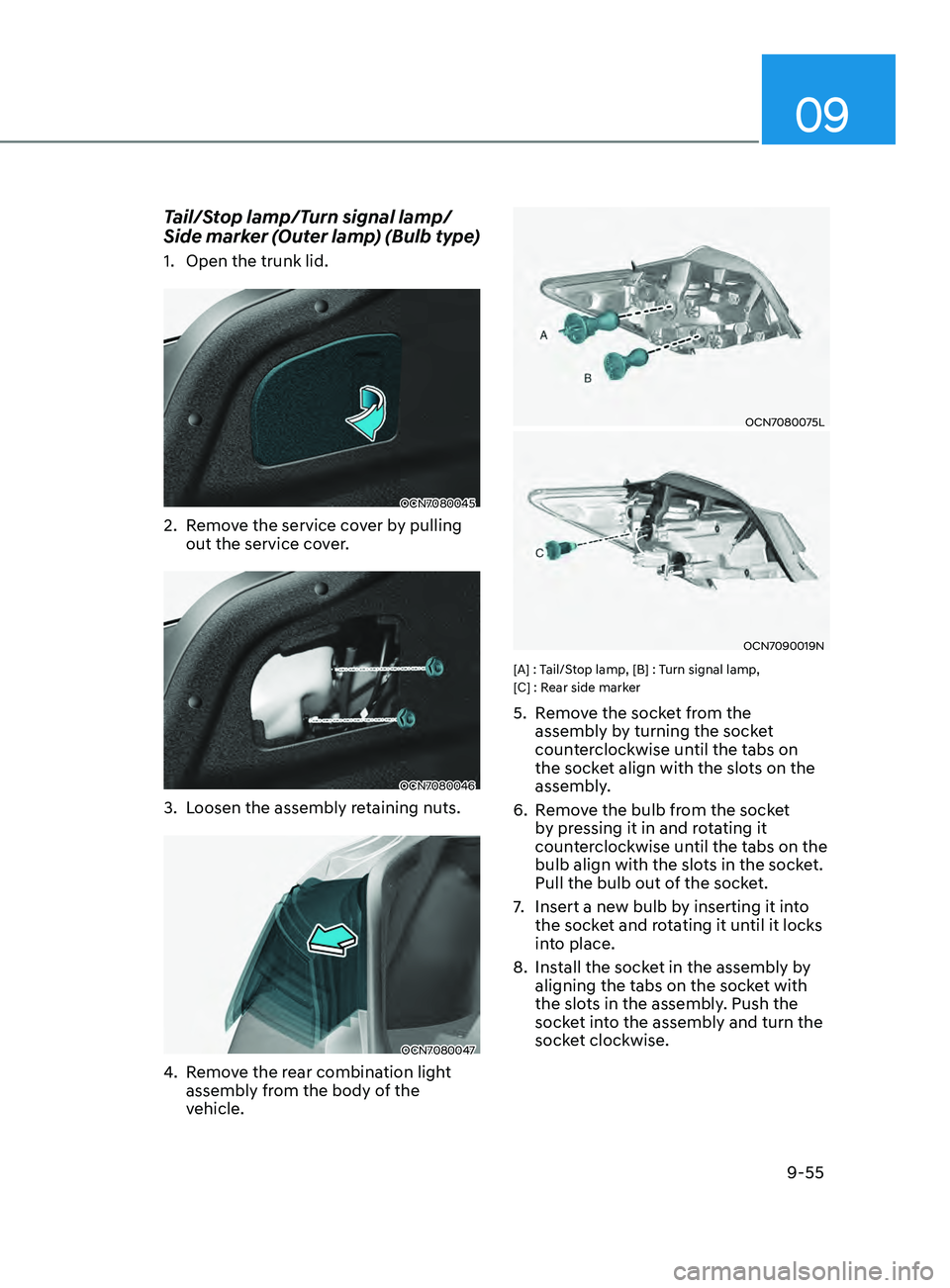

Tail/Stop lamp/Turn signal lamp/
Side marker (Outer lamp) (Bulb type)
1. Open the trunk lid.
OCN7080045
2. Remove the service cover by pulling
out the service cover.
OCN7080046
3. Loosen the assembly retaining nuts.
OCN7080047
4. Remove the rear combination light
assembly from the body of the
vehicle.
OCN7080075L
OCN7090019N
[A] : Tail/Stop lamp, [B] : Turn signal lamp,
[C] : Rear side marker
5. Remove the socket from the
assembly b y turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
6.
Remo

ve the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
7.
Insert a new bulb b

y inserting it into
the socket and rotating it until it locks
into place.
8.
Install the sock

et in the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.

Maintenance
9-56

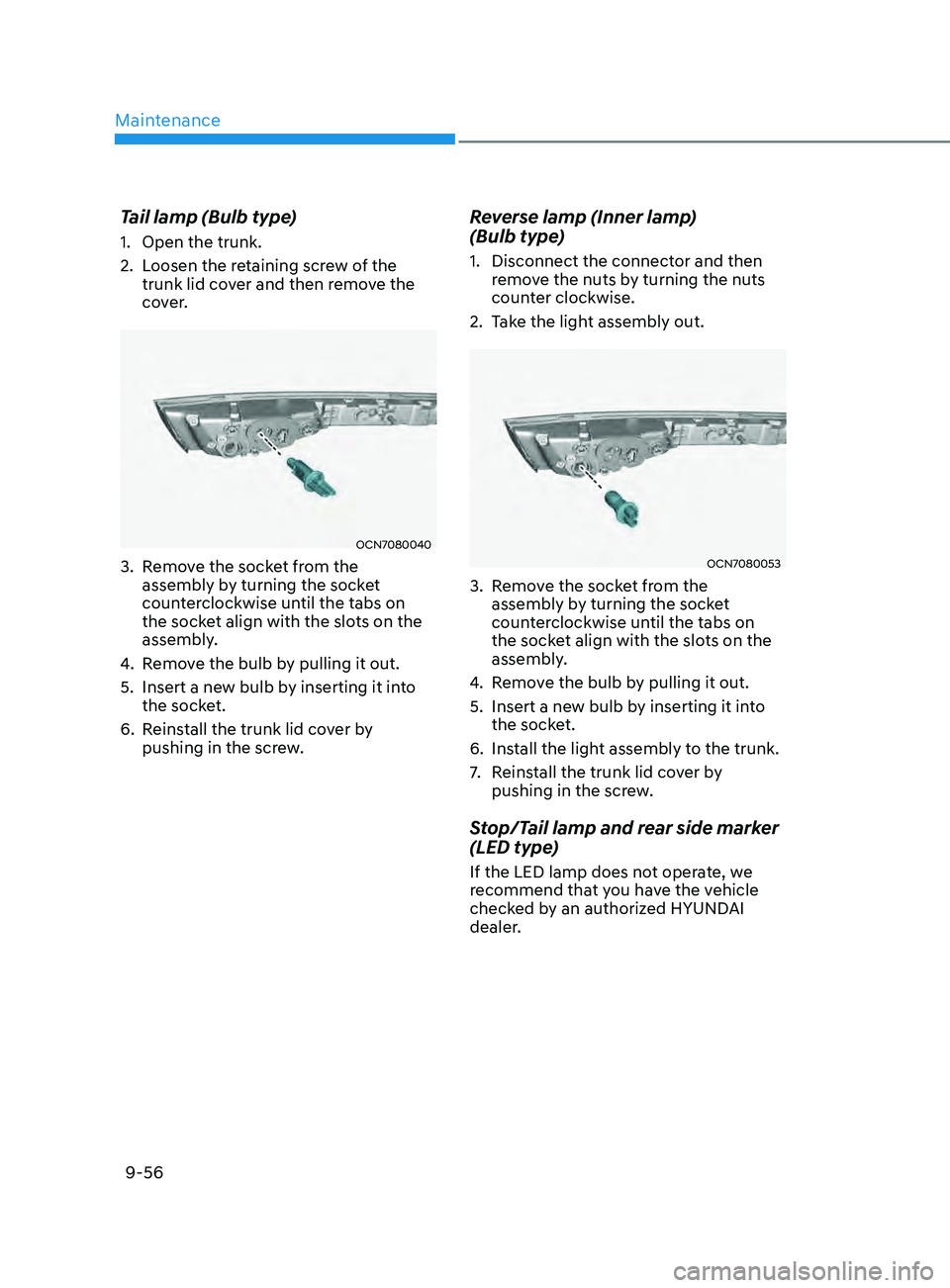

Tail lamp (Bulb type)
1. Open the trunk.
2.
Loosen the r
etaining screw of the
trunk lid cover and then remove the
cover.
OCN7080040
3. Remove the socket from the
assembly b y turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
4.
Remo

ve the bulb by pulling it out.
5.
Insert a new bulb b

y inserting it into
the socket.
6.
Reins

tall the trunk lid cover by
pushing in the screw.
Reverse lamp (Inner lamp)
(Bulb type)
1. Disconnect the connector and then
r emove the nuts by turning the nuts
counter clockwise.
2.
Tak

e the light assembly out.
OCN7080053
3. Remove the socket from the
assembly b y turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
4.
Remo

ve the bulb by pulling it out.
5.
Insert a new bulb b

y inserting it into
the socket.
6.
Install the ligh

t assembly to the trunk.
7.
Reins

tall the trunk lid cover by
pushing in the screw.
Stop/Tail lamp and rear side marker
(LED type)
If the LED lamp does not operate, we
recommend that you have the vehicle
checked by an authorized HYUNDAI
dealer.

09
9-57

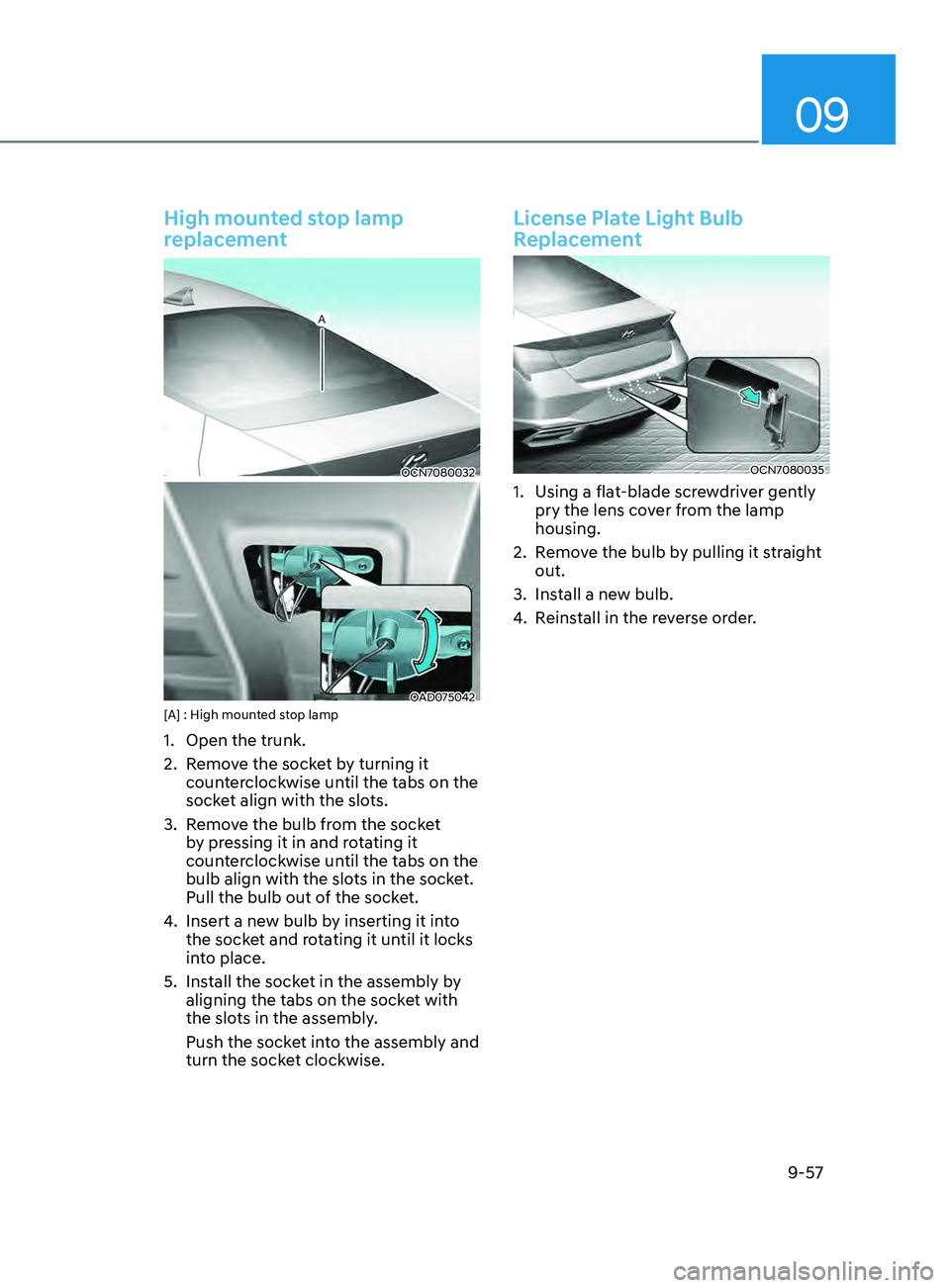

High mounted stop lamp
replacement
OCN7080032
OAD075042[A] : High mounted stop lamp
1. Open the trunk.
2.
Remo
ve the socket by turning it
counterclockwise until the tabs on the
socket align with the slots.
3.
Remo

ve the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
4.
Insert a new bulb b

y inserting it into
the socket and rotating it until it locks
into place.
5.
Install the sock

et in the assembly by
aligning the tabs on the socket with
the slots in the assembly.
Push the socket into the assembly and
turn the socket clockwise.
License Plate Light Bulb
Replacement
OCN7080035
1. Using a flat-blade screwdriver gently
pry the lens co ver from the lamp
housing.
2.
Remo

ve the bulb by pulling it straight
out.
3.
Install a ne

w bulb.
4.
Reins

tall in the reverse order.
