2021 HYUNDAI ELANTRA HYBRID headlamp

09
9-43

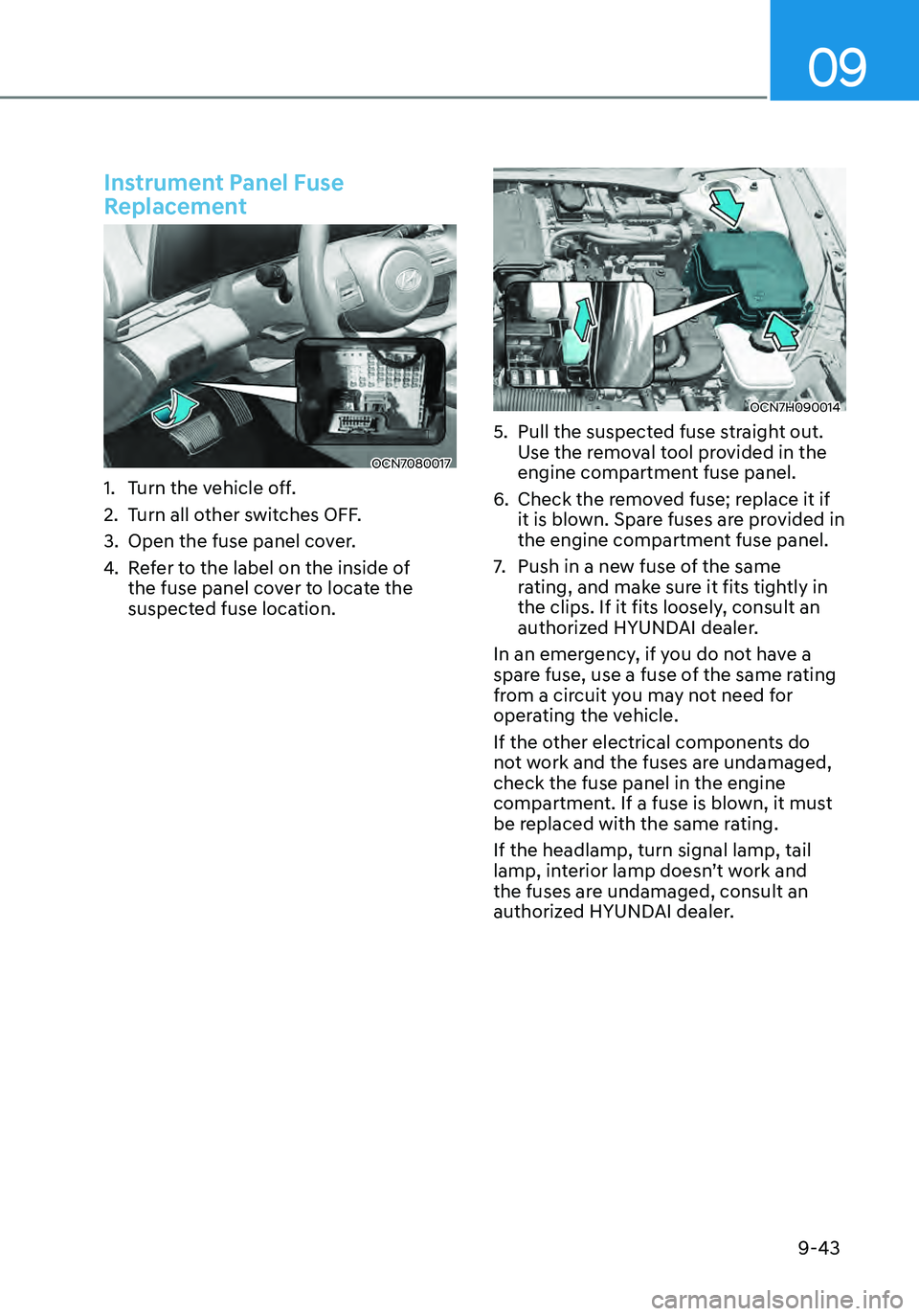

Instrument Panel Fuse
Replacement
OCN7080017
1. Turn the vehicle off.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of
the fuse panel cover to locate the
suspected fuse location.
OCN7H090014
5. Pull the suspected fuse straight out.
Use the removal tool provided in the
engine compartment fuse panel.
6. Check the removed fuse; replace it if
it is blown. Spare fuses are provided in
the engine compartment fuse panel.
7. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have a
spare fuse, use a fuse of the same rating
from a circuit you may not need for
operating the vehicle.
If the other electrical components do
not work and the fuses are undamaged,
check the fuse panel in the engine
compartment. If a fuse is blown, it must
be replaced with the same rating.
If the headlamp, turn signal lamp, tail
lamp, interior lamp doesn’t work and
the fuses are undamaged, consult an
authorized HYUNDAI dealer.

Maintenance
9-52

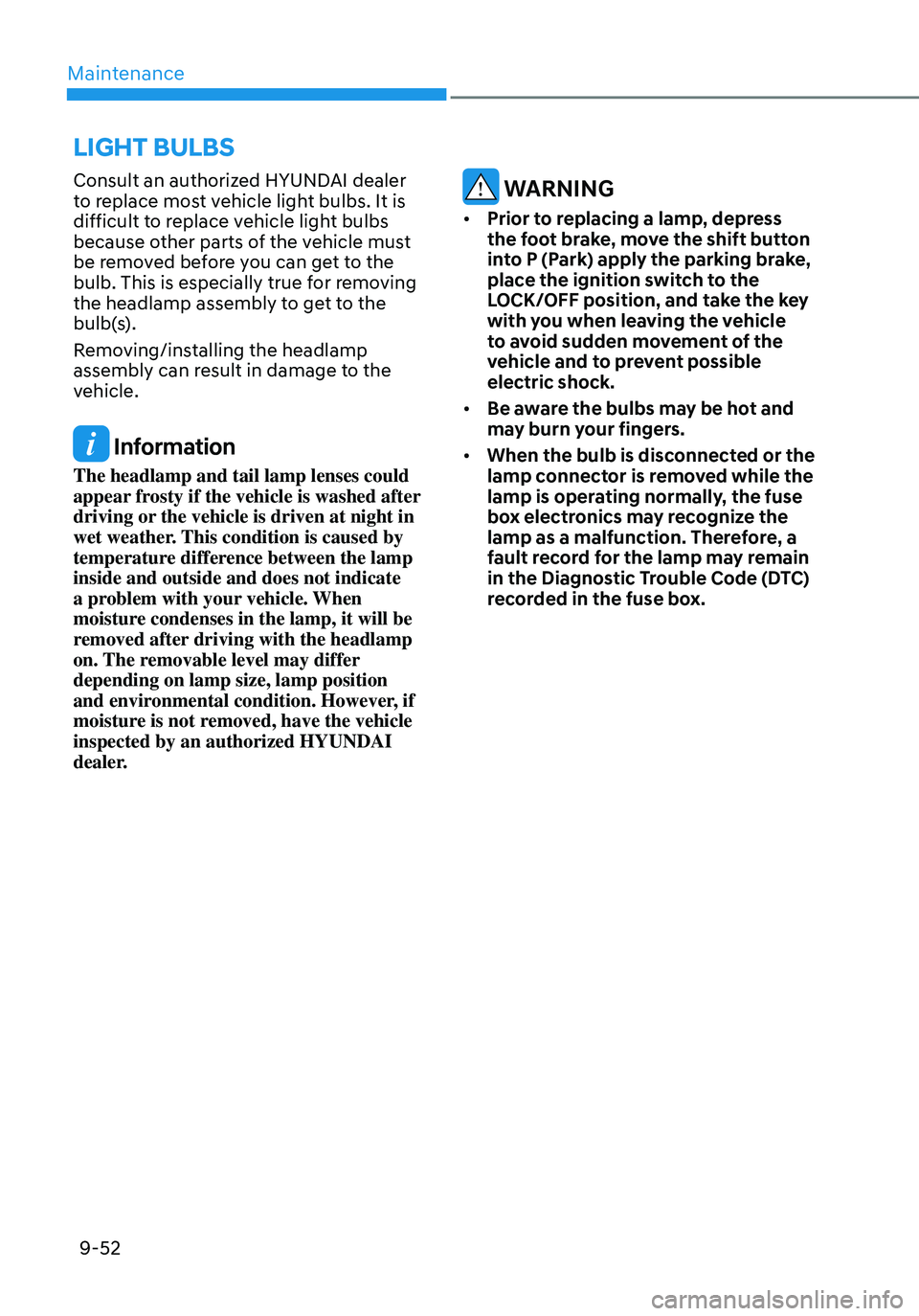

Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlamp
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING
• Prior to replacing a lamp, depress
the foot brake, move the shift button
into P (Park) apply the parking brake,
place the ignition switch to the
LOCK/OFF position, and take the key
with you when leaving the vehicle
to avoid sudden movement of the
vehicle and to prevent possible
electric shock.
• Be aware the bulbs may be hot and
may burn your fingers.
• When the bulb is disconnected or the
lamp connector is removed while the
lamp is operating normally, the fuse
box electronics may recognize the
lamp as a malfunction. Therefore, a
fault record for the lamp may remain
in the Diagnostic Trouble Code (DTC)
recorded in the fuse box.
LIGHT BULBS

09
9-53
Headlamp, Parking Lamp,
Daytime Running Light, Turn
Signal Lamp and Side Marker
OCN7090015N
OCN7090016N
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Daytime running lamp (DRL)/
Parking lamp
(4) Turn signal lamp
(5) Side marker
OLMB073042L
Headlamp (Halogen bulb)
WARNING
• Handle halogen bulbs with care.
Halogen bulbs contain pressurized
gas that will produce flying pieces
of glass that could cause injuries if
broken.
• Wear eye protection when changing
a bulb. Allow the bulb to cool down
before handling it.
• Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
• Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.
• A bulb should be operated only when
installed in a headlamp.
• If a bulb becomes damaged or
cracked, replace it immediately and
carefully dispose of it.

Maintenance
9-54
OCN7080042
1. Open the hood.
2. Disconnect the negative battery
cable.
3. Remove the headlamp bulb cover by
turning it counterclockwise.
4. Disconnect the headlamp bulb
socket-connector.
5. Unsnap the headlamp bulb retaining
wire by pressing the end and pushing
it upward.
6. Remove the bulb from the headlamp
assembly.
7. Install a new headlamp bulb and snap
the headlamp bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
8. Connect the headlamp bulb socket-
connector.
9. Install the headlamp bulb cover by
turning it clockwise.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled at an authorized
HYUNDAI dealer.Headlamp/Daytime running light (DRL) /
Parking lamp (LED type)
If the lamp (LED) does not operate, have
the system checked by an authorized
HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps have to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

I
I-5
E
Emission Control System
........................................................................\
............9-70
Engine Compartment
........................................................................\
.............2-6/ 9-3
Engine coolant/Inverter coolant
........................................................................\
...9-18
Changing Engine Coolant ........................................................................\
........9-21
Checking the Coolant Level ........................................................................\
.....9-18
Engine Number
........................................................................\
............................2-14
Engine Oil
........................................................................\
....................................9-16
Checking the Engine Oil and Filter ..................................................................9-17
Checking the Engine Oil Level ........................................................................\
9-16
Engine specification ........................................................................\
....................... 2-7
Explanation of Scheduled Maintenance Items
....................................................9-14
Dual clutch transmission fluid ........................................................................\
.9-15
HSG (Hybrid Starter & Generator) Belt .........................................................9-14
Exterior Lights
........................................................................\
.............................5-72
Battery saver function ........................................................................\
..............5-75
Headlamp delay function ........................................................................\
.........5-75
High beam operation ........................................................................\
................5-73
Lighting control ........................................................................\
........................5-72
Turn signals and lane change signals ...............................................................5-74
Exterior Overview
........................................................................\
.........................2-2
F
Forward Collision–Avoidance Assist (FCA) (front view camera only)
................7-2
Function malfunction and limitations ................................................................7-7
Function operation ........................................................................\
......................7-5
Function settings ........................................................................\
........................7-3
Forward Collision–Avoidance Assist (FCA) (sensor fusion)
.............................7-14
Function malfunction and limitations ..............................................................7-22
Function operation ........................................................................\
....................7-18
Function settings ........................................................................\
......................7-16
Fuel filler door
........................................................................\
.............................5-69
Fuel Requirements
........................................................................\
.........................1-5
Fuses
........................................................................\
............................................9-42
Engine Compartment Panel Fuse Replacement ...............................................9-44
Fuse/Relay Panel Description ........................................................................\
..9-45
Instrument Panel Fuse Replacement ................................................................9-43

Index
I-8

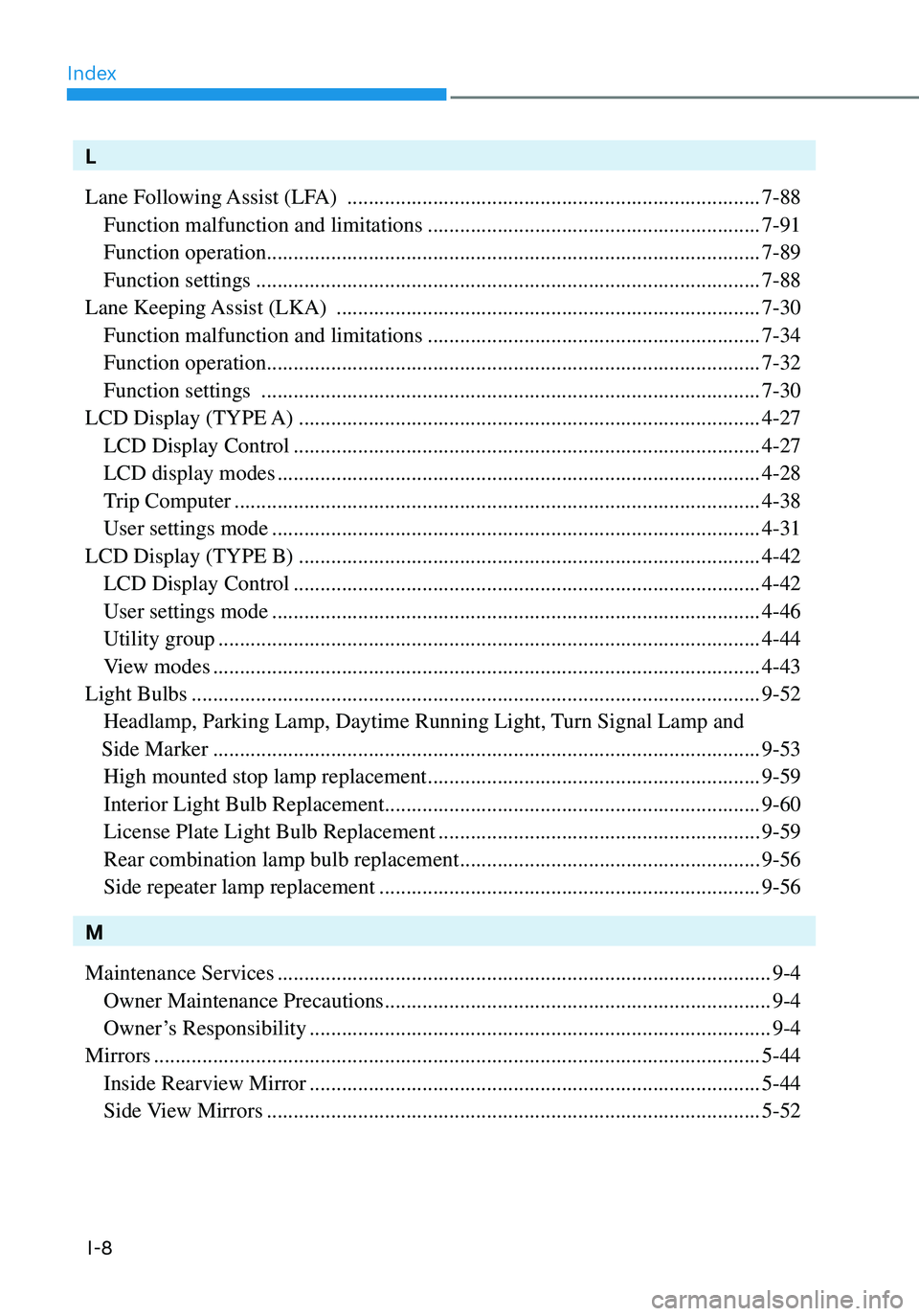

L
Lane Following Assist (LFA)
........................................................................\
.....7-88
Function malfunction and limitations ..............................................................7-91
Function operation ........................................................................\
....................7-89
Function settings ........................................................................\
......................7-88
Lane Keeping Assist (LKA)
........................................................................\
.......7-30
Function malfunction and limitations ..............................................................7-34
Function operation ........................................................................\
....................7-32
Function settings ........................................................................\
.....................7-30
LCD Display (TYPE A)
........................................................................\
..............4-27
LCD Display Control ........................................................................\
...............4-27
LCD display modes ........................................................................\
..................4-28
Trip Computer ........................................................................\
..........................4-38
User settings mode ........................................................................\
...................4-31
LCD Display (TYPE B)
........................................................................\
..............4-42
LCD Display Control ........................................................................\
...............4-42
User settings mode ........................................................................\
...................4-46
Utility group ........................................................................\
.............................4-44
View modes ........................................................................\
..............................4-43
Light Bulbs
........................................................................\
..................................9-52
Headlamp, Parking Lamp, Daytime Running Light, T urn Signal Lamp and
Side Marker ........................................................................\
..............................9-53
High mounted stop lamp replacement ..............................................................9-59
Interior Light Bulb Replacement ......................................................................9-60
License Plate Light Bulb Replacement ............................................................9-59
Rear combination lamp bulb replacement ........................................................9-56
Side repeater lamp replacement .......................................................................9-56
M
Maintenance Services
........................................................................\
....................9-4
Owner Maintenance Precautions ........................................................................\
9-4
Owner’s Responsibility ........................................................................\
..............9-4
Mirrors
........................................................................\
.........................................5-44
Inside Rearview Mirror ........................................................................\
............5-44
Side View Mirrors ........................................................................\
....................5-52
