2021 HYUNDAI ELANTRA HYBRID display

08
8-13
TPMS (Tire Pressure
Monitoring System)
malfunction indicator
The TPMS Malfunction Indicator
will illuminate after it blinks for
approximately one minute when there
is a problem with the Tire Pressure
Monitoring System.
We recommend that the system be
checked by an authorized HYUNDAI
dealer.
NOTICE
If there is a malfunction with the TPMS,
the Low Tire Pressure Position Telltale
will not be displayed even though the
vehicle has an under-inflated tire.
NOTICE
The TPMS Malfunction Indicator may
illuminate after blinking for one minute
if the vehicle is near electric power
supply cables or radio transmitters
such as police stations, government
and public offices, broadcasting
stations, military installations, airports,
transmitting towers, etc.
Additionally, the TPMS Malfunction
Indicator may illuminate if snow chains
are used or electronic devices such as
computers, chargers, remote starters,
navigation, etc. This may interfere with
normal operation of the TPMS.
Changing a tire with TPMS
If you have a flat tire, the Low Tire
Pressure and Position telltales will come
on. We recommend that the flat tire be
repaired by an authorized HYUNDAI
dealer as soon as possible or replace the
flat tire with the spare tire.
NOTICE
It is recommended that you do not use a
puncture-repairing agent not approved
by a HYUNDAI dealer to repair and/or
inflate a low pressure tire. Tire sealant
not approved by a HYUNDAI dealer may
damage the tire pressure sensor.
The spare tire (if equipped) does not
come with a tire pressure monitoring
sensor. When the low pressure tire or
the flat tire is replaced with the spare
tire, the Low Tire Pressure Telltale will
remain on. Also, the TPMS Malfunction
Indicator will illuminate after blinking
for one minute if the vehicle is driven
at speed above 15.5 mph (25km/h) for
approximately 10 minutes.
Once the original tire equipped with
a tire pressure monitoring sensor is
reinflated to the recommended pressure
and reinstalled on the vehicle, the
Low Tire Pressure Telltale and TPMS
Malfunction Indicator will go off within a
few minutes of driving.
If the indicators do not extinguish after a
few minutes, please visit an authorized
HYUNDAI dealer.

09
9-35

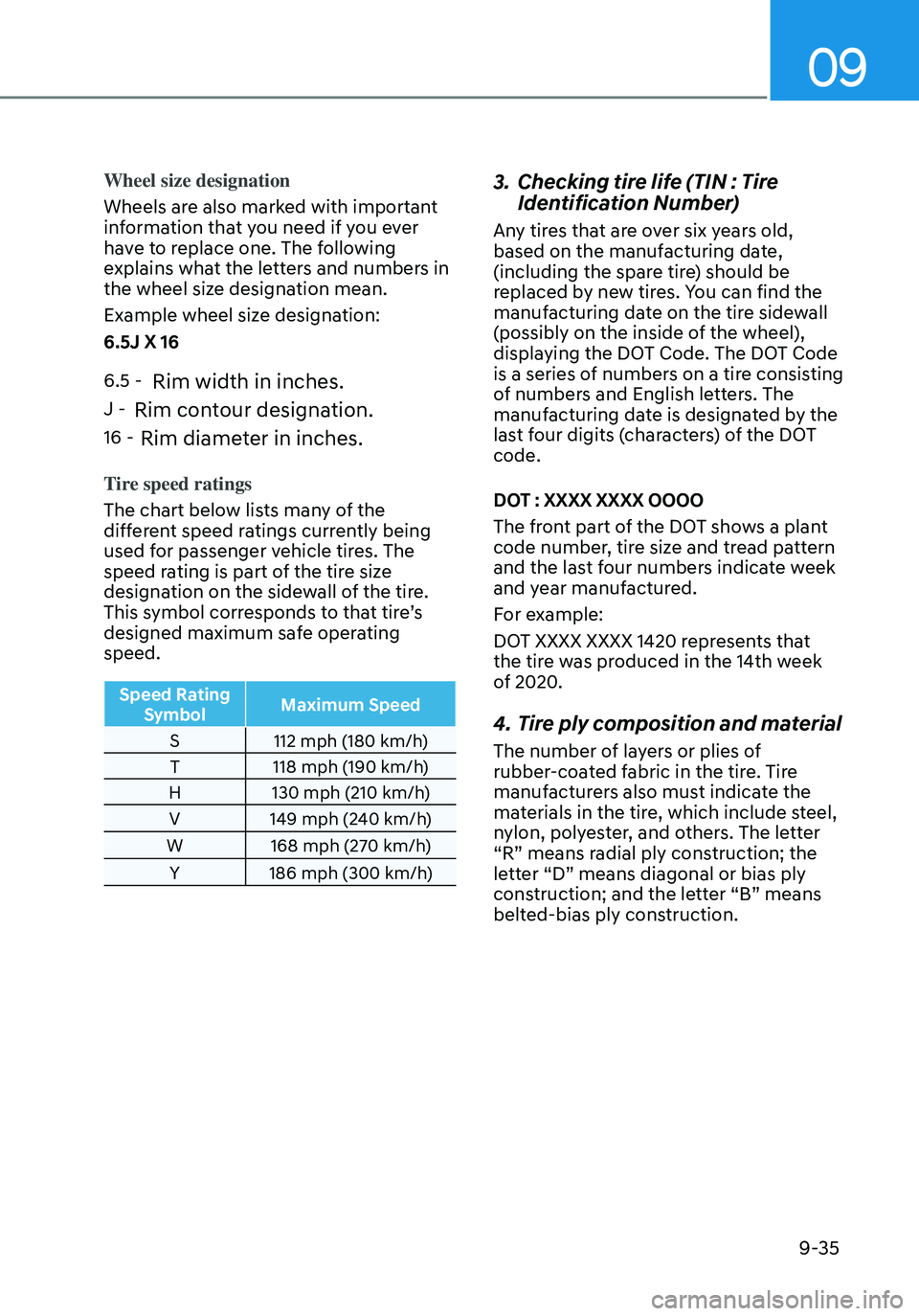

Wheel size designation
Wheels are also marked with important
information that you need if you ever
have to replace one. The following
explains what the letters and numbers in
the wheel size designation mean.
Example wheel size designation:
6.5J X 16
6.5 -
Rim width in inches.
J -Rim contour designation.
16 -Rim diameter in inches.
Tire speed ratings
The chart below lists many of the
different speed ratings currently being
used for passenger vehicle tires. The
speed rating is part of the tire size
designation on the sidewall of the tire.
This symbol corresponds to that tire’s
designed maximum safe operating
speed.
Speed Rating Symbol Maximum Speed
S 112 mph (180 km/h)
T 118 mph (190 km/h)
H 130 mph (210 km/h)
V 149 mph (240 km/h)
W 168 mph (270 km/h)
Y 186 mph (300 km/h)
3. Checking tire life (TIN : Tire
Identification Number)
Any tires that are over six years old,
based on the manufacturing date,
(including the spare tire) should be
replaced by new tires. You can find the
manufacturing date on the tire sidewall
(possibly on the inside of the wheel),
displaying the DOT Code. The DOT Code
is a series of numbers on a tire consisting
of numbers and English letters. The
manufacturing date is designated by the
last four digits (characters) of the DOT
code.
DOT : XXXX XXXX OOOO
The front part of the DOT shows a plant
code number, tire size and tread pattern
and the last four numbers indicate week
and year manufactured.
For example:
DOT XXXX XXXX 1420 represents that
the tire was produced in the 14th week
of 2020.
4. Tire ply composition and material
The number of layers or plies of
rubber-coated fabric in the tire. Tire
manufacturers also must indicate the
materials in the tire, which include steel,
nylon, polyester, and others. The letter
“R” means radial ply construction; the
letter “D” means diagonal or bias ply
construction; and the letter “B” means
belted-bias ply construction.

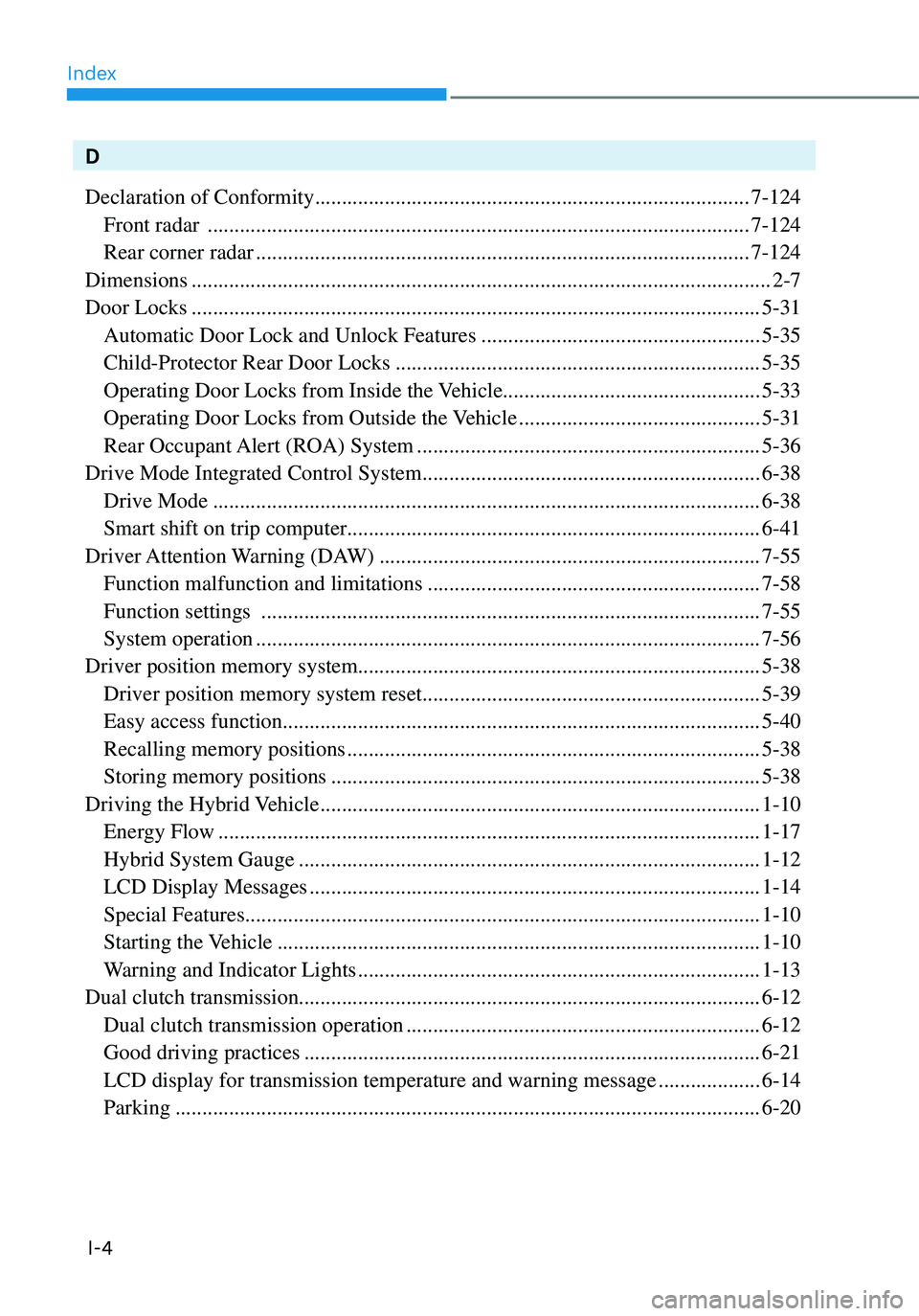

Index
I-4
D
Declaration of Conformity
........................................................................\
.........7-124
Front radar ........................................................................\
.............................7-124
Rear corner radar ........................................................................\
....................7-124
Dimensions
........................................................................\
....................................2-7
Door Locks
........................................................................\
..................................5-31
Automatic Door Lock and Unlock Features ....................................................5-35
Child-Protector Rear Door Locks ....................................................................5-35
Operating Door Locks from Inside the V ehicle................................................5-33
Operating Door Locks from Outside the V ehicle .............................................5-31
Rear Occupant Alert (ROA) System ................................................................5-36
Drive Mode Integrated Control System
...............................................................6-38
Drive Mode ........................................................................\
..............................6-38
Smart shift on trip computer ........................................................................\
.....6-41
Driver Attention Warning (DAW)
.......................................................................7-55
Function malfunction and limitations ..............................................................7-58
Function settings ........................................................................\
.....................7-55
System operation ........................................................................\
......................7-56
Driver position memory system ........................................................................\
... 5-38
Driver position memory system reset ...............................................................5-39
Easy access function ........................................................................\
.................5-40
Recalling memory positions ........................................................................\
.....5-38
Storing memory positions ........................................................................\
........5-38
Driving the Hybrid Vehicle
........................................................................\
..........1-10
Energy Flow ........................................................................\
.............................1-17
Hybrid System Gauge ........................................................................\
..............1-12
LCD Display Messages ........................................................................\
............1-14
Special Features ........................................................................\
........................1-10
Starting the Vehicle ........................................................................\
..................1-10
Warning and Indicator Lights ........................................................................\
...1-13
Dual clutch transmission ........................................................................\
.............. 6-12
Dual clutch transmission operation ..................................................................6-12
Good driving practices ........................................................................\
.............6-21
LCD display for transmission temperature and warning message ...................6-14
Parking ........................................................................\
.....................................6-20

I
I -7

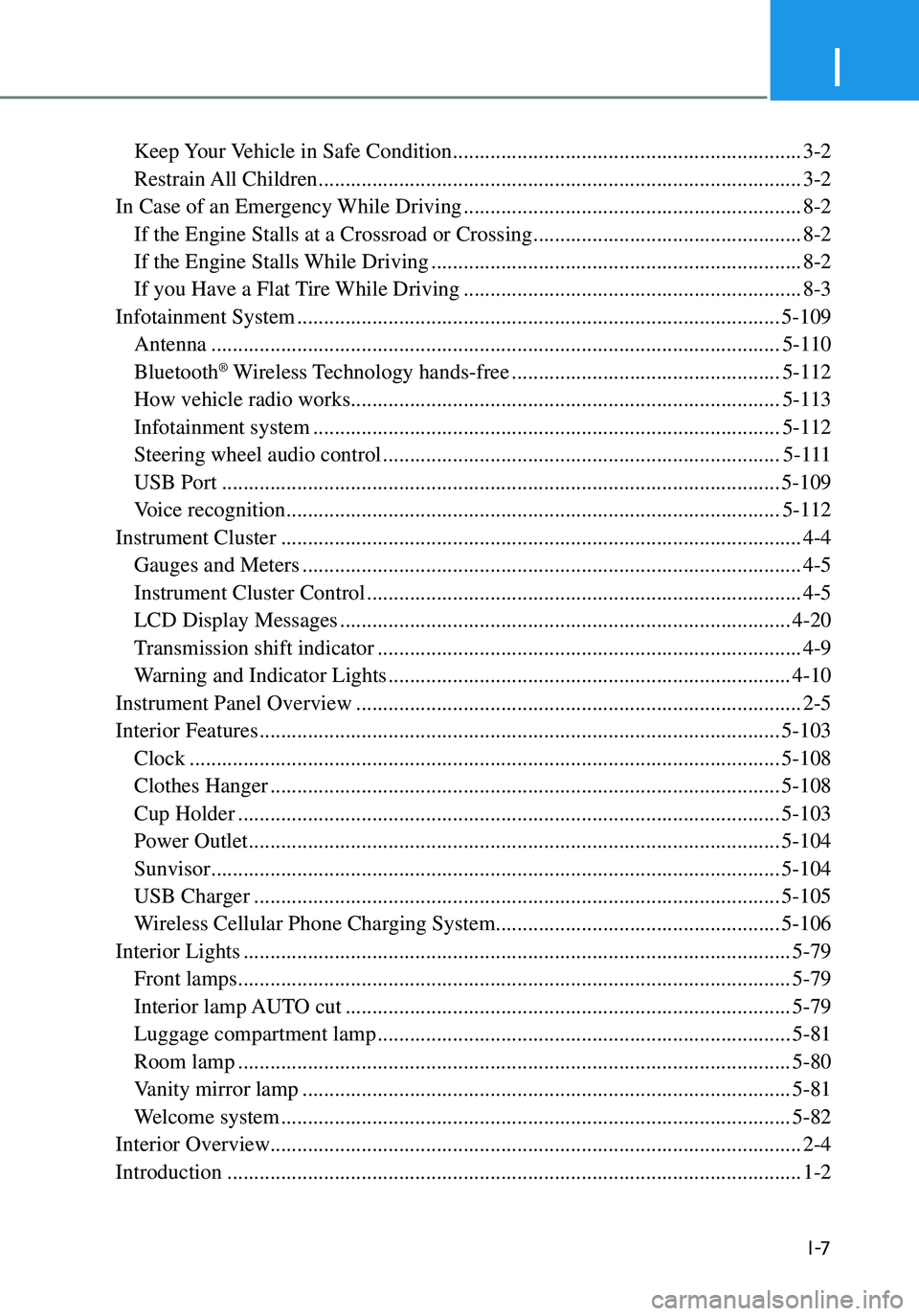

Keep Your Vehicle in Safe Condition .................................................................3-2
Restrain All Children ........................................................................\
..................3-2
In Case of an Emergency While Driving
...............................................................8-2
If the Engine Stalls at a Crossroad or Crossing ..................................................8-2
If the Engine Stalls While Driving .....................................................................8-2
If you Have a Flat T ire While Driving ...............................................................8-3
Infotainment System
........................................................................\
..................5-109
Antenna ........................................................................\
..................................5-110
Bluetooth® Wireless Technology hands-free ..................................................5-112
How vehicle radio works ........................................................................\
........5-113
Infotainment system ........................................................................\
...............5-112
Steering wheel audio control ........................................................................\
..5-111
USB Port ........................................................................\
................................5-109
Voice recognition ........................................................................\
....................5-112
Instrument Cluster
........................................................................\
.........................4-4
Gauges and Meters ........................................................................\
.....................4-5
Instrument Cluster Control ........................................................................\
.........4-5
LCD Display Messages ........................................................................\
............4-20
Transmission shift indicator ........................................................................\
.......4-9
Warning and Indicator Lights ........................................................................\
...4-10
Instrument Panel Overview
........................................................................\
...........2-5
Interior Features
........................................................................\
.........................5-103
Clock ........................................................................\
......................................5-108
Clothes Hanger ........................................................................\
.......................5-108
Cup Holder ........................................................................\
.............................5-103
Power Outlet ........................................................................\
...........................5-104
Sunvisor ........................................................................\
..................................5-104
USB Charger ........................................................................\
..........................5-105
Wireless Cellular Phone Charging System .....................................................5-106
Interior Lights
........................................................................\
..............................5-79
Front lamps ........................................................................\
...............................5-79
Interior lamp AUT O cut ........................................................................\
...........5-79
Luggage compartment lamp ........................................................................\
.....5-81
Room lamp ........................................................................\
...............................5-80
Vanity mirror lamp ........................................................................\
...................5-81
Welcome system ........................................................................\
.......................5-82
Interior Overview ........................................................................\
........................... 2-4
Introduction
........................................................................\
...................................1-2

Index
I-8
L
Lane Following Assist (LFA)
........................................................................\
.....7-88
Function malfunction and limitations ..............................................................7-91
Function operation ........................................................................\
....................7-89
Function settings ........................................................................\
......................7-88
Lane Keeping Assist (LKA)
........................................................................\
.......7-30
Function malfunction and limitations ..............................................................7-34
Function operation ........................................................................\
....................7-32
Function settings ........................................................................\
.....................7-30
LCD Display (TYPE A)
........................................................................\
..............4-27
LCD Display Control ........................................................................\
...............4-27
LCD display modes ........................................................................\
..................4-28
Trip Computer ........................................................................\
..........................4-38
User settings mode ........................................................................\
...................4-31
LCD Display (TYPE B)
........................................................................\
..............4-42
LCD Display Control ........................................................................\
...............4-42
User settings mode ........................................................................\
...................4-46
Utility group ........................................................................\
.............................4-44
View modes ........................................................................\
..............................4-43
Light Bulbs
........................................................................\
..................................9-52
Headlamp, Parking Lamp, Daytime Running Light, T urn Signal Lamp and
Side Marker ........................................................................\
..............................9-53
High mounted stop lamp replacement ..............................................................9-59
Interior Light Bulb Replacement ......................................................................9-60
License Plate Light Bulb Replacement ............................................................9-59
Rear combination lamp bulb replacement ........................................................9-56
Side repeater lamp replacement .......................................................................9-56
M
Maintenance Services
........................................................................\
....................9-4
Owner Maintenance Precautions ........................................................................\
9-4
Owner’s Responsibility ........................................................................\
..............9-4
Mirrors
........................................................................\
.........................................5-44
Inside Rearview Mirror ........................................................................\
............5-44
Side View Mirrors ........................................................................\
....................5-52

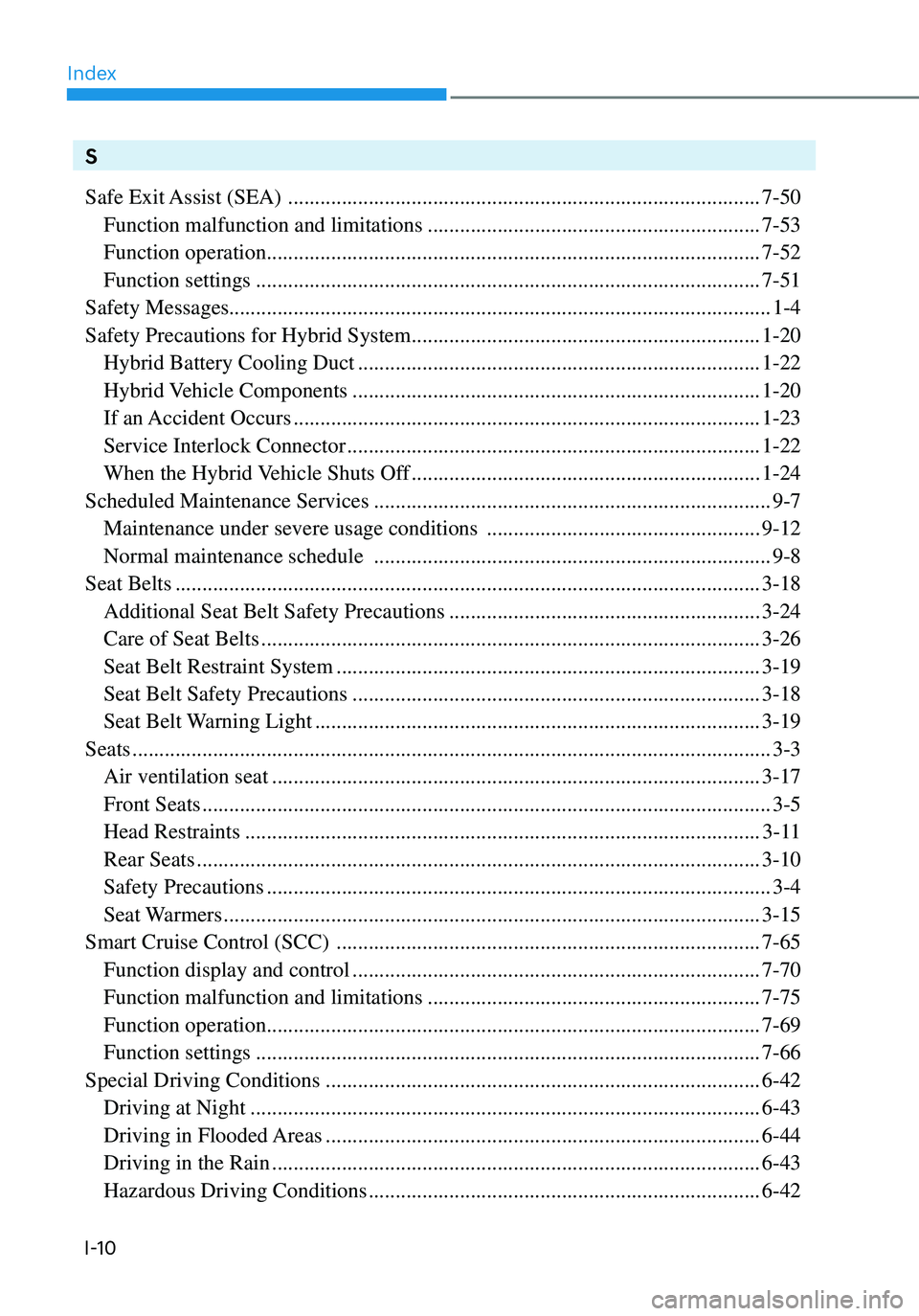

Index
I-10
S
Safe Exit Assist (SEA)
........................................................................\
................7-50
Function malfunction and limitations ..............................................................7-53
Function operation ........................................................................\
....................7-52
Function settings ........................................................................\
......................7-51
Safety Messages ........................................................................\
............................. 1-4
Safety Precautions for Hybrid System
.................................................................1-20
Hybrid Battery Cooling Duct ........................................................................\
...1-22
Hybrid Vehicle Components ........................................................................\
....1-20
If an Accident Occurs ........................................................................\
...............1-23
Service Interlock Connector ........................................................................\
.....1-22
When the Hybrid V ehicle Shuts Off .................................................................1-24
Scheduled Maintenance Services
........................................................................\
..9-7
Maintenance under severe usage conditions ...................................................9-12
Normal maintenance schedule ........................................................................\
..9-8
Seat Belts
........................................................................\
.....................................3-18
Additional Seat Belt Safety Precautions ..........................................................3-24
Care of Seat Belts ........................................................................\
.....................3-26
Seat Belt Restraint System ........................................................................\
.......3-19
Seat Belt Safety Precautions ........................................................................\
....3-18
Seat Belt Warning Light ........................................................................\
...........3-19
Seats
........................................................................\
...............................................3-3
Air ventilation seat ........................................................................\
...................3-17
Front Seats ........................................................................\
..................................3-5
Head Restraints ........................................................................\
........................3-11
Rear Seats ........................................................................\
.................................3-10
Safety Precautions ........................................................................\
......................3-4
Seat Warmers ........................................................................\
............................3-15
Smart Cruise Control (SCC)
........................................................................\
.......7-65
Function display and control ........................................................................\
....7-70
Function malfunction and limitations ..............................................................7-75
Function operation ........................................................................\
....................7-69
Function settings ........................................................................\
......................7-66
Special Driving Conditions
........................................................................\
.........6-42
Driving at Night ........................................................................\
.......................6-43
Driving in Flooded Areas ........................................................................\
.........6-44
Driving in the Rain ........................................................................\
...................6-43
Hazardous Driving Conditions ........................................................................\
.6-42
