2021 HONDA HR-V display

24
Quick Reference Guide
(P259)Models with display audio system
(Day/Night) ButtonAudio/Information Screen
VOL / (Volume/Power) Knob
(Back) Icon
(Menu) Icon
(Home) Icon
21 HR-V HDMC-31T7A6500.book 24 ページ ２０２０年９月２３日　水曜日　午前７時０分

25
Quick Reference Guide
Driving (P427)
Depress the brake pedal and press
the release button to move out of
(P.
Continuously Variable Transmission
(P444, 446)
●Shift to (P and depress the brake pedal when starting the engine.
Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
On models with paddle shifters,
7-speed mode can be used
temporarily. Drive (S)
●Better acceleration●Used to increase engine braking●Used when going up or down hills
Models without paddle shifters
Low●Used to further increase engine braking●Used when going up or down hills
Models without paddle shifters
Drive (S)
7-speed manual shift mode can
be used.
Models with paddle shifters
Move the shift lever without
pressing the release button.
Press the release button to move
the shift lever.
7-Speed Manual Shift Mode* (P448)●Allows you to manually shift the transmission up or
down without removing yo
ur hands from the steering
wheel.
When the shift lever is in (S●Pulling a paddle shifter changes the mode from
continuously variable trans mission to 7-speed manual
shift mode.
●The M indicator and the selected speed number are
displayed in the shift indicator.
When the shift lever is in (D●Pulling a paddle shifter temporarily changes the mode
from continuously variable transmission to 7-speed
manual shift mode. The selected speed number is
displayed in the shift indicator.
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
M
Indicator
Models with
paddle shiftersModels without
paddle shifters
Shift Lever
Release
Button
Shift Indicator
* Not available on all models
21 HR-V HDMC-31T7A6500.book 25 ページ ２０２０年９月２３日　水曜日　午前７時０分

40
uuFor Safe Driving uSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and your passenge rs, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors and the tailgate are
closed and locked. Locking the doors and the tailgate helps prevent an occupant
from being ejected and an outsider from unexpectedly opening a door or the
tailgate.
2 Locking/Unlocking the Doors from the Inside P. 152
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 194
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the front head restraint positions P. 201
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 46
•Protect children by using seat belts or child seats according to a child’s age, height
and weight.
2 Child Safety P. 68
1Safety Checklist
If the door and ta ilgate open indicator is on, a door
and/or the tailgate is not completely closed. Close all
doors and the tailgate tightly until the indicator goes
off. 2 Door and Tailgate Open Indicator
* P. 93
Models with information display
* Not available on all models
21 HR-V HDMC-31T7A6500.book 40 ページ ２０２０年９月２３日　水曜日　午前７時０分

41
uuFor Safe Driving uSafety Checklist
Safe Driving
1Safety Checklist
If the door and/or tailga te open message appears on
the multi-information display, a door and/or the
tailgate is not completely closed. Close all doors and
the tailgate tightly unti l the message disappears.
2 Multi-Information Display Warning and
Information Messages
* P. 104
Models with multi-information display
* Not available on all models
21 HR-V HDMC-31T7A6500.book 41 ページ ２０２０年９月２３日　水曜日　午前７時０分

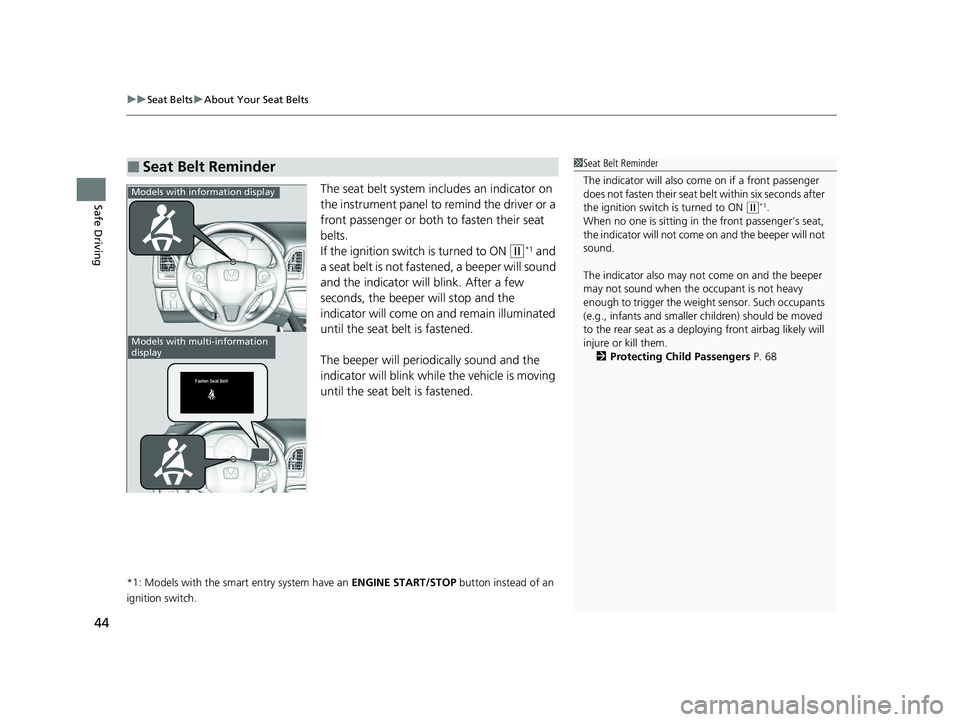

uuSeat Belts uAbout Your Seat Belts
44
Safe DrivingThe seat belt system in cludes an indicator on
the instrument panel to remind the driver or a
front passenger or both to fasten their seat
belts.
If the ignition switch is turned to ON
(w*1 and
a seat belt is not fastened, a beeper will sound
and the indicator will blink. After a few
seconds, the beeper will stop and the
indicator will come on and remain illuminated
until the seat belt is fastened.
The beeper will periodically sound and the
indicator will blink while the vehicle is moving
until the seat belt is fastened.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Seat Belt Reminder1 Seat Belt Reminder
The indicator will also co me on if a front passenger
does not fasten their seat be lt within six seconds after
the ignition switch is turned to ON
( w*1.
When no one is sitting in th e front passenger’s seat,
the indicator will not come on and the beeper will not
sound.
The indicator also may no t come on and the beeper
may not sound when the occupant is not heavy
enough to trigger the weight sensor. Such occupants
(e.g., infants and smaller children) should be moved
to the rear seat as a deploying front airbag likely will
injure or kill them. 2 Protecting Child Passengers P. 68
Models with information display
Models with multi-information
display
21 HR-V HDMC-31T7A6500.book 44 ページ ２０２０年９月２３日　水曜日　午前７時０分

64
uuAirbags uAirbag System Indicators
Safe Driving
Airbag System Indicators
If a problem occurs in the airbag system , the SRS indicator will come on and a
message appears on the multi-information display*.
■When the ignition sw itch is turned to
ON
(w*1
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time, or
does not come on at all, have the system
checked by a dealer as s oon as possible. If you
don’t, your airbags and seat belt tensioners
may not work properly when they are needed.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Supplemental Restraint System (SRS) Indicator
1 Supplemental Restraint Sy stem (SRS) Indicator
3WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if th e SRS indicator alerts
you to a possible problem.
Models with information display
Models with multi-information display
* Not available on all models
21 HR-V HDMC-31T7A6500.book 64 ページ ２０２０年９月２３日　水曜日　午前７時０分

83
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 84
Information Display Warning and Information Messages
*.................. 103
Multi-Information Display Warning and Information Messages
*.................. 104
Gauges and Displays Gauges ............................................ 117
Information Display
*........................ 119
Multi-Information Display*............... 122
* Not available on all models
21 HR-V HDMC-31T7A6500.book 83 ページ ２０２０年９月２３日　水曜日　午前７時０分

95
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Smart Entry
System
Indicator
*
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on as soon as a problem is
detected in the smart entry system
or push button starting system.•Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
System
Message
Indicator
*
• Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on along with a beep
when a problem is detected. A
system message on the multi-
information display appears at the
same time.
•While the indicator is on, press the
(information) button to see the
message again.
• Refer to the Indicators information in this
chapter when a system message appears
on the multi-information display. Take
the appropriate action for the message.
• The multi-information display does not
return to the normal screen unless the
warning is canceled, or the
button is pressed.
—
Turn Signal
and Hazard
Warning
Indicators•Blinks when you operate the turn
signal lever.
• Blink if you press the hazard
warning button.•Does not blink or blinks rapidly - A
turn signal light bulb has blown. Change
the bulb immediately.
2 Replacing Light Bulbs P. 547, 550, 551
—
High Beam
Indicator•Comes on when the high beam
headlights are on.——
* Not available on all models
21 HR-V HDMC-31T7A6500.book 95 ページ ２０２０年９月２３日　水曜日　午前７時０分
