2021 HONDA CIVIC HATCHBACK key

622
Maintenance
Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Unscrew the cover with a small Phillips-
head screwdriver.
2. Open the remote transmitter.
u Wrap the small flat-tip screwdriver with a
cloth to prevent scratching the
transmitter.
3. Remove the button battery with the small
flat-tip screwdriver.
4. Make sure to replace the battery with the
correct polarity.
■Master Keys with Remote Transmitter*
1 Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.ScrewBattery type: CR1620
Battery
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 622 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

623

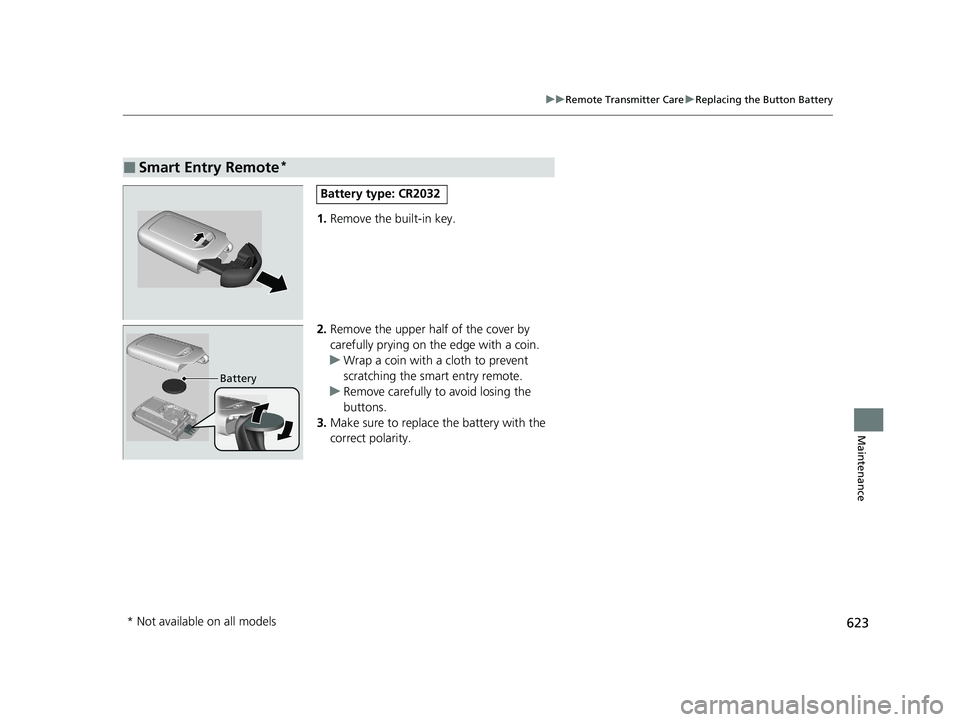

uuRemote Transmitter Care uReplacing the Button Battery
Maintenance
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the smart entry remote.
u Remove carefully to avoid losing the
buttons.
3. Make sure to replace the battery with the
correct polarity.
■Smart Entry Remote*
Battery type: CR2032
Battery
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 623 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

665
Handling the Unexpected
Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Remove the key from th e ignition switch.
2. Remove the built-in key from the smart
entry remote.
3. Move the removable beverage holder tray
rearward.
2 Front seat beverage holders P. 205
4.Wrap a cloth around the tip of a small flat-
tip screwdriver to remo ve the cover of the
shift lock release slot. Put the tip of the flat-
tip screwdriver into the slot and remove it
as shown in the image.
5. Insert the key into the shift lock release slot.
6. While pushing the key in, press the shift
lever release button, and place the shift
lever into
(N.
u The lock is now released. Have the shift
lever checked by a de aler as soon as
possible.
■Releasing the Lock
Continuously variable transmission models
Slot
Cover
Models without smart entry system
Models with smart entry system
All models
Release
Button
Shift Lock
Release Slot
21 CIVIC 5D HUM-31TGG6400_01.book 665 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

677
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Accessory10 A
2Key Lock(5 A)
3Rear Wiper Motor*(10 A)
4Front Sensor Camera*1, *
Transmission*2, *3(5 A)
(10 A)
5Option(10 A)
6SRS Indicator(10 A)
7Meter10 A
8Fuel Pump15 A*4
20 A*5
9AIRCON10 A
10−−
11Engine Control*45A
12Passenger’s Side Door Lock10 A
13Driver’s Side Rear Door Unlock10 A
14Rear Driver’s Side Power
Window(20 A)
15Front Passenger’s Side Power Window20 A
16Door Lock20 A
17Transmission*1, *3
Front Sensor Camera*2, *(10 A)(5 A)
18−−
19Moonroof(20 A)
20−−
21ACG10 A
22Daytime Running Lights(10 A)
23−−
24Front Sensor Camera*(5 A)
25Driver’s Door Lock(10 A)
26Passenger’s Side Door Unlock10 A
27Rear Passenger’s Side
Power Window(20 A)
28Driver’s Power Window20 A
Circuit ProtectedAmps
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
*4:1.5 L engine models
*5:2.0 L engine models
29Front Accessory Power
Socket20 A
30 Smart Entry
*1(10 A)
STS*2(5 A)
31Driver’s Power Seat Reclining*(20 A)
32 Front Seat Heater
*(20 A)
33Driver’s Power Seat Sliding*(20 A)
34 VSA/ABS 10 A
35SRS10 A
36 − −
37Option(10 A)
38 Driver’s Side Rear Door
Lock 10 A
39Driver’s Door Unlock(10 A)
Circuit ProtectedAmps
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 677 ページ ２０２０年８月２８日　金曜日　午後１時
４８分

700
Index
Continuously Variable TransmissionCreeping ................................................. 460
Fluid ........................................................ 591
Kickdown ................................................ 460
Operating the Shift Lever ................... 24, 462
Shift Lever Does Not Move....................... 665
Shifting.................................................... 461
Controls ..................................................... 143
Coolant (Engine) ....................................... 589
Adding the Coolant ................................. 590
Overheating............................................. 666
Creeping (Continuously Variable Transmission) ........................................... 460
Cup Holders ............................................... 205
Customer Service Information ................. 696
Customized Features ........................ 134, 350
D
Daytime Running Lights ........................... 180
Dead Battery ............................................. 662
Defaulting All the Settings ...................... 379
Defrosting the Windshield and Windows .................................................. 221
Devices that Emit Radio Waves ................ 687
Dimming Headlights ............................................... 177
Rearview Mirror ....................................... 190
Dipstick (Engine Oil) ................................. 583
Directional Signals (Turn Signal) .............. 176
Display Button .......................................... 252 Display Setup
............................................ 239
Display/Information Button ..................... 125
Door Mirrors ............................................. 192
Doors ......................................................... 145
Auto Door Locking .................................. 159
Auto Door Unlocking .............................. 159
Keys ........................................................ 145
Locking/Unlocking the Doors from the
Inside .................................................... 156
Locking/Unlocking the Doors from the Outside ................................................. 147
DOT Tire Quality Grading ........................ 612
Drive Mode Switch ................................... 473
Driver Information Interface ................... 124
Driving ...................................................... 443
Braking ................................................... 549
Continuously Variable Transmission ......... 460
Shifting Gear ........................................... 468
Shifting Position ...................................... 461
Starting the Engine.......................... 451, 454
Dust and Pollen Filter ............................... 624
E
Eco Assist System........................................ 11
ECON Mode .............................................. 472
Elapsed Time ............................................. 128
Electric Power Steering (EPS) System ........ 89
Indicator............................................ 89, 672
Electronic Stability Control (ESC) ............. 475
Emergency ................................................ 679 Emergency Engine Stop
........................... 661
Emissions Testing (Readiness Codes) ...... 689
Engine Coolant .................................................. 589
If the Battery Is Dead............................... 662
Oil .......................................................... 582
Starting........................................... 451, 454
Switch Buzzer ......................................... 171
Engine Coolant ........................................ 589
Adding the Coolant ................................ 590
Overheating ............................................ 666
Temperature Gauge ................................ 122
Engine Oil ................................................. 582
Adding ................................................... 585
Checking ................................................ 583
Displaying Oil Life ................................... 574
Low Oil Pressure Indicator ................. 84, 668
Recommended Engine Oil ....................... 582
ENGINE START/STOP Button .................... 172
EPS (Electric Power Steering) System ...... 672
Exhaust Gas Hazard (Carbon Monoxide) .. 79
Exterior Care (Cleaning) .......................... 628
Exterior Mirrors ........................................ 192F
Features.................................................... 225
Filters Dust and Pollen....................................... 624
Oil .......................................................... 586
Flat Tire ..................................................... 635
21 CIVIC 5D HUM-31TGG6400_01.book 700 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

702
Index
I
Identification Numbers............................ 686
Vehicle Identification ............................... 686
Ignition Switch .......................................... 171
Illumination Control ................................. 187
Knob ....................................................... 187
Immobilizer System .................................. 163
Immobilizer System Indicator ..................... 94
Indicators ..................................................... 82
Adaptive Cruise Control (ACC) with Low Speed Follow .......................... 100, 501
Anti-lock Brake System (ABS) ..................... 89
Auto High-Beam ........................................ 93
Automatic Brake Hold........................ 84, 553
Automatic Brake Hold System ............ 84, 553
Charging System ............................... 85, 668
Collision Mitigation Braking System
TM (CMBSTM) ................ 101, 102, 103
Drive Mode................................................ 93
ECON Mode ...................................... 95, 472
Electric Power Steering (EPS) System .. 89, 672
Fog Light ................................................... 93
Gear Position ............................................. 87
High Beam................................................. 92
Immobilizer System .................................... 94
Lane Keeping Assist System (LKAS) .. 100, 535
Lights On ................................................... 92
Low Fuel .................................................... 88
Low Oil Pressure ................................ 84, 668
Low Tire Pressure/TPMS ............. 91, 482, 486 M (7-speed manual shift mode) Indicator/
Shift Indicator .......................................... 86
Malfunction Indicator Lamp............... 85, 669
Parking Brake and Brake System (Amber) .. 83
Parking Brake a nd Brake System
(Red) ....................................... 82, 670, 671
Road Departure Mitigation (RDM) ............. 96
Seat Belt Reminder .............................. 42, 88
Security System Alarm ............................... 95
Shift Down ................................................ 86
Shift Lever Position .................................... 86
Shift Up..................................................... 86
Supplemental Restraint System ............ 60, 89
System Message ........................................ 92
Transmission System.................................. 86
Turn Signal and Hazard Warning ............... 92
Vehicle Stability Assist
TM (VSA ®) OFF .. 90, 476
Vehicle Stability AssistTM (VSA ®)
System ............................................ 90, 475
Information .............................................. 683
Instant Fuel Economy ............................... 129
Instrument Panel ........................................ 81
Brightness Control................................... 187
Interior Lights ........................................... 201
Interior Rearview Mirror .......................... 190
iPod ........................................................... 291
J
Jack (Wheel Nut Wrench) ........................ 652
Handling of the Jack................................ 656 Jump Starting
........................................... 662
K
Key Number Tag ...................................... 146
Keys ........................................................... 145
Number Tag............................................ 146
Rear Door Won’t Open ........................... 158
Remote Transmitter ................................ 153
Types and Functions................................ 145
Won’t Turn ............................................... 30
Kickdown (Continuously Variable Transmission) .......................................... 460
L
Lane Keeping Assist System (LKAS) ........ 533
LaneWatchTM............................................ 480
Language (HFL) ........................................ 412
LATCH (Child Seats) ................................... 69
Lights ................................................ 177, 594
Automatic............................................... 178
Bulb Replacement ................................... 594
Daytime Running Lights .......................... 180
Fog Lights ............................................... 180
High Beam Indicator ................................. 92
Interior.................................................... 201
Light Switches......................................... 177
Lights On Indicator .................................... 92
Turn Signals ............................................ 176
Limited Slip Differential (LSD) ................. 479
21 CIVIC 5D HUM-31TGG6400_01.book 702 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

703
Index
Load Limits............................................... 447
Locking/Unlocking ................................... 145
Auto Door Locking/Unlocking ................. 159
Childproof Door Locks ............................ 158
From Inside ............................................. 156
From Outside .......................................... 147
Keys........................................................ 145
Using a Key............................................. 154
Low Battery Charge ................................. 668
Low Fuel Indicator ..................................... 88
Low Oil Pressure Indicator ................. 84, 668
Low Smart Entry Remote Signal Strength .................................................. 146
Lower Anchors ........................................... 69
Luggage (Maximum Load Limit) ............. 447
M
Maintenance............................................ 569
Adding the Coolant ................................ 590
Battery .................................................... 620
Brake/Clutch Fluid ................................... 592
Cleaning ................................................. 625
Climate Control System .......................... 624
Coolant .................................................. 589
Maintenance Minder
TM............................ 573
Oil .......................................................... 583
Precautions ............................................. 570
Remote Transmitter ................................ 622
Replacing Light Bulbs .............................. 594
Safety ..................................................... 571 Service Items ........................................... 576
Tires ........................................................ 609
Transmission Fluid ................................... 591
Under the Hood ...................................... 579
Malfunction Indicator Lamp .............. 85, 669
Manual Transmission ................................ 468
Map Lights ................................................ 202
Maximum Load Limit ............................... 447
Meters, Gauges ......................................... 122
Mirrors ....................................................... 190
Adjusting ................................................. 190
Door ........................................................ 192
Exterior .................................................... 192
Interior Rearview ..................................... 190
Modifications (and Accessories) .............. 631
Moonroof .................................................. 170
MP3 ................................................... 245, 300
Multi-View Rear Camera .......................... 560
N
Numbers (Identification).......................... 686
O
Odometer.................................................. 127
Oil (Engine) ............................................... 582
Adding .................................................... 585
Checking ................................................. 583
Displaying Oil Life .................................... 574
Low Oil Pressure Indicator .................. 84, 668 Recommended Engine Oil ....................... 582
Viscosity .................................................. 582
Open Source Licenses ............................... 341
Opening Hatch ...................................................... 681
Opening/Closing Hatch ...................................................... 160
Hood....................................................... 581
Moonroof ............................................... 170
Power Windows ...................................... 167
Outside Temperature Display .................. 129
Overheating .............................................. 666
P
Paddle Shifters (7-Speed Manual
Shift Mode) ............................... 25, 465, 466
Pandora ®................................................. 298
Panic Mode ............................................... 166
Parking ...................................................... 558
Parking Brake ........................................... 549
Parking Brake and Brake System Indicator (Amber) ..................................... 83
Parking Brake and Brake System
Indicator (Red) .......................... 82, 670, 671
Passenger Front Airb ag Off Indicator....... 61
Passing Indicators ..................................... 177
Playing Bluetooth ® Audio ................ 248, 303
Power Windows ....................................... 167
Precautions While Driving ....................... 459
Rain ........................................................ 459
21 CIVIC 5D HUM-31TGG6400_01.book 703 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分
