5-156
Driving your vehicle
Check spark plugs and ignition
system
Inspect your spark plugs as
described in chapter 7 and replace
them if necessary. Also check all
ignition wiring and components to be
sure they are not cracked, worn or
damaged in any way.
Use approved window washer
anti-freeze in system
To keep the water in the window
washer system from freezing, add an
approved window washer anti-freeze
solution in accordance with instruc-
tions on the container. Window wash-
er anti-freeze is available from an
authorized retailer of Genesis
Branded products and most auto
parts outlets. Do not use engine
coolant or other types of anti-freeze
as these may damage the paint fin-
ish.
Do not let your parking brake
freeze
Under some conditions your parking
brake can freeze in the engaged
position. This is most likely to happen
when there is an accumulation of
snow or ice around or near the rear
brakes or if the brakes are wet. If
there is a risk the parking brake may
freeze, apply it only temporarily while
you put the gear in P and block the
rear wheels so the car cannot roll.
Then release the parking brake.
Do not let ice and snow accu-
mulate underneath
Under some conditions, snow and
ice can build up under the fenders
and interfere with the steering. When
driving in severe winter conditions
where this may happen, you should
periodically check underneath the
car to be sure the movement of the
front wheels and the steering compo-
nents is not obstructed.
Don't place foreign objects or
materials in the engine com-
partment
Placement of foreign object or mate-
rials which prevent cooling of the
engine, in the engine compartment,
may cause a failure or combustion.
The manufacturer is not responsible
for the damage caused by such
placement.
To keep locks from freezing
To keep the locks from freezing,
squirt an approved de-icer fluid or
glycerine into the key opening. If a
lock is covered with ice, squirt it with
an approved de-icing fluid to remove
the ice. If the lock is frozen internally,
you may be able to thaw it out by
using a heated key. Handle the heat-
ed key with care to avoid injury.

7-9
07
Normal Maintenance Schedule (5.0 GDI)The following maintenance services must be performed to ensure good emission control and performance.
Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown,
the frequency of service is determined by whichever occurs first.I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*1: The drive belt should be replaced when cracks occur or tension is reduced.
*2: If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your
authorized retailer of Genesis Branded products along with information on how to use them. Do not mix other additives.
Number of months or driving distance, whichever comes first
180112.5180
At first, inspect at 60,000 miles (96,000 km) or 72 months,
after that, inspect every 15,000 miles (24,000 km) or 24 months
R
Add every 7,500 miles (12,000 km) or 12 months
I
Replace every 97,500 miles (156,000 km) Rotate every 7,500 miles (12,000 km)
R
168105168RIR
15697.5156RIR
14490144RRR
13282.5132RIR
12075120RIR
10867.5108RIR
966096RRR
8452.584RIR
724572RIR
6037.560RIR
483048RRR
3622.536RIR
241524RIR
127.512RIR
MonthsMiles×1,000Km×1,000
Drive belts *
1
Engine oil and engine oil filterFuel additives *
2
Air cleaner filterSpark plugsRotate tiresClimate control air filter
(for evaporator and blower unit)
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM

7-12
Maintenance
The following items must be serviced more frequently on cars normally used
under severe driving conditions. Refer to the chart below for the appropriate
maintenance intervals.
R : Replace
I : Inspect and, after inspection, clean, adjust, repair or replace if necessary

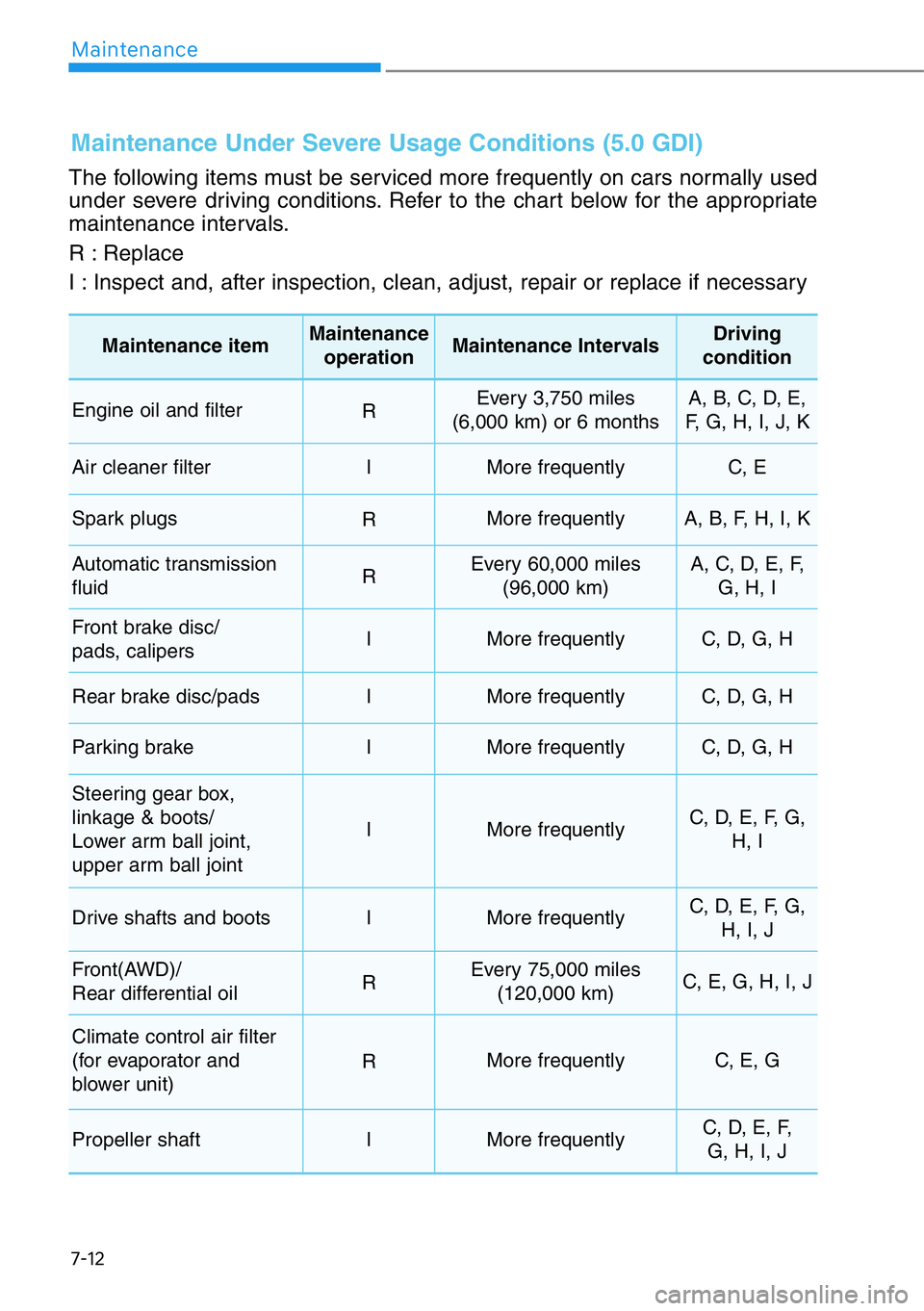

Maintenance Under Severe Usage Conditions (5.0 GDI)
Maintenance itemMaintenance
operationMaintenance IntervalsDriving
condition
Engine oil and filterREvery 3,750 miles
(6,000 km) or 6 monthsA, B, C, D, E,
F, G, H, I, J, K
Air cleaner filterIMore frequentlyC, E
Spark plugs RMore frequentlyA, B, F, H, I, K
Automatic transmission
fluidREvery 60,000 miles
(96,000 km) A, C, D, E, F,
G, H, I
Front brake disc/
pads, calipersIMore frequentlyC, D, G, H
Rear brake disc/padsIMore frequentlyC, D, G, H
Parking brakeIMore frequentlyC, D, G, H
Steering gear box,
linkage & boots/
Lower arm ball joint,
upper arm ball joint
IMore frequentlyC, D, E, F, G,
H, I
Drive shafts and bootsIMore frequentlyC, D, E, F, G,
H, I, J
Front(AWD)/
Rear differential oilREvery 75,000 miles
(120,000 km)C, E, G, H, I, J
Climate control air filter
(for evaporator and
blower unit)
RMore frequentlyC, E, G
Propeller shaftIMore frequentlyC, D, E, F,
G, H, I, J

7-14
Maintenance
Normal Maintenance Schedule (3.3 Turbo-GDI)I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*1: The drive belt should be replaced when cracks occur or tension is reduced.
*2: If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your
authorized retailer of Genesis Branded products along with information on how to use them. Do not mix other additives.
*3: Inspect for excessive valve noise and/or engine vibration and adjust if necessary. Have an authorized retailer of Genesis
Branded products perform the operation.
Number of months or driving distance, whichever comes first
18090150
At first, inspect at 60,000 miles (100,000 km) or 72 months,
after that, inspect every 12,000 miles (20,000 km) or 24 months
R
Add every 6,000 miles (10,000 km) or 12 months
R
Replace every 42,000 miles (70,000 km)
Inspect every 60,000 miles (100,000 km) or 72 months
Rotate every 6,000 miles (10,000 km)
R
16884140RIR
15678130RIR
14472120RRR
13266110RIR
12060100RIR
1085490RRR
964880RIR
844270RIR
723660RRR
603050RIR
482440RIR
361830RRR
241220RIR
12610RIR
MonthsMiles×1,000Km×1,000
Drive belts *
1
Engine oil and engine oil filterFuel additives *
2
Air cleaner filterSpark plugsValve clearance *
3
Rotate tiresClimate control air filter
(for evaporator and blower unit)
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM

7-17
07
The following items must be serviced more frequently on cars normally used
under severe driving conditions. Refer to the chart below for the appropriate
maintenance intervals.
R : Replace
I : Inspect and, after inspection, clean, adjust, repair or replace if necessary
Maintenance Under Severe Usage Conditions (3.3 Turbo-GDI)
Maintenance itemMaintenance
operationMaintenance IntervalsDriving
condition
Engine oil and filterREvery 3,000 miles
(5,000 km) or 6 monthsA, B, C, D, E,
F, G, H, I, J, K
Air cleaner filterIMore frequentlyC, E
Spark plugs RMore frequentlyA, B, F, H, I, K
Automatic transmission
fluidREvery 60,000 miles
(100,000 km) A, C, D, E, F,
G, H, I
Front brake disc/
pads, calipersIMore frequentlyC, D, G, H
Rear brake disc/padsIMore frequentlyC, D, G, H
Parking brakeIMore frequentlyC, D, G, H
Steering gear box,
linkage & boots/
Lower arm ball joint,
upper arm ball joint
IMore frequentlyC, D, E, F, G,
H, I
Drive shafts and bootsIMore frequentlyC, D, E, F, G,
H, I, J
Front (AWD)/
Rear differential oilREvery 72,000 miles
(120,000 km)C, E, G, H, I, J
Climate control air filter
(for evaporator and
blower unit)
RMore frequentlyC, E, G
Propeller shaftIMore frequentlyC, D, E, F,
G, H, I, J

7-19
07
Engine Oil and Filter
The engine oil and filter should be
changed at the intervals specified in
the maintenance schedule. If the
vehicle is being driven in severe con-
ditions, more frequent oil and filter
changes are required.
Drive Belts
Inspect all drive belts for evidence of
cuts, cracks, excessive wear or oil
saturation and replace if necessary.
Drive belts should be checked peri-
odically for proper tension and
adjusted as necessary.
Fuel Filter
A clogged-up fuel filter may limit the
vehicle driving speed, damage the
emission system, and cause the
hard starting. When a considerable
amount of foreign substances are
accumulated in the fuel tank, the fuel
filter should be replaced.
Upon installing a new fuel filter, oper-
ate the engine for several minutes,
and check the connections for any
leakages. Fuel filters should be
installed by an authorized retailer of
Genesis Branded products.
Fuel Lines, Fuel Hoses and
Connections
Check the fuel lines, fuel hoses and
connections for leakage and dam-
age. Have an authorized retailer of
Genesis Branded products replace
any damaged or leaking parts imme-
diately.
Vapor Hose and Fuel Filler
Cap
The vapor hose and fuel filler cap
should be inspected at those inter-
vals specified in the maintenance
schedule. Make sure a new vapor
hose or fuel filler cap is correctly
replaced.
Air Cleaner Filter
A Genesis air cleaner filter is recom-
mended when the filter is replaced.
Spark Plugs
Make sure to install new spark plugs
of the correct heat range.
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS
