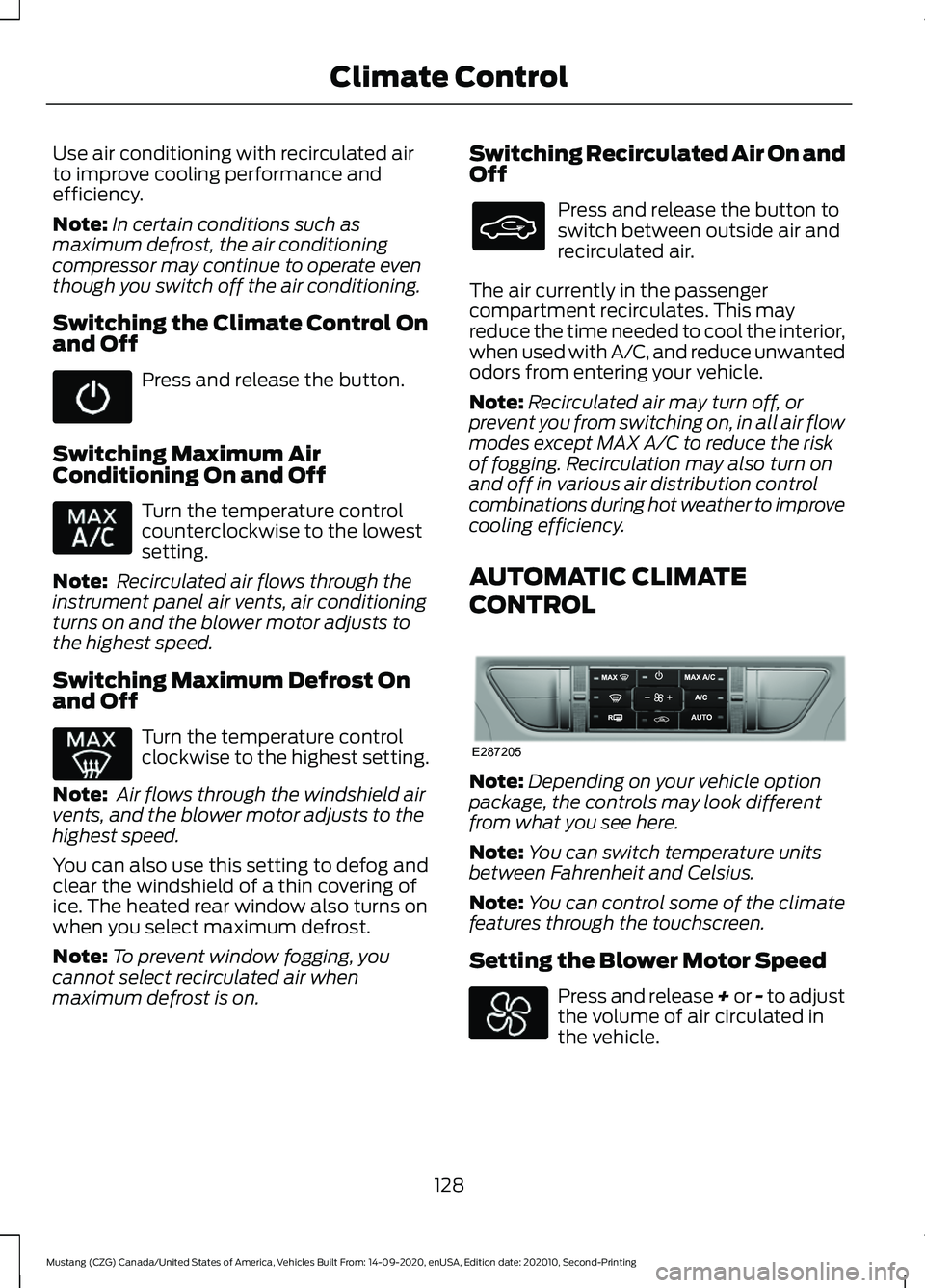

Use air conditioning with recirculated air
to improve cooling performance and
efficiency.
Note:
In certain conditions such as
maximum defrost, the air conditioning
compressor may continue to operate even
though you switch off the air conditioning.
Switching the Climate Control On
and Off Press and release the button.
Switching Maximum Air
Conditioning On and Off Turn the temperature control
counterclockwise to the lowest
setting.
Note: Recirculated air flows through the
instrument panel air vents, air conditioning
turns on and the blower motor adjusts to
the highest speed.
Switching Maximum Defrost On
and Off Turn the temperature control
clockwise to the highest setting.
Note: Air flows through the windshield air
vents, and the blower motor adjusts to the
highest speed.
You can also use this setting to defog and
clear the windshield of a thin covering of
ice. The heated rear window also turns on
when you select maximum defrost.
Note: To prevent window fogging, you
cannot select recirculated air when
maximum defrost is on. Switching Recirculated Air On and
Off Press and release the button to
switch between outside air and
recirculated air.
The air currently in the passenger
compartment recirculates. This may
reduce the time needed to cool the interior,
when used with A/C, and reduce unwanted
odors from entering your vehicle.
Note: Recirculated air may turn off, or
prevent you from switching on, in all air flow
modes except MAX A/C to reduce the risk
of fogging. Recirculation may also turn on
and off in various air distribution control
combinations during hot weather to improve
cooling efficiency.
AUTOMATIC CLIMATE
CONTROL Note:
Depending on your vehicle option
package, the controls may look different
from what you see here.
Note: You can switch temperature units
between Fahrenheit and Celsius.
Note: You can control some of the climate
features through the touchscreen.
Setting the Blower Motor Speed Press and release + or - to adjust
the volume of air circulated in
the vehicle.
128
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Climate Control E287205

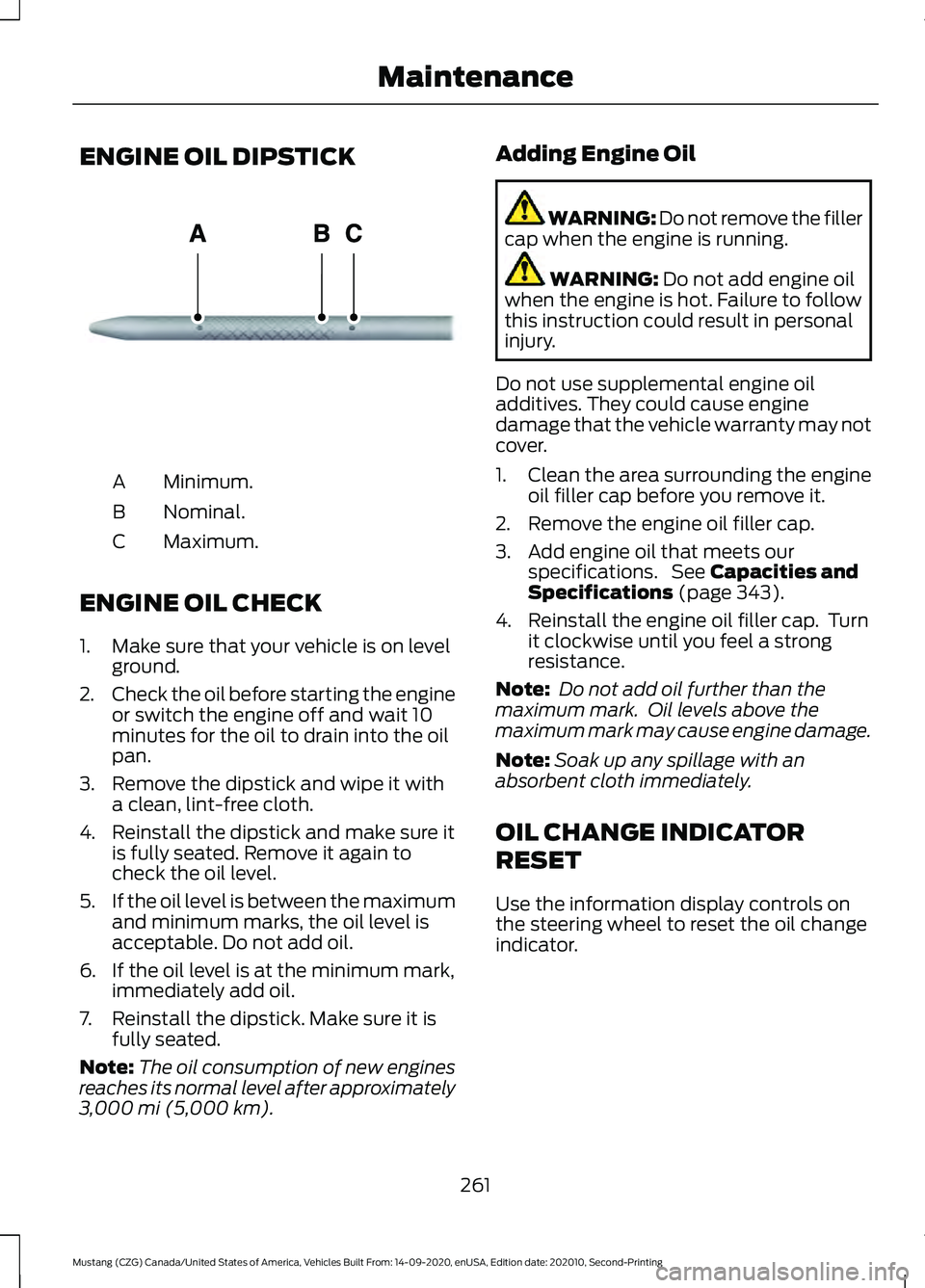

ENGINE OIL DIPSTICK
Minimum.
A
Nominal.
B
Maximum.
C
ENGINE OIL CHECK
1. Make sure that your vehicle is on level ground.
2. Check the oil before starting the engine
or switch the engine off and wait 10
minutes for the oil to drain into the oil
pan.
3. Remove the dipstick and wipe it with a clean, lint-free cloth.
4. Reinstall the dipstick and make sure it is fully seated. Remove it again to
check the oil level.
5. If the oil level is between the maximum
and minimum marks, the oil level is
acceptable. Do not add oil.
6. If the oil level is at the minimum mark, immediately add oil.
7. Reinstall the dipstick. Make sure it is fully seated.
Note: The oil consumption of new engines
reaches its normal level after approximately
3,000 mi (5,000 km). Adding Engine Oil WARNING: Do not remove the filler
cap when the engine is running. WARNING:
Do not add engine oil
when the engine is hot. Failure to follow
this instruction could result in personal
injury.
Do not use supplemental engine oil
additives. They could cause engine
damage that the vehicle warranty may not
cover.
1. Clean the area surrounding the engine oil filler cap before you remove it.
2. Remove the engine oil filler cap.
3. Add engine oil that meets our specifications. See
Capacities and
Specifications (page 343).
4. Reinstall the engine oil filler cap. Turn it clockwise until you feel a strong
resistance.
Note: Do not add oil further than the
maximum mark. Oil levels above the
maximum mark may cause engine damage.
Note: Soak up any spillage with an
absorbent cloth immediately.
OIL CHANGE INDICATOR
RESET
Use the information display controls on
the steering wheel to reset the oil change
indicator.
261
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing MaintenanceE270482

Note:
Prior to relearning the battery state
of charge, the battery management system
may temporarily disable some electrical
systems.
Electrical Accessory Installation
To make sure the battery management
system works correctly, do not connect an
electrical device ground connection
directly to the battery negative post. This
can cause inaccurate measurements of
the battery condition and potential
incorrect system operation.
Note: If you add electrical accessories or
components to the vehicle, it may adversely
affect battery performance and durability.
This may also affect the performance of
other electrical systems in the vehicle.
Remove and Reinstall the Battery
To disconnect or remove the battery, do
the following:
1. Apply the parking brake and switch the
ignition off.
2. Switch all electrical equipment off, for
example lights and radio.
3. Wait a minimum of two minutes before
disconnecting the battery.
Note: The engine management system has
a power hold function and remains powered
for a period of time after you switch the
ignition off. This is to allow diagnostic and
adaptive tables to be stored. Disconnecting
the battery without waiting can cause
damage not covered by the vehicle
Warranty.
4. Disconnect the negative battery cable terminal.
5. Disconnect the positive battery cable terminal.
6. Remove the battery securing clamp.
7. Remove the battery. 8. To install, reverse the removal
procedure.
Note: Before reconnecting the battery,
make sure the ignition remains switched off.
Note: Make sure the battery cable terminals
are fully tightened.
If you disconnect or replace the vehicle
battery, you must reset the following
features:
• Window bounce-back. See Power
Windows (page 86).
• Clock Settings.
• Pre-set radio stations.
Battery Disposal Make sure that you dispose of
old batteries in an
environmentally friendly way.
Seek advice from your local authority
about recycling old batteries.
ADJUSTING THE HEADLAMPS
Vertical Aim Adjustment
The headlamps on your vehicle are
properly aimed at the assembly plant. If
your vehicle has been in an accident, have
the alignment of your headlamps checked
by an authorized dealer.
272
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing MaintenanceE107998

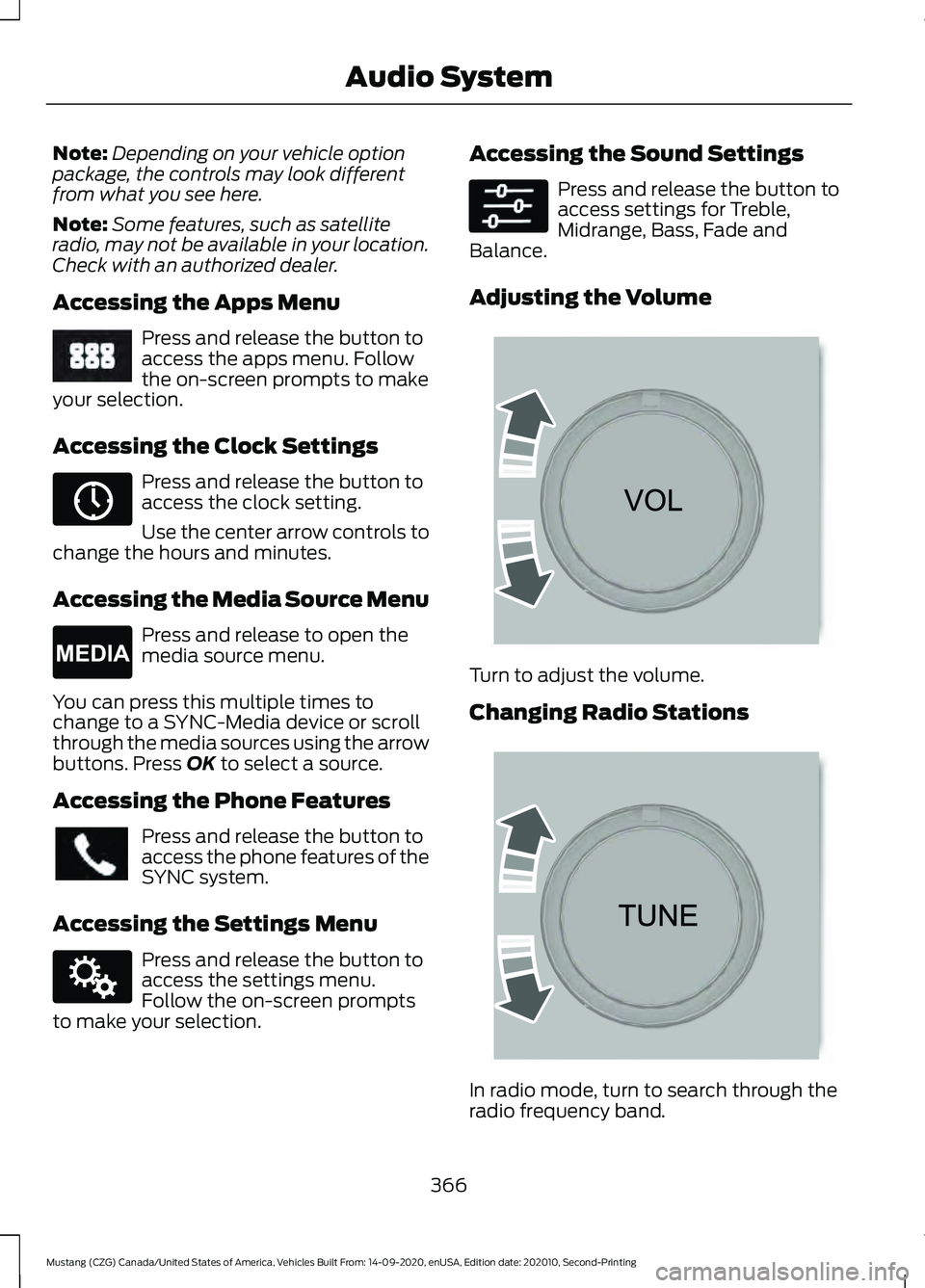

Note:
Depending on your vehicle option
package, the controls may look different
from what you see here.
Note: Some features, such as satellite
radio, may not be available in your location.
Check with an authorized dealer.
Accessing the Apps Menu Press and release the button to
access the apps menu. Follow
the on-screen prompts to make
your selection.
Accessing the Clock Settings Press and release the button to
access the clock setting.
Use the center arrow controls to
change the hours and minutes.
Accessing the Media Source Menu Press and release to open the
media source menu.
You can press this multiple times to
change to a SYNC-Media device or scroll
through the media sources using the arrow
buttons. Press OK to select a source.
Accessing the Phone Features Press and release the button to
access the phone features of the
SYNC system.
Accessing the Settings Menu Press and release the button to
access the settings menu.
Follow the on-screen prompts
to make your selection. Accessing the Sound Settings Press and release the button to
access settings for Treble,
Midrange, Bass, Fade and
Balance.
Adjusting the Volume Turn to adjust the volume.
Changing Radio Stations
In radio mode, turn to search through the
radio frequency band.
366
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Audio SystemE249410 E265036 E265035 E142607 E265373 E265696

GENERAL INFORMATION
WARNING: Driving while distracted
can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.
About SYNC
The system allows you to interact with the
entertainment, information and
communication systems on your vehicle
using voice commands and a touchscreen.
The system provides easy interaction with
audio, phone, navigation, mobile apps and
settings.
Note: You can switch the system on and
use it for up to an hour without switching
the ignition on.
Note: You can use the system after you
switch the ignition off for up to 10 minutes
or until you open a door.
Note: For your safety, some features are
speed-dependent. Their use is limited to
when your vehicle speed is less than 3 mph
(5 km/h). Using the Touchscreen
Status bar.
A
Home screen.
B
Clock. See Settings (page 423).
C
Outside air temperature.
D
Feature bar.
E
Status Bar Cell phone microphone muted.
Audio system muted.
Software update installed.
Wi-Fi connected.
Cell phone roaming.
Text message received.
392
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing SYNC™ 3
(If Equipped)E293823

Action and Description
Menu Item
Select to choose from a listing of
weather locations.
Area
Touch this button to view scores and schedules from a variety
of sports. You can also save up to 10 favorite teams for easier
access. The score automatically refreshes when a game is in
progress.
Sports Info
Touch this button to view ski conditions for a specific area.
Ski Conditions
SETTINGS Press the button to enter the
settings menu.
Once you select a tile, press the
button next to a menu item to
view an explanation of the
feature or setting.
Sound
Select this tile to adjust the sound settings.
Clock
Select this tile to adjust the clock settings.
Bluetooth®
Select this tile to switch Bluetooth® on
and off and adjust the settings.
Phone
Select this tile to connect, disconnect, and
manage the connected device settings.
Audio
Select this tile to adjust the audio settings. Driver Assist
(If Equipped)
Select this tile to adjust Driver Assist
features like Parking Aids, Lane Keeping
System, Pedestrian Detection, and
Auto-Start-Stop.
Vehicle
Select this tile to adjust vehicle settings
like windows, alarm, lighting, and MyKey
settings.
FordPass
Select this tile to adjust the FordPass
settings.
General
Select this tile to adjust settings like
language, measurement units, or to reset
the system.
911 Assist
(If Equipped)
Select this tile to switch 911 Assist on and
off.
Automatic Updates
Select this tile to adjust the automatic
update settings.
Mobile Apps
Select this tile to adjust permissions,
enable, disable, and update mobile apps.
423
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing SYNC™ 3
(If Equipped)E280315 E268570

A
A/C
See: Climate Control.......................................... 127
About This Manual...........................................9
About This Supplement - Mach 1...............9 Mach 1 History........................................................ 10
ABS See: Brakes............................................................. 171
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes.................................................................. 171
Accessories....................................................438
Accessories See: Replacement Parts
Recommendation............................................ 19
ACC See: Using Adaptive Cruise Control............185
Adjusting the Headlamps.........................272
Horizontal Aim Adjustment............................ 274
Vertical Aim Adjustment................................. 272
Adjusting the Steering Wheel....................75
Airbag Disposal...............................................57
Air Conditioning See: Climate Control.......................................... 127
Air Filter See: Changing the Engine Air Filter - 2.3L
EcoBoost™/5.0L.......................................... 263
See: Changing the Engine Air Filter - 5.0L, Mach 1............................................................... 262
Alarm See: Anti-Theft Alarm......................................... 74
Ambient Lighting
............................................83
Anti-Theft Alarm............................................74
Arming the Alarm................................................. 74
Disarming the Alarm........................................... 74
Appendices....................................................483
Apps
.................................................................420
SiriusXM Traffic and Travel Link...................422
Using Apps on an Android Device................421
Using Apps on an iOS Device......................... 421
Using Mobile Navigation on an Android Device................................................................. 421
At a Glance
.......................................................23
Audible Warnings and Indicators.............97 Beltminder Warning............................................ 98
Direction Indicator Left On............................... 98
Headlamps On Warning Tone......................... 97Keyless Warning Alert.........................................
97
Parking Brake On Warning Tone.....................97
Transmission Not in Park.................................. 98
Audio Control
...................................................75
You can operate the following functions
with the control:............................................... 75
Audio System
................................................365
General Information......................................... 365
Audio Unit - Vehicles With: 4.2 Inch Information and Entertainment Display
Screen...........................................................365
Accessing the Apps Menu.............................. 366
Accessing the Clock Settings.......................366
Accessing the Media Source Menu............366
Accessing the Phone Features.....................366
Accessing the Settings Menu.......................366
Accessing the Sound Settings.....................366
Adjusting the Volume...................................... 366
Changing Radio Stations............................... 366
Listening to the Radio...................................... 367
Muting the Audio................................................ 367
Playing or Pausing Media................................ 367
Switching the Audio Unit On and Off.........367
Switching the Display On and Off...............367
Using Seek, Fast Forward and Reverse .............................................................. 367
Using the Display Control............................... 367
Using the Number Block................................. 367
Audio Unit - Vehicles With: 8 Inch Information and Entertainment Display
Screen...........................................................367
Accessing the Sound Settings.....................368
Adjusting the Volume...................................... 368
Changing Radio Stations............................... 368
Ejecting the CD................................................... 368
Inserting a CD..................................................... 368
Playing or Pausing Media............................... 368
Switching the Audio Unit On and Off........368
Using Seek, Fast Forward and Reverse............................................................. 369
Autolamps
.........................................................81
Windshield Wiper Activated
Headlamps......................................................... 81
Automatic Climate Control......................128 Setting the Blower Motor Speed..................128
Setting the Temperature................................. 129
Switching Auto Mode On and Off................129
Switching Defrost On and Off.......................129
513
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Index

Reporting Safety Defects (Canada
Only)..............................................................243
Reporting Safety Defects (U.S. Only)..............................................................243
Reprogramming the Garage Door Opener...........................................................144
Resuming the Set Speed...........................185
Roadside Assistance..................................232 Vehicles Sold in Canada: Getting Roadside
Assistance....................................................... 233
Vehicles Sold in the United States: Getting Roadside Assistance................................... 232
Vehicles Sold in the United States: Using Roadside Assistance................................... 232
Roadside Emergencies
..............................232
Running-In See: Breaking-In................................................. 230
Running Out of Fuel....................................154 Adding Fuel From a Portable Fuel
Container.......................................................... 155
Filling a Portable Fuel Container.................. 154
S
Safety Canopy ™ - Coupe
...........................54
Safety Precautions.......................................152
Satellite Radio................................................371 Satellite Radio Electronic Serial Number
(ESN)................................................................. 372
Satellite Radio Reception Factors...............372
SiriusXM Satellite Radio Service.................. 372
Troubleshooting................................................. 373
Scheduled Maintenance...........................441
Seatbelt Extensions......................................46
Seatbelt Reminder
........................................44
Seatbelt Status..................................................... 45
Seatbelts...........................................................40 Principle of Operation........................................ 40
Seatbelt Warning Lamp and Indicator Chime..............................................................43
Conditions of operation..................................... 44
Seats.................................................................134
Security...............................................................73
Settings...........................................................423 ........................................................................\
.......... 423
911 Assist............................................................... 423
Ambient Lighting............................................... 424
Audio...................................................................... 423Automatic Updates..........................................
423
Charge Settings.................................................. 424
Clock....................................................................... 423
Display................................................................... 424
Driver Assist......................................................... 423
FordPass............................................................... 423
General.................................................................. 423
Message Center.................................................. 424
Mobile Apps......................................................... 423
Multi Contour Seats.......................................... 424
Navigation............................................................ 424
Personal Profiles................................................ 424
Phone..................................................................... 423
Seats....................................................................... 424
Sound..................................................................... 423
Valet Mode........................................................... 424
Vehicle.................................................................... 423
Voice Control....................................................... 424
Setting the Cruise Control Speed
..........184
Changing the Set Speed.................................. 184
Side Airbags
.....................................................53
Sitting in the Correct Position..................134
Snow Chains See: Using Snow Chains................................. 323
Spare Wheel See: Changing a Road Wheel....................... 328
Special Notices
...............................................20
New Vehicle Limited Warranty....................... 20
On Board Diagnostics Data Link Connector.......................................................... 20
Special Instructions............................................ 20
Special Operating Conditions Scheduled Maintenance...............................................447
Exceptions........................................................... 449
Speed Control See: Cruise Control............................................ 184
Stability Control
.............................................175
Principle of Operation....................................... 175
Starting a Gasoline Engine.......................148 Automatic Engine Shutdown........................ 149
Failure to Start..................................................... 149
Fast Restart.......................................................... 149
Guarding Against Exhaust Fumes...............150
Important Ventilating Information..............150
Stopping the Engine When Your Vehicle is Moving............................................................... 150
Stopping the Engine When Your Vehicle is Stationary......................................................... 150
523
Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-09-2020, enUSA, Edition date: 202010, Second-Printing Index
